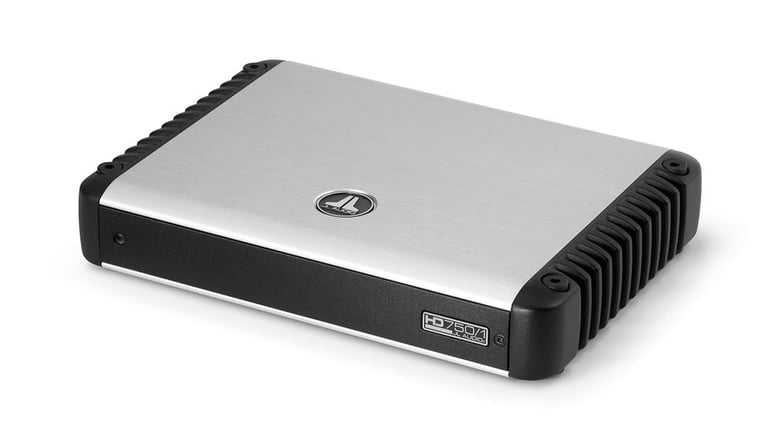

JL Audio HD750/1 (Open Box, Great)

750W RMS Class D HD Series Monoblock Car Amplifier

JL Audio
Shop all JL Audio
highlight-star-icon

• 750 watts x 1 channel @ 4 ohm
• 750 watts x 1 channel @ 2 ohm
• Total RMS Power: 750 watts
• Class D 1.5 ohm Stable Monoblock Amplifier

Learn more about the hd7501_obg
Universal fit Icon

Universal – fits most vehicles.

Similar items | Update vehicle | Vehicle store
List price $1049.99
Thanks , You Pay:
-15%

$892.49

 with warranty
Starting at $56/mo with

Heads up

Your vehicle can use this product in multiple locations. Only a quantity of one can be selected from the product page. You will have the option to adjust the quantity within your cart.

shipping truck icon Free shipping in USA. Provide zip for delivery date.
Quantity
In Stock
Open Box, Great

Buy it now

Open box icon Brand new $1049.99

Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Swoosh Icon Icon of Swoosh

For over 25 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Current Promotions (1 offer)


This offer cannot be combined with any other coupons or offers.

JL Audio HD750/1 (Open Box, Great)

20% off


Priced separately $942 48

Promo Savings of $10 00

Total price:

$932 48

Description


JL Audio brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

JL Audio HD750/1

750W RMS Class D HD Series Monoblock Car Amplifier
Quantity: 1

Product Details:

  • HD Series Class D 1.5 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 750 watts x 1 channel
    • 2 ohm: 750 watts x 1 channel
  • Total RMS power output: 750 watts
  • LED Power/Protect Light
  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Delivers exceptional audio quality with reduced current draw and heat
  • Selectable 12-decibel/octave (Butterworth) or steep 24-decibel/octave (Linkwitz-Riley)
  • Feature advanced rollback protection
  • Brushed aluminum finish with black powder-coat cast
  • Black powder-coated gasketed cover provided
  • Removable power and speaker plugs
  • RealSink chassis and vertical cast-alloy fins to dissipate heat effectively
  • RIPS (Regulated, Intelligent Power Supply) technology to adjust amplifier's operation
  • Single cycle control technology
  • Optional remote level controller (sold separately)
  • Offers flexible mounting options via optional stacking kits
  • Optional stacking kit (sold separately)
  • Input sensitivity:
    • Low level: 0.2 - 2 volts
    • High level: 0.8 - 8 volts
  • Frequency Response: 6 - 8000 Hz
  • Total Harmonic Distortion (THD): 0.03%
  • Signal to Noise Ratio: 111 dB
  • Variable low-pass filter: 50 - 500 Hz
  • Subsonic filter: 0 - 30 Hz
  • Fuse Rating: 60A (AFS, AGU or MaxiFuse)
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 10-13/16" L x 8-13/16" W x 1-15/16" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: HD750/1

Specifications & Details


Key Features
Amplifier Key Features
Speaker Level Inputs
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
750 watts x 1 channel
RMS Power @ 3 ohm
750 watts x 1 channel
RMS Power @ 2 ohms
750 watts x 1 channel
RMS Power @ 1.5 ohm
750 watts x 1 channel
Amplifier Specifications
Series
HD Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
750 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1.5 ohm
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
6 - 8000 Hz
THD at Rated RMS Power
<0.03%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
Subsonic
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Subsonic Filter
0 - 30 Hz
Signal-to-Noise Ratio
111 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
60A x 1
Total Fuse Rating
60
Strappable
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
200mV - 2 volts
High-Level Input Sensitivity
800mV - 8 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Mounting screws (4)
Allen wrenches (2)
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HD7501_OBG

Weight:

8.37lbs

Internal SKU:

hd7501_obg

Internal Product ID:

224148

Customer Ratings & Reviews


JL Audio HD750/1 (Open Box, Great) thumbnail image

5 star
90%
4 star
10%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.7
Features
4.9
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

Pretty freakin awesome!

The following review is for HD750/1, which is a part of the bundle you are viewing.

Bought this along with the JL Audio 12w7ae and had a custom enclosure built. This was installed in a 2012 Scion tC. Very clean sound and it hits super hard! Best setup I've ever owned. Sonic Electronics was super fast getting the sub and amp to me and at a much better price than anyone else! Highly recommend this setup. Even if you don't get JL, I would still recommend buying from Sonic!

By Cerveza on April 11, 2014

77 found this helpful


Great

The following review is for HD750/1, which is a part of the bundle you are viewing.

I'm pushing a 12W6 with my 750/1 and I couldn't be happier. I should've purchased JL products a long time ago.

By Terrence on May 31, 2011

67 found this helpful


JL HD750/1 mono amp

The following review is for HD750/1, which is a part of the bundle you are viewing.

I have this amp connected to a JL 12w7 prowedge sealed box. it hits pretty good. I wish I would have saved a couple hundred more and baught the 1000/1v2. bottom line is this: if you have limited space and want a great amp then this is the way to go. If you have the room and want one of the best amps made, then buy the JL 1000/1v2 amp. it's an old school analog amp built to give real power. The HD series are digital and dont seem to have the umpff like the 1000/1v2 slash series. It matters what kind of sub you have too. I'm upgrading to a ported 12w7 HO box and the 1000/1v2 amp just cause i know it will sound better. Overall i'm happy, but you know how it is.

By Bud on July 2, 2009

68 found this helpful


Awesome Amp

The following review is for HD750/1, which is a part of the bundle you are viewing.

This amp sounds so much cleaner than other avg quality amps. Very small, barely gets warm. I have it powering 2 JL 12w3 subs in a Sonic brand sealed box. Sounds very nice and clean. Great experience with Sonic on all purchases. Quick shipping, awesome customer service when needed. Keep up the great work Sonic!

By William on December 1, 2011

65 found this helpful


JL Audio HD750/1

The following review is for HD750/1, which is a part of the bundle you are viewing.

I recommed this product i hook it two 12tw3d4 shallow at 4 ohms at 1/4 of level imput and sounds amazing shipping was fast also thanks sonic electronix

By Anonymous on July 1, 2018 Checkmark Icon Verified purchase

41 found this helpful


Expensive, but great performance.

The following review is for HD750/1, which is a part of the bundle you are viewing.

Over all great product not sure if it's worth the price tag, but the performance is excellent and I guess that's hard to put a price on.

By Larry on November 1, 2015

40 found this helpful


The following review is for HD750/1, which is a part of the bundle you are viewing.
By Samuel on October 21, 2023 Checkmark Icon Verified purchase

27 found this helpful


Clean Power

The following review is for HD750/1, which is a part of the bundle you are viewing.

Powering two 12TW3-D8’s in a JL Stealthbox under the backseat of a 2018 F-150. Plenty of power for the job. Seems to stay cool even after driving it hard for 45 minutes. Hard to beat JL quality.

By Valentino on November 26, 2024 Checkmark Icon Verified purchase

14 found this helpful


The following review is for HD750/1, which is a part of the bundle you are viewing.
By Richard on October 13, 2025 Checkmark Icon Verified purchase

1 found this helpful


The following review is for HD750/1, which is a part of the bundle you are viewing.
By ulises on May 27, 2025 Checkmark Icon Verified purchase

1 found this helpful
