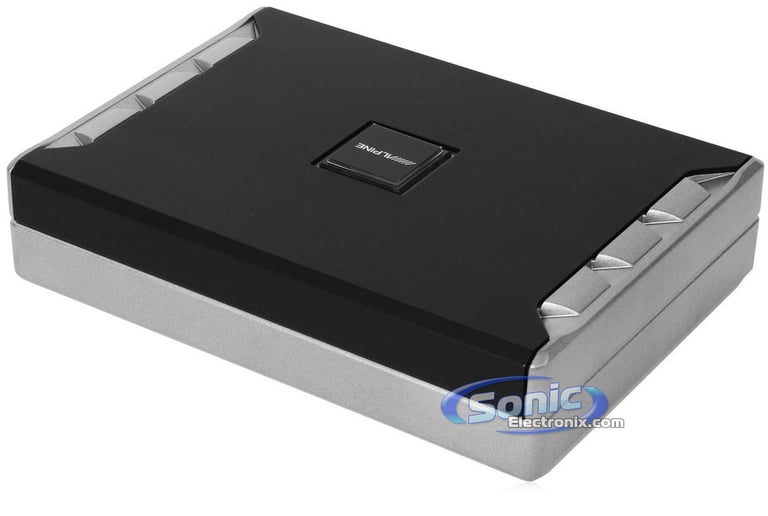

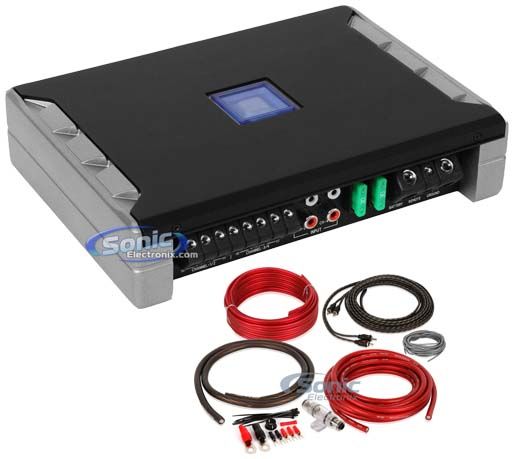

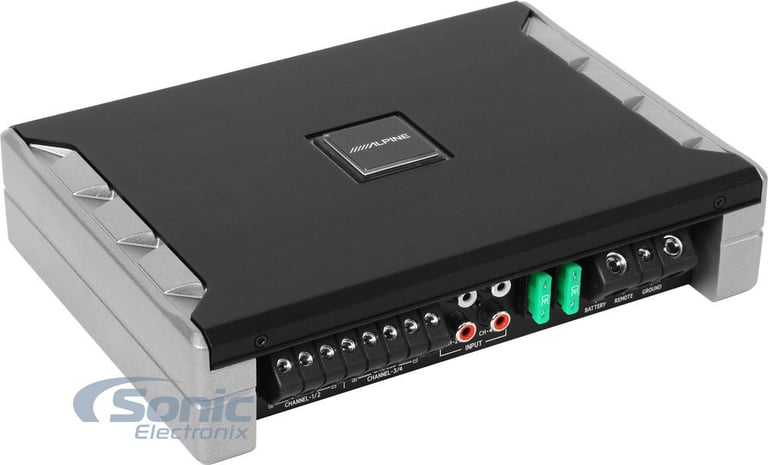

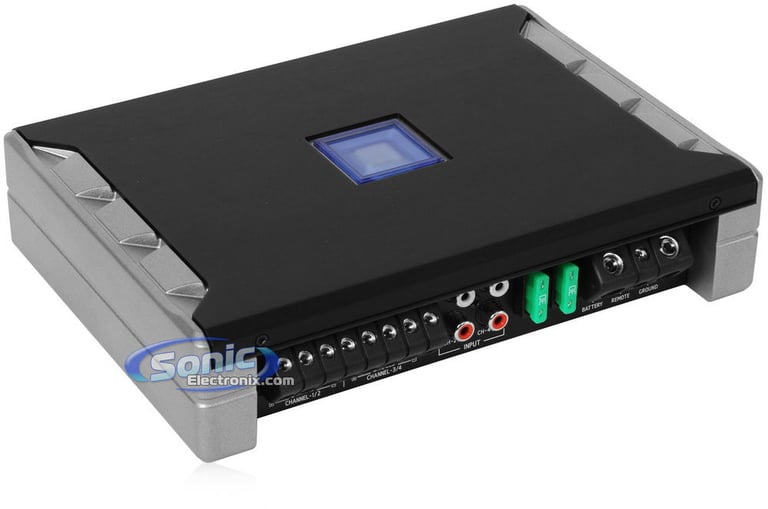

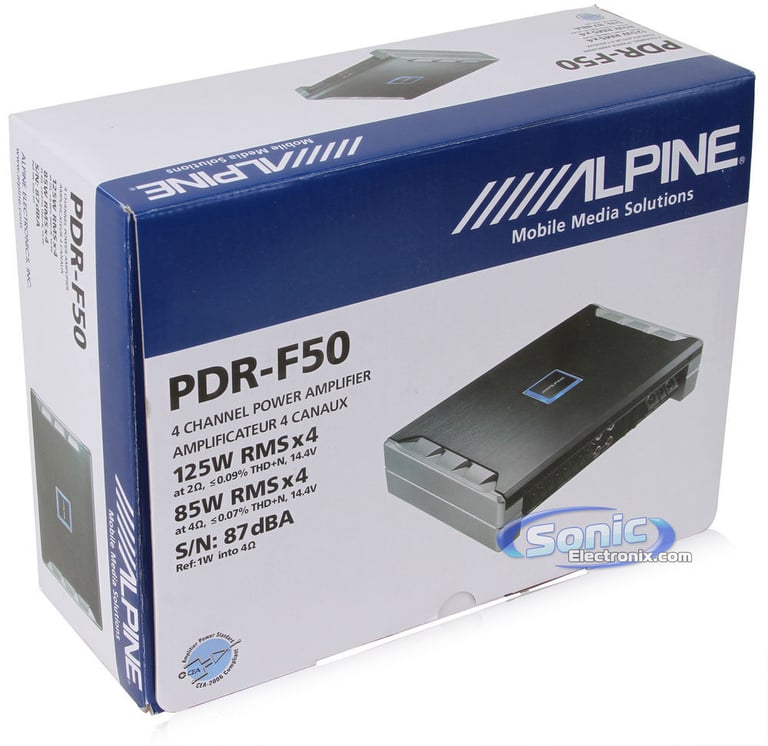

Alpine PDR-F50 4 Channel 500 Watt RMS Class D Car Amplifier+Premium Amp Kit

500W PDR Series 4/3/2 Channel Class D Digital Amplifier Package

Alpine
Shop all Alpine
highlight-star-icon

• RMS Power: 85W x 4 @ 4 ohm, 125W x 2 @ 2 ohm, 250W x 2 @ 4 ohm, Bridged
• CEA-2006 Compliant Amplifier
• Rotatable Illuminated Alpine Badge
• Top-Side Control Panel w/ Removable Cover
• Voltage ON/OFF Sensing for OEM Upgrade
• Dimensions: 9"W x 6.5"L x 2.0"H

Learn more about the pdrf50_bak42

We apologize

This item has been discontinued


Loading...
XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

C1-690x main

JL Audio C1-690x

200W RMS 6x9" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
43DSC3504 main

Kicker DSC350 (43DSC3504)

160W Peak (40W RMS) 3.5" DS Series 2-Way 4-ohm Coaxial Car Speakers

15
-15.39%

$54.99

List price $64.99

C2-350X main

JL Audio C2-350x

50W RMS 3.5” C2 Series 2 Way Coaxial 4-ohm Car Speakers

15
PPS4-10 main

Rockford Fosgate Punch Pro PPS4-10 (Sold Individually)

700W Peak (350W RMS) 10" Punch Pro Series Pro Audio Speaker

6
Limited time!

Pioneer TS-A879

900W Peak (200W RMS) 3.5" A-Series 2 Way Coaxial 4-ohm Speakers

5
-33.34%

$59.99

List price $90.00

Description


Alpine brand icon

Authorized dealer

The PDR-Power amplifiers offer the best performance in their class, redefining expectations in the high-power amplifier category. Thanks to trickle-down technology, Alpine's in-house engineering team has taken many of the patent-pending technologies introduced in the industry-leading PDX series and infused them in the new PDR-Power amplifiers. The PDR-Power amps provide you with the absolute widest bandwidth, best signal-to-noise, lowest distortion and highest damping factor of any amplifier in their class without sacrificing power.

General Features:

  • PDR Series 4-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 85 watts x 4 chan.
    • 2 ohm: 125 watts x 4 chan.
    • Bridged, 4 ohm: 250 watts x 2 chan.
  • CEA-2006 Compliant Amplifier
  • Dual-Feedback Modulation Loop
  • Ultra Compact Chassis
  • Soft start turn-on

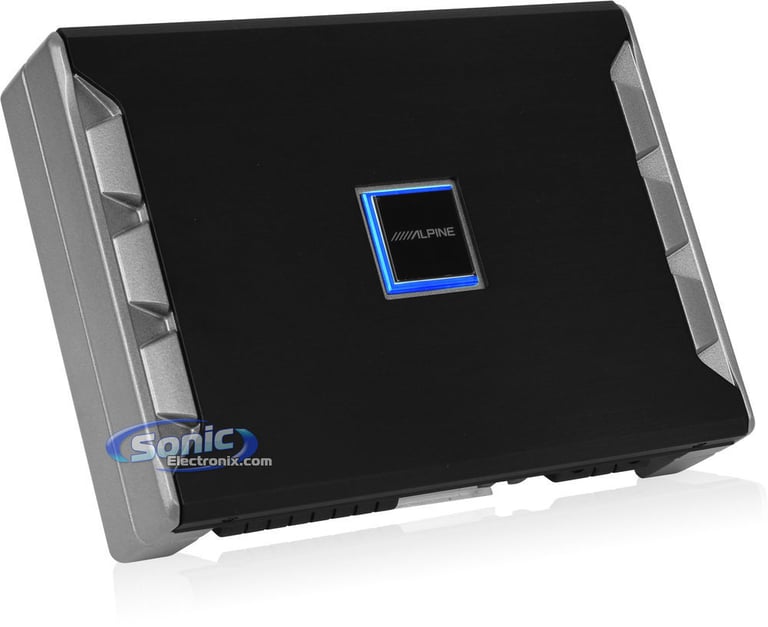

  • Rotatable Illuminated Alpine Badge
  • LED Power (blue) and Protect (red) illumination

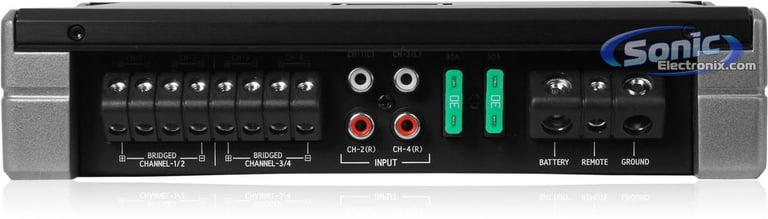

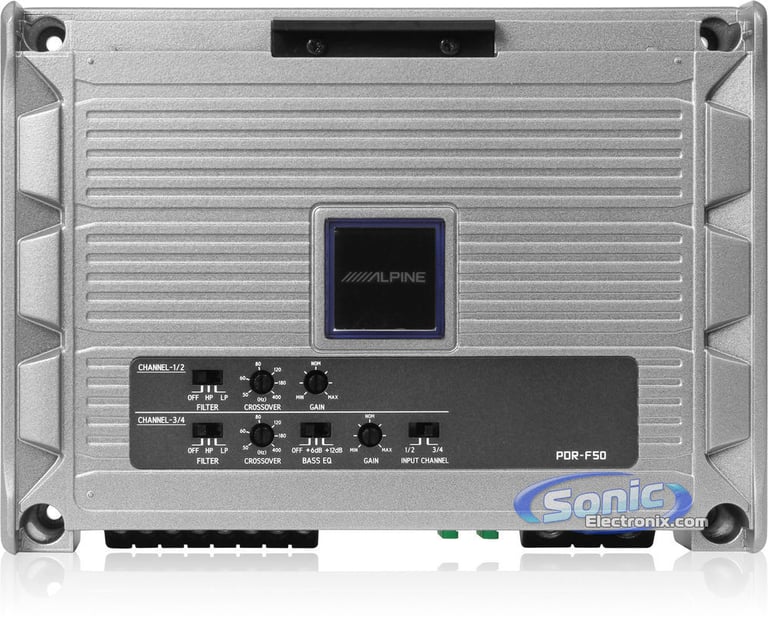

  • Top-Side Control Panel w/ Removable Cover
  • Voltage ON/OFF Sensing for OEM Upgrade
  • 4/3 or 2 channel operation
  • Input channel selecting
  • Speaker-level (high-level) inputs via RCA with Remote Sensing*
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity: 200 mV - 4 V
  • Frequency Response: 8 - 45,000 Hz +0/-3 dB
  • Total Harmonic Distortion (THD): ≤0.02% (Ref: 10W into 4Ohm)
  • Signal to Noise Ration: >106dB (Ref: 1W into 4Ohm)
  • Damping Factor: >500
  • Selectable crossover: OFF / HP / LP
  • Variable crossover point: 50 - 400 Hz, 24 dB/octave
  • Selectable Bass Boost (Rear Ch Only): 0, +6, +12 dB boost at 50 Hz
  • Fuse Rating: 30 A x 2
  • 12 Gauge speaker output terminals
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Weight: 5 lb 9 oz
  • Dimensions: 9.0"W x 6.5"L x 2.0"H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

*When connecting the speaker output leads of the head unit to this unit with an RCA extension cable (sold separately), etc., you do not need to connect the remote turn-on lead, resorting to the “REMOTE SENSING” function of this unit. However, the “REMOTE SENSING” function may not work depending on the signal source connected. In such a case, connect the remote turn-on lead to an incoming power supply cord (accessory power) in the ACC position.


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
85 watts x 4 channel
RMS Power @ 2 ohms
125 watts x 4 channel
Bridged RMS Power
250 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
≤0.02%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 400 Hz
Low-Pass Crossover Frequency
50 - 400 Hz
Signal-to-Noise Ratio
106 dB
Bass Boost
Selectable 0 / 6 dB / 12 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
CEA-2031 Compliant
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

PDR-F50 BAK42

Weight:

8.80lbs

Internal SKU:

pdrf50_bak42

Internal Product ID:

156217
