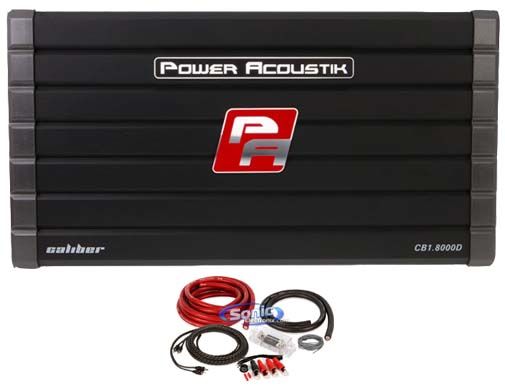

Power Acoustik CB1-8000D Monoblock Amplifier + Amp Kit

8000W Peak (4000W RMS) Class-D 1-Ohm Stable Amplifier With Bass Knob Included Package

8000W Peak (4000W RMS) Class-D 1-Ohm Stable Amplifier With Bass Knob Included Package

• 1500 Watts RMS x 1 @ 4 ohms
• 2500 Watts RMS x 1 @ 2 ohms
• 4000 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 8000 Watts
• Built-In Low Pass and Subsonic Filters
• Heavy-Duty Aluminum Heatsink
• Dimensions: 9.5" W x 18" L x 2" H

4.7

(15)
List price $369.94
Save: $90.00

$279.94

In Stock with warranty
Thanks , You Pay:
Order within 9 hrs 35 mins to ship today

FREE delivery: Thu, June 17 to VA.

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Power Acoustik

Authorized dealer

Power System Warning: This amplifier requires a charging system capable of at least 200 amps. If your vehicle's charging system isn't powerful enough, it will damage or destroy this amplifier and possibly damage your vehicle, as well as void your warranty on the amp. You must perform electrical system upgrades to provide the power this kind of amp demands. Visit our Mechman High Output Alternators store to find the right alternator for your vehicle. Check out this information, figure out what you need, or get with our sales team for expert support.

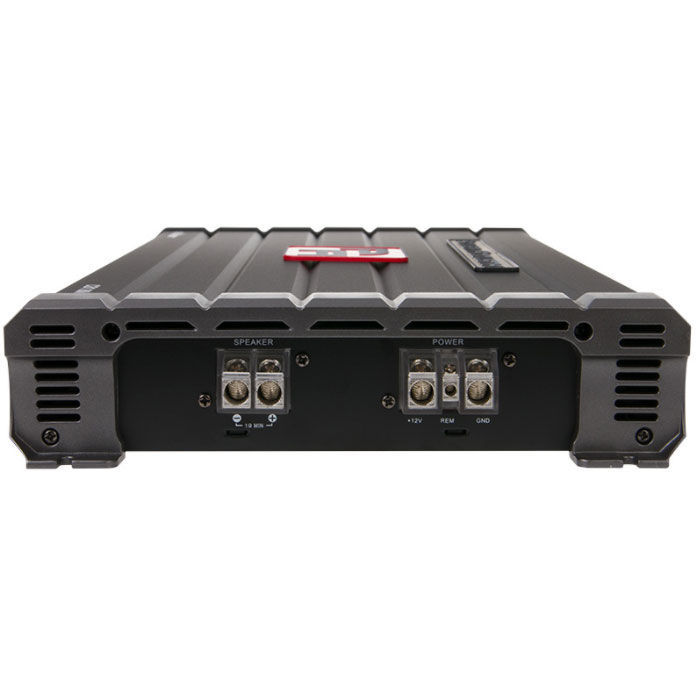

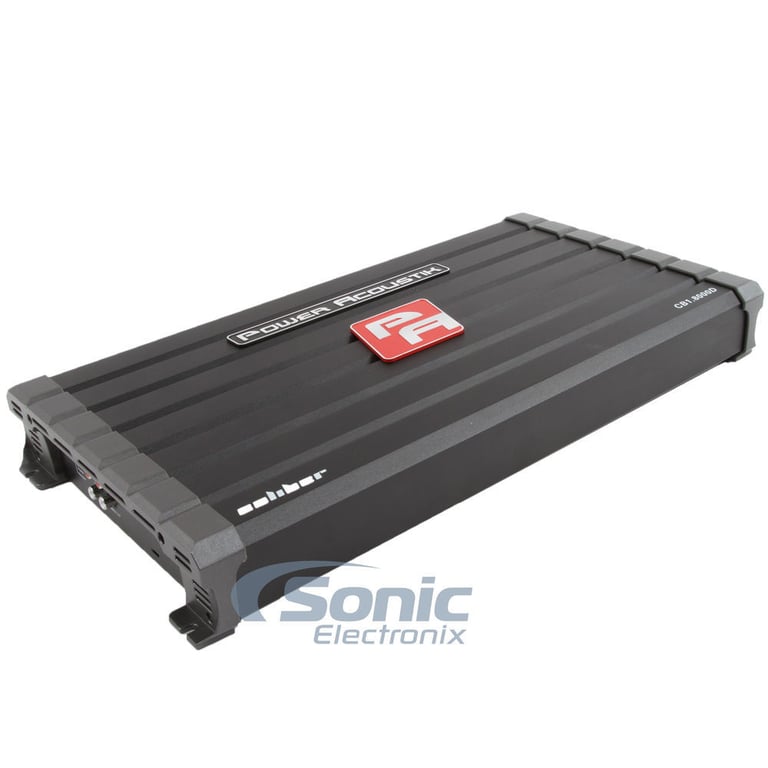

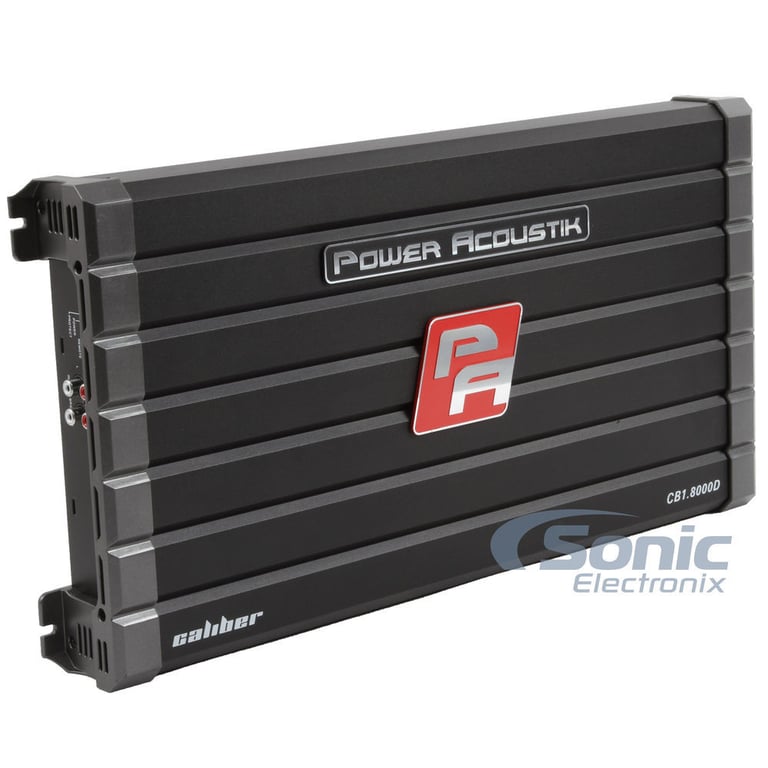

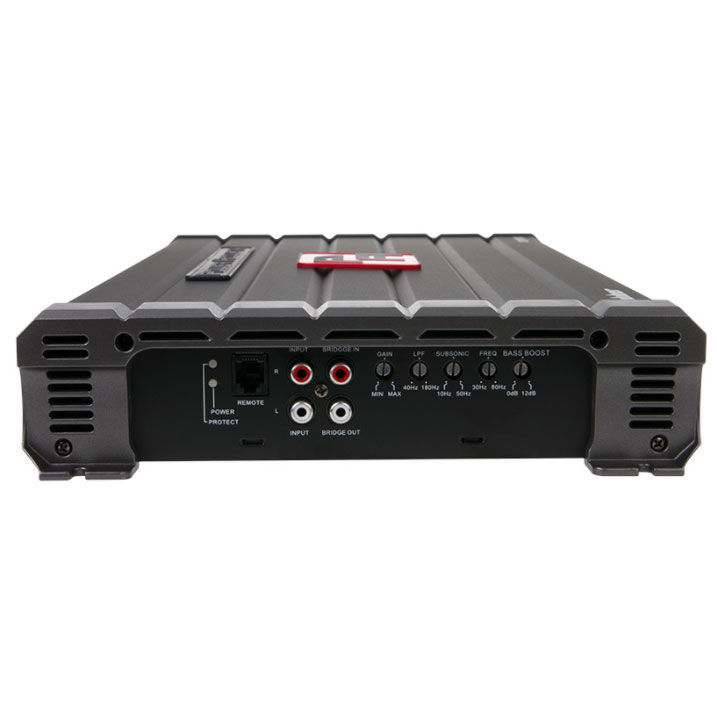

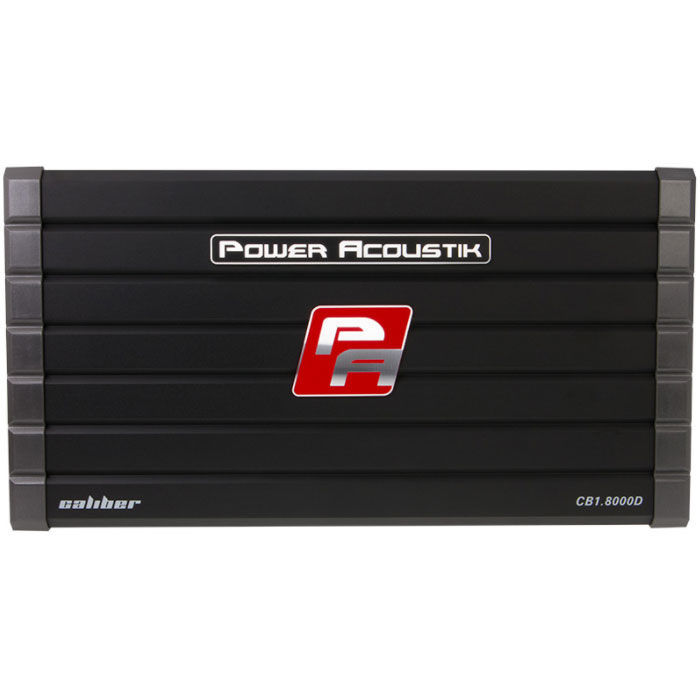

Power Acoustik CB1-8000D

8000W Peak (4000W RMS) Calber Class-D Monoblock 1-Ohm Stable Amplifier With Bass Knob Included
Quantity: 1

General Features:

  • Power Acoustik Caliber CB1-8000D
  • Class-D Full Range 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 1,500 watts x 1 chan.
    • 2 ohms: 2,500 watts x 1 chan.
    • 1 ohm: 4,000 watts x 1 chan.
  • Total power output: 8,000 watts
  • Pulse Width Modulated MOSFET power supply

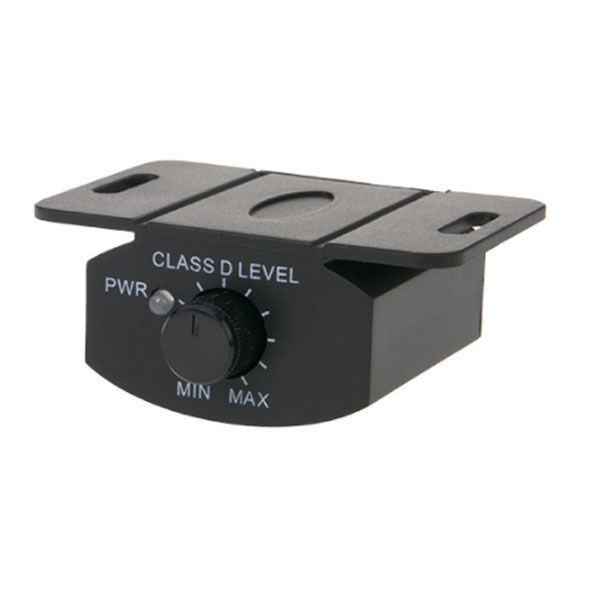

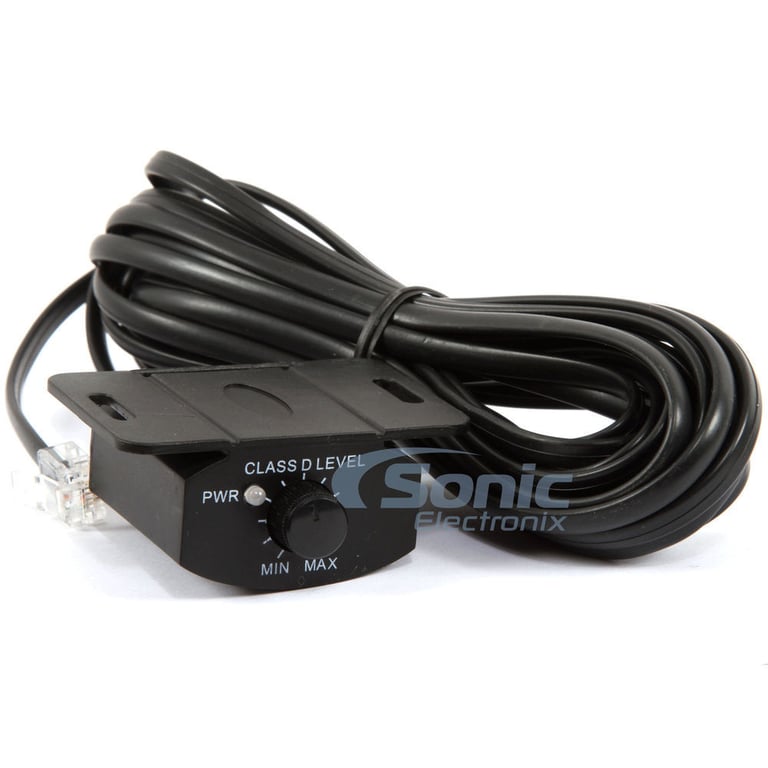

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • High level: 200mV-8V
  • Frequency Response: 15 - 500 Hz
  • Signal to Noise Ration: 105 dB
  • Variable low-pass filter: 40 - 180 Hz, 12 dB/octave
  • Subsonic filter: 10 - 50 Hz , 12 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
  • 0 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9.5"W x 18"L x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Check out the Power Acoustik CB1-8000D Owner's Manual

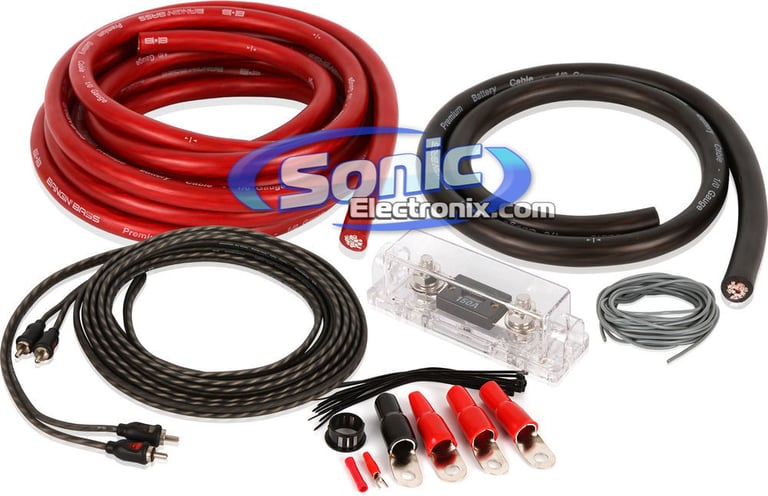

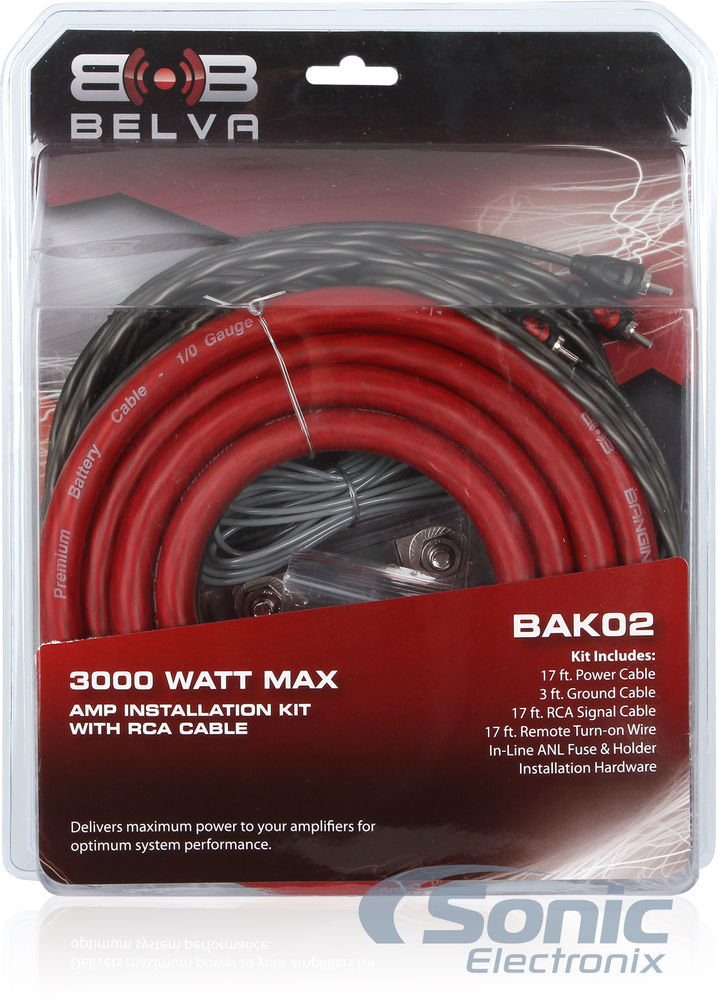

Belva BAK02BL (Blue)

Primary Color: Blue - Complete 0/1 Gauge Amplifier Wiring Kit with RCA Interconnects (CCA Wiring)
Quantity: 1

General Features:

  • 1/0 Gauge 2-Channel Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1500 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
    • Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • ANL Fuse holder with a 150 amp ANL fuse offers ideal protection for high-powered systems
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. (5.2 meters) Blue 1/0 gauge power wire
  2. 3 ft. (.91 meters) Black 1/0 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
  5. One In-line ANL Fuse Holder with a 150 amp ANL fuse
  6. One Black rubber firewall grommet
  7. Three 1/0 Gauge Blue chrome plated ring terminals
  8. One 1/0 Gauge Black chrome plated ring terminal
  9. One 18 Gauge Blue Spade terminal
  10. One 18 Gauge Red butt connector
  11. Eight 6" Black zip ties

FEATURES & SPECS
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1500 watts x 1 channels
RMS Power @ 2 ohms
2500 watts x 1 channels
RMS Power @ 1 ohm
4000 watts x 1 channels
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
8000 watts
Total RMS Power Output
4000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
Yes
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 12 dB
Bass/Gain Remote
Yes
Fan Cooled
No
CEA-2006 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
1/0 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
No
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
ANL
Fuse Size
150A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
REVIEWS
Power Acoustik CB1-8000D Monoblock Amplifier + Amp Kit

Power Acoustik CB1-8000D Monoblock Amplifier + Amp Kit

4.7

(15)

Write a review

Overall rating distribution

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
4.8
Value
5
Features
4.8
Design
5
Usability
5

Nvx 4life

November 28, 2014

NVX MAN IOWA

The following review is for BAK02BL, which is a part of the bundle you are viewing.

I bought this kit for a customer who has 2- Hifonics Amps, a BRX2000.1 & a BRX640.4, the wires were flexible & a ease to run in a 04' Monte Carlo! I was alittle concerned cause of the price but let me tell you, this price is a SUPER STEAL! We are running about 2328watts of actual power & wire is holding up great... Definitely will buy again when I need a big power wire kit! For Sure... I'm a huge NVX fan wires & all, this is great too!! NVX MAN is out!!!

35

found this helpful.

shawn

March 16, 2015

ok

The following review is for BAK02BL, which is a part of the bundle you are viewing.

Not as thick as I though but it's good for my 1000 Watt amp. Have bought one for my truck 2 years ago and it seen like that one was big then this one but the same name and guage.

25

found this helpful.

ClNShvN

January 16, 2020

More power

The following review is for BAK02BL, which is a part of the bundle you are viewing.

I added a second amp to my system which meant I needed an upgrade. This kit had everything I needed and good quality. Budget friendly.

8

found this helpful.

Fred

February 26, 2017

Nice amp kit

The following review is for BAK02BL, which is a part of the bundle you are viewing.

The Belva 0 gauge kit is a very good buy for the money. It came with a well made fuse holder and good RCA cables.

7

found this helpful.

Chance

August 16, 2017

All good except rca

The following review is for BAK02BL, which is a part of the bundle you are viewing.

Wire is easy to run nice and flexible but rca cables are cheap af handle with care

5

found this helpful.

Marshall

October 13, 2017

Love it

The following review is for BAK02BL, which is a part of the bundle you are viewing.

i definately recomend this product for anyone doing a small daily driver install

5

found this helpful.

MCA

April 6, 2016

good wire

The following review is for BAK02BL, which is a part of the bundle you are viewing.

This wire is worth the money. I can't say what guage it is for sure, gut it's a full 1/2 inch or more thick and it is copper. The fuse and rca jacks are really nice also. The only thing wrong is the zip ties are so old they are brittle. Other than that, well worth it.

3

found this helpful.

Kenneth

January 19, 2020

Works great!

The following review is for BAK02BL, which is a part of the bundle you are viewing.

Would definitely order again for someone who needs this. Easy to install works great.

2

found this helpful.

Anonymous

September 16, 2019

Excellent priduct for the price

The following review is for BAK02BL, which is a part of the bundle you are viewing.

Shopped around, Good quality heavy cable, did what i needed it to do, EXCELLENT PRICE & FAST SHIPPING!!!!! THANKS

3

found this helpful.

Anonymous

August 23, 2018

Love it

The following review is for CB1-8000D, which is a part of the bundle you are viewing.

If your looking for jaw dropping results go with this amp

2

found this helpful.

Clayton

May 31, 2020

Awesome product and price!

The following review is for CB1-8000D, which is a part of the bundle you are viewing.

I would definitely recommend these folks for all your car audio purchases! The packaging was great and came in a day early! Very easy site to navigate and the prices are very very competitive if not the very best you will find anywhere! Will definitely be using them more often now! Thanks

1

found this helpful.

Anonymous

December 15, 2018

A Bad A^^ Amp CB1-8000D Mono Block

The following review is for CB1-8000D, which is a part of the bundle you are viewing.

I bought this amp back at the end of July and Since then I have managed to Blow all 3 !2" subs that I was Running off it... 2 12" P.A. Gothic's 124's 2500W Max 1200W RMS DVC 4o'hm 's subwoofers and 1 12" Kicker Comp CVR DVC Subwoofer. I didnt blow them out all together my Kicker Comp CVR was last to go but my P.A. Gothic's were the first to go just days apart. Although its Not certified but on our amp test we put out over 300watts at 1ohm on a 40htz test tone lasting 90 Seconds. This amp was rated at 4000w RMS.. I still have my video to prove it!!!

1

found this helpful.

Anonymous

August 5, 2018

It is worth the money

The following review is for CB1-8000D, which is a part of the bundle you are viewing.

It has more than enough power to push my mtx's great Buy.

1

found this helpful.

Phat Sac

April 26, 2018

Superb amp

The following review is for CB1-8000D, which is a part of the bundle you are viewing.

This product is exactly the thing I needed it made this kicker 18 come to life. Now I’m thinking two would push it closer to maxed out.

1

found this helpful.

Anonymous

August 10, 2019

Great

The following review is for CB1-8000D, which is a part of the bundle you are viewing.

I like the power acoustik cb1-8000d it sounds good and plays good. Bout to order another one.
