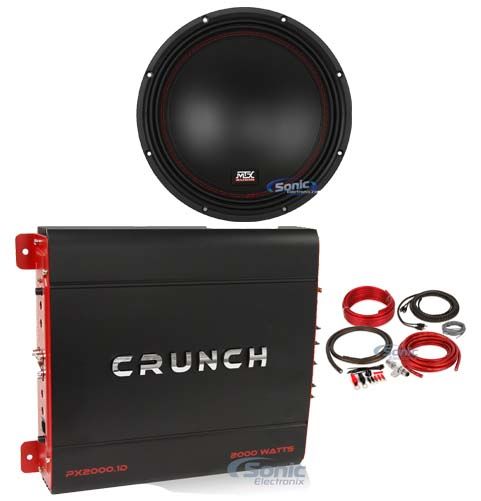

MTX 5510-22 10" 800 Watt DVC 2-ohm Car Audio Subwoofer+Mono Amplifier+Amp Kit

General Features:

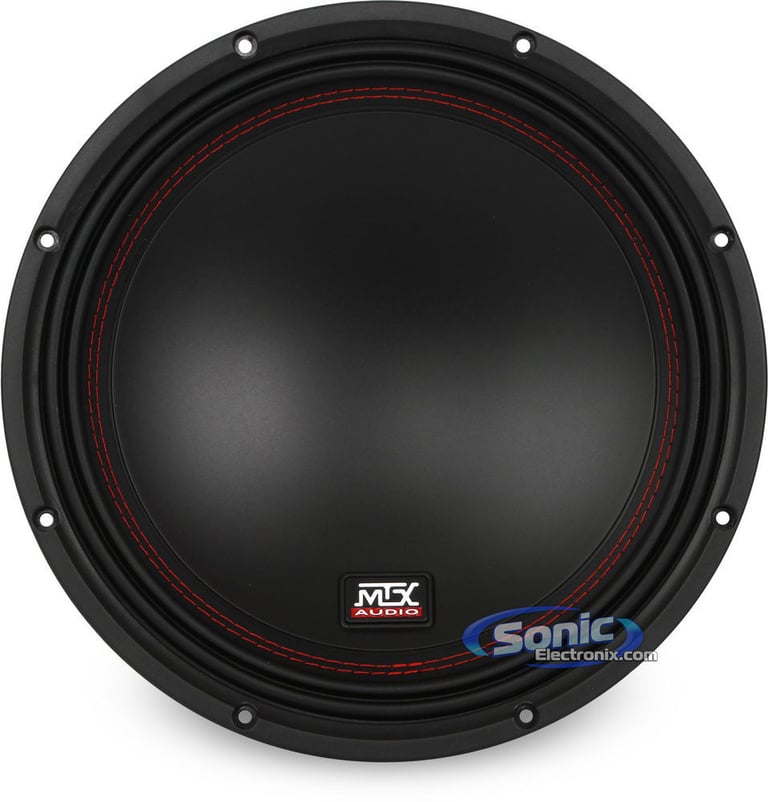

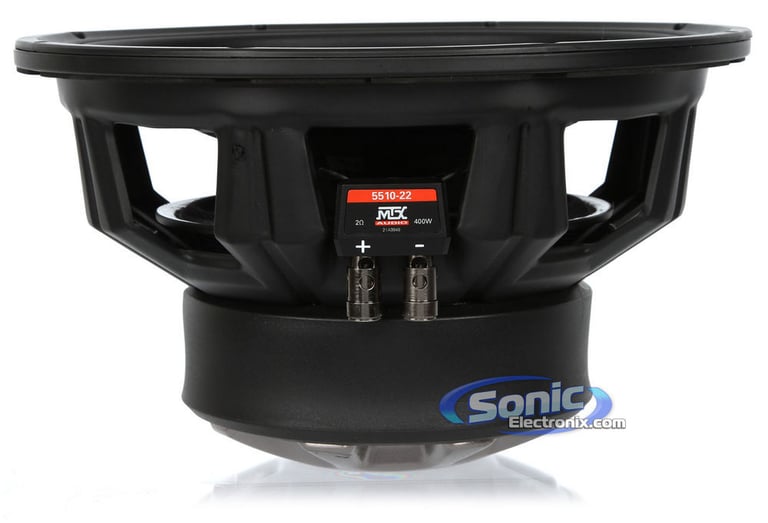

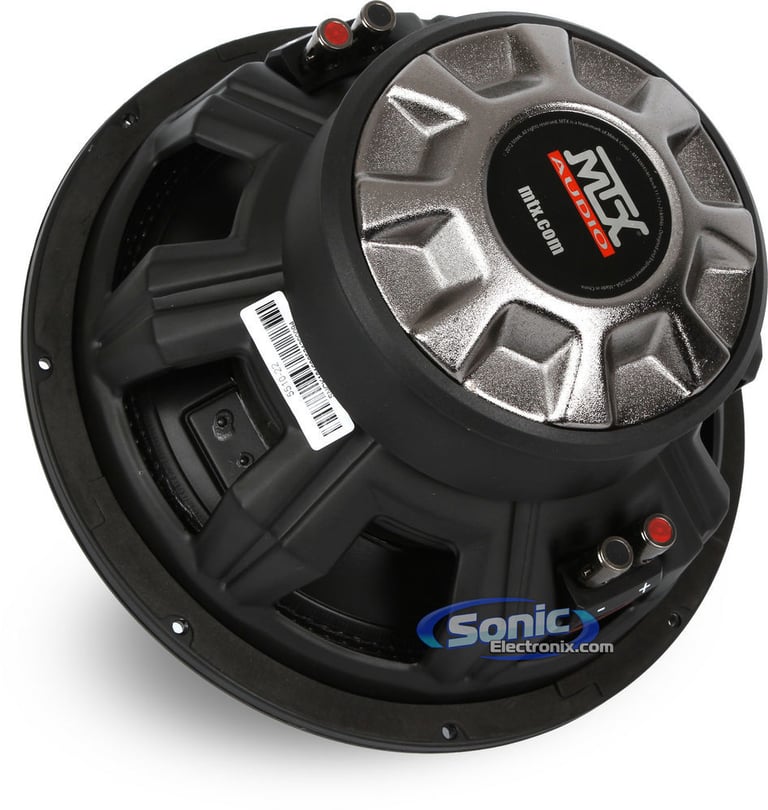

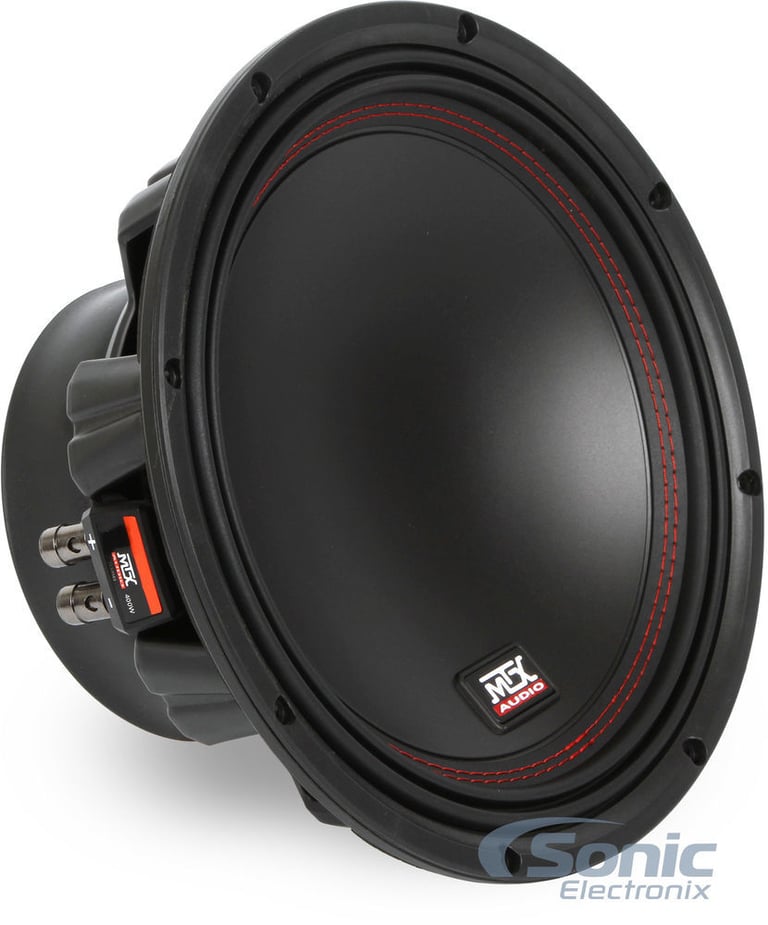

• 10" 55 Series Subwoofer
• Power Handling:
• Peak: 800 watts
• RMS: 400 watts
• Recommended power range: 200 - 400 watts RMS
• Impedance: Dual 2 ohms
• Polypropylene cone
• Rubber surround
• Spider plateau venting which mechanically cools the voice coil
• Radial ribbed t-yoke dissipates heat and decreases distortion
• Expanded surface area allows for increased volume displacement and SPL
• Progressive suspension controls excursion at high power reducing distortion
• Inverted Apex surround with symmetrical geometry controls cone movement
• 2.0" High temperature voice coil
• Frequency response: 29-130 Hz
• Resonance Frequency (Fs): 35 Hz
• Top-mount depth: 5-3/16"
• Sensitivity: 92dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

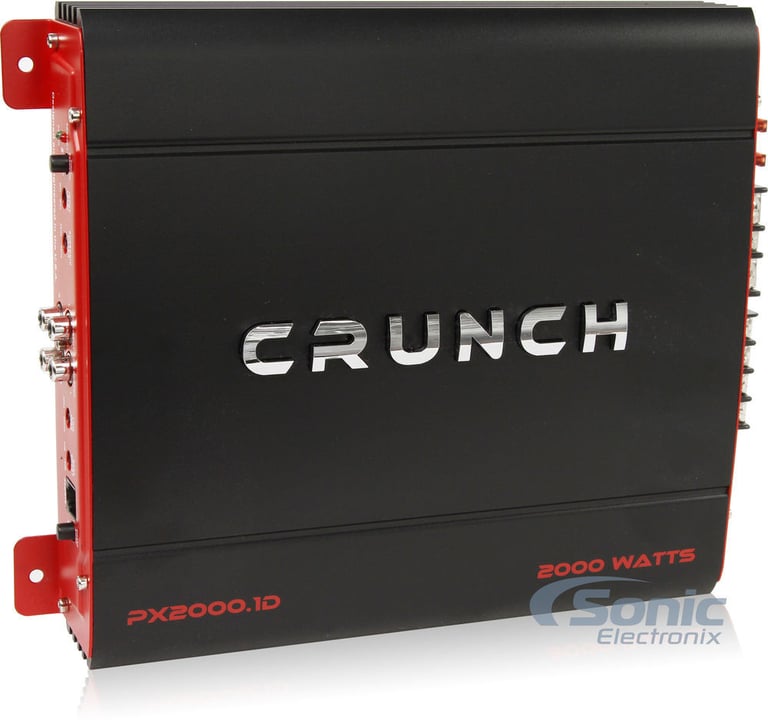

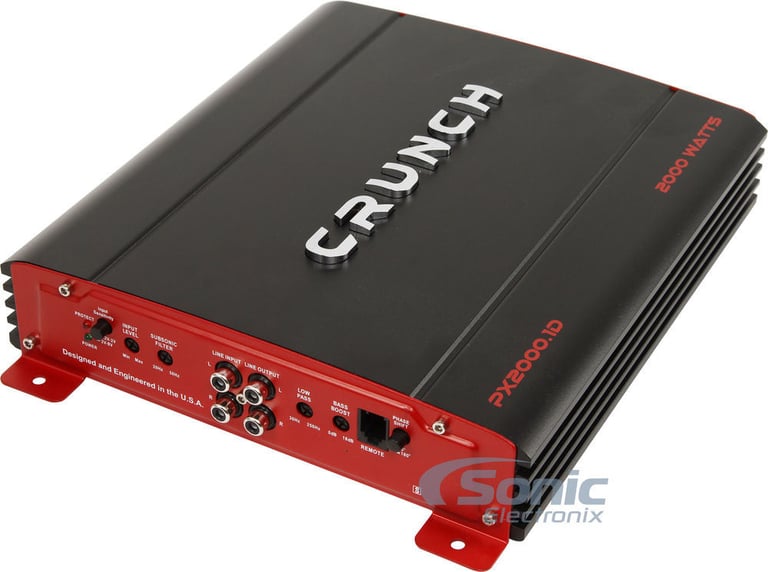

• Crunch Power X Series PX2000.1D
• Class-D 1-Ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 250 watts x 1 chan.
• 2 ohms: 500 watts x 1 chan.
• 1 ohm: 1000 watts x 1 chan.
• Total power output: 2000 watts
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Mono channel operation
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)

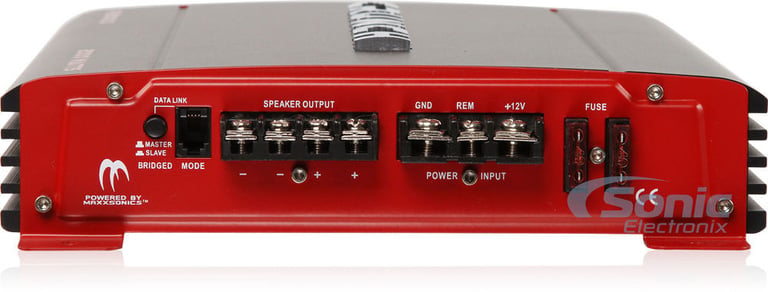

• Dual speaker terminals simplify the hookup of multiple speakers

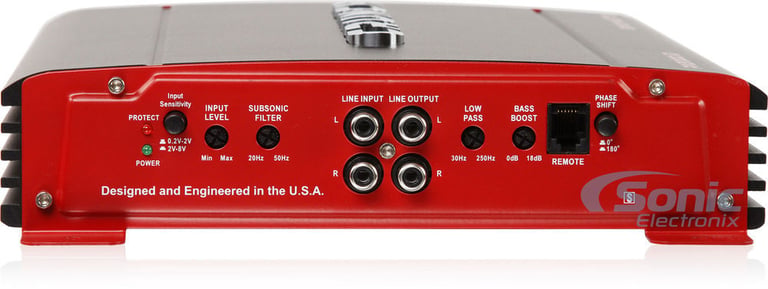

• Input sensitivity:
• Low level: 0.2-2V
• High level: 2-8V
• Variable low-pass filter: 30 - 250 Hz
• Subsonic filter: 20 - 50 Hz
• Variable Bass Boost: 0 to +18 dB bass boost
• Phase Shift: 0° to 180°
• Fuse Rating: 40 A x 2
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: 10.8"W x 13.3"L x 3.7"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Belva CCA wire is made from 30% copper while the competition uses only 10%
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
• Complies to American Wire Gauge standards
• Also available in Blue and Red
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. (5.2 meters) Gray 4 gauge power wire
2. 3 ft. (.91 meters) Black 4 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
5. 20 ft. (6.1 meters) 16 Gauge Speaker cable
6. One MINI-ANL Fuse Holder with a 80 amp fuse
7. One Black rubber firewall grommet
8. One 4 Gauge Blue chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
