Diamond Audio D6 450.2

450W Max, D6 Series 2-Channel Amplifier (D6450.2)

Diamond Audio
Shop all Diamond Audio
Product videos
highlight-star-icon

Diamond Audio D6 Series 2-Channel Class A/B Car Amplifier • 125W x 2 Chan. @ 4 ohm • 225W x 2 Chan. 2 ohm • 450W x 1 Chan. 1 ohm • Tuned Bass EQ • Pass-Thru Line Output • LED Power Indicators • Aluminum Alloy Heatsink

Learn more about the d64502

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

14
STAGE245F main

JBL Stage2 45F (STAGE245F)

100W Peak (50W RMS) 6.5" Stage2 Gen 2 Series 2 Way Coaxial Speakers

-27.55%

$49.99

List price $69.00

Limited time!
46CSC44 main

Kicker CSC4 (46CSC44)

300W Peak (100W RMS) 4” CS Series 2 Way Coaxial 4-ohm Speakers

1
-29.45%

$59.96

List price $84.99

Limited time!
C2-400X main

JL Audio C2-400x

70W RMS 4" C2 Series 2-Way Coaxial 4-ohm Car Speakers

9
-13.16%

$164.99

List price $189.99

S2-S40 main

Alpine S2-S40

280W Peak (90W RMS) 4" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

2
-15.42%

$109.95

List price $130.00

P142 main

Rockford Fosgate Punch P1 P142

120W Peak (60W RMS) 4" Punch Series 2 Way Coaxial 4-ohm Speakers

11

Product Highlights

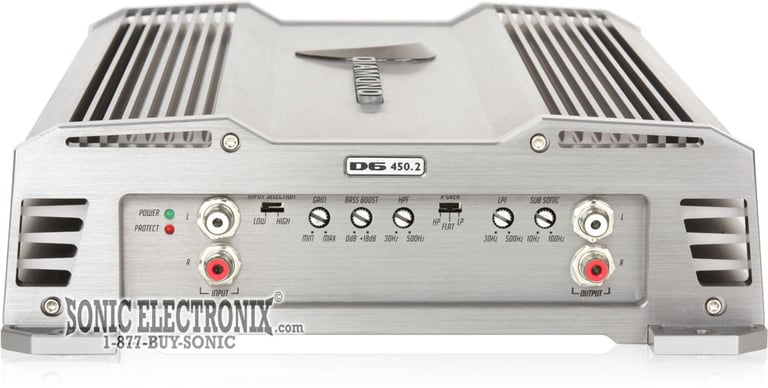

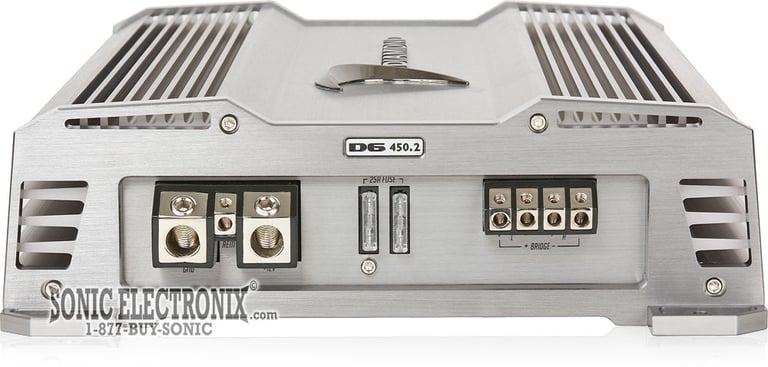

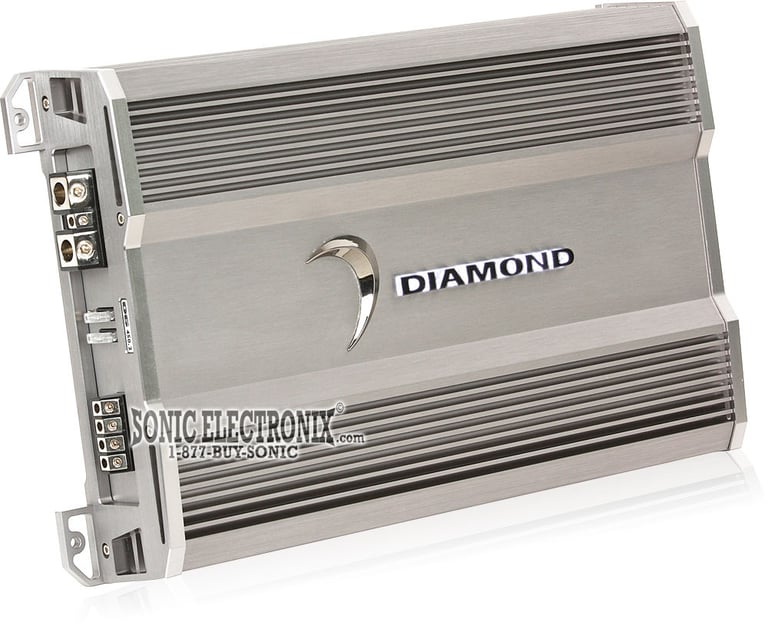

Diamond Audio D6 Series 2-Channel Class A/B Car Amplifier • 125W x 2 Chan. @ 4 ohm • 225W x 2 Chan. 2 ohm • 450W x 1 Chan. 1 ohm • Tuned Bass EQ • Pass-Thru Line Output • LED Power Indicators • Aluminum Alloy Heatsink

Description


Introducing the Diamond Audio D6 amplifier. Capable of powering up to 2 channels of audio signal with its MOSFET power supply. This amp has all the standard features that you will find on the standard amplifiers, but many more. Consider the daisy-chaining capabilities. Consider the panel mounted RCA jacks. Consider the 30% more aluminum in a 20% smaller heat sink. Consider the Diamond Audio quality. When looking for a solid amplifier to get the job done, look at the Diamond Audio D6 amplifiers. You are sure to be impressed.

  • Diamond Audio D6 Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 125 watts x 2 Chan.
    • 2 ohm: 225 watts x 2 Chan.
    • Bridged, 4 ohm: 450 watts x 1 Chan.
  • MOSFET power supply
  • Power On and Protection LED power indicators
  • Tuned Bass EQ (0-18 dB bass boost)
  • 2/1 Channel operation
  • Pass-thru line output for daisy chaining amplifiers together
  • Thermal, short circuit, and overload protection
  • Chassis mounted ATC/ATO type automotive fuses
  • Heavy duty aluminum alloy heatsink for heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable high-pass filter (30-500 Hz, 12 dB/octave)
  • Variable low-pass filter (30-500 Hz, 24 dB/octave)
  • Frequency response: 20-20,000 Hz
  • Versatile for either full range or subwoofers
  • Dimensions: 15-3/8"L x 9-5/8"W x 3"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
125 watts x 2 channel
RMS Power @ 2 ohms
225 watts x 2 channel
RMS Power @ 1 ohm
450 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
450 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
30 - 500 Hz
Low-Pass Crossover Frequency
30 - 500 Hz
Bass Boost
0 - 18 dB
Remote bass/level controller
No

Item Details


Manufacturer:

Model Number:

D6-450.2

Weight:

14.00lbs

Internal SKU:

d64502

Internal Product ID:

15815
