See all parts that fit your 2008 Mariner

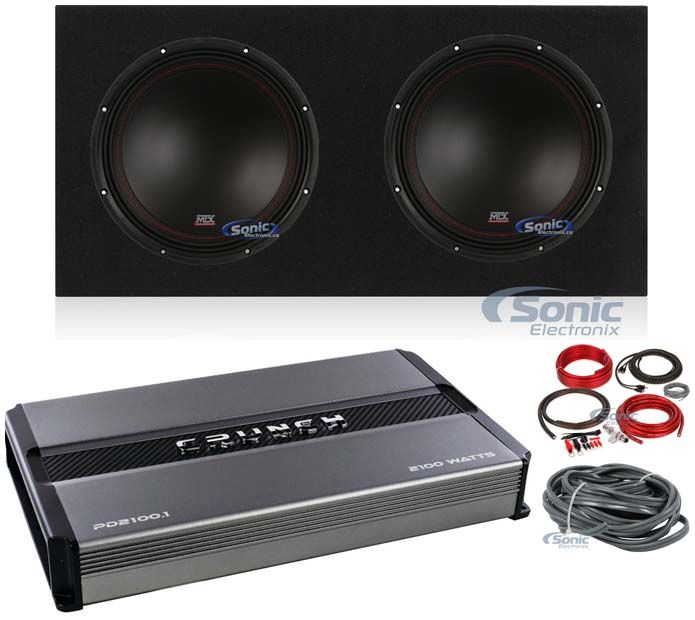

(2) MTX 3510-04 10" 1000w Car Subwoofers+Sealed Sub Box+Mono Amplifier+Amp Kit

500W Peak (250W RMS) 10" 35 Series Single 4 Ohm Subwoofer Package

MTX
Shop all MTX
highlight-star-icon

• 500W Peak
• 250W RMS
• Single 4 ohm Voice Coil
• Polypropylene Woofer Cone
• Nitrile Butyl Rubber Surround
• Inverted Apex Surround Design
• Spring Loaded Push Pin Terminals

Learn more about the mtx-351004_mdfd10_bak42_tc4

We apologize

This item has been discontinued


Loading...
XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

Belva BMV712

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Phone Mirroring

23
-63.34%

$54.99

List price $149.99

Description


MTX brand icon

Authorized dealer

MTX Audio 35 Series Subwoofer

MTX 3510-04 35 Series Subwoofer

The MTX Audio 35 Series subwoofers are the perfect solution for improving your car sound quality while taking up little space. Their low profile means they do not need a large enclosure and will still deliver powerful bass. How do they do this? With an improved surround compared to traditional Half-Roll surrounds, expanded surface area and reduced distortion due to progressive suspension controls. With over 40 years of audio experience, MTX Audio makes sure and knows how to create quality audio with their products, and the 35 Series is no exception!

MTX Inverted Apex Surround

MTX Inverted Apex Surround

The MTX Inverted Apex Surround increases the surface area of the sub to allow for more air movement, accurate bass reproduction and higher SPL. Traditional Half-Roll Surrounds have an inherent wrinkling when reproducing bass due to the physics of its motion, which causes distortion. The Inverted Apex Surround moves symmetrically through both positive and negative cycles which eliminates this type of distortion.



Progressive Suspension Control

MTX Audio Series Subwoofer

Progressive Suspension control the excursion of the subwoofer at high power levels which reduces distortion. Eliminating this 3rd order distortion means you can play your music loud and rely on your subwoofer to take of itself.

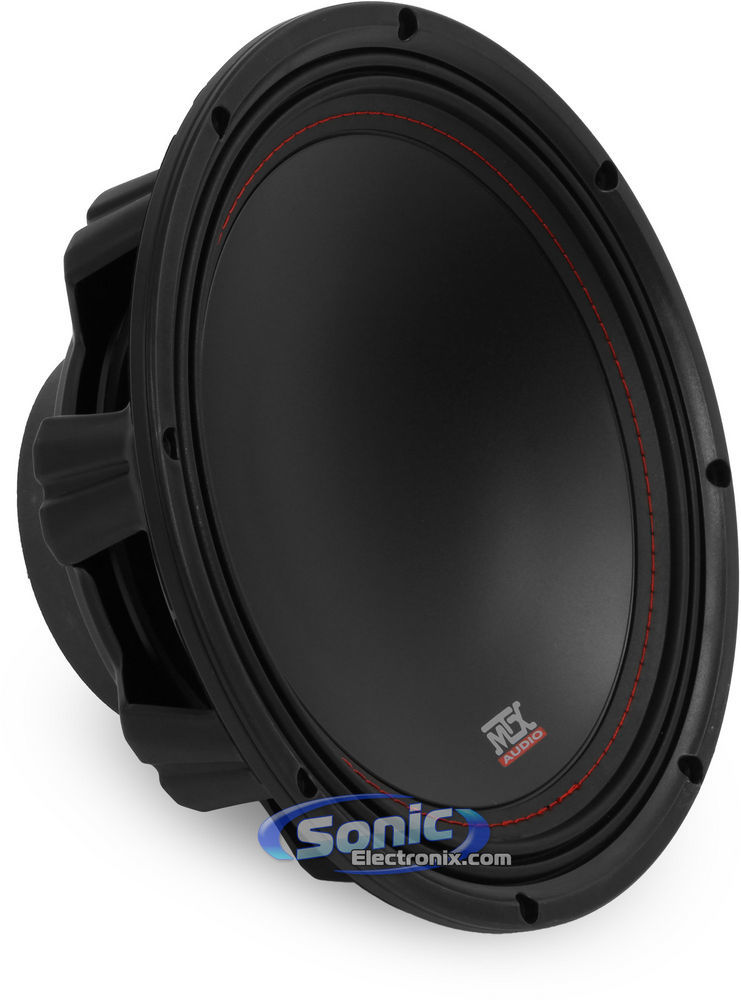

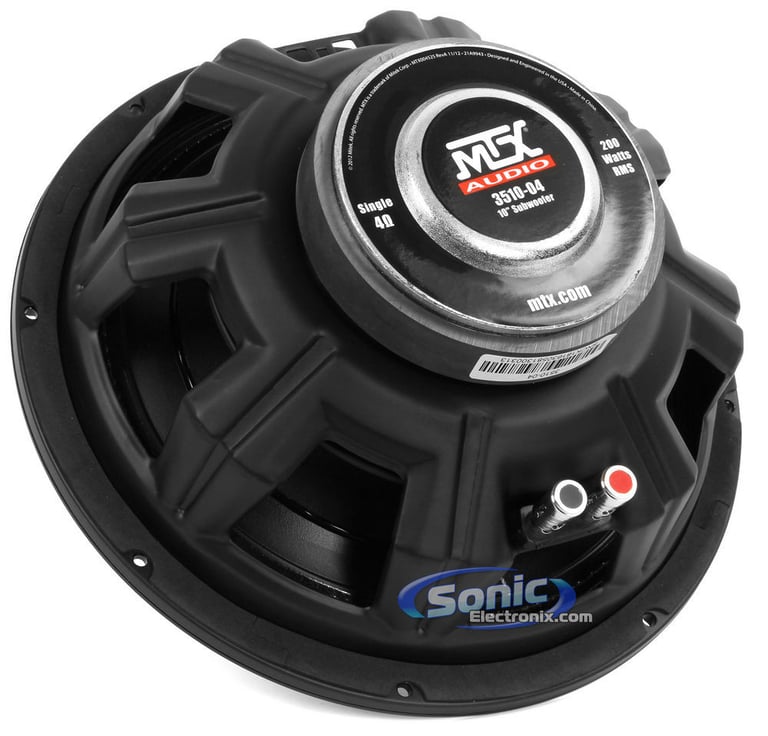

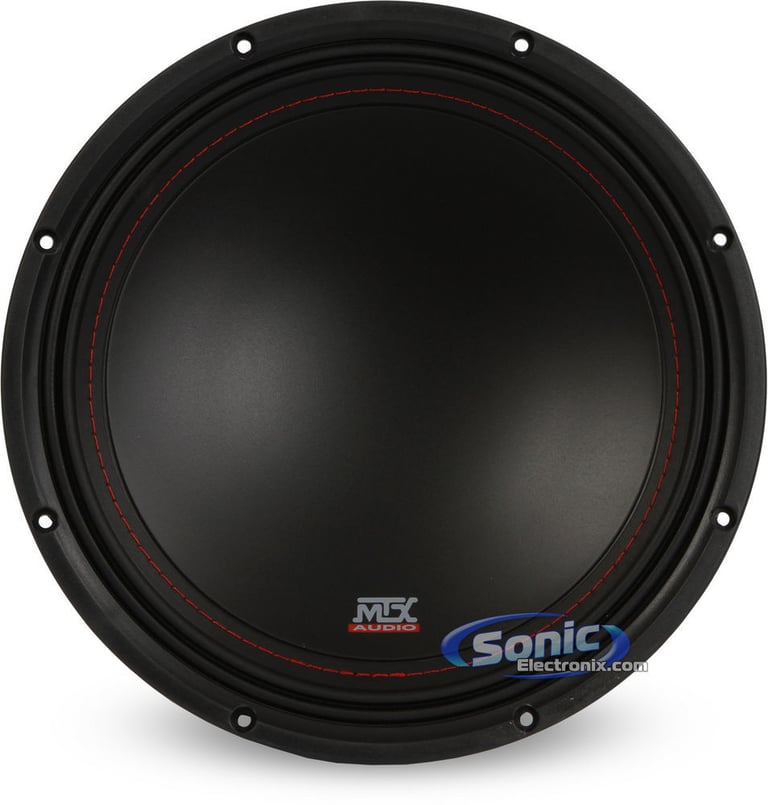

MTX 3510-04

500W Peak (250W RMS) 10" 35 Series Single 4-ohm Car Subwoofer
Quantity: 2

Product Details:

  • 10" Single 4 ohm 35 Series Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Polypropylene Cone
  • Nitrile Butadiene Rubber NBR Surround
  • Inverted apex surround for more air and higher SPL
  • Plateau venting for mechanical cooling process
  • 1.75" High Temperature Voice coil
  • 8.128 mm Xmax
  • 56 oz. Single Stacked magnet motor structure
  • Frequency Response: 28 - 130 Hz
  • Resonance Frequency (Fs): 33 Hz
  • Sensitivity: 83 dB
  • Recommended sealed box volume: 0.75 cubic feet
  • Recommended ported box volume: 2 cubic feet
  • Top-mount depth: 4.625"
  • Cutout diameter: 9.188"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

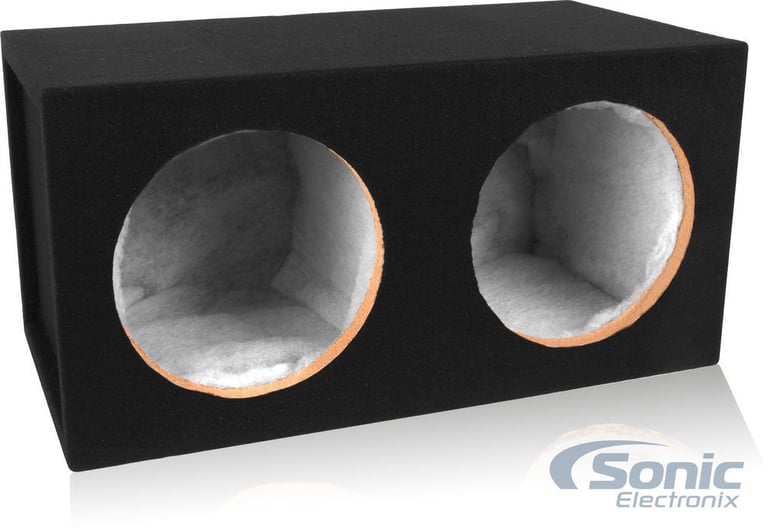

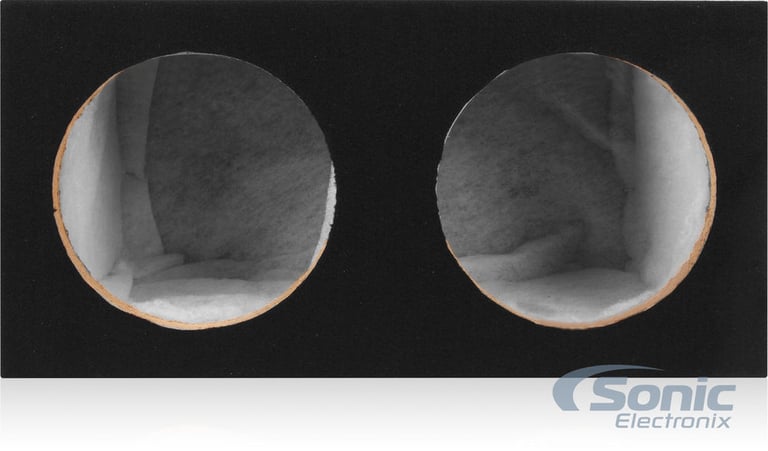

Dual 10" 3/4 MDF Sealed Subwoofer Enclosure (Belva MDFD10)

Dual 10-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (1.6 cu ft Airspace - 10SQB)
Quantity: 1

General Features:

  • Dual Sealed 10" Enclosure
  • Internal box volume: 1.6 cubic ft. total air space - 0.8 cubic ft. per chamber
  • High Quality 3/4" MDF Construction
  • Durable black carpeting
  • Pre-lined with Poly-Fil
  • Seams are fully caulked for better efficiency
  • 2 Separate chambers allowing each subwoofer its own air space
  • Gold post terminals for clean and easy wiring access
  • Box Dimensions: 25"L x 12-1/2"D x 12-1/2"H
  • 30 Day return policy

Belva BAK42

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Red 4 gauge power wire
  2. 3 ft. Black 4 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Belva BBSW167

16 Gauge 7 Meter (23 Ft) Speaker Wire (CCA)
Quantity: 1

General Features:

  • 16 Gauge Speaker Wire
  • High strand count for maximum flexibility
  • Ultra-flexible PVC blended jacket for easy installation
  • Packed in resealable bag
  • Length: 7m (23 Ft)
  • Also available in 12 Gauge
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

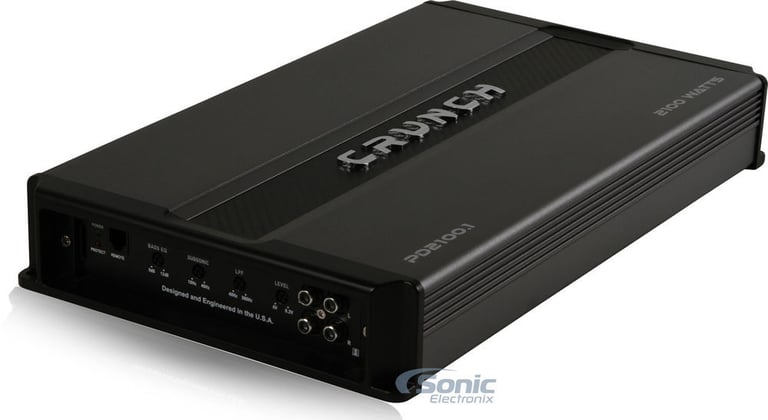

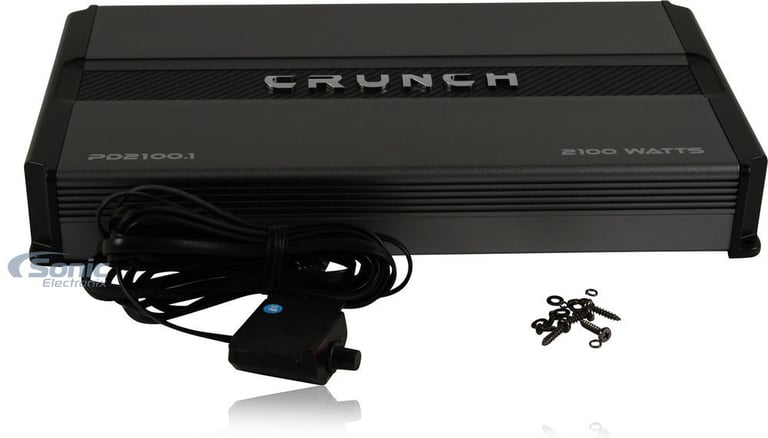

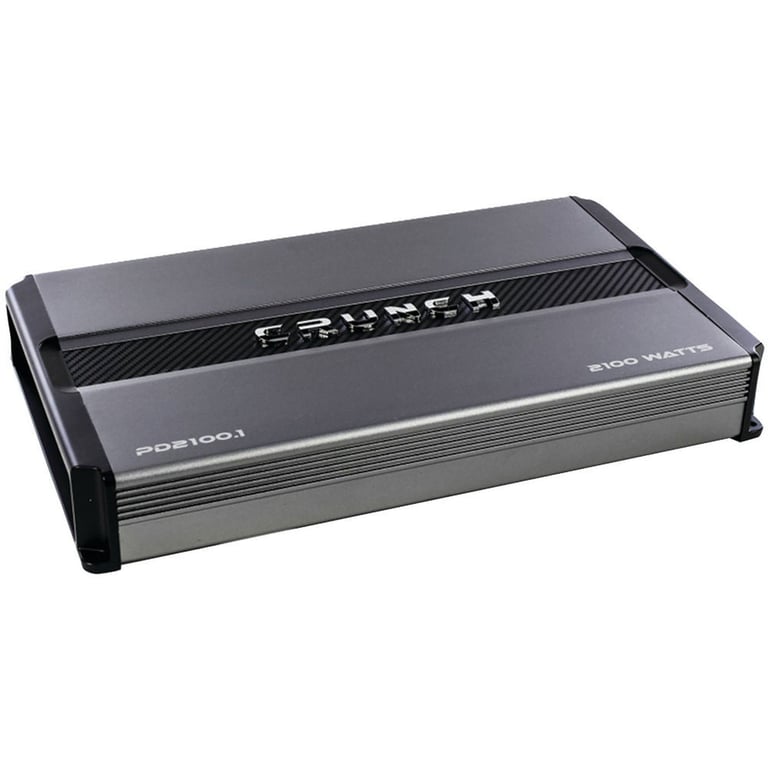

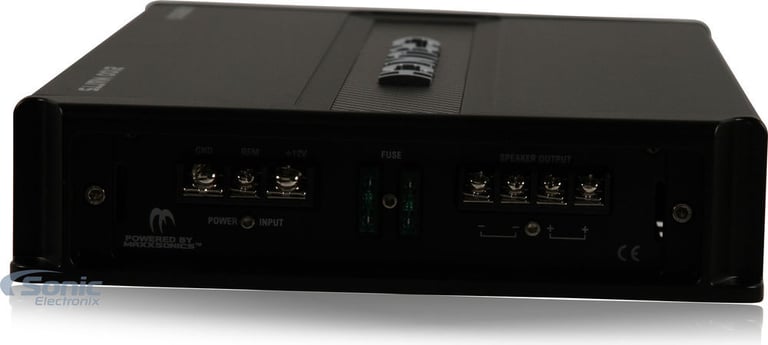

Crunch PD 2100.1

2100W Max Power Drive Series 2-Ohm Stable Monoblock Amplifier
Quantity: 1

General Features:

  • Crunch Power Drive PD 2100.1
  • Class-A/B 2-Ohm Stable Monoblock Amplifier
  • Max Power Rating:
    • 4 ohm: 1050 watts x 1 chan.
    • 2 ohm: 2100 watts x 1 chan.
  • Total power output: 2100 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 2 or Mono channel operation

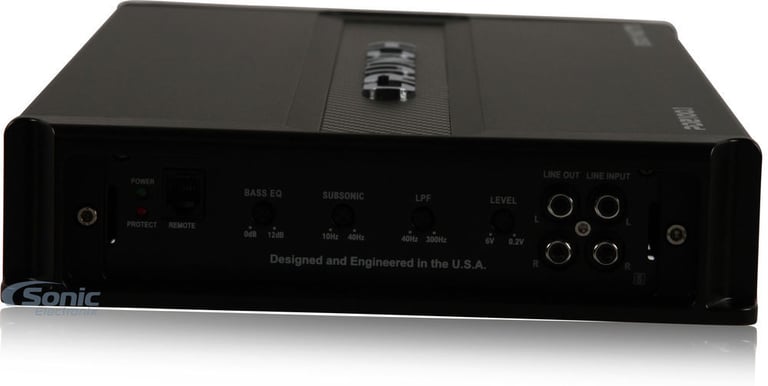

  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Quick Thermal Dispersion Technology adds more mass to aluminum heat sink to run cool
  • Input sensitivity: 0.2V - 6V
  • Variable low-pass filter: 40 - 300 Hz
  • Subsonic Filter: 10 - 40 Hz
  • Variable Bass Boost: 0 to +12 dB bass boost
  • 0 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 11.4"W x 19"L x 3.8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Power Drive Quick Start Installation Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

Specifications & Details


Subwoofer Specifications
Series
35 Series
Subwoofer Size
10"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
250 watts
Peak Power Handling
500 watts
Woofer Surround
Nitrile Butadiene Rubber NBR
Woofer Composition
Polypropylene
Sensitivity
83 dB
Frequency Response
28 - 130 Hz
Top-Mount Depth (Mounting Depth)
4-5/8"
Cutout Diameter
9-1/4"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

(2) 3510-04,PD 2100.1,BBSW167,BAK42BK,MDFD10

Weight:

56.00lbs

Internal SKU:

mtx-351004_mdfd10_bak42_tc4

Internal Product ID:

158237

Customer Ratings & Reviews


(2) MTX 3510-04 10

5 star
72%
4 star
18%
3 star
5%
2 star
4%
1 star
0%



Durability
4.6
Value
4.8
Features
4.5
Design
4.7
Usability
4.7

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Belva bak42

The following review is for BAK42, which is a part of the bundle you are viewing.

This item works okay, easy to install, and good for price.

By Danny on June 6, 2014

195 found this helpful


good package

The following review is for BAK42, which is a part of the bundle you are viewing.

Great value and worth your money as far as what you would need for an amplifier/subs system setup. Quality wires.

By john on January 5, 2015

192 found this helpful


impressed

The following review is for BAK42, which is a part of the bundle you are viewing.

I ordered this kit because it was fairly cheap but I have to say in very impressed with the quality of the wire as well as the thickness of the insulation. It was much thicker than I had anticipated and was pleasantly surprised.

By Bryan on May 20, 2014

194 found this helpful


Wiring kit

The following review is for BAK42, which is a part of the bundle you are viewing.

Very quality wires and very pliable. Will definitely buy again

By Phil on December 25, 2014

188 found this helpful


best bang for your buck

The following review is for BAK42, which is a part of the bundle you are viewing.

hooked up to my amp with ease subs bump all day long no problems installing except finding a good ground the ground wire could be a little longer but not a major problem.

By Hoffman on January 18, 2015

184 found this helpful


Everything you need

The following review is for BAK42, which is a part of the bundle you are viewing.

This package comes with everything you need to install your amp and speakers. Great value.

By Bradford on January 16, 2014

179 found this helpful


Belva

The following review is for BAK42, which is a part of the bundle you are viewing.

Parts came fast, and seems to be a good quality for price.

By Ricke on March 3, 2014

180 found this helpful


Not bad

The following review is for BAK42, which is a part of the bundle you are viewing.

It was pretty nice the wire was a little bigger than i thought (wire is about as fat as a sharpie marker just the wire not the insulation), the grommet that came with it was way to big for the wire so i didn't use it the fuse seems ok the connectors are good didn't have trouble crimping. I had to drill out the ring terminals a little but wasn't bad; wire insulation kind of soft and easy to puncture.

By jeff on December 31, 2013

177 found this helpful


Ok product

The following review is for BAK42, which is a part of the bundle you are viewing.

The product works. Not the best quality though. The cables are pretty lightweight. If I did it again I would spend a little more money and get a higher quality cable.

By JR on April 28, 2014

181 found this helpful


not enough

The following review is for BAK42, which is a part of the bundle you are viewing.

first the terminals are too small for the gauge wire for the power and ground and fuse. a lot of the things that came with the kit didn't seem to have a place with the wires e.g. butt end connectors, cable terminals, all were too small for gauge wire included. im having to run out and buy pieces from my local radioshack. the remote wire has nothing to even connect to my head unit making have to go out and buy more materials to complete my install.

By matthew on March 9, 2014

182 found this helpful




HD518/HD558/HD598 Replacement 3.5mm Cable small

Sennheiser HD 518/558/598 Replacement 3.5mm 5X8 Cable - 4.5 Feet

Genuine Original HD 518/HD 558/HD 598 Replacement Headphone Cable (4.5 Feet)

$19.95

List price $29.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2007 Kia Optima

2008 Mercury Mariner

2000 Saturn SW2

2007 Chevrolet Equinox

2010 Ford Ranger

2008 Nissan Maxima

2012 Hyundai Sonata

2021 Chevrolet Suburban

1975 Mercury Comet

2012 Honda Pilot

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
