Name: NVX VAD17001 (Open Box, Good)
Brand: NVX
SKU: ls-vad17001-u7
Price: 177.27 USD
Availability: Discontinued
Rating: 5.0000 (1 reviews)

Shop all NVX

by NVX

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

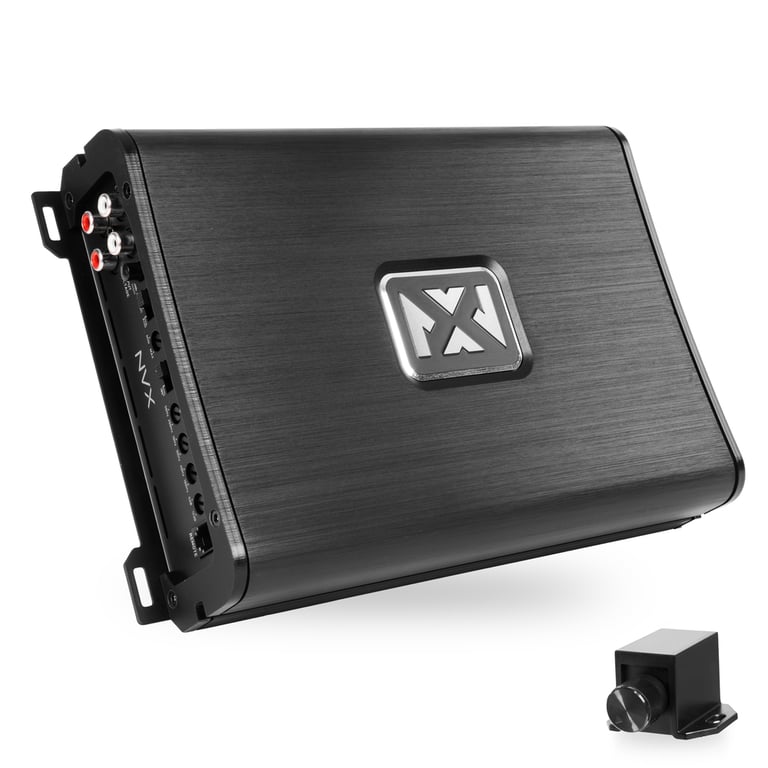

NVX VAD17001 (Open Box, Good) Image 1 — NVX VAD17001 (Open Box, Good)

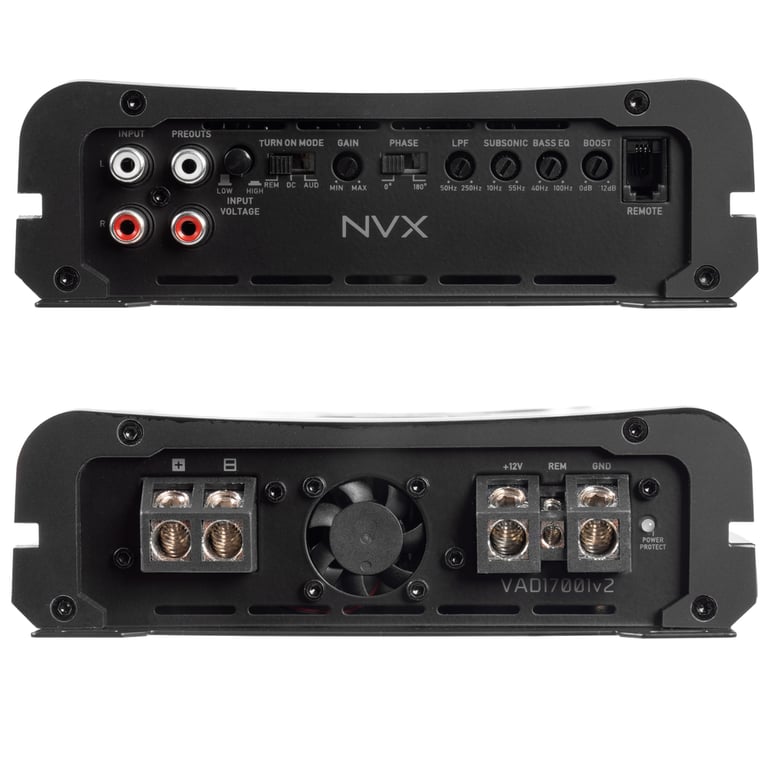

NVX VAD17001 (Open Box, Good) Image 2 — NVX VAD17001 (Open Box, Good)

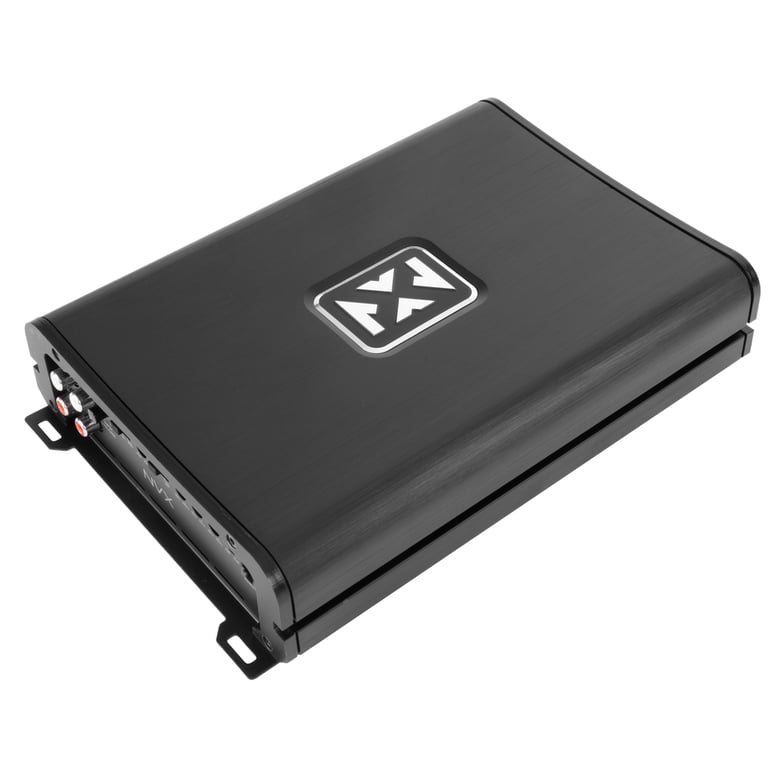

NVX VAD17001 (Open Box, Good) Image 3 — NVX VAD17001 (Open Box, Good)

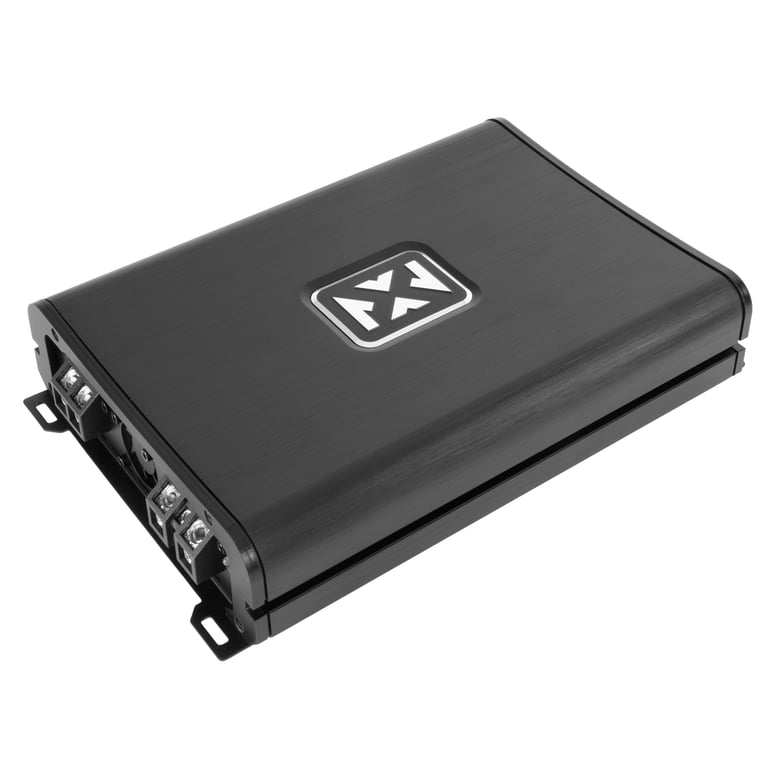

NVX VAD17001 (Open Box, Good) Image 4 — NVX VAD17001 (Open Box, Good)

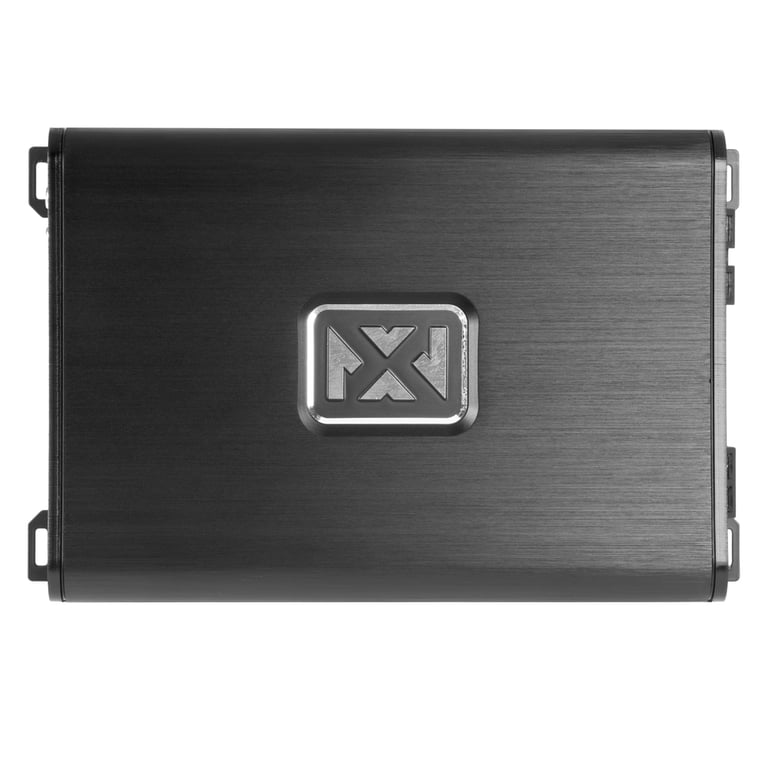

NVX VAD17001 (Open Box, Good) Image 5 — NVX VAD17001 (Open Box, Good)

NVX VAD17001 (Open Box, Good) Image 6 — NVX VAD17001 (Open Box, Good)

NVX VAD17001 (Open Box, Good) Image 7 — NVX VAD17001 (Open Box, Good)

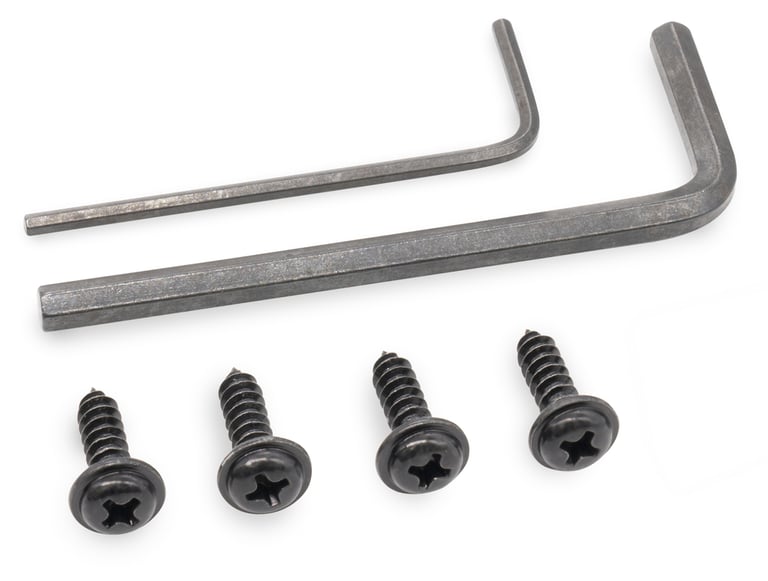

NVX VAD17001 (Open Box, Good) Image 8 — NVX VAD17001 (Open Box, Good)

Product highlights

• RMS: 800 x 1 @ 4 ohm, 1350W x 1 @ 2 ohm, 1700W x 1 @ 1 ohm
• Total RMS Power: 1700W
• CEA-2006 Compliant
• Wired Bass Remote Included
• Efficient Class D Design
• Dimensions: 10.1"W x 5.4"D x 2.0H

Learn more about the ls-vad17001-u7

Description

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

Product Details:

Marine Certified Class D Monoblock Amplifier with Bass Remote
CEA-2006 Compliant
Peak Power Rating: 3400 Watts
RMS Power Rating:

4 ohm: 800 watts x 1 chan.
2 ohm: 1350 watts x 1 chan.
1 ohm: 1700 watts x 1 chan.

LED power (blue) and protect (red) indicators
Conformal Coated Marine grade circuit board
Heavy duty aluminum alloy heat-sink
Platinum-plated RCA level inputs
Platinum-plated screw terminals
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Variable subsonic filter: 10 - 55 Hz, 12 dB/octave
Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
Bass Boost: 0 - +12dB boost @ 45Hz
Input Sensitivity: 200mV-6V
Total Harmonic Distortion: <0.3%
Phase: 0-180 Degree Switch
Recommended In-line Fuse: 120A
Power Wire Gauge: 4 AWG
Speaker Wire Gauge: 4 AWG
Dimensions: 9.2"L x 7.2"W x 2.0"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

NVX VAD17001 Owner's Manual

Product history:

	NVX VAD17001 (Open Box, Good) (newest, current model)
	NVX JAD1200.1 (previous model, replaced by NVX VAD17001 (Open Box, Good))

Specifications & Details

Key Features

Amplifier Key Features

Bass Boost
Fan Cooled
Weather-Resistant

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

800 watts x 1 channel

RMS Power @ 2 ohms

1350 watts x 1 channel

RMS Power @ 1 ohm

1700 watts x 1 channel

RMS Power @ .5 ohm

1700 watts x 1 channel

Power Specifications - Subwoofer Channel

Peak Power @ 4 ohm

1600 watts x 1 channel

Peak Power @ 2 ohms

2700 watts x 1 channel

Peak Power @ 1 ohm

3400 watts x 1 channel

Peak Power @ .5 ohm

3400 watts x 1 channel

Amplifier Specifications

Series

V Series

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

3400 watts

Total RMS Power Output

1700 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

THD at Rated RMS Power

0.3%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

50 - 250 Hz

Subsonic Filter

10 - 55 Hz

Signal-to-Noise Ratio

105 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Strappable

Sonic Certified Amplifier

Yes

What is in the box?

Paperwork

User manual

WITB: Amplifiers

Amplifier
Wired gain knob (wire attached)
Mounting screws (4)
Adhesive brand badges (2)

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

NVX VAD17001 (Open Box, Good) thumbnail image

Overall rating distribution

5 star		100%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		0
Value		0
Features		0
Design		0
Usability		0

Customer Photos & Videos

Customer Reviews

Sort by:

Love NVX amps!

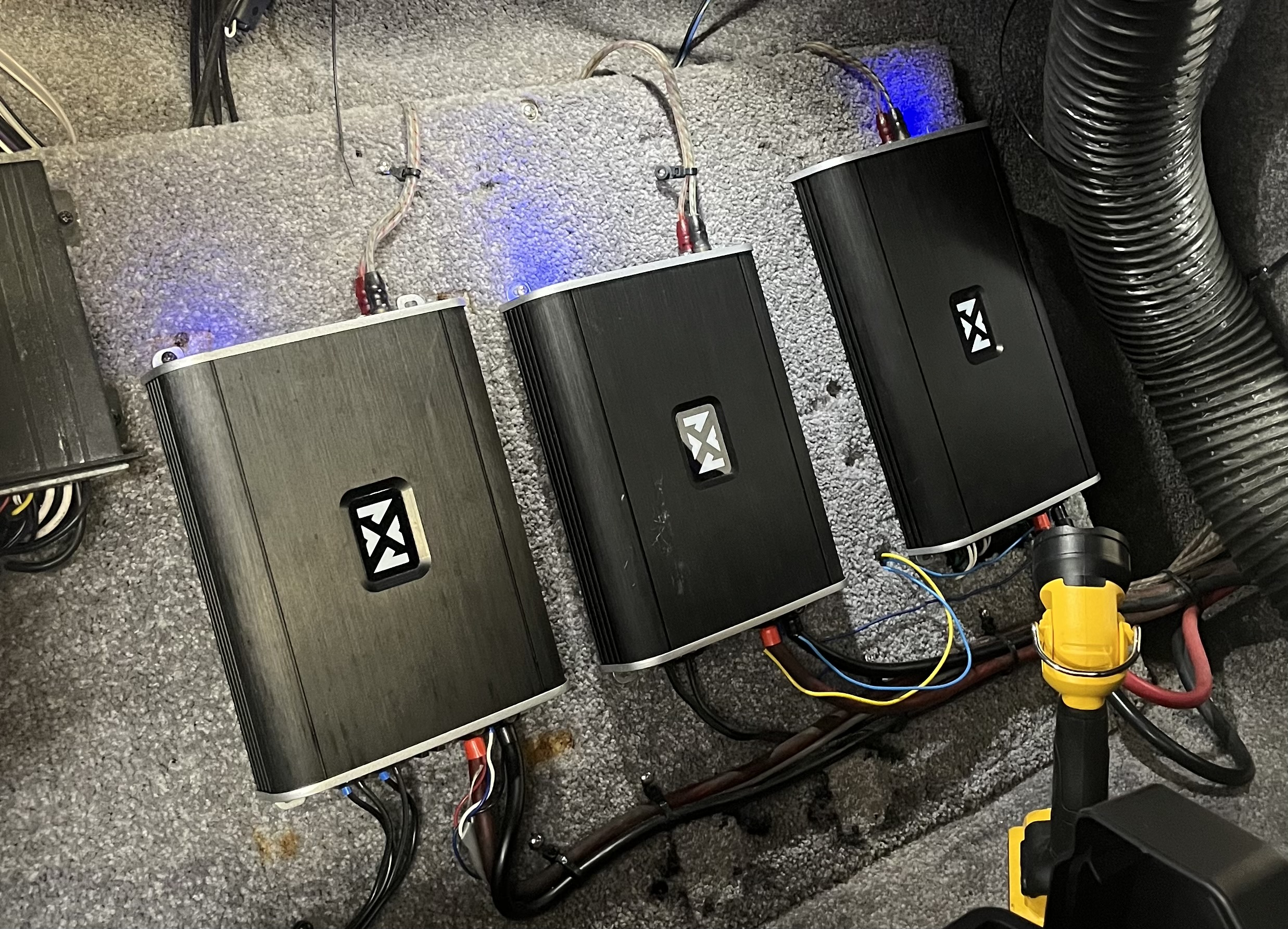

I have all NVX amps in my Malibu 24MXZ. The 17001 is pushing a Treo Engineering sub rated for over 1k rms. It really gets down and no one ever thinks it’s just one ten! Amazing value and never gets warm even at 1 ohm. You can hear the fan if music isn’t playing and the compartment is open.

By Brandon on March 29, 2025 Checkmark Icon

Verified purchase
