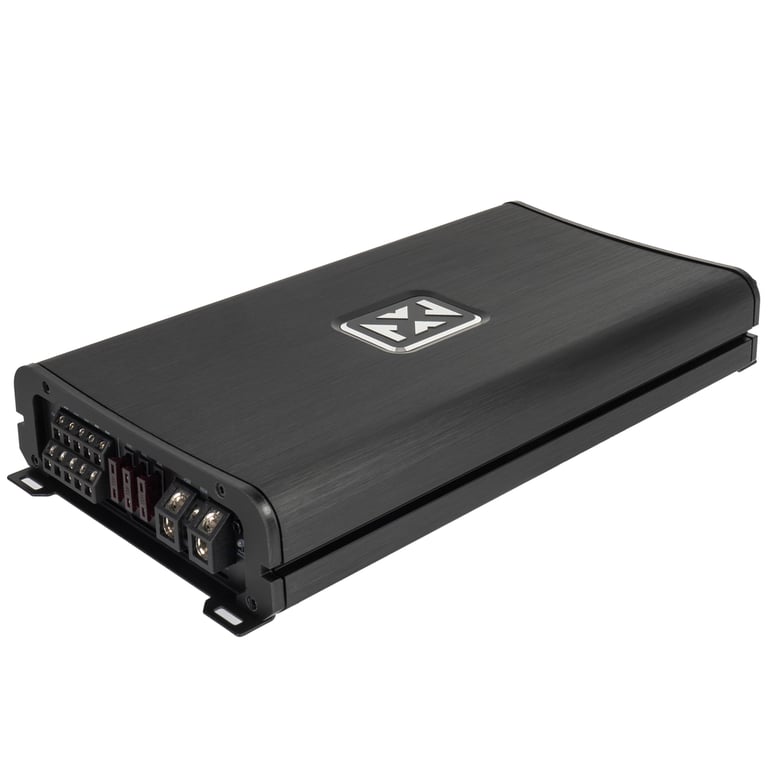

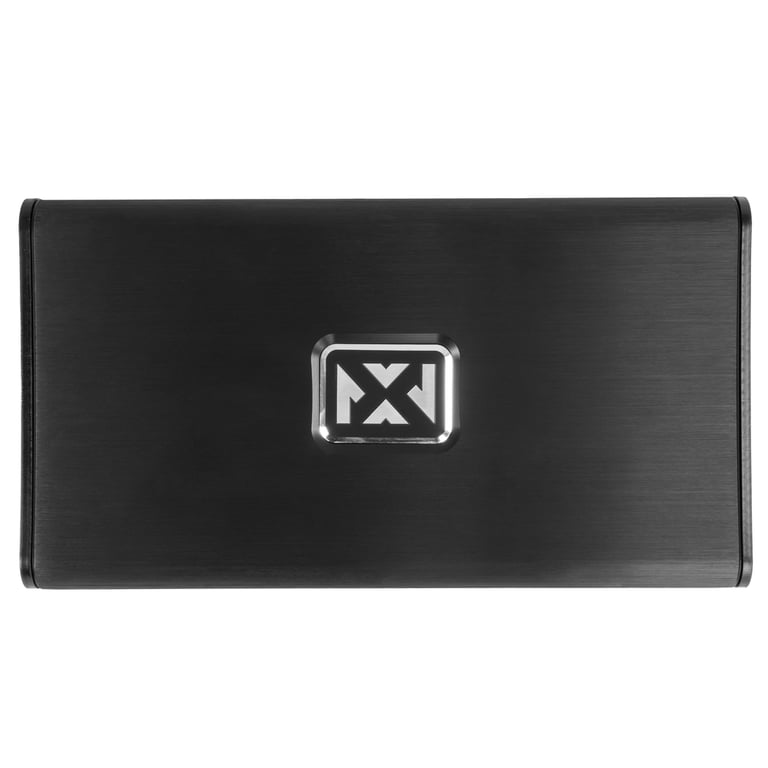

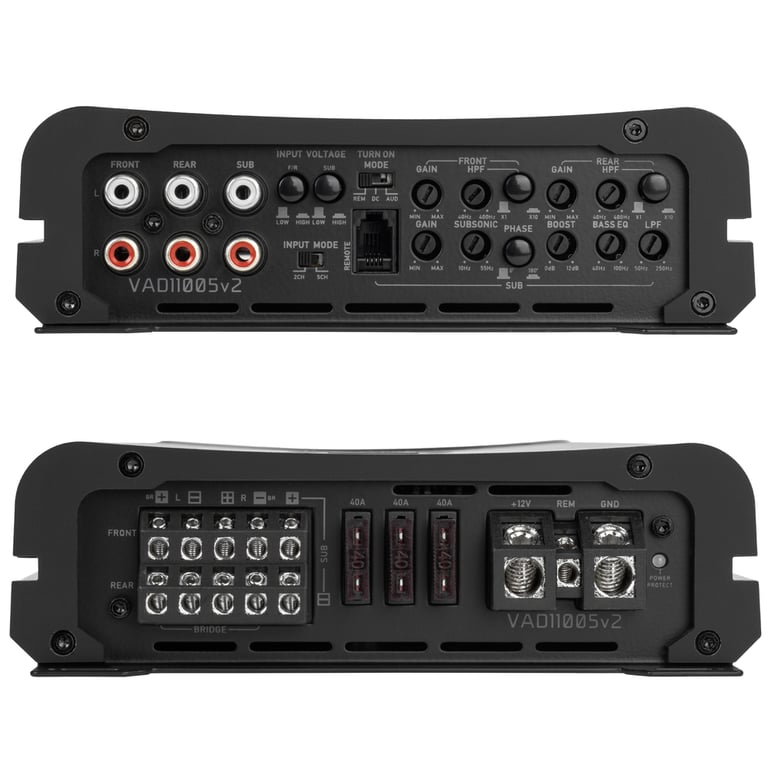

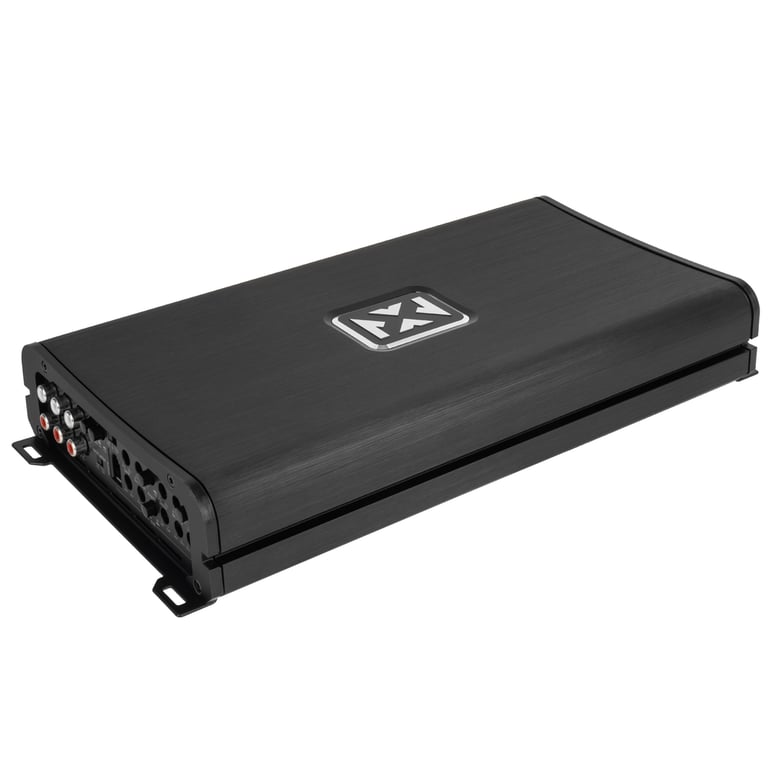

NVX VAD11005 (Open Box, Good)

Product Details:

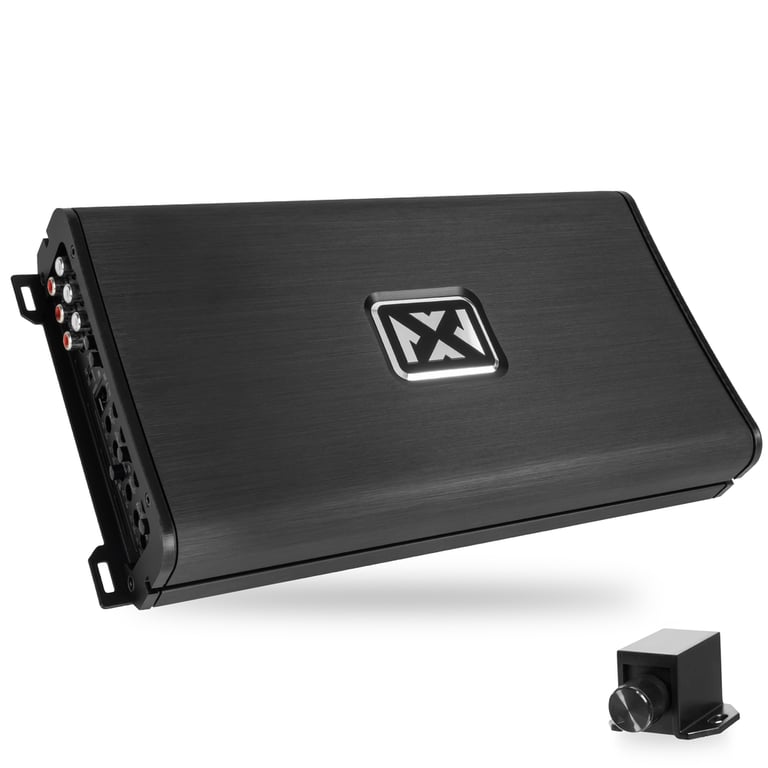

• Marine Certified Full Range Class D 5-Channel Amplifier with Bass Remote
• CEA-2006 Compliant
• Peak Power Rating: 2200 Watt
• RMS Power Rating:
• 4 ohm: 80 watts x 4 chan. + 350 x 1 chan.
• 2 ohm: 125 watts x 4 chan. + 600 x 1 chan.
• Bridged, 4 ohm: 250 watts x 2 chan
• Conformal Coated Marine grade circuit board
• LED power (blue) and protect (red) indicators
• 5/4/2 channel operation
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink
• Platinum-plated RCA level inputs
• Platinum-plated screw terminals
• 2, 4 and 5 channel operation
• Variable high-pass filter (40-500 Hz, 12 dB/octave)
• Variable low-pass filter (50-250 Hz, 12 dB/octave)
• Variable subsonic filter (10-20 Hz, 12 dB/octave)
• Variable Bass Boost (0 to +18 dB bass boost at 45 Hz)
• Input Sensitivity: 200mV-6V
• Frequency response: 20-20,000 Hz
• Fuse Rating: 40A x 3
• Power Wire Gauge: 4 AWG
• Speaker Wire Gauge: 8 AWG
• Dimensions: 12"L x 7.2"W x 2.0"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

NVX VAD11005 owner’s manual
