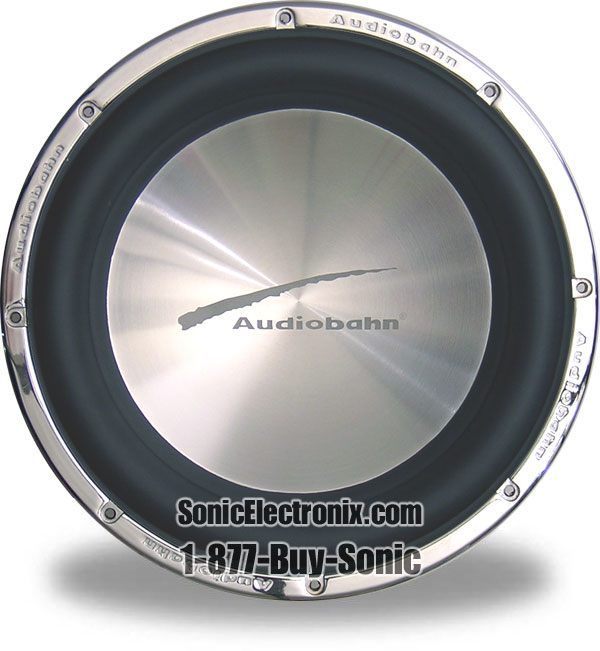

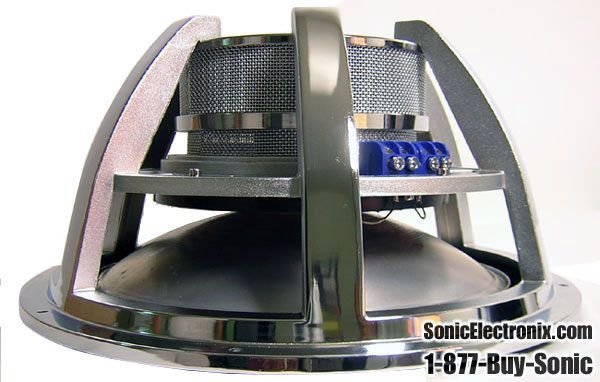

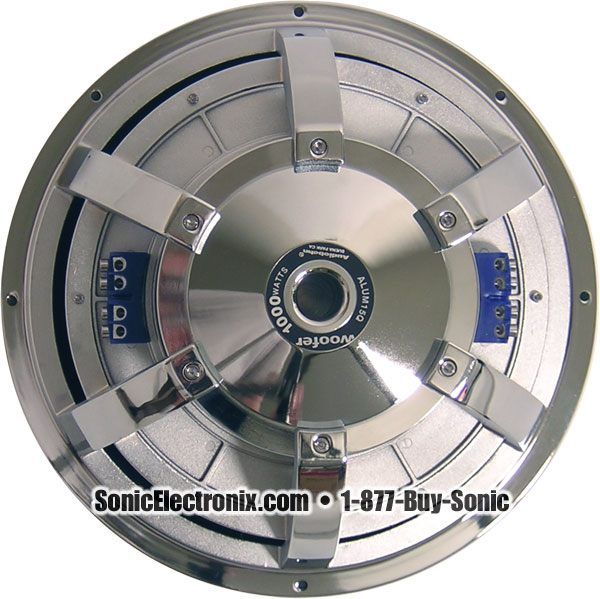

Audiobahn ALUM15Q 15" Alumnium Cone

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

15" Aluminum Cone DVC Subwoofer

Learn more about the alum15q

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

109
-33.36%

$9.99

List price $14.99

95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

45
-21.92%

$17.95

List price $22.99

82-5601 main

Metra 82-5601

5 1/4" Component Speaker to 6" x 8" Adapter Kit for select 1990-2019 vehicles from Ford, Mazda, Mercury

3
-13.64%

$18.99

List price $21.99

A392-10CP main

Atrend A392-10CP

Empty Dual 10" Sealed Rear Enclosure for select 1999-2007 F-350 Super Duty and F-250 Super Duty and F-450 Super Duty

1
FM-K552 main

American International FM-K552

Single DIN or Double DIN Stereo Dash Kit for select 1995-2011 vehicles from Ford, Lincoln, Mazda

21
-55.03%

$8.99

List price $19.99

99-5804 main

Metra 99-5804 Dash Kit

Install a new Single-DIN car stereo in select 1998-2011 vehicles from Ford, Lincoln, Mercury

3
-42.56%

$26.99

List price $46.99

70-5603 main

Metra 70-5603 Wiring Harness

Install a new car stereo and retain factory amplifier in select 1995-2004 vehicles from Ford, Lincoln, Mazda

4
-39.30%

$16.99

List price $27.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Product Highlights


15" Aluminum Cone DVC Subwoofer

Description


  • 2200W Peak Power Handling Approx.
  • 1100W RMS Power Handling
  • PHAT 1.75” EPDM Rubber Surround
  • Spun Aluminum Cone
  • Rubber Surround
  • Dual 6 Ohm
  • 3 Ohm or 12 Ohm Operation
  • Multi-connect Lug Lock Terminals
  • PATENT PENDING
  • Outer Sub Diameter: 15-1/2"

Loading...
F250X00C20A-TN main

MTX Audio Thunderform F250X00C20A-TN

400W Peak (200W RMS) Loaded Dual 10" Amplified Sealed Enclosure for select 2000-2014 F-250 Super Duty

1
F250X00C20-TN main

MTX Audio Thunderform F250X00C20-TN

400W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2000-2014 F-250 Super Duty

-5.80%

$649.95

List price $689.99

SB-F-SUPRCNSL/10W3v3 main

JL Audio Stealthbox® SB-F-SUPRCNSL/10W3v3

Custom-Fit Loaded 10" Sealed Truck Enclosure with One 10W3v3-2 Subwoofer for select 1999-2007 F-250 Super Duty and F-350 Super Duty and Excursion with Front Bucket Seats

$1,149.99

F250X00BK20-TN main

MTX Audio Thunderform F250X00BK20-TN

400W RMS Loaded Single 10" Sealed Truck Enclosure for select 2000-2014 F-250 Super Duty

1
-7.15%

$649.95

List price $699.99

F250X00BK20A-TN main

MTX Audio Thunderform F250X00BK20A-TN

200W RMS Loaded Dual 10" Sealed Amplified Truck Enclosure for for select 2000-2014 F-250 Super Duty

Lowest price in 30 days
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-28.32%

$389.88

List price $543.88

SMW10D4_A39210CP main

Atrend A392-10CP with NVX SMW10D4 for 1999 - 2008 Ford F250/F350 Crew Cab Trucks

350W RMS Shallow-Mount 10" Dual 4-Ohm Subwoofer + Dual 10" Subwoofer Enclosure

7
-9.52%

$379.97

List price $419.97

Lowest price in 30 days
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-21.44%

$109.95

List price $139.95


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

YSW152 small

NVX YSW152

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

P3D4-15 small

Rockford Fosgate Punch P3 P3D4-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Sensitivity: 86 dB

(54)

$339.99

List price $339.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

SW-M15D1 small

Sundown Audio M-15 D1 15" (M15D1)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 12.06"
• Sensitivity: 83.024 dB

(1)

$659.99

List price $791.99

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
15"
Peak Power Handling
2200W Approx.
RMS Power Handling
1100 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
6 ohm
Frequency Response
18 - 500 Hz
Sensitivity
96.4 dB
Woofer Surround
Rubber
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
7-1/4"
Cutout Diameter
14"

Item Details


Manufacturer:

Model Number:

ALUM15Q

Weight:

35.00lbs

Internal SKU:

alum15q

Internal Product ID:

1602

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn ALUM15Q 15

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
5
Features
4.7
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

BOOM BOOM!!!

I have two of these 15's and am currently, majorly underpowering them (about 440 RMS each)...and they still amaze me evertime I crank my car!! They have dismanteld my rear view mirror and even shattered a bottle of cologne in the front of my car...WOW!!! The only downside is the dual 6 ohm voice coils...a little less flexibility considering the only amps strong enough are normally 1 ohm stable, but they are well worth every penny. I have had up to 1700 Watts RMS on each one and they played flawlessly and without any distortion!!!!!

By Christopher on May 11, 2005

14 found this helpful


BBBBBBBAAAAAAASSSSSSSSSSSSS

I have never heard a subwoofer this nice before. It hits the highs perfectly and the lows perfectly. With the right amp, you will end up with angry neighbors like me.

By mike on April 26, 2005

13 found this helpful


This sub hits hard!

I had two 12's in my old car that I sold with the car. When i got my new car I put this sub in it, and it hits harder than my old 12's did. Love it so far, no complaints

By Nicholas on October 21, 2004

13 found this helpful
