BOYO Vision VTC525R

Wifi Wireless Bar Camera with LED Night Vision + 5 inch Monitor

BOYO Vision
Shop all BOYO Vision
highlight-star-icon

• Zinc metal license plate camera + 5” TFT LCD rear view monitor
• Dual mounting solution
• IP68 waterproof rating
• No wireless setup needed
• Frames per second: 20 ~ 30fps

Learn more about the vtc525r

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

95-7526B main

Metra 95-7526B Dash Kit

Install a new Double-DIN car stereo in select 2014-2018 3

-10.00%

$89.99

List price $99.99

40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

82-7501 main

Metra 82-7501

Speaker Brackets for select 2013-2023 vehicles from Mazda - Pair

3
-48.85%

$21.99

List price $42.99

70-7905 main

Metra 70-7905 Wiring Harness

Install a New Car Stereo in select 2016-2024 vehicles from Mazda

-11.12%

$23.99

List price $26.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Description


BOYO Vision brand icon

Authorized dealer

Product Details:

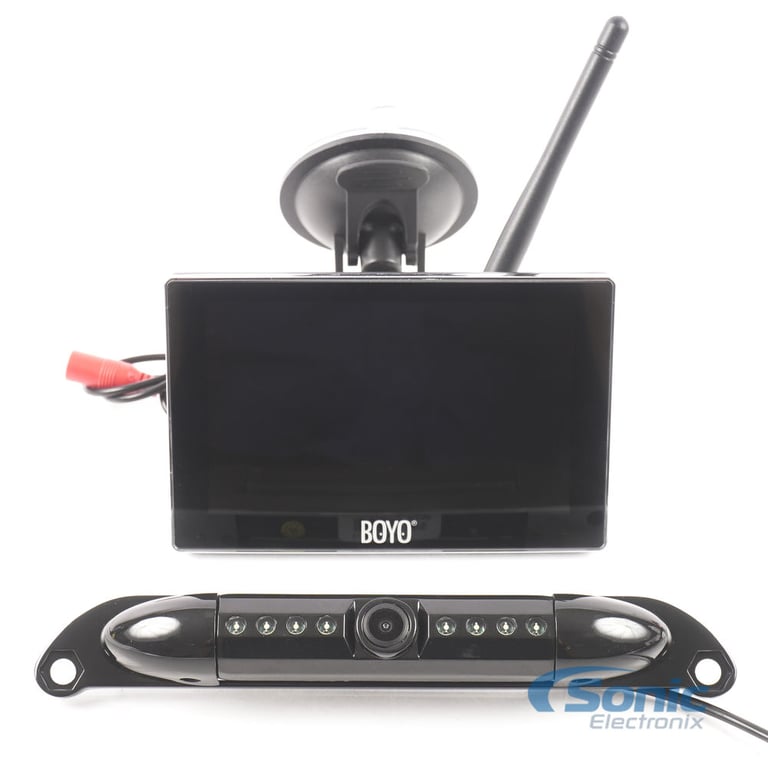

  • Zinc metal license plate camera + 5” TFT LCD rear view monitor
  • Parking lines are selected (ON/OFF)
  • Selectable video image (reverse/non-reverse)
  • Cameras and monitors are interchangeable
  • Dual mounting solution (includes windshield and dashboard mount)
  • IP68 waterproof rating
  • No wireless setup needed
  • Wireless modules are built-in the camera and the monitor
  • Not interfered by 2.4GHz wireless signal or other RF signals
  • Less than 100ms latency
  • Frames per second: 20 ~ 30fps

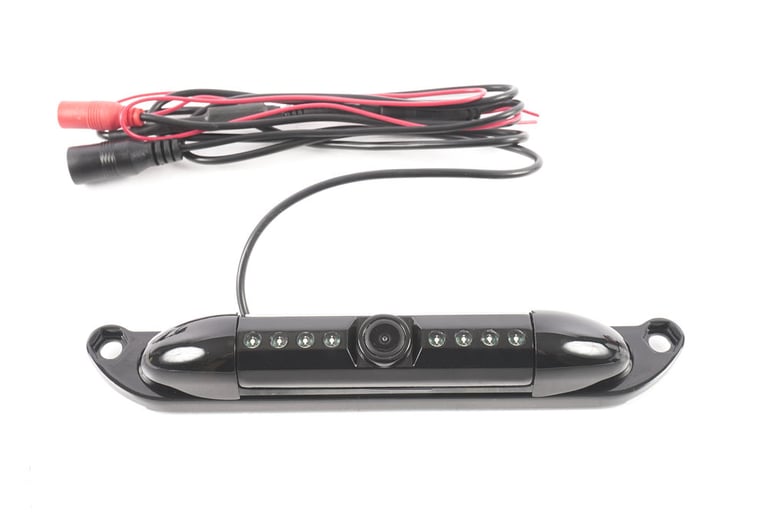

Camera:

  • 1/3 Color CMOS Image sensor (PC1099) with 8 LED's
  • Resolution: 976x496
  • Viewing angle: 130°
  • Transmission power: 80mW
  • Voltage: 12V
  • Waterproof Rating: IP68
  • Transmission Bandwidth: 20 Mbps

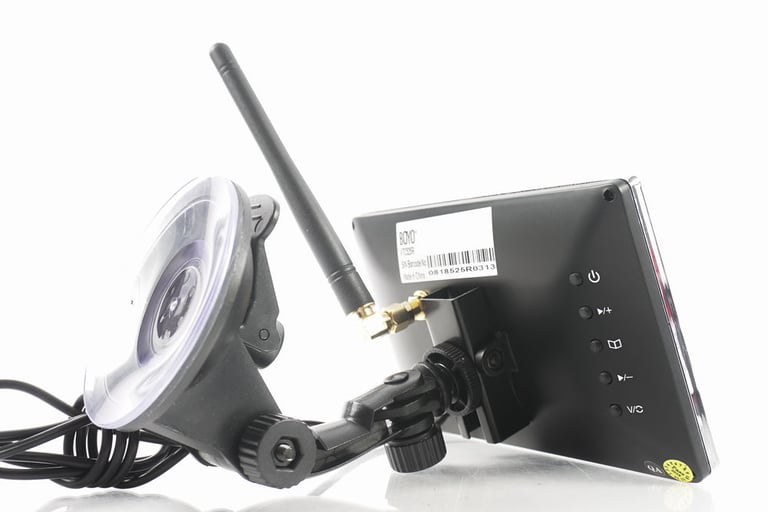

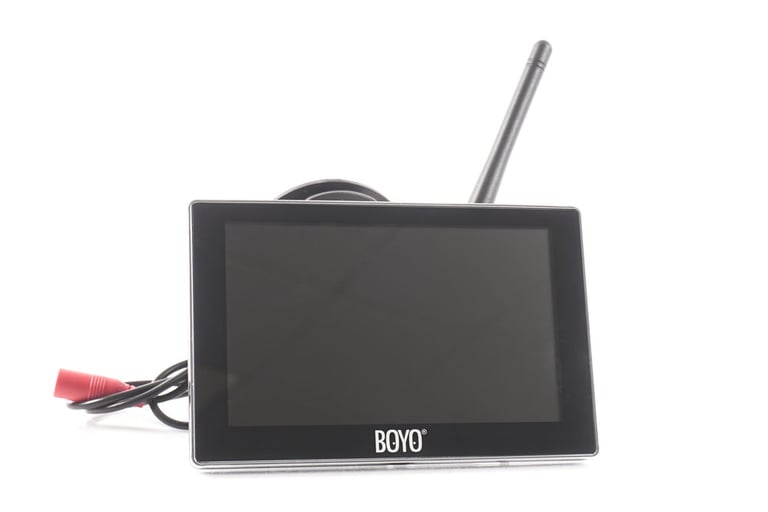

Monitor:

  • Display: 5” TFT LCD
  • Resolution 800 x 480
  • Contrast: Adjustable
  • Brightness: Adjustable
  • Voltage: 12V
  • Working temperature: -4°F ~ +140°F

General:

Transmission method: Wi-Fi digital signal
Video Compression: H.264
Transmission distance: 67ft line of sight
Working temperature: -20°C ~ +60°C
Store temperature: -30°C ~ +80°C
Working humidity: 85%RH


Check out the BOYO Vision VTC525R Owner's Manual

Product history:

BOYO Vision VTC525R thumbnail
(newest, current model)
BOYO Vision VTC424R thumbnail
(previous model, replaced by BOYO Vision VTC525R)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

RVCTY-71 small

Crux RVCTY-71

• Rear-View Camera Integration for 2012-2014 Toyota Vehicles
• Waterproof Rear-view Camera included
• Automatically switches to Rear-View when car is in Reverse mode
• 170 Degree Viewing Angle
• Dimension: 4.8" L x 3" W x 2.5" H

(4)

$75.60

List price $117.60

XCADJ1 small

NVX XCADJ1

• Universal Rear View Backup Camera
• High Resolution 1089 HDCCD Image Sensor
• Mounting Style: Bracket Mount
• Viewing Angle: 170 ° (wide viewing)
• Resolution: 800 x 533
• Waterproof: Yes (IP68 waterproof)
• Night vision: Low-light

(37)

$39.99

List price $119.99

BLPCAM2 small

Belva BLPCAM2

• Universal Rear View Backup Camera
• Mounting Style: Full License Plate Frame
• Resolution: 720 x 480
• Waterproof: Yes
• Nightvision: Infrared LED's

(57)

$39.99

List price $99.99

CFD-03E small

Crux CFD-03E

• Ford Emblem Camera For Select Ford Vehicles
• IP67 Waterproof Rating
• Resolution: 480 TV Lines
• Viewing Angle: 170°
• Dimensions: 10"L x 7.75"W x 3.25"H

(1)

$216.00

List price $336.00

CCV-01X small

Crux CCV-01X

•Third Brake Light Camera
• Water Resistant Connectors
• 6 Infrared LEDs for Night Time Usage
• Built-In Microphone
• Dimensions: 10.75"L x 3.25"W x 2"H

(1)

$199.80

List price $310.80

RVCVW-73L small

Crux RVCVW-73L

• Plug & Play Installation
• Automatically Switches Screen Rear-view when Vehicle is in Reverse Mode
• Vehicle Specific LED License Plate Rear-view Camera Included
• OBD Coder for Single Activation Included
• Dimension: 5" L x 2.5" W x 8.8" H

$321.30

List price $499.80

RVCCH-75WT small

Crux RVCCH-75WT

• Interface Included for Rearview Camera Integration to Factory MYGIG Radio
• Spare Tire Mount Rearview Back Up Camera
• Fits Select 2007-2017 Jeep Wrangler Vehicles
• IP68 Waterproof Rating
• Resolution: 480 TV Lines
• Viewing Angle: 170°
• Dimension: 10" L x 7.75" W x 3.25" H

$321.30

List price $499.80

RVCCH-75D small

Crux RVCCH-75D

• Rear-View Integration System with Camera
• For select 2013-2017 1500 and 3500 and 2500
• Activates Uconnect touchscreen radio
• Aftermarket backup camera included
• Forced reverse camera view features
• Includes VIM function

(1)

$303.75

List price $472.50

CMB-18SY small

Crux CMB-18SY

• Third Brake Light Camera Mount Rearview Back Up Camera
• Nightvision
• Resolution: 975 x 582
• Viewing Angle: 150°

$180.90

List price $281.40

BARCAM221 small

NVX BARCAM221

• Universal Rear View Backup Camera
• High-Resolution CMOS PC1089 Image Sensor
• Mounting Style: Top of License Plate Frame
• Viewing Angle: 170 ° (super wide viewing angle)
• Resolution: 510 x 496
• Waterproof: Yes (IP67/68 waterproof)
• Night vision: Infrared LED's

(39)

$39.99

List price $99.99

Specifications & Details


General Features
Color Type
Color
Resolution (pixels)
976 x 496
Video Output
Wireless Transmitter
Mounting Type
Full License Plate Frame
Adjustable Tilt
Yes
Weatherproof
Yes
Reverse Image
Adjustable
Parking Guidelines
Optional
Built-in Microphone
No
Primary Color
Black

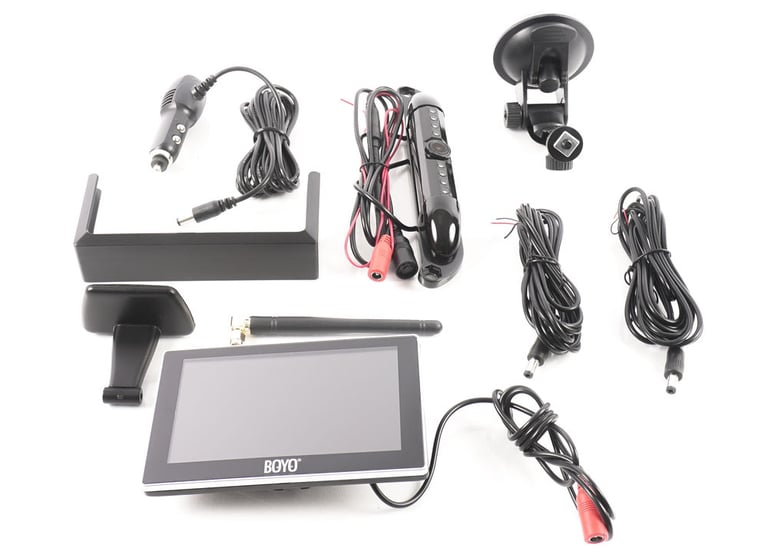

What is in the box?
WITB: Backup Cameras
Camera
Video extension cable
Mounting bracket
See below for additional accessories
Other Accessory #1
Car power supply
Other Accessory #2
Mounts
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VTC525R

Weight:

3.30lbs

Internal SKU:

vtc525r

Internal Product ID:

160289
