Audiobahn A6004J

800W 4-Channel Intake Series Car Amplifier

Product videos
highlight-star-icon

4-Channel Class AB Intake Series Car Amplifier • 100W x 4 Chan @ 4 Ohm • 200W x 4 Chan @ 2 Ohm • Bass Boost On/Off Switch • High Gloss Chrome-Plated Finish • Cobalt Blue Illumination • Air Intake Fan

Learn more about the a6004j

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

95-7526B main

Metra 95-7526B Dash Kit

Install a new Double-DIN car stereo in select 2014-2018 3

-10.00%

$89.99

List price $99.99

40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

82-7501 main

Metra 82-7501

Speaker Brackets for select 2013-2023 vehicles from Mazda - Pair

3
-48.85%

$21.99

List price $42.99

70-7905 main

Metra 70-7905 Wiring Harness

Install a New Car Stereo in select 2016-2024 vehicles from Mazda

-11.12%

$23.99

List price $26.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Product Highlights


4-Channel Class AB Intake Series Car Amplifier • 100W x 4 Chan @ 4 Ohm • 200W x 4 Chan @ 2 Ohm • Bass Boost On/Off Switch • High Gloss Chrome-Plated Finish • Cobalt Blue Illumination • Air Intake Fan

Description

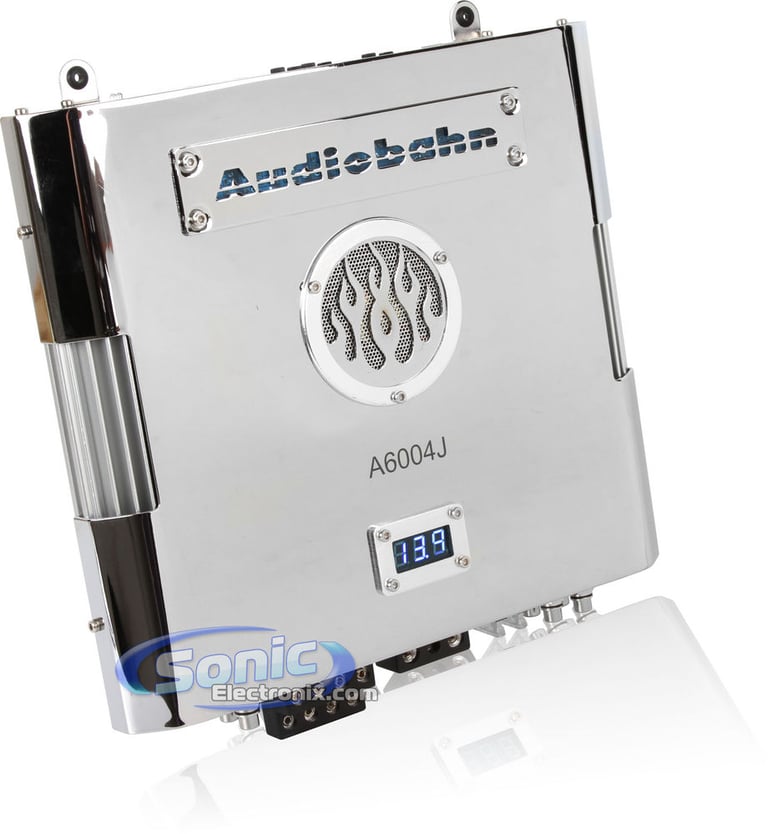

Audiobahn A6004J Intake Series Car Amplifier

Sonic Electronix is now carrying Audiobahn's new 2011 amplifiers. The Intake Series features the same attractive appearance you are used to from Audiobahn with the included flame fan grilles. The intake series also comes equipped with an air-induction groove and a air intake fan that will keep the amps temperature at a safe operating level, a high gloss chrome plated finish to add to the eye catching appearance, and a 3-way protection circuitry which includes thermal, short circuit, and overload protection. Available in mono, 2-channel, 4-channel, and even 5-channel configurations. Combine the stunning looks with the performance and you have yourself a winner.

Digital DC Input Voltage

Audiobahn Intake Amplifiers feature an on-board cobalt blue digital volt meter which allows a quick assessment of your vehicle’s charging voltage to the amplifier. During normal operation, the display should read between 11.5V and 14.4V. A LO or HI readout indicates a problem that requires attention.

Air Intake Fan

Audiobahn’s Intake Series of amplifiers were made to be ultra-durable and allow for installation versatility. Since heat weakens the inner workings of any electrical component, attention was put into the placement of the air-induction groove and air intake fan. These design components help force cooler outside air into the chassis of the amplifier and help to maintain its optimum operating temperature.

Nickel-Plated Block Terminals

Audiobahn uses nickel-plated block terminals to ensure increased productivity and maintaining proper connection. Because nickel is an ideal electrical conductor, the flow of power is essential in maintaining proper current flow through power connections. The nickel-plated block terminals provide a more efficient power transfer from output terminals to speakers and subwoofers and make a more solid and secure connection for all wires. Each terminal block is also encased in black ABS plastic to prevent short circuits and accidental wire entanglement.

Product Features
  • 4-Channel Class AB Intake Series Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 chan.
    • 2 ohm: 200 watts x 4 chan.
    • Bridged @ 4 Ohm: 400 watts x 2 chan.
  • PWM MOSFET power supply
  • Large display volt meter with blue illumination
  • Bass Boost on/off switch
  • High gloss chrome-plated finish
  • 4-channel operation
  • Throughput RCA connections
  • Cobalt blue illumination
  • Double-Sided glass epoxy circuit board
  • Air-Induction groove and air intake fan help force cooler outside air into the chassis of the amplifier and help to maintain its optimum operating temperature
  • Chrome flame fan grilles for an enhanced appearance
  • 3-way Protection Circuitry: Thermal, Short Circuit and Overload
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-Plated RCA level inputs

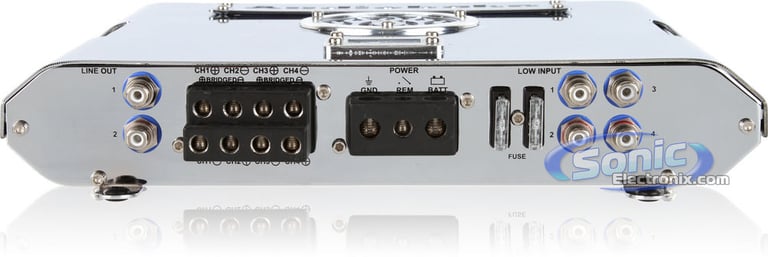

  • Nickel-Plated block terminals
  • Input Sensitivity: 200mV-8V

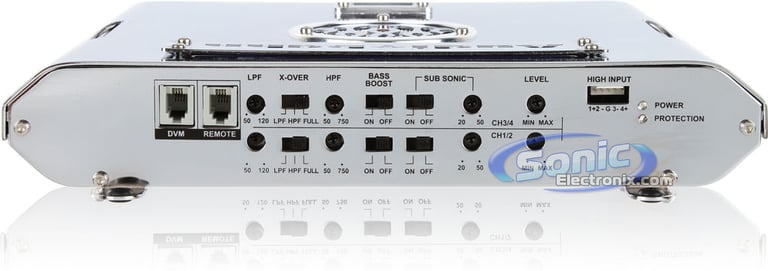

  • Variable Low-Pass Filter (50-120 Hz, 18 dB/octave)
  • Variable High-Pass Filter (50-750 Hz, 18 dB/octave)
  • Subsonic Filter (20-50 Hz)
  • Frequency Response: 10-40,000 Hz
  • THD: 0.02%
  • Signal-To-Noise Ratio: >100 dB
  • Dimensions: 9-7/8"L x 11-3/16"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty

Product history:

Audiobahn A6004J thumbnail
(newest, current model)
Audiobahn A6004V thumbnail
(previous model, replaced by Audiobahn A6004J)
Audiobahn A6004T thumbnail
(previous model, replaced by Audiobahn A6004V)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
200 watts x 4 channel
Bridged RMS Power
400 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
800 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
50 - 120 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
>100 dB
Bass Boost
On/Off Switch
Remote bass/level controller
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

A6004J

Weight:

9.50lbs

Internal SKU:

a6004j

Internal Product ID:

33638

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn A6004J thumbnail image

5 star
82%
4 star
18%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.8
Design
5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Great Deal

The following review is for a previous version (A6004T).

For the price, you can't beat the numbers. The amp does run on the hot side, so avoid placing it in close quarters and next to other subs. The fan helps, but for long drives on a nice hot day the amp might cut out. (safety reasons, the amp won't let itself burn out) It does suck a lot of juice so if you have another amp installed, you might need a cap or you'll have blinky lights.

By Samson on May 4, 2006

7 found this helpful


Great amp

I bought this amp and i love it. It hasnt heated up yet and ive ran it for an hr and a half multiple times. the volt meter works good and amp looks good too. I fully recommend this amp. Im planning on buying another for installing 2 more sets of speakers.

By MA on March 23, 2011

5 found this helpful


POWER AND LOOKS IN ONE

The following review is for a previous version (A6004T).

I GOT THIS AMP TO RUN MY JL AUDIO VR CsI AND AUDIOBAHN ACS2062P. THIS LITTLE AMP CAN DISH OUT ALL THE POWER YOU NEED, WITH AMAZING CLARITY. HIGHLY RECOMMENED DON'T GO WITH ANY OTHER AMP. AUDIOBAHN IS THE BEST NO MATTER WHAT.

By Audelino on April 8, 2005

5 found this helpful


Audiobahn A6004T

The following review is for a previous version (A6004T).

Awesome amp, i don't even have to turn it up half way and it powers all 4 of my speaks with great clarity. Blue light is awesome also. Great price and the product was shipped to me the next day! extremely fast processing. Thank you!

By Joe on October 23, 2005

4 found this helpful


Good Amp for Inside Speakers

The following review is for a previous version (A6004T).

This Amp is really good for inside speakers but i find that its hard to tune once it is installed. It does give off really great sound the

By Blake on August 15, 2005

4 found this helpful


Clean Amp and Very Affordable

The following review is for a previous version (A6004T).

I purchased the Audiobahn A6004T to run a set of Components up front and a par of 6x9 rear fill speakers. The Amp sounds as great as it looks. I have it installed under my seat and at night you can see the blue glow of the Amp emulating from there. I like the terminals and adjustability the Amp offers; all power and speaker leads connect to one end while all adjustment selectors are on the other end. The Amp runs much cooler than the one it replaced; the built-in fan is definitely a big plus.
The only drawback in my opinion is the speaker connectors are staggered; instead of having all the "+" terminals up top and all the "-" terminals across the bottom, they are "staggered
+ -
- +
+ -
- +
However this is a great Amp, Highly recommended.

By JASON on May 1, 2005

4 found this helpful


Pretty Nice....

Amazeing look's with great sound. I love the blue LED's , it give's it a nice custom look and it perform's as well. A MUST BUY,THANKS TO SONIC.....

By Frankie on April 6, 2012

3 found this helpful


dayuuummmm

I have this running a set of alpine spx-17REF's as well as channel 3+4 bridged running an SWR-T12. I always run it loud and it has never overheated or skipped a beat. Not to mention the sound quality is incredible. You can spend BIG $$ to get an amp of similar performance on paper, but in terms of bang for your buck, this is at the top.

By darryl on November 12, 2011

3 found this helpful


Good Amp

The following review is for a previous version (A6004T).

I bought this amp to power my 2 x 12 bass system in my car, and it really does the trick. Would recommend this product to anyone looking to get some real power fed into their system for a fair price.

By Benjamin on February 17, 2006

2 found this helpful


Shiny with kick

The following review is for a previous version (A6004T).

Just got this guy installed, works perfect.
Had a slight issue finding the "GAIN" adjustment listed in the documentation (Labled "Level" on the "front" of the unit.)

Bass Boost is significant, and if you plan on using it, I recommend getting the remote and tuning LPF to take some stress of the smaller speakers. My 5.25" Infinity Reference were 'challenged' by Bass Boost, however, the setup puts out rich clear bass (as well as the rest of the sound spectrum) at a much higher volume than I expected.

I must say, it's a tight fit in a Miata, but having the battery and the Amp in the trunk make for a very straightforward install.

By Derek on November 28, 2005

2 found this helpful




APSB2371 small

Sunbeam APSB2371 MixMaster Stand Mixer

Sunbeam 2371 White MixMaster Stand Mixer

$98.99

List price $185.00

SCY-305M small

ScyTek SCY-305M

Universal Mount Color Monitor w/ 3.5" TFT LCD screen

$34.99

List price $129.99

UD40230 small

Dirt Devil UD40230

Easy Lite Quick Vacuum w/ On-Board Tools

$49.99

List price $59.95

MC-UL810 small

Panaseima MC-UL810

Jet Turn Bagless Upright Vacuum Cleaner

$30.34

List price $169.95

UD40275 small

Dirt Devil UD40275

Power Path Dual Stage Cyclonic Bagless Upright

$76.95

List price $149.95

APNCLT2SG small

Nesco APNCLT2SG

Nesco LT2SG 2 Grey Speckled/Marbled Trays Fit Dehydrators FD61-WHC And FD75-PR

$17.99

List price $29.00

SWDVK-425504-US small

Swann SWDVK-425504-US

4-channel Dvr With 4 Indoor/outoor Day/night Vision Ccd Cameras

$432.00

List price $449.99

DLC-2ADY small

Cuisinart DLC-2ADY

Mini-prep Plus Food Processor (Dark Yellow)

$39.95

List price $75.00

No picture

Princeton Tec BL5015

Accessory, Tec 400 Base Plate

$6.99

List price $7.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Mazda 3

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
