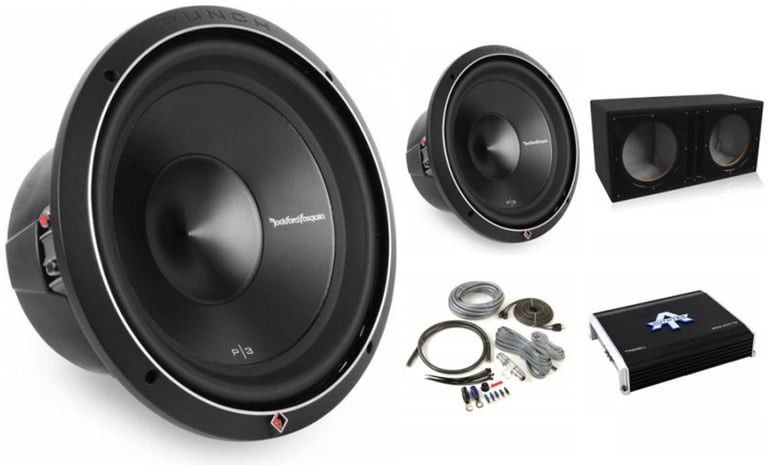

(2) Rockford Fosgate Punch P3D2-12 + Autotek TA2050.1 + Ported Box+ Free Amp Kit

Key Benefits

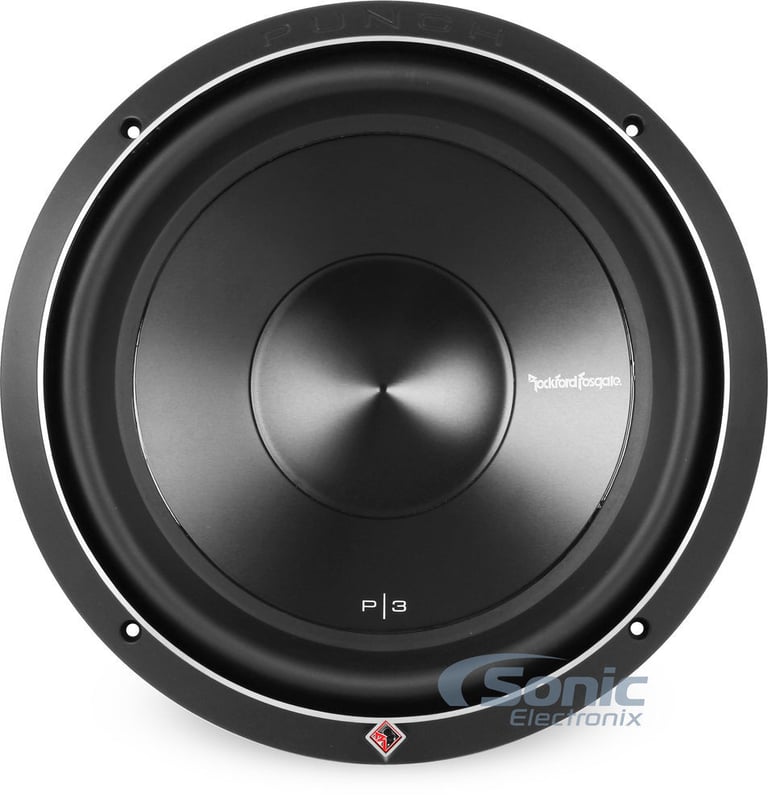

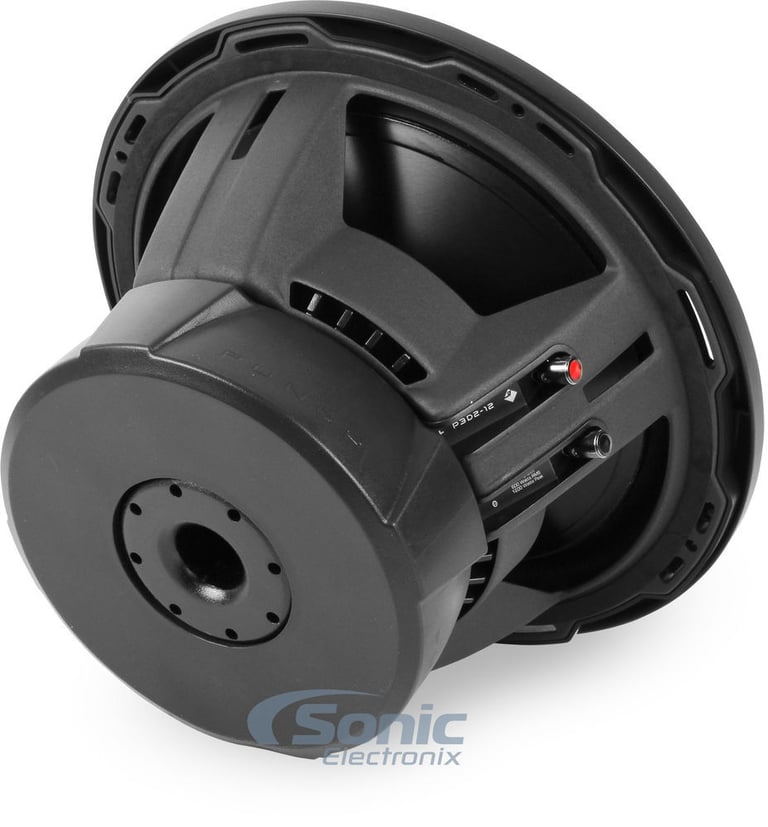

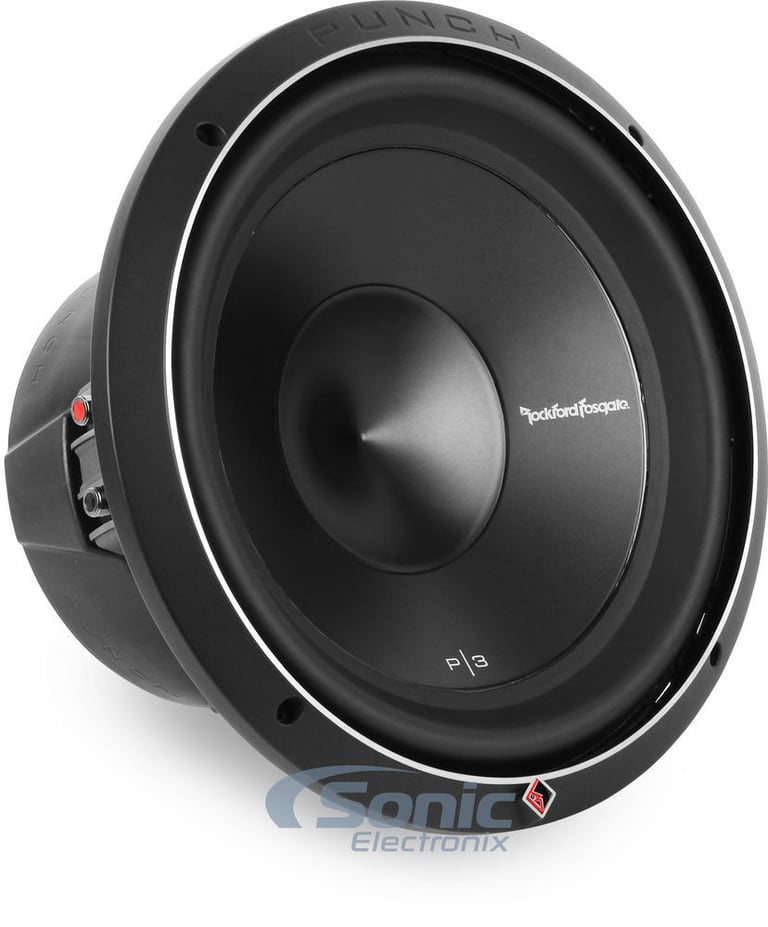

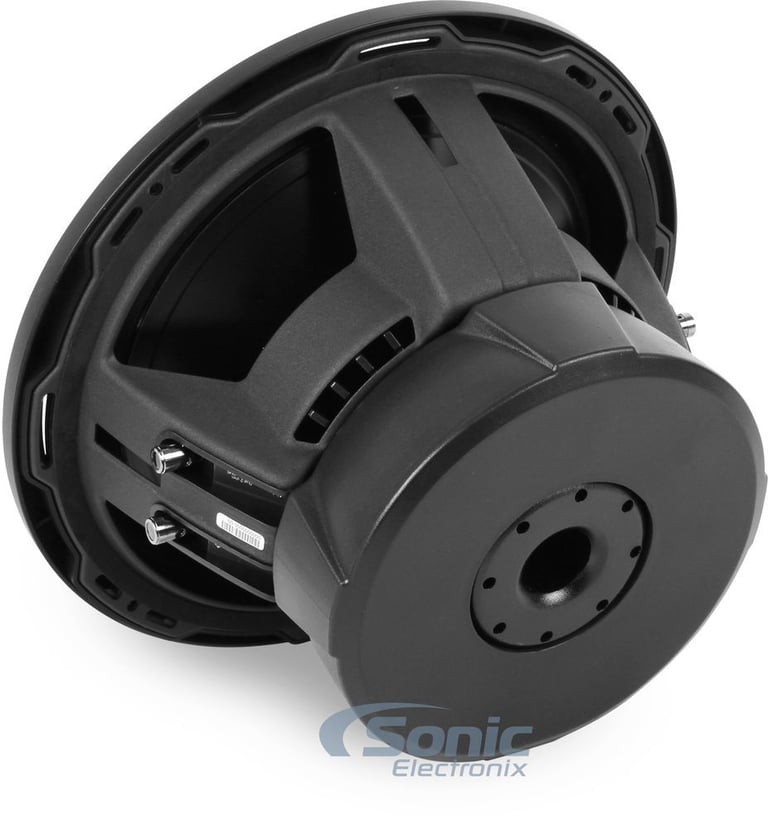

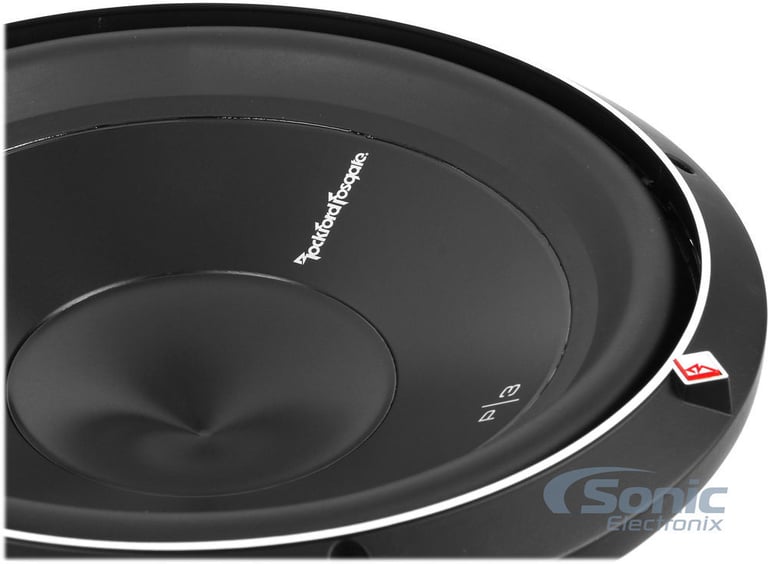

• 12" Dual 2 ohm Punch Stage 3 Subwoofer
• Power Handling:
• Peak: 1200 watts
• RMS: 600 watts
• Recommended power range: 300 - 700 watts RMS
• CEA-2031 Compliant
• Klippel Verified
• Flex-fit Mounting pattern
• Proprietary spider venting/cooling technique
• StampCast basket with integrated spider venting
• Sturdy 16 gauge compound bend frame geometry
• High modulus Kevlar re-inforced paper-pulp cone
• Semi-flexible, PVC removable protective motor cover
• Multi-point high-temp/high-strength neck joint bonding technique
• Tall-profile VAST Santoprene surround for larger surface area
• Dual tear & fatigue resistant poly-cotton spider with woven tinsel leads
• Fatigue resistant and reduced strain "stitched on" flexible lead wire design

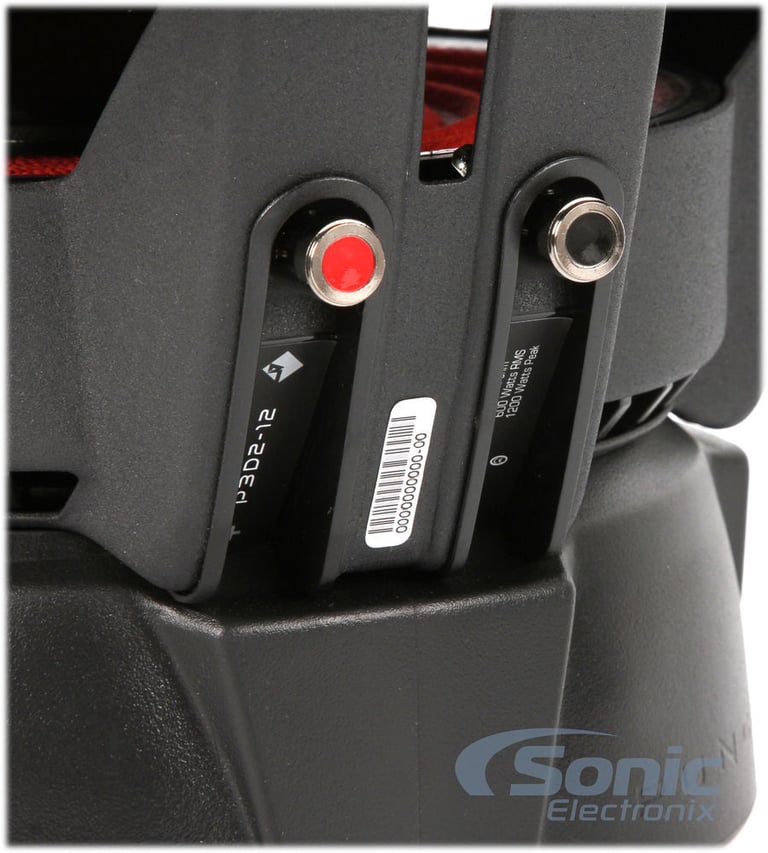

• Proprietary all metal, radially oriented compression input terminal assembly
• Optimized motor magnetics with extended pole and bumped vented backplate
• High temp 2.5" voice coil w/ spun-laced Nomex insulating re-inforcement collar
• Die-Cast aluminum soft-touch painted trim ring allows for optional integrated grill
• Stamped Mesh Grille Insert Available: Rockford Fosgate P2P3G-12
• Mounting Depth: 6.66"
• Cutout Diameter: 11.25"
• Magnet Weight: 96 oz
• Frequency Response: 26.5 - 250 Hz
• Xmax: 15.2mm
• Sensitivity: 85 dB @ 1 watt / 1 meter
• Recommended Ported Enclosure: 1.79ft³
• Recommended Sealed Enclosure: 1.02ft³
• Matching Amplifiers: (one subwoofer)
• Rockford Fosgate P500X1BD, Parallel @1ohm
  ✔ Preferred Match
• Rockford Fosgate PBR500X1, Parallel @1ohm
• Matching Amplifier: (two subwoofers)
• Rockford Fosgate R1200-1D, Series/Parallel @2ohms
  ✔ Preferred Match
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually

General Features:

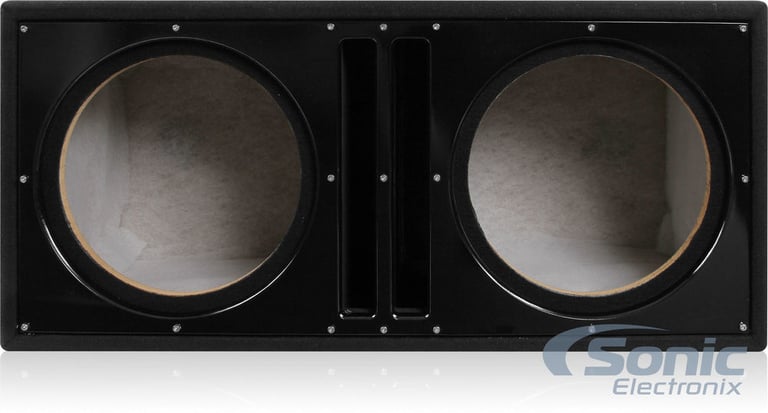

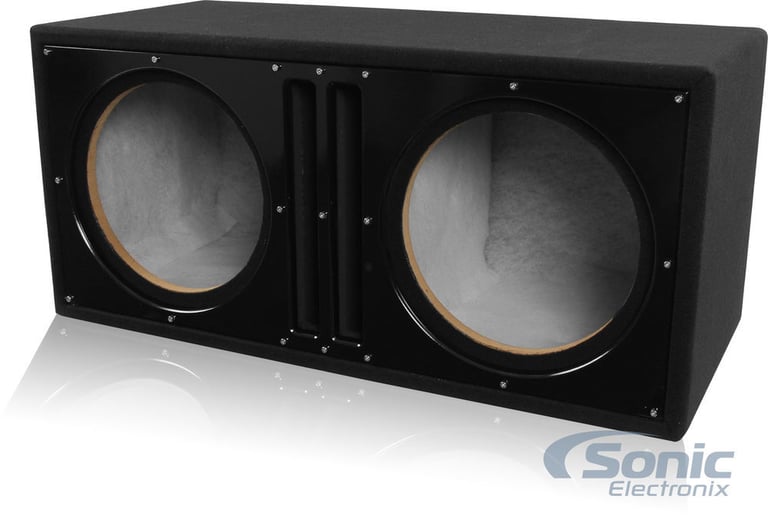

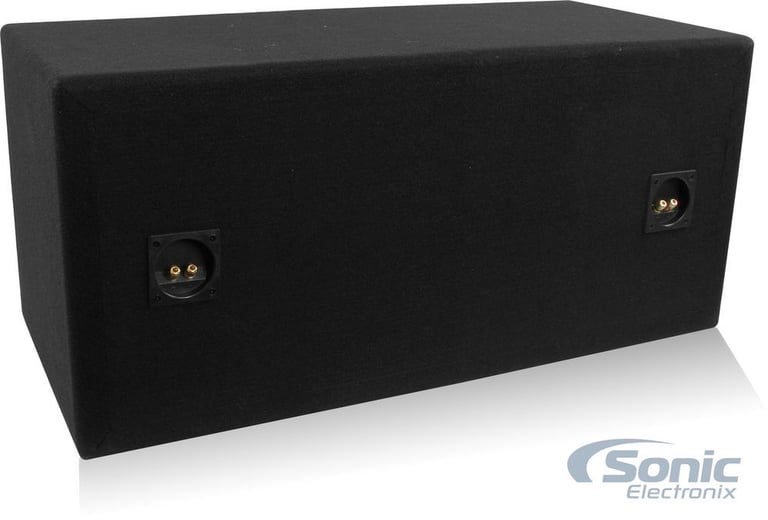

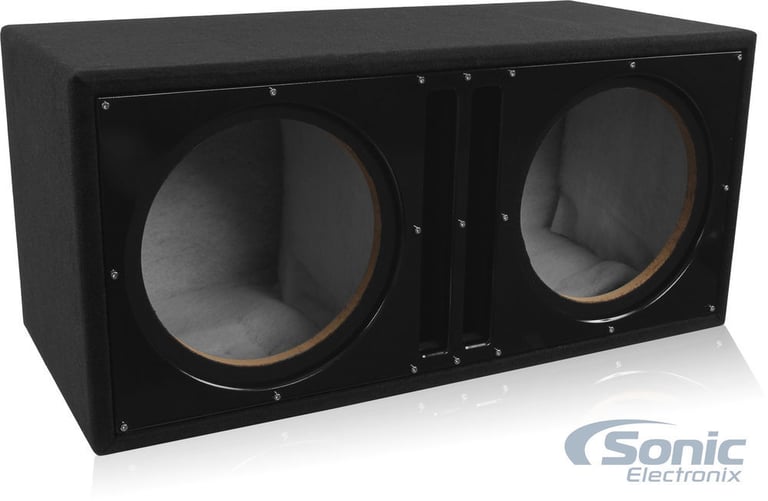

• 12" Dual Ported Subwoofer Enclosure
• Black satin finish front face board
• Covered in black carpet
• Durable 3/4" Medium Density Fiberboard (MDF) construction
• Subwoofer mounting depth: 14 1/2"
• Subwoofer cutout diameter: 11 1/4"
• Box volume: 1.85 cubic feet (per chamber)
• Total box volume: 3.7 cubic feet
• Dimensions: 16"D x 35"W x 16.25"H
• Also available in Blue and Red
• Authorized Internet Dealer
• 30-Day Return Policy

Port Specifications:

• Rectangular Slot Port
• Number of ports: 2
• Port volume: 0.18 cubic feet (per port)
• Total port volume: 0.36 cubic feet
• Estimated port tuned frequency (fb): 35 Hz
• Port dimensions: 1.5"Width 12.5"Depth

General Features:

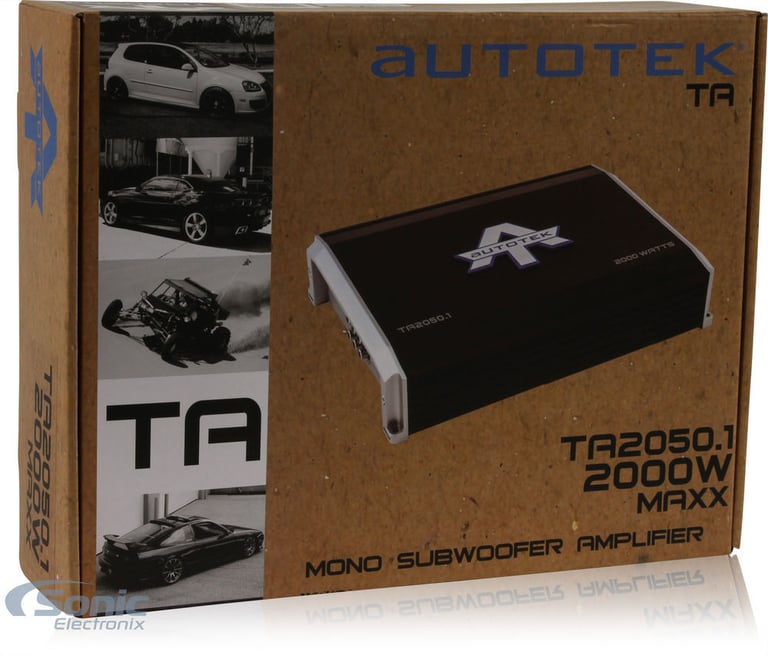

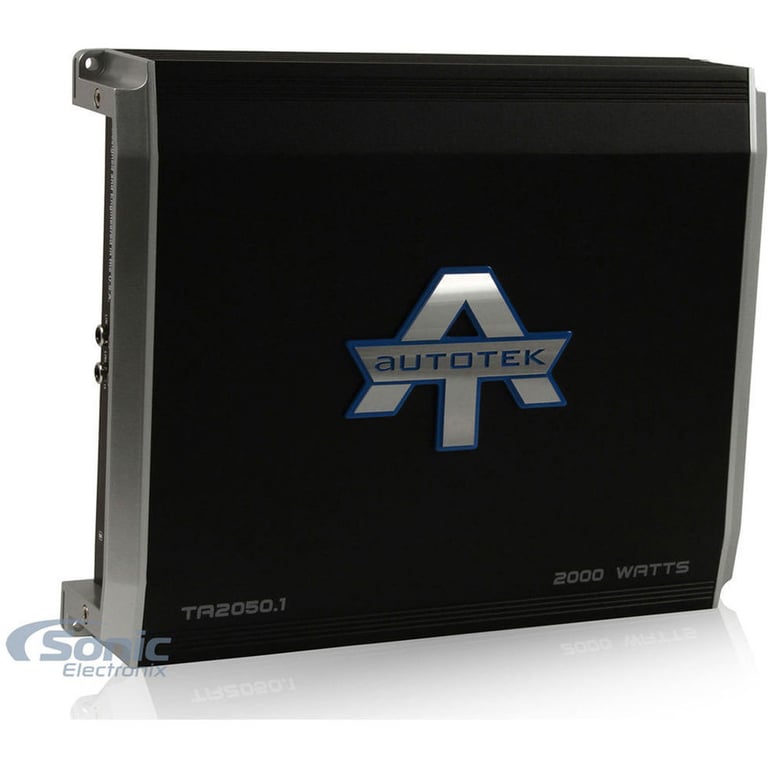

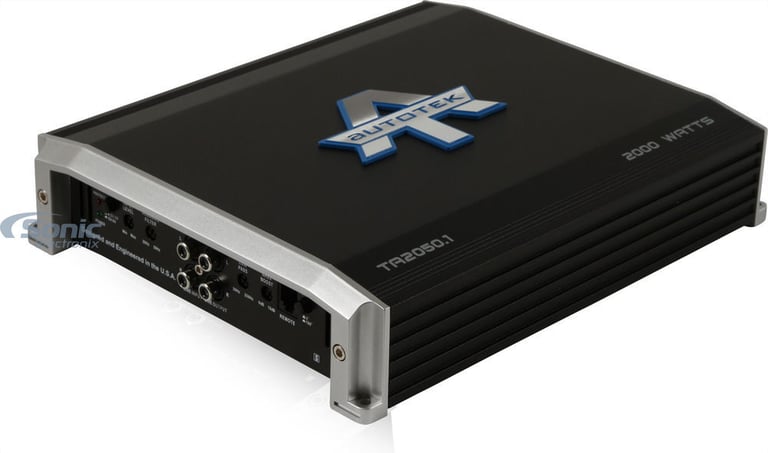

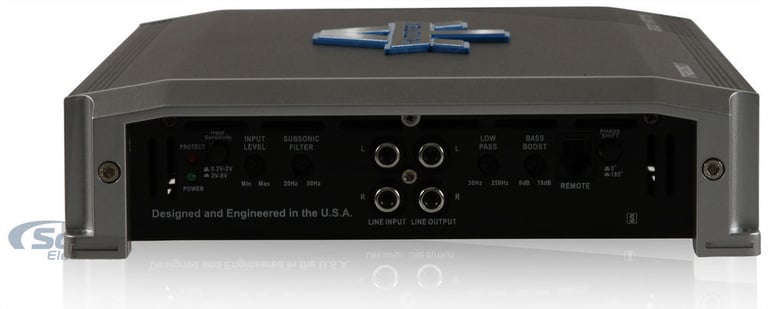

• Autotek TA Series TA2050.1
• Class-D 1-Ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 800 watts x 1 chan.
• 2 ohms: 1500 watts x 1 chan.
• 1 ohm: 2000 watts x 1 chan.
• Total power output: 4000 watts
• Pro- Fi™ High Speed MOSFET power supply

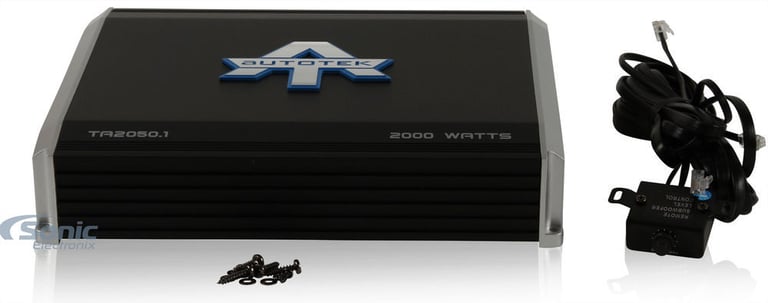

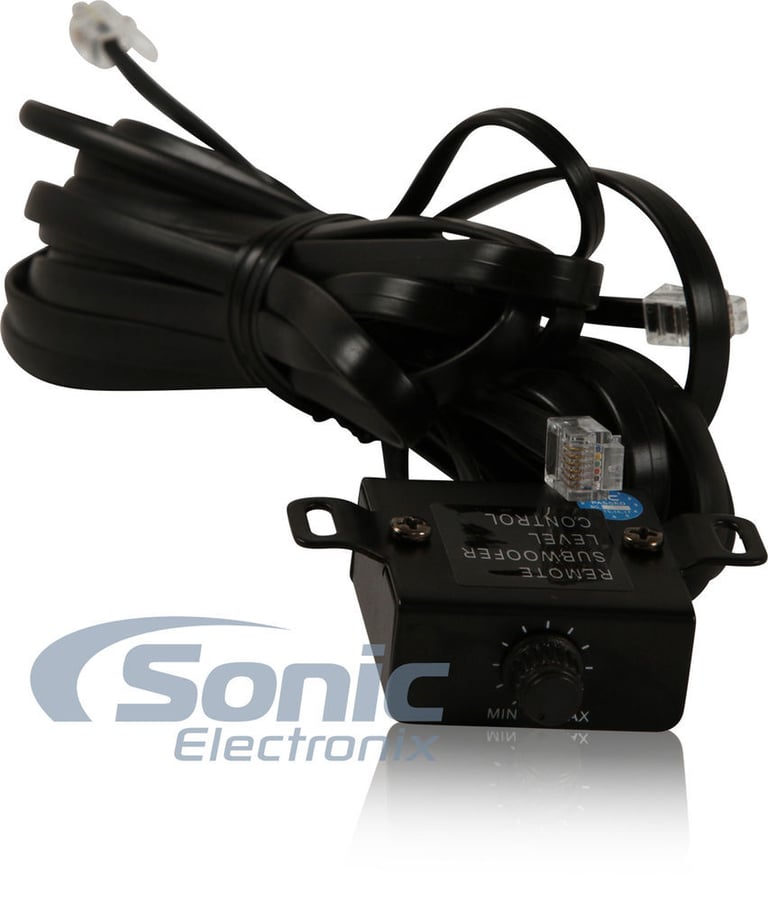

• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Mono channel operation

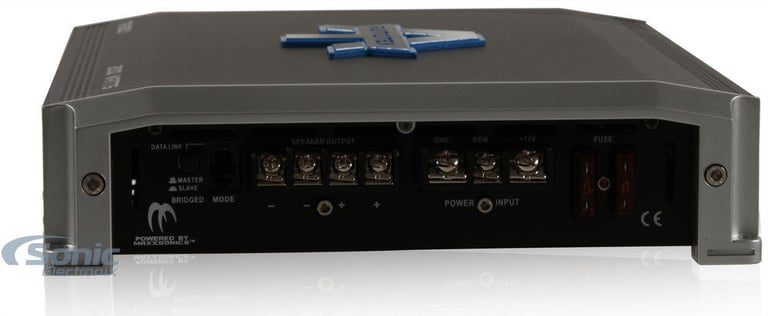

• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heat Resistant Black Finish
• Sound Shield Heatsink Technology
• Variable high-pass filter: 30 - 250 Hz, 12 dB/octave
• Variable Bass Boost: 0 to +18 dB bass boost at 45 Hz
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: 11.4"W x 14.7"L x 4"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

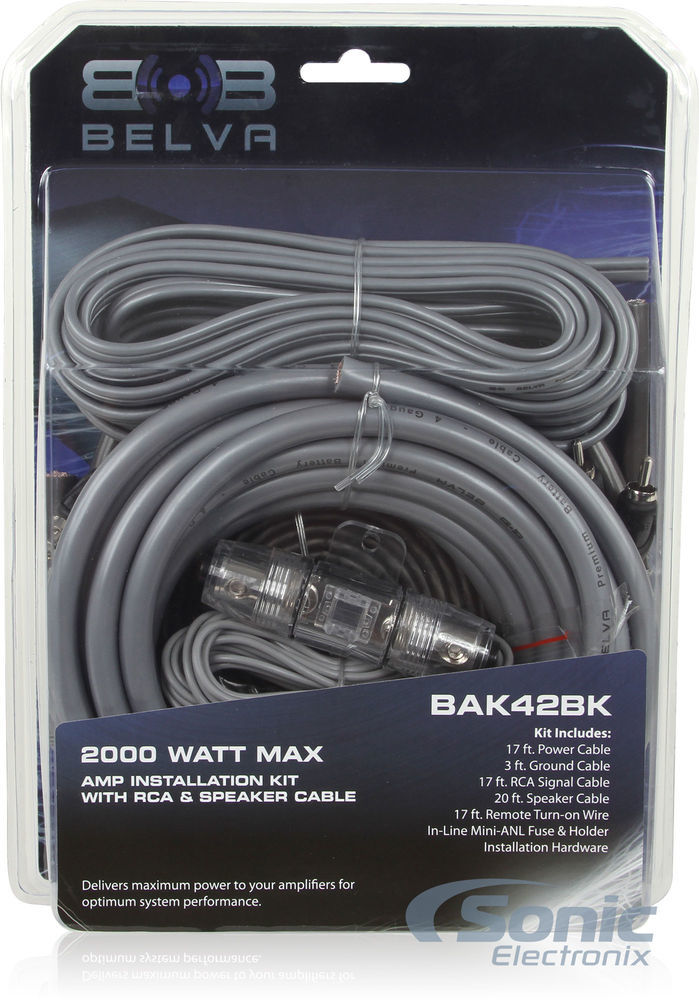

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Belva CCA wire is made from 30% copper while the competition uses only 10%
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference

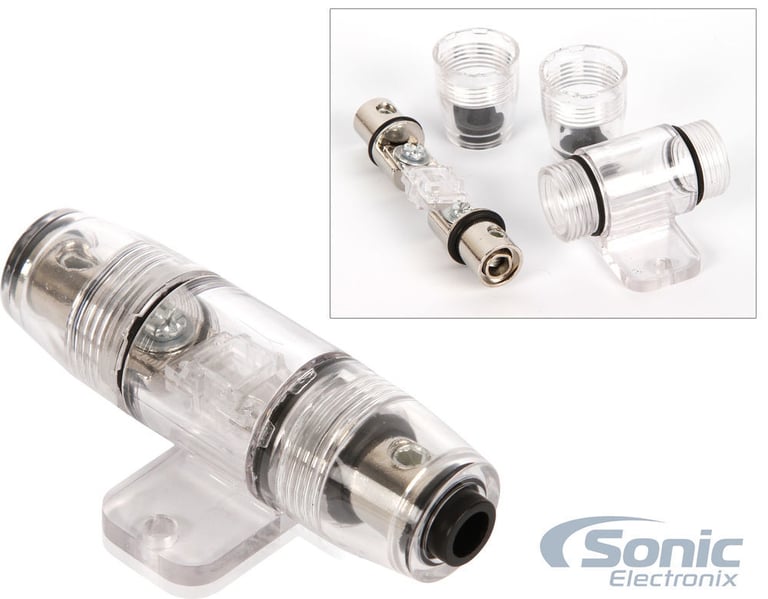

• MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
• Complies to American Wire Gauge standards
• Also available in Blue and Red
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

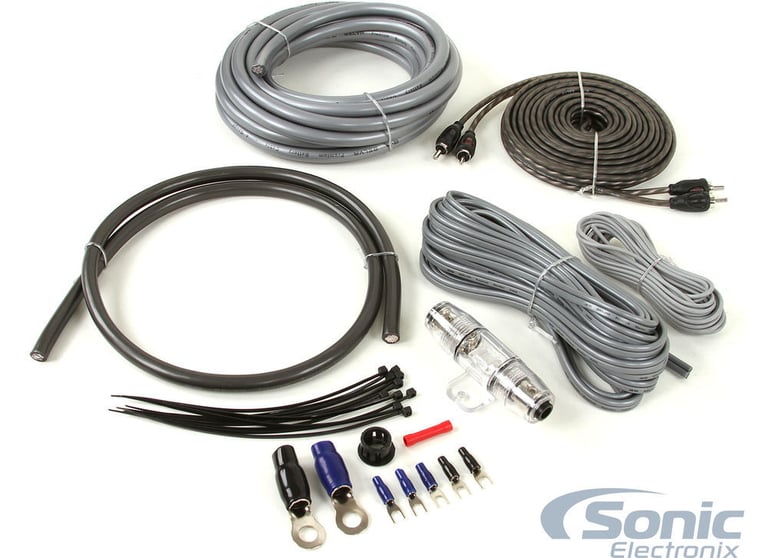

Kit includes:

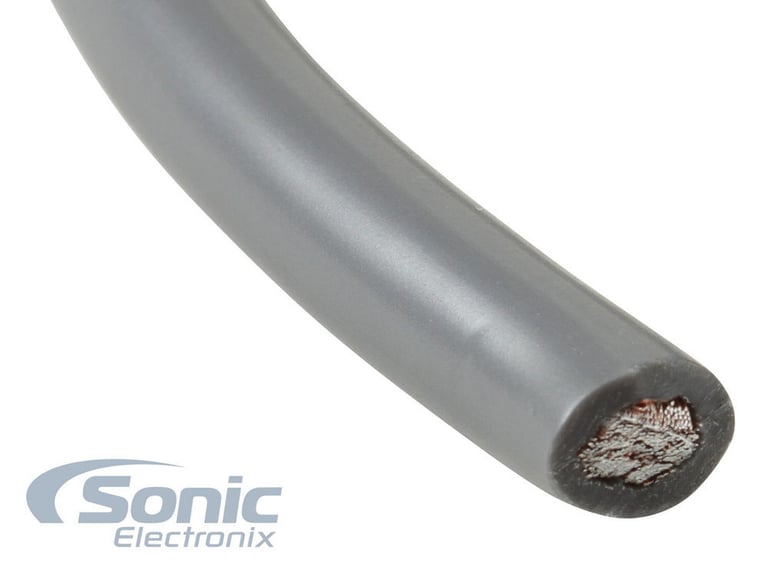

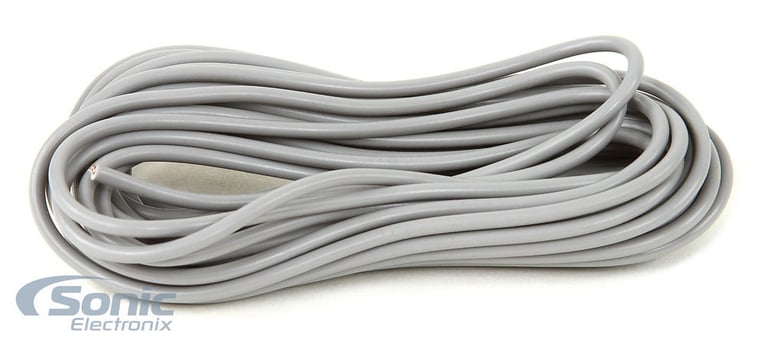

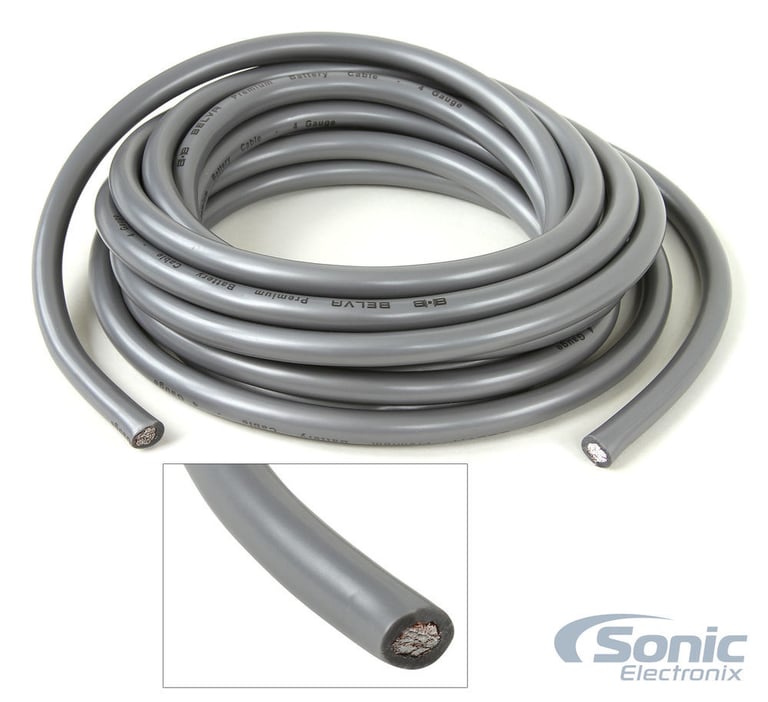

1. 17 ft. (5.2 meters) Gray 4 gauge power wire

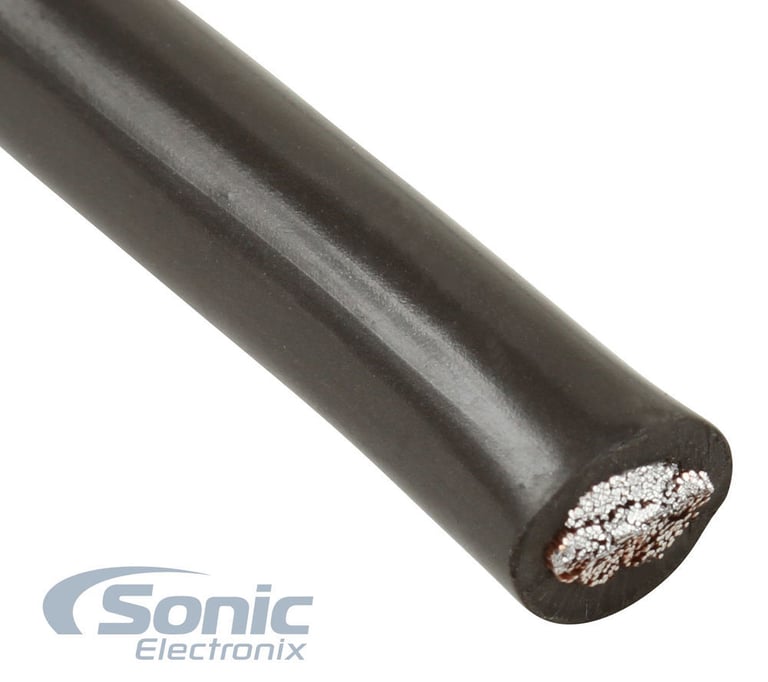

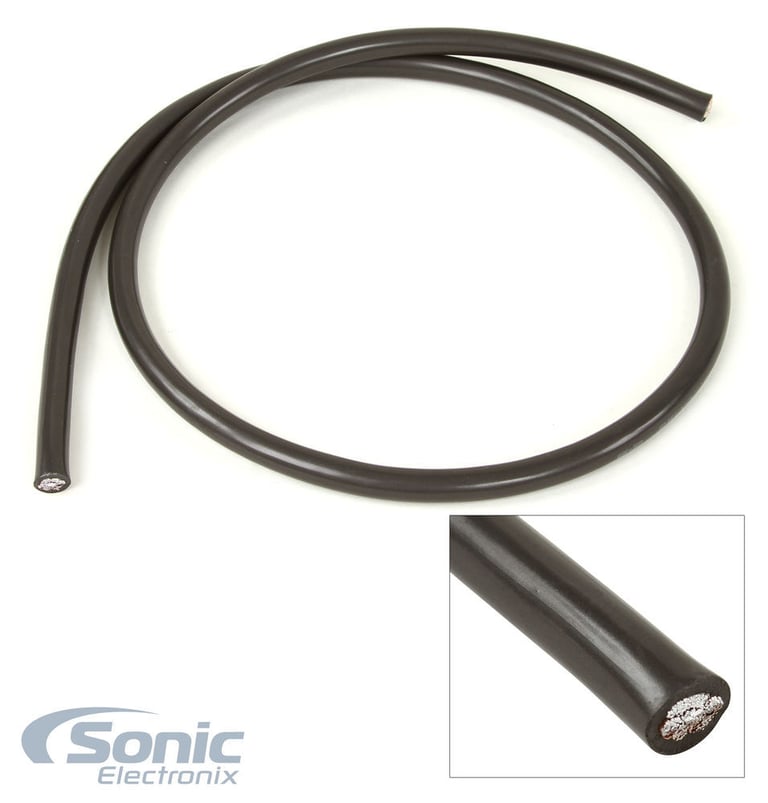

2. 3 ft. (.91 meters) Black 4 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

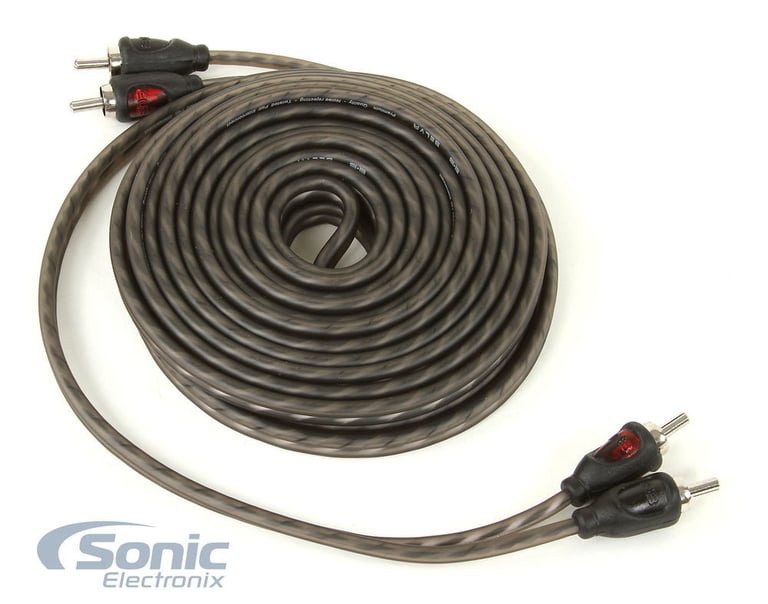

4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

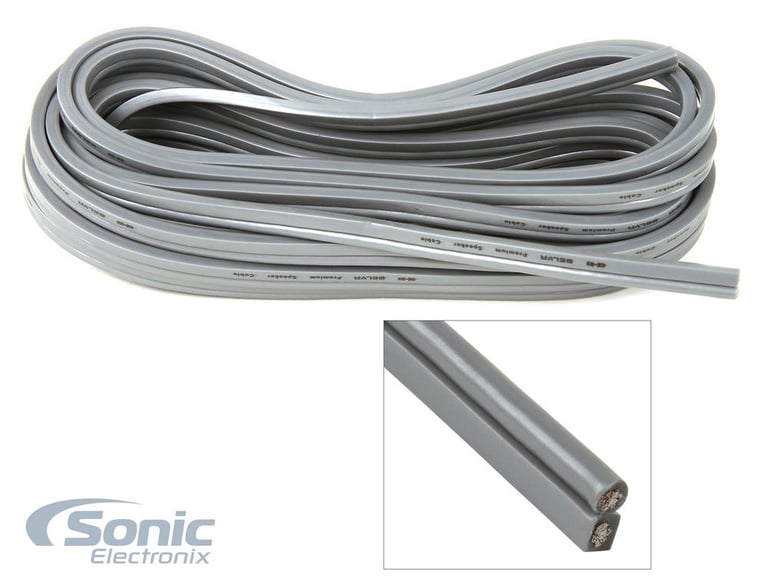

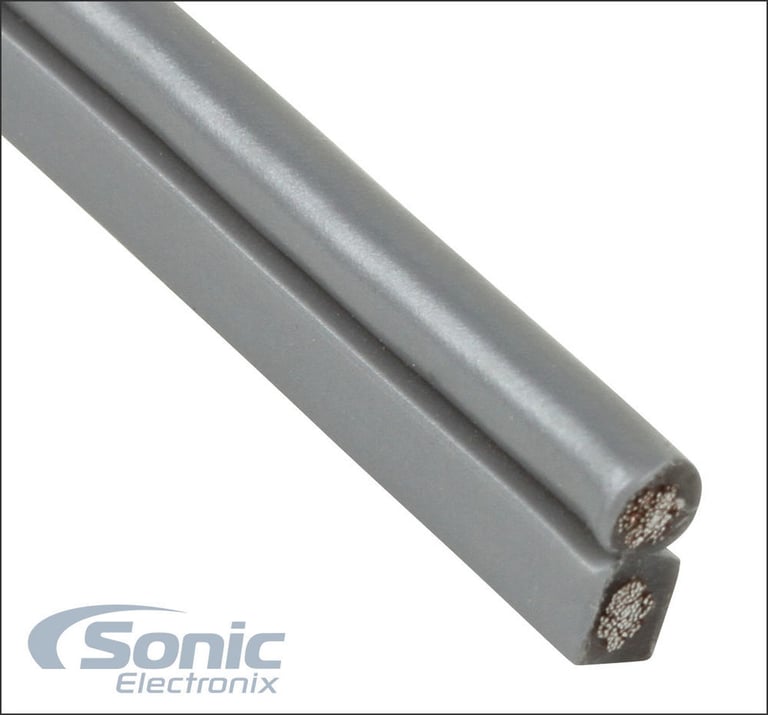

5. 20 ft. (6.1 meters) 16 Gauge Speaker cable
6. One MINI-ANL Fuse Holder with a 80 amp fuse

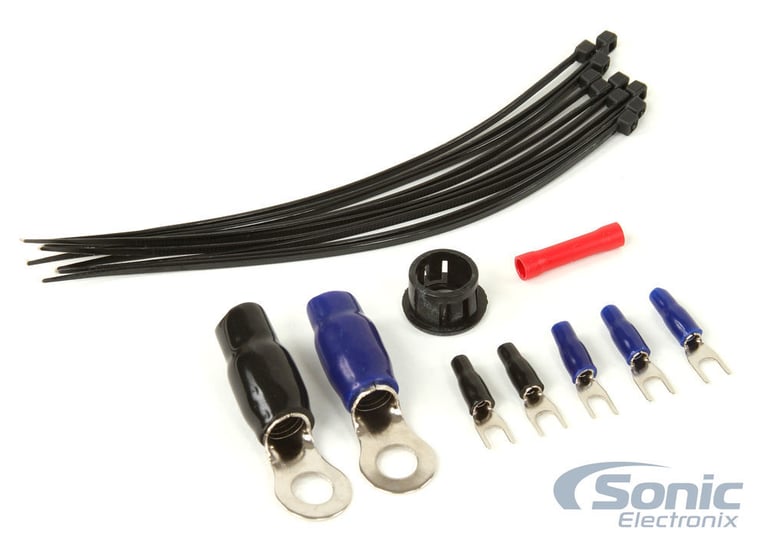

7. One Black rubber firewall grommet
8. One 4 Gauge Blue chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
