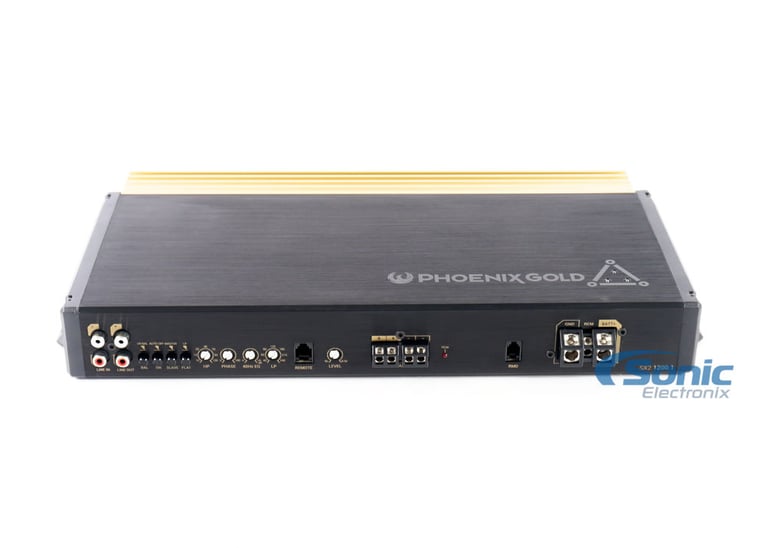

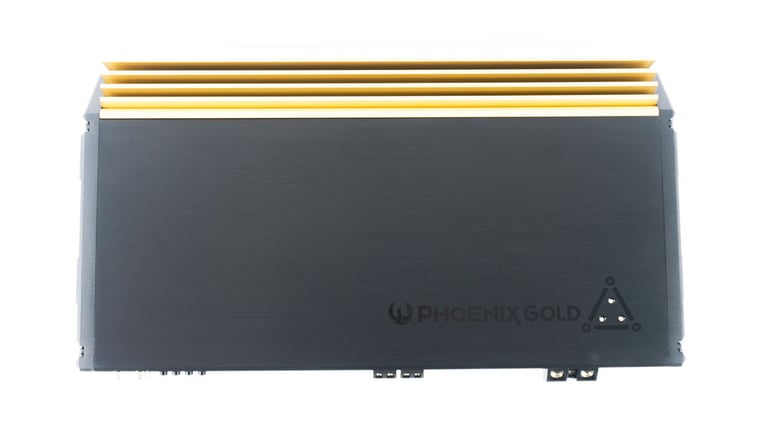

Phoenix Gold SX2 1200.1 (SX212001)

SX Series 2 1200W RMS Class D Monoblock High-Current Subwoofer Amplifier

Phoenix Gold
Shop all Phoenix Gold
highlight-star-icon

• 1200W RMS Monoblock Subwoofer Amplifier
• Variable phase output
• Audio Precision Quality Control Verification

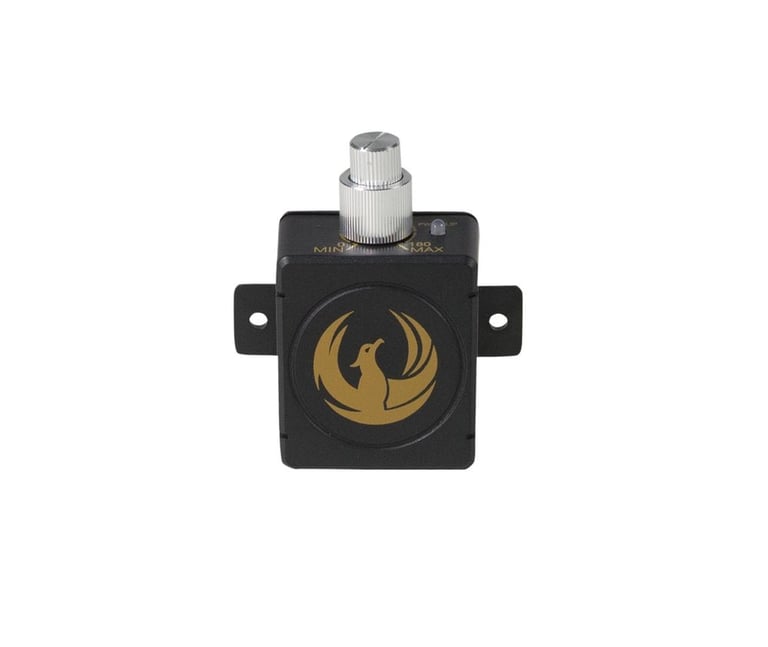

• Remote bass and phase controller with Bass Shift® (RBPC)
• Switchable balanced or unbalanced inputs
• Power/Ground Wire Size: 4GA

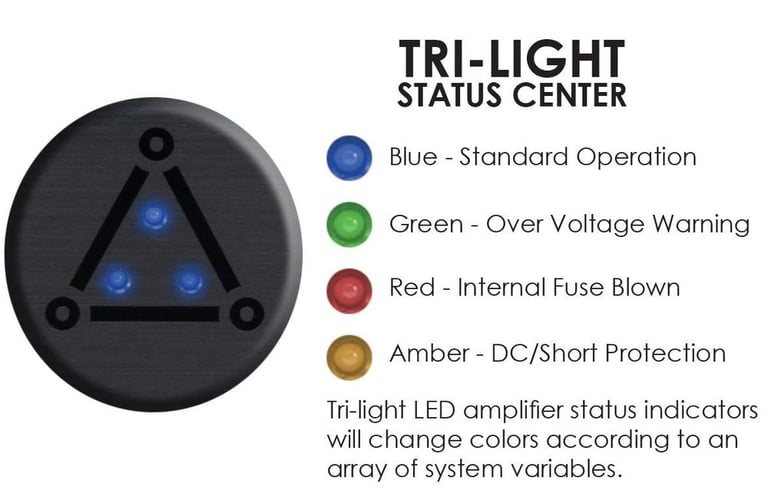

• Tri-light LED amplifier status indicators

Learn more about the sx212001

We apologize

This item has been discontinued

Description


Phoenix Gold brand icon

Authorized dealer



General Features:

  • SX Series 2 1200W Class D Monoblock High-Current Subwoofer Amplifier
  • RMS Power Rating:
    • 1Ω: 1200W x 1
    • 2Ω: 900W x 1
    • 4Ω: 600W x 1
  • Bridgeable: N/A
  • Total RMS Power (Sum of rated power): 1200W

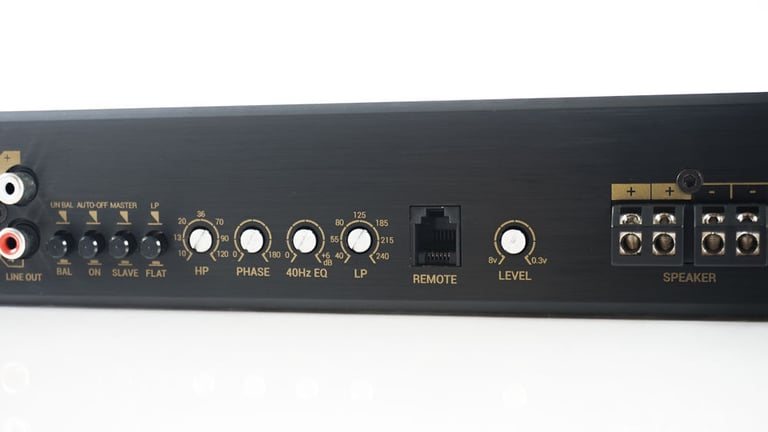

  • Crossover Control, Linkwitz-Riley: HP 10Hz - 120Hz (subsonic) LP 40Hz - 240Hz @ 24dB/Oct
  • Frequency Response: 11Hz - 250Hz @ +/-6.0dB | 10Hz -39kHz +/-3dB LP BYPASSED
  • Signal to Noise Ratio: 86.3dB
  • Input Selection: Switchable Balanced/Unbalanced | 300mV-8v Unbalanced / 600mV-16v Balanced
  • Crossover Range: 55Hz to 4kHz
  • Bass Boost 40Hz EQ 0-6dB boost @ 40Hz: Yes
  • MASTER/SLAVE Capable: Yes - 2400W x 1 @ 2Ω Strapped
  • Signal Output: 2 Channel RCA
  • Variable Phase Adjustment: 0 - 180°
  • Efficiency: 85%
  • Damping Factor: Greater than 200
  • Remote Bass and Phase Control (RBPC) with BASS SHIFT® : Yes
  • Power Supply Type: Double Tier with Onboard Thermal Management
  • Audio Precision Quality Control Verification
  • RMD port allows you to add a remote monitoring display, giving you a visual of the voltage of your system
  • Auto-turn on circuit (defeatable) helps when connecting to an OEM system that does not offer a Remote turn-on lead to activate the amplifier
  • Switchable balanced or unbalanced inputs based on your input source's design for best signal to noise performance
  • Auto-turn on circuit (defeatable) helps when connecting to an OEM system that does not offer a Remote turn-on lead to activate the amplifier
  • Tri-light LED amplifier status indicators with short circuit, thermal and voltage protection
  • RCA pass-through outputs
  • 4-gauge power and ground wiring is recommended for installation. Contact our Sales team for information regarding a discount on select amplifier kits when purchased together with this amplifier
  • Speaker connections are labeled +/- and will accept up to 10GA wire. Minimum speaker impedance is 1Ω
  • Recommended Fusing: 80A
  • Dimensions (L x W x H): 16.75” L x 8.5” W x 2” H - 425mm L x 216mm W x 51mm H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

View the Phoenix Gold SX2 1200.1 Product Manual for enhanced details, wiring diagrams, and more!


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
900 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Subsonic
High-Pass Crossover Frequency
55 - 4000 Hz
Low-Pass Crossover Frequency
10 - 120 Hz
Subsonic Filter
10 - 40 Hz
Signal-to-Noise Ratio
86.3 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 2
Total Fuse Rating
80A
Strappable
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
Power certification
WITB: Amplifiers
Amplifier
Wired gain knob (wire separate)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SX21200.1

Weight:

11.00lbs

Internal SKU:

sx212001

Internal Product ID:

165311
