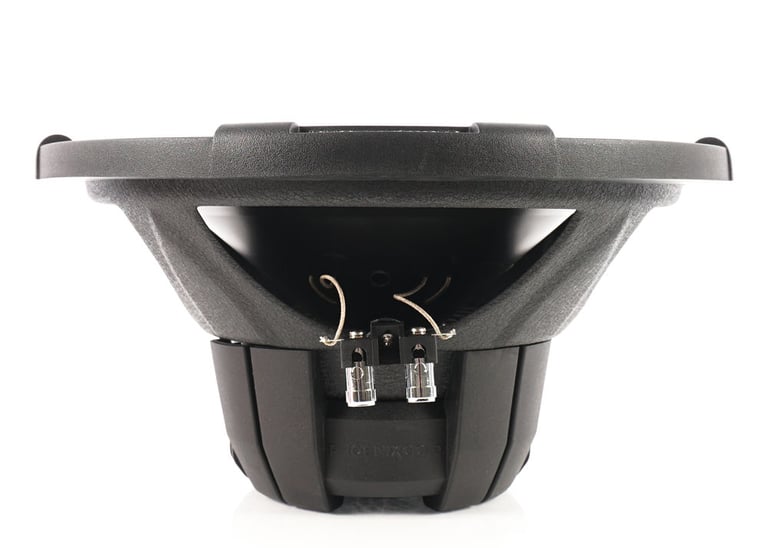

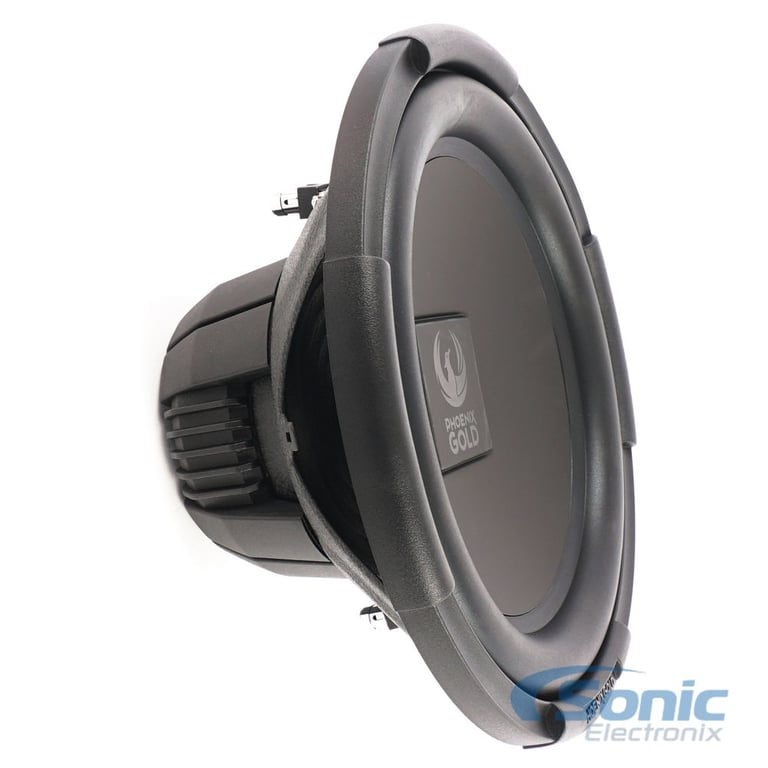

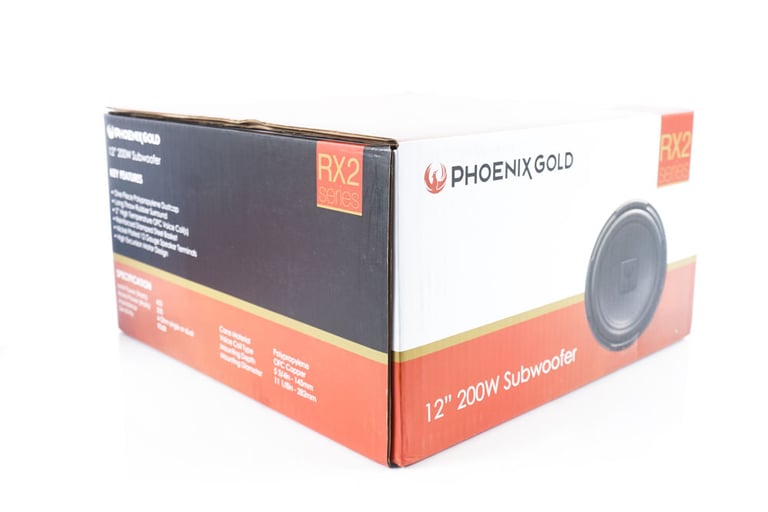

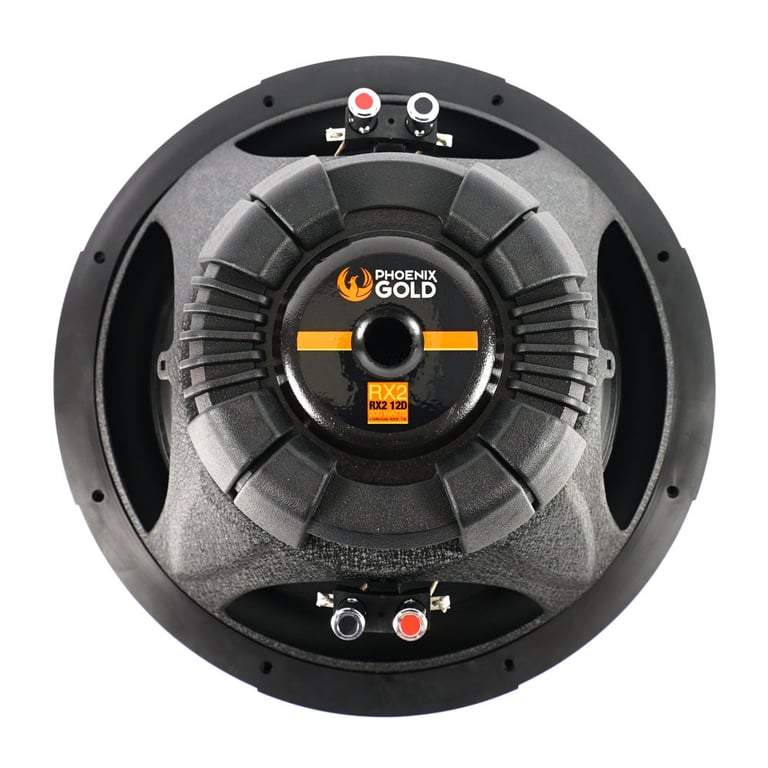

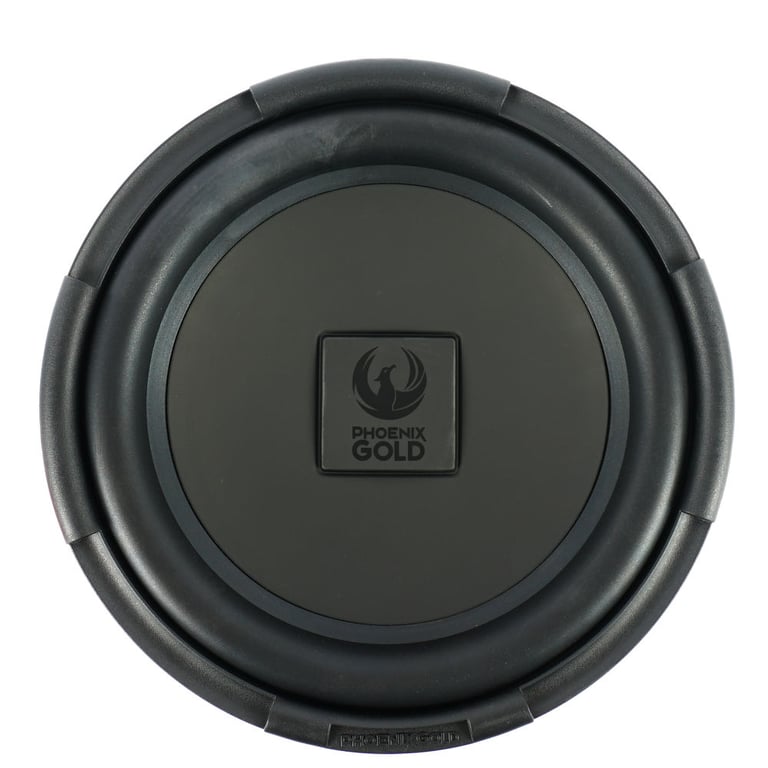

Phoenix Gold RX2 12D

Product Details:

• Phoenix Gold RX2 12D
• RX2 Series 12" Dual 4 Ohm Subwoofer
• RMS: 200 Watts
• Peak: 400 Watts
• 25mm of Peak to Peak Excursion
• Single or Dual 4 Ohms Voice Coil Models
• High Excursion CAE/CAD Motor Design
• KlaraForm Vented Former technology reduces distortion by reducing heat and resistance
• UNICAP Technology provides a stiff piston for pronounced SPL
• Phoeniroll Surround Technology promotes linear motion
• Torriform Voice Coil Technology: Effectively dissipates heat and minimizes distortion
• Nickel Plated 12 Gauge Speaker Terminal
• Optimized for Sealed or Vented Enclosures
• Powder Coated Anti-Resonant Steel Basket
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Packaged weight: 12.71lbs

View the RX2 Series Subwoofer Manual for detailed specs, wiring diagrams, enclosure recommendations, and more!

ENCLOSURE INFORMATION

Phoenix Gold subwoofers are over-engineered and overbuilt in virtually every way conceivable. It is important that the subwoofer’s enclosure is built to these same exacting standards. The enclosure must be constructed of at least .75 inch MDF. Screws or air staples are excellent construction fasteners when used with a strong bonding “yellow” woodworking glue that can fill joint gaps. Be sure that the enclosure’s panels are airtight at all joining seams. Lining the walls with a polyester matting 1 to 3 inches thick is sufficient. RX2 subwoofers have vented pole pieces, we recommend leaving a minimum of 0.5” clearance behind the subwoofer to allow proper air movement and cooling of the voice coil.
