See all parts that fit your 2006 RX330

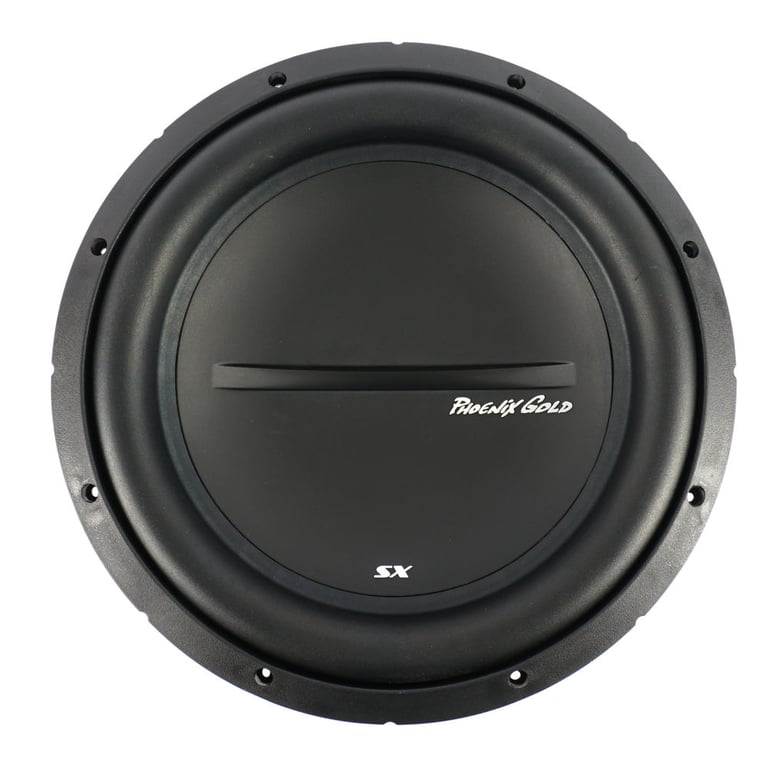

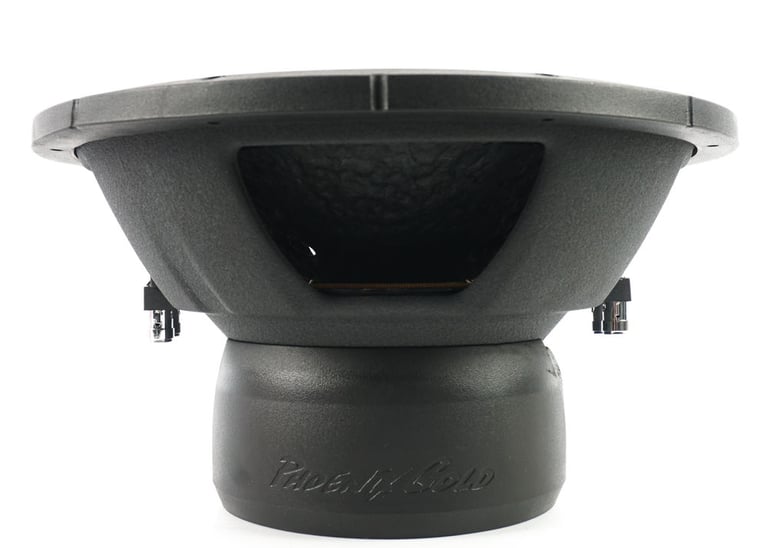

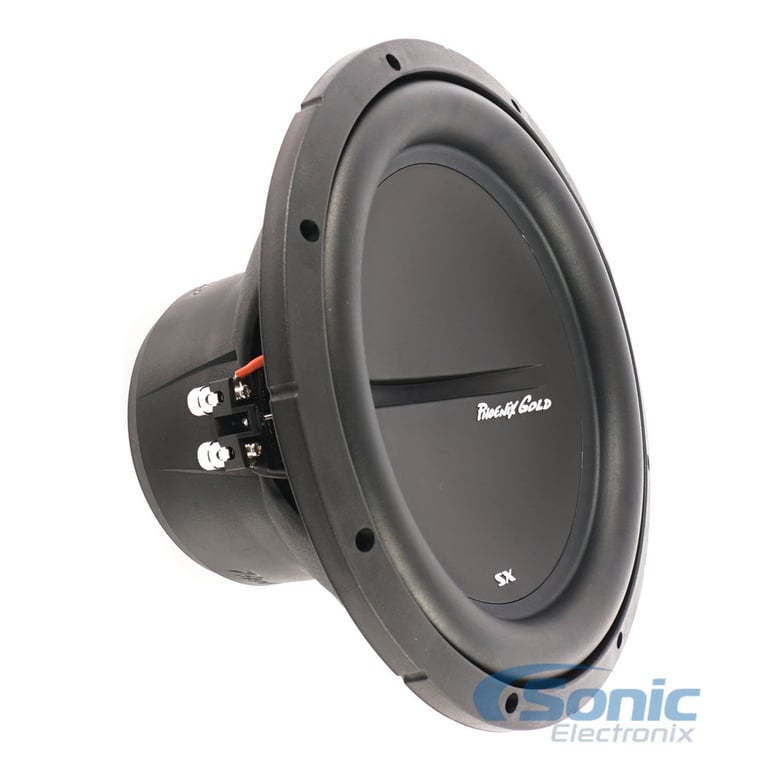

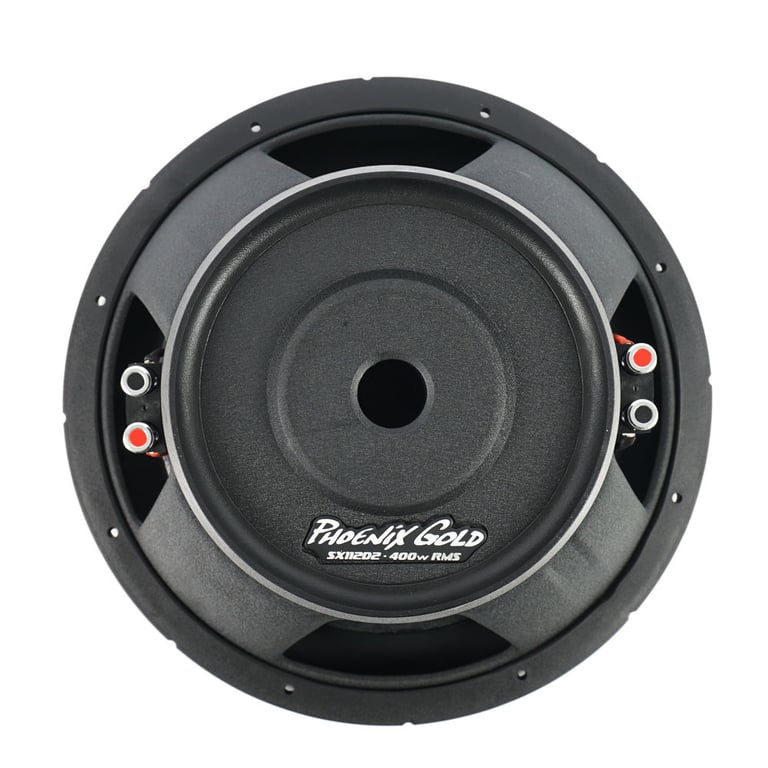

Phoenix Gold SX112D2

SX1 Series 12" Dual 2 Ohm Subwoofer

Phoenix Gold
Shop all Phoenix Gold
highlight-star-icon

• SX Series 12" Dual 2 Ohm Subwoofer
• 400W RMS power
• 35mm excursion
• Butyl rubber surround
• 2.5 inch copper voice coils
• Optimized for sealed or vented enclosures

Learn more about the sx112d2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

43DSC69304 main

Kicker DSC6930 (43DSC69304)

720W Peak (180W RMS) 6x9” DS Series 3-way 4-ohm Coaxial Car Speakers with Integrated Midrange

129
-14.29%

$119.99

List price $139.99

NSP65KIT main

NVX NSP65KIT

600W Peak (200W RMS) 6.5" N-Series 2 Way Component Car Speakers

6
-16.67%

$89.99

List price $107.99

TS-A1681F main

Pioneer TS-A1681F

700W Peak (160W RMS) 6.5" A-Series 4-Way Coaxial 4-ohm Speakers

3
-15.39%

$109.99

List price $130.00

43DSC3504 main

Kicker DSC350 (43DSC3504)

160W Peak (40W RMS) 3.5" DS Series 2-Way 4-ohm Coaxial Car Speakers

43
-15.39%

$54.99

List price $64.99

GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

38
-34.45%

$117.99

List price $180.00

JBL Stage3 637F (STAGE3637FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 3-Way Coaxial 3-Ohm Speakers

2
-18.19%

$89.95

List price $109.95

Description


Phoenix Gold brand icon

Authorized dealer

Product Details:

  • SX Series 12" Dual 2 Ohm Subwoofer
  • RMS Power Handling: 400W
  • 35mm of Peak to Peak Excursion
  • High Excursion CAE/CAD Motor Design
  • Vented Aluminum Former
  • Long Throw Spider Suspension
  • One Piece Polypropylene Plated Dustcap
  • High Roll Butyl Rubber Surround
  • 2.5 Inch High Temperature OFC Copper Voice Coils
  • Nickel Plated 12 Gauge Speaker Terminal
  • Optimized for Sealed or Vented Enclosures
  • Powder Coated Anti-Resonant Steel Basket
  • Impedance: Dual 2-Ohm
  • Mounting Depth: 6.375in - 160mm
  • Mounting Diameter: 11.25in - 285mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

View the SX Series Subwoofer Manual for detailed specs, wiring diagrams, enclosure recommendations, and more!


Subwoofer Wiring Guide


Wiring Guide to Wire 1 Phoenix Gold SX112D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Phoenix Gold SX112D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Phoenix Gold SX112D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Phoenix Gold SX112D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
SX Series
Subwoofer Size
12"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Sensitivity
90 dB
Xmax (millimeters)
35 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Subwoofer Grille
Optional (Accessory required and sold separately)
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
6.375"
Cutout Diameter
11.25"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
31.2 Hz
Equivalent Compliance (Vas)
41.19 liters
Total Speaker Q Value (Qts)
.55
Electrical Q Value (Qes)
.629
Electrical Resistance of Voice Coil (Re)
1.1 ohm
Mechanical Q Value (Qms)
4.11
What is in the box?
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SX112D2

Weight:

18.50lbs

Internal SKU:

sx112d2

Internal Product ID:

165369
