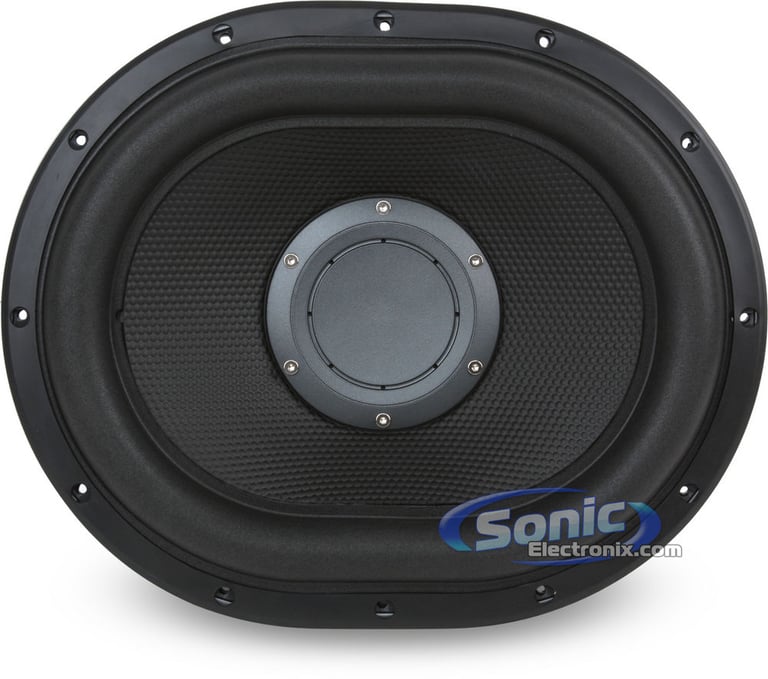

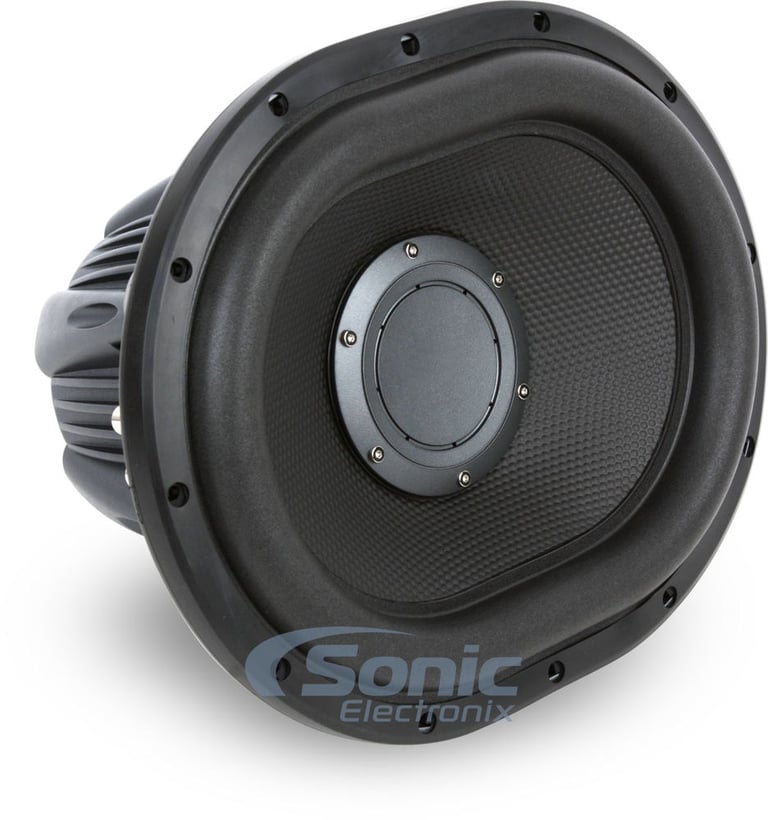

Boston Acoustics SPG555-2

13" Single 2 ohm Oval SPG Series Car Subwoofer

Product videos
highlight-star-icon

13" Single 2 ohm SPG Series Oval Subwoofer • 1000 watts RMS • Polypropylene Cone Woofer • Foam Woofer Surround • Radialvent® Cooling • Removable Voice Coil (RVC™) • Soft Part System (SPS™) • Integral Sealing Gaskets • 3-1/2" Voice Coil

Learn more about the spg5552

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

NSP35 main

NVX NSP35

200W Peak (70W RMS) 3.5" N-Series 2 Way Coaxial Car Speakers

55
-16.67%

$49.99

List price $59.99

JL Audio C2-600cw (Sold Individually)

60W RMS 6” C2 Series Component 4-ohm Car Midwoofer

$159.99

Product Highlights


13" Single 2 ohm SPG Series Oval Subwoofer • 1000 watts RMS • Polypropylene Cone Woofer • Foam Woofer Surround • Radialvent® Cooling • Removable Voice Coil (RVC™) • Soft Part System (SPS™) • Integral Sealing Gaskets • 3-1/2" Voice Coil

Description


Revolutionary

This is the word carefully chosen by Boston Acoustics to described the SPG555 reference subwoofer. With its neodymium structure, the powerful subwoofer is a lot lighter than its closest subwoofers of similar designs. Boston Acoustics unique Removable Voice Coil (RVC™) system and Soft Part System (SPS™) help make this subwoofer an advanced and powerful subwoofer. The oval design is made to push more air in a more effective manner. The SPG555 sub also works in enclosures with a volume as small a 1 cubic foot! This is truly a revolutionary subwoofer with a Boston Acoustics reputation.

Product Specifications:
  • 13" Single 2 ohm SPG Series Oval Subwoofer
  • Power Handling:
    • RMS: 1000 watts
  • Impedance: Single 2 Ohm
  • Polypropylene cone woofer
  • Foam woofer surround

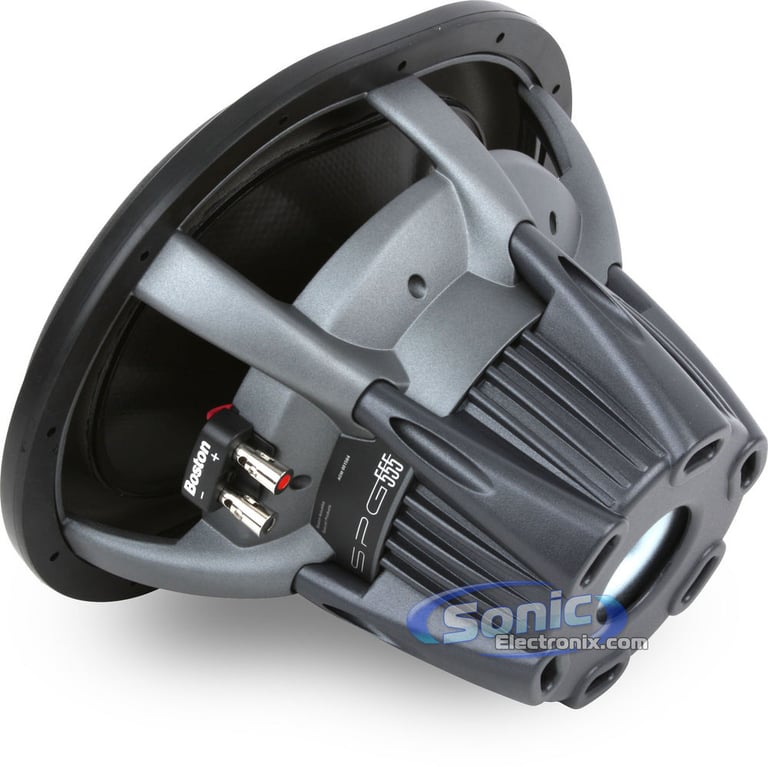

  • RadialVent® cooling directs airflow around the voice coil for increased power handling
  • RVC™ (Removable Voice Coil) allows coil to be exchanged without removing the woofer from the enclosure
  • SPS™ (Soft Part System) technology allows for cone assembly removal

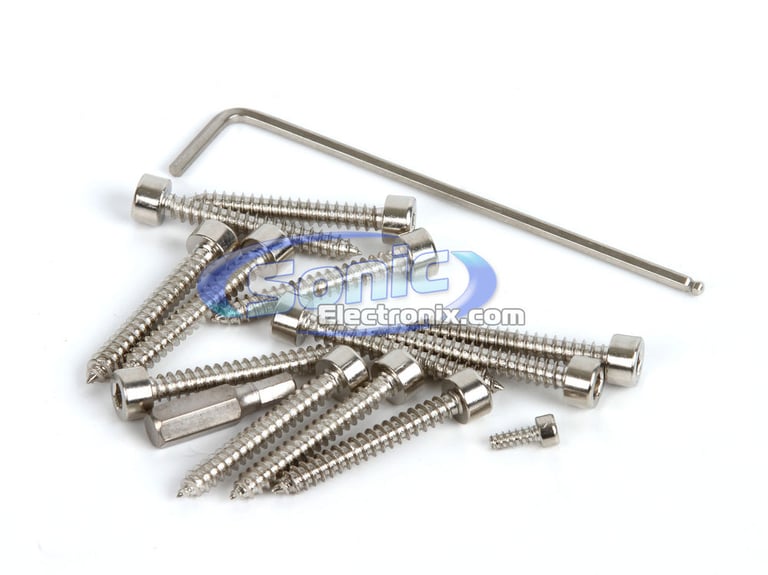

  • SPG555 can be field-stripped and custom painted, powder-coated, or plated for a custom look
  • Simplified mounting with the integral sealing gaskets
  • 3-1/2" Voice coil
  • 3-3/4" peak to peak excursion for devastatingly accurate, deep bass output from small sealed enclosures
  • 555 cm2 of surface area
  • Compatible with the SPG-TR passive radiator
  • Frequency response: 20-350 Hz
  • Sensitivity: 91.0dB
  • Xmax: 22mm
  • Mounting Depth: 8-1/4"
  • Cutout Dimensions: 13-3/16" x 10-7/16"
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Boston Acoustics SPG555-2 Subwoofer

Mono Amp

Wiring Guide to Wire 2 Boston Acoustics SPG555-2 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Boston Acoustics SPG555-2 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Boston Acoustics SPG555-2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

13W7AE-D1.5 small

JL Audio 13W7AE-D1.5


• RMS Power: 1500 watts
• Impedance: Dual 1.5 ohm
• Polypropylene Cone
• Polyester Foam Surround
• Mount depth: 10.50"
• Sensitivity: 86.3 dB

(19)

$1899.99

List price $1899.99

TS9924-22 small

MTX TS9924-22

• Peak Power: 8000 watts
• RMS Power: 4000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 24.00"
• Sensitivity: 92 dB

(3)

$9999.95

List price $12500.00

13W7 small

JL Audio 13W7-D1.5

• Sensitivity: 86.3 dB
• OverRoll™ Surround
• W-Cone
• Forced-Air-Cooled Aluminum Alloy Frame
• Radially Cross-Drilled Pole Piece
• Dual Ultra-Long Voice Coils
• Black Powder-Coating

(59)

$1899.99

List price $1899.99

13TW5V24_2 small

JL Audio 13TW5v2-4 - Pair

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$1859.98

List price $1859.98

13TW5v2-4 small

JL Audio 13TW5v2-4

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$929.99

List price $929.99

T2S2-16 small

Rockford Fosgate Power T2 T2S2-16

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 10.47"
• Sensitivity: 90 dB

$1299.99

List price $1299.99

13W3v3-2 small

JL Audio 13W3v3-2

• Sensitivity: 87.63 dB
• Mounting depth: 7.63"
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor

(6)

$519.99

List price $519.99

T2S1-13 small

Rockford Fosgate Power T2 T2S1-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Triple 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 90 dB

(3)

$1099.99

List price $1099.99

T3S1-19 small

Rockford Fosgate Power T3 T3S1-19

• Peak Power: 6000 watts
• RMS Power: 3000 watts
• Impedance: Single 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 15.62"
• Sensitivity: 91 dB

$2199.99

List price $2199.99

13TW5V2-2 small

JL Audio 13TW5v2-2

• Mounting depth: 2.625 "
• Requires Only 0.8 Cubic Feet of Airspace
• Excellent linear excursion capability (xmax)
• Patented "floating cone attach method" technology
• Patented "concentric tube" architecture

(1)

$929.99

List price $929.99

Specifications & Details


Subwoofer Specifications
Series
SPG Series
Subwoofer Size
13"
RMS Power Handling
1000 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
Frequency Response
20 - 350 Hz
Sensitivity
91.0 dB
Xmax (millimeters)
22 mm
Subwoofer Design
Oval
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
Yes (Accessory available and sold separately)
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.0 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
2.0 cubic feet
Maximum Ported Box Volume
2.6 cubic feet
Top-Mount Depth (Mounting Depth)
8-3/16"
Cutout Diameter
13-3/16" x 10-7/16""
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SPG555-2

Weight:

30.55lbs

Internal SKU:

spg5552

Internal Product ID:

16602

Product and How-to Videos


Customer Ratings & Reviews


Boston Acoustics SPG555-2 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
5
Usability
4.9

Customer Reviews

Sort by:

Loading...

Damaged my ears!

This sub can be found for $350. I bought mine with the 1 f^3 factory sealed enclosure, then cut an oval out of the back (opposite the driver) and installed the passive radiator (free +3db with dummy cone) tuned to 30hz (with supplied weights). I am powering it with an MTX 81000-D, birth sheet says 1308 watts rms into my subs 2ohm load. I have read the SPG can take 1800 watts rms. I don't doubt this, as I am shopping for a bigger amp now. I have the gain set for 51 volts at my max volume, which shows no clipping on my oscilloscope and equals 1300 watts on my 2 ohm Boston. Have not melted the coil at max volume yet. Max temp of the plastic on the outer ring of the outside of the voice coil (its perimeter) I have measured with a laser no contact thermometer is 212 F. It did not fail at that temp. I did melt the coil once with the same amp, but gain was set too high on a road trip (6hrs of Tech 9 and Mike Jones) and it was clipping the signal. I did not have and oscilloscope or volt meter (51v rms ='s 1300w) to set the gain on the road. The replacement surround and voice coil just keeps getting louder, and runs cooler. It has been about 2 months of listening at full volume Bass Mekaniks and still the spider is getting looser and the sub getting louder, and now runs at about 98F after HARD hitting tracks. I also blew the surround out once when my girl opened my truck at full volume, thus unloading the driver and allowing over excursion (stretching the foam surround excessively). Evidence it is getting louder: volume 24 was max voltage for the amp and listenable. Now, volume 18 hurts my ears. My left ear is ringing and popping during the day, and my girl friend says both her ears are waxing more and damaged. Also, the whole car is shaking now, window, seats, dash, sodas in the console. Also, DVD navigation disc in the trunk just skipped and wouldn't operate for the first time the other day. This sub was made to conquer the 13W7 (and I read it did), Boston is way underrated, and audiophile grade. That is why I bought this, is does not distort a note, and shakes my whole car, all for 1 cubic foot! The only other sub that could come close for 1 cubic foot per sub would be Premier SPL sub. Recommended 1.5 f^3 per 12". So, 2 x 12= 3 Premier SPL. Also, equals 3 SPG + 3 passive radiators, total, 3 cubic ft. Although, the RE XXX does recommend max of 1.1 cubic ft sealed for their 12", and JBL MKII 12" recommends 1 cubic ft for sealed 12. Can somebody produce a louder sub in 1 cubic ft that Boston with the SPG 555 teamed with the passive radiator (which increases output by 3db but doesn't affect box volume)?

By Dennis on October 21, 2011

32 found this helpful


Get this sub

This sub hits low and hard. If you don't have much room get this; it is a very high quality product.

By Jeff on January 20, 2009

31 found this helpful


Amazing sound quality.

After learining about passive radiator setups, I sold my two 12" Type-R's and decided to replace them with this one sub, backed with its counterpart, the SPG-TR. I built the box to specs recommended in the owner's manual, and I couldn't be happier with it. I have yet to hear the 30 hz or the 45 hz setup, but the 35 hz setting has pleased me thus far. The low end really booms, while maintaing a smooth transfer into the higher notes. Its really amazing how low the little 1 cubic foot box can hit. If your looking for truly flat response, you might look elsewhere; it really spikes around the tuning frequency of the passive radiator. For anyone looking to save some space and still have a strong low end with great sound quality, it cant be beat. I got my trunk back and can tell little difference in volume level. Running it off a Rockford T1000BDCP which puts out around 1200 watts at 1.6 ohms (which this sub is). Very pleased with my decision.

By Chris on January 11, 2013

29 found this helpful


Boston SPG555-2

So i bought this from Sonic and the first sub I received looked like it had been used or an open box. I called Sonic and worked it out and they sent me out a new one. Seems to be much better condition (new). I have owned many many subs from JL Audio, Rockford Fosgate and so on. I had a Rockford T1 12 that sounded very good but i wanted just a little bit more boom. I read many reviews on this sub and decided to go with it. I got lucky and bought the Ported/Vented Subwoofer Enclosure from a buddy of mine for a very good price.

This sub really makes some good BASS. I have to say WOW
I am using a Rockford T1500-1bd amp with plenty of power. Musically the sub performs very well and when you want to make this sub hit it has no problem doing it. I am considering buying a second one from Sonic. If you are reading this i would say go for it.

By lilmatty1 on November 16, 2012

29 found this helpful


wow is not enough

Ok so here is what I had, JL 10w7 and a 500/1v2 now I have a spg555-2 and a Rockford fosgate t15000-1bdcp. And it smokes the jl in every way. Sq and spl are not even close, the Boston wins hands down. I have my sub in the SQ box that Boston gives specs on in the owners manual. Its tight, fast and stupid deep bass. I can say I was on the fence when I sold my W7 and now I laugh. Half the price and twice the output. This sub is like 92db you don't need any power at all to run it. I love it will never give it up.

By munzy on August 22, 2012

28 found this helpful


Absolutely the best

Just hooked this monster up today and WOW!!! crisp and clean bass. sounds amazing. by far the best subwoofer I have ever owned.

By BigBuda on May 19, 2012

28 found this helpful


Great sub

Just for your info this sub can handle anywhere from 100-1000rms...and it is light weight. I have it hooked up to the rear channel of a T8004, I'm giving around 600rms to it, in a sealed enclosure and i have to say i love the way it sounds. For simple use this sub will be more then enough if you have around 500-600rms. This sub only has pros in my book with only two cons, first it only has a single voice coil, 2 or a 4, but that is almost not a con for you can switch out the voice coils at any time with ease. Second you have to either make a sealed box yourself, i think this site has a ported, or convert a one cubic foot box into an oval shape.

On another note i have not tried to max this thing out to see how loud i can get it for that isn't what I'm using it for. I use this for quality sound and i am impressed with it, though if i were to put it in a ported i doubt i would be able to hear for long for its already loud as is. For those of you debating on getting a cheaper sub i would give the cash for this one any day for i was debating on going cheaper and I'm sure glad i didn't. This is one nice sounding sub.

By fendaz on March 23, 2010

27 found this helpful


The best set of speakers I've ever owned..no complaints cept .... discontinued & no more Boston Acoustic.

I'd recommend these speakers 2any1simply cuz they are perfectly made, & sound great on any amp.

By Tony on September 20, 2021

10 found this helpful




TQ622 small

Planet Audio TQ622

120W 6.5" 2-Way Anarchy Series Coaxial Speakers w/ Aluminized Mylar Tweeters

(8)

$19.99

List price $39.99

G110-4 small

Boston Acoustics G110-4

10" Single 4 ohm G1 Series Car Subwoofer

(2)

$49.95

List price $119.95

T7515-04 small

MTX Audio T7515-04

Single 4 ohms 15" Thunder7500 Subwoofer (Thunder 7515-04)

(1)

$159.99

List price $319.99

G110-44 small

Boston Acoustics G110-44

10" Dual 4 ohm G1 Series Car Subwoofer

(6)

$59.95

List price $119.95

KFC-1680ie small

Kenwood KFC-1680ie

6-1/2" (also mounts in 6-3/4" locations) 2-way Image Enhancer Series Speakers

(3)

$39.99

List price $89.99

BD-C6900 small

Samsung BD-C6900 (BDC6900)

3D Blu-Ray Disc Player with Built-in WiFi and Full HD Up-Scaling

$209.99

List price $399.99

KFC-1682ie small

Kenwood KFC-1682ie

6-1/2" 3-way Image Enhancer Series Speakers

(6)

$49.99

List price $89.99

CA-WG10 small

Kenwood CA-WG10

10" Black Mesh Subwoofer Grille for Select Kenwood eXcelon Subs

(1)

$32.99

List price $49.99

THUNDER8000-3 small

MTX T81544A Thunder8000 15"

$139.99

List price $349.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2013 Audi Q5

2000 Nissan Frontier

2018 Buick Cascada

2000 Dodge Durango

1983 Buick Regal

1979 Buick LeSabre

2001 BMW 740iL

2005 Lexus LX470

1980 Buick Skyhawk

2001 Audi A4 Quattro

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
