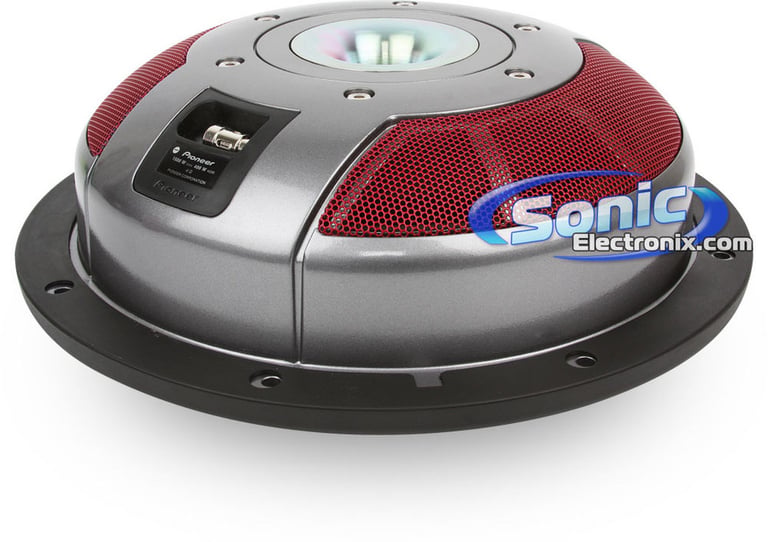

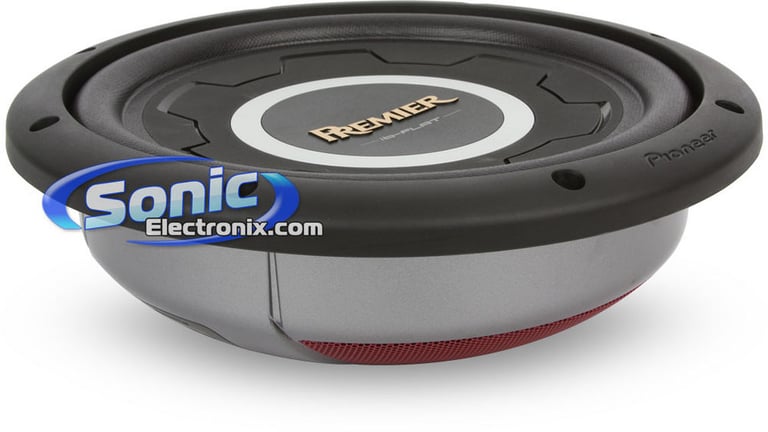

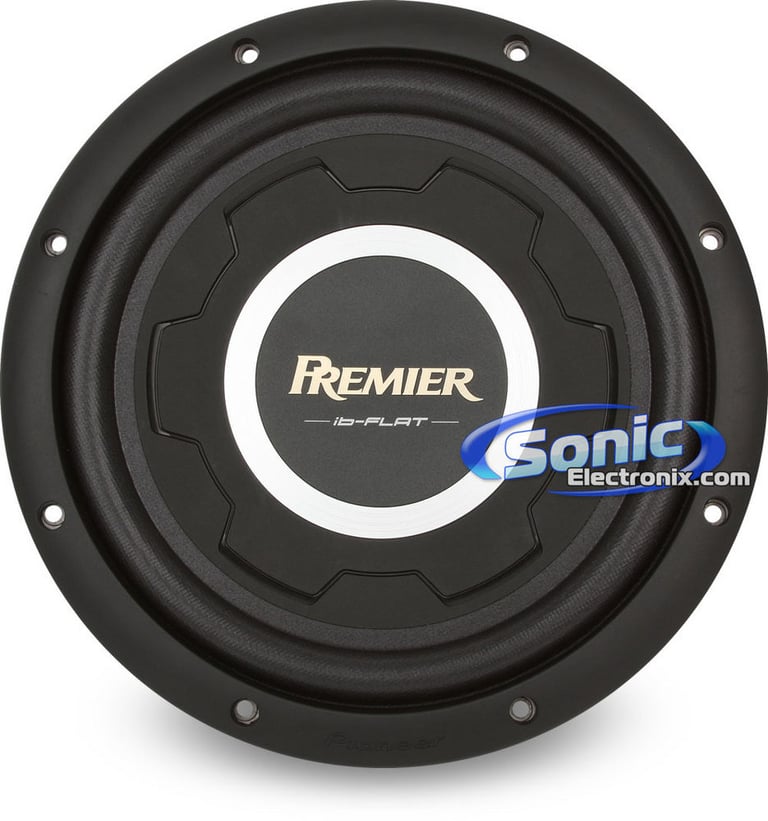

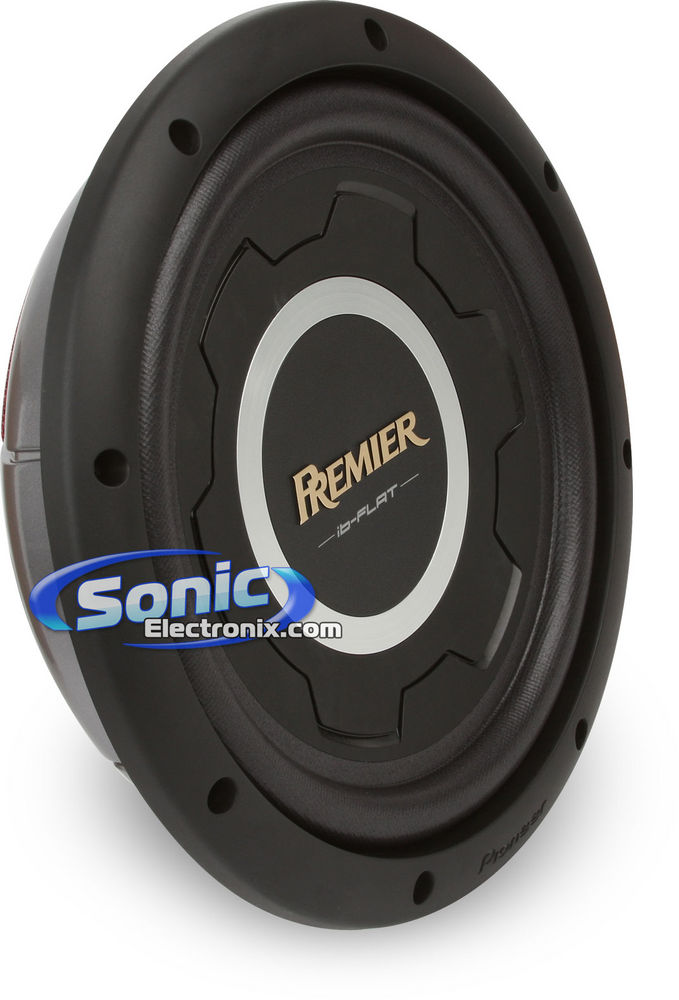

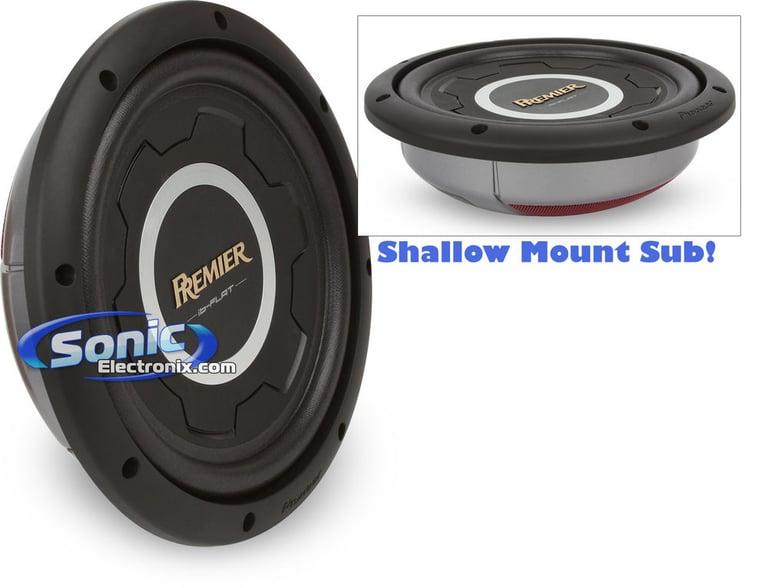

Pioneer Premier TS-SW1201S4

Shallow-mount 12" Single 4 ohm Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

Shallow-mount 12" Subwoofer • 1500 Watts Max • 400 Watts RMS • Single 4 ohm • Carbon Fiber Reinforced IMPP Cone • Fiber Woven Radial Surround • Cast Aluminum Basket • Aluminum Voice Coil • Strontium magnet

Learn more about the tssw1201s4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Product Highlights


Shallow-mount 12" Subwoofer • 1500 Watts Max • 400 Watts RMS • Single 4 ohm • Carbon Fiber Reinforced IMPP Cone • Fiber Woven Radial Surround • Cast Aluminum Basket • Aluminum Voice Coil • Strontium magnet

Description


Pioneer brand icon

Authorized dealer

Looking for the perfect way to add some quality bass in your car without sacrificing any precious space? Pioneer has the perfect solution for you with their shallow mount subwoofers. By integrating some cutting-edge technology, as well as some industry firsts, Pioneer was ale to make a shallow subwoofer that sounds as good as a full size subwoofer. These subwoofers use a unique Air Suspension system that traps air in between the main cone and the drive cone. That air then acts as a spring and removes the necessity of having a spider to keep the cone aligned. This system allows Pioneer to reduce the mounting depth of the sub without having an effect on the overall sound quality. This design also enables the subwoofer to work with small enclosures that fit snug behind a seat, under a seat, in a trunk, or any place else that space is valuable. The cone of these shallow mounting subwoofers are made with interlaced basalt, a material that only Pioneer is currently using in the car audio industry. The volcanic rock material the subwoofer produce a more natural and deeper sound. No matter what type of car, truck, SUV, van, or other type of vehicle you have, a Pioneer shallow mount subwoofer is the perfect way to add quality bass.

  • Shallow-mount 12" Single 4 ohm Subwoofer
  • Perfect for mounting underneath seats, behind seats, and in other locations that do not have a lot of space
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 400 watts
  • Impedance: Single 4 ohm
  • Double cone with air suspension control system
  • Interlaced basalt/carbon fiber reinforced IMPP cone
  • Basalt interlacing in the cone produces natural bass, while being lightweight and rigid
  • 3-Layer fiber woven radial surround with M-shape cross-section
  • Cast aluminum basket with fin-shaped design
  • Air Suspension system locks air in-between the main cone and the drive cone to create a spring like effect
  • Spiderless design is made possible with the Air Suspension system
  • Spring compression wire terminals
  • T-Pole yoke top plate
  • Projected pole yoke with a vented pole
  • Dual 4 layer with long voice coils
  • Aluminum voice coil wire
  • Phenol resin glass cloth voice coil bobbin
  • Strontium magnet
  • Ideal for small box installations, requiring only 0.5-1.0 cubic feet of air space
  • Frequency response: 20-230 Hz
  • Sensitivity: 93 dB
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer TS-SW1201S4 thumbnail
(newest, current model)
Pioneer TS-SW1241D thumbnail
(previous model, replaced by Pioneer Premier TS-SW1201S4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer Premier TS-SW1201S4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer Premier TS-SW1201S4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer Premier TS-SW1201S4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer Premier TS-SW1201S4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1500 watts
RMS Power Handling
400 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 230 Hz
Sensitivity
93 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene with Carbon, Glass Fiber
Woofer Surround
Fiber Woven Radial
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.5 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Top-Mount Depth (Mounting Depth)
3-1/4"
Shallow Mount Installation
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-SW1201S4

Weight:

17.00lbs

Internal SKU:

tssw1201s4

Internal Product ID:

16662

Product and How-to Videos


Customer Ratings & Reviews


Pioneer Premier TS-SW1201S4 thumbnail image

5 star
69%
4 star
31%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.7
Features
4.5
Design
4.5
Usability
5
