Name: Pioneer GM-D8704( Open Box )
Brand: Pioneer
SKU: ls-gmd8704-obc7
Price: 250.00 USD
Availability: Discontinued

by Pioneer

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

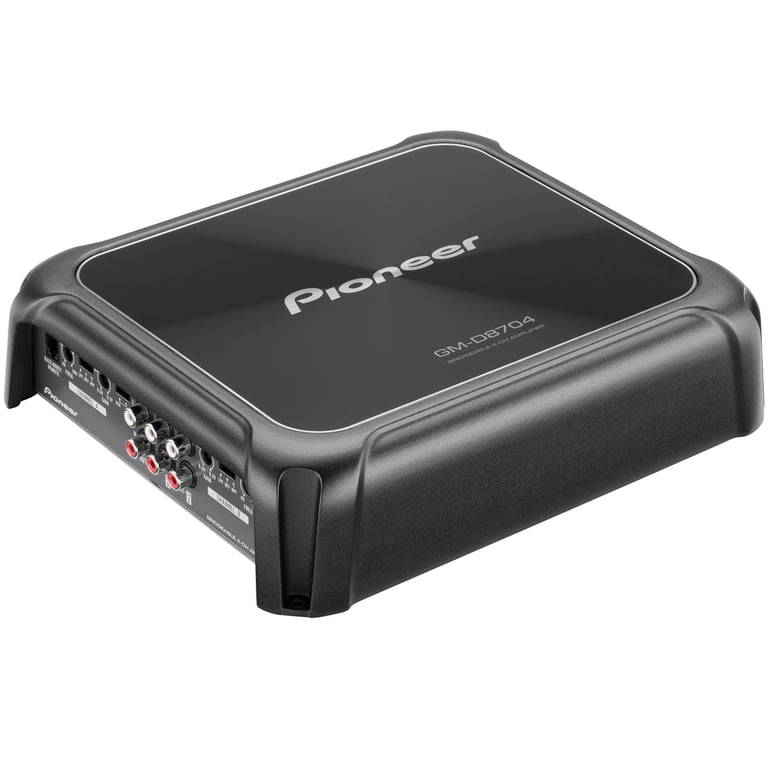

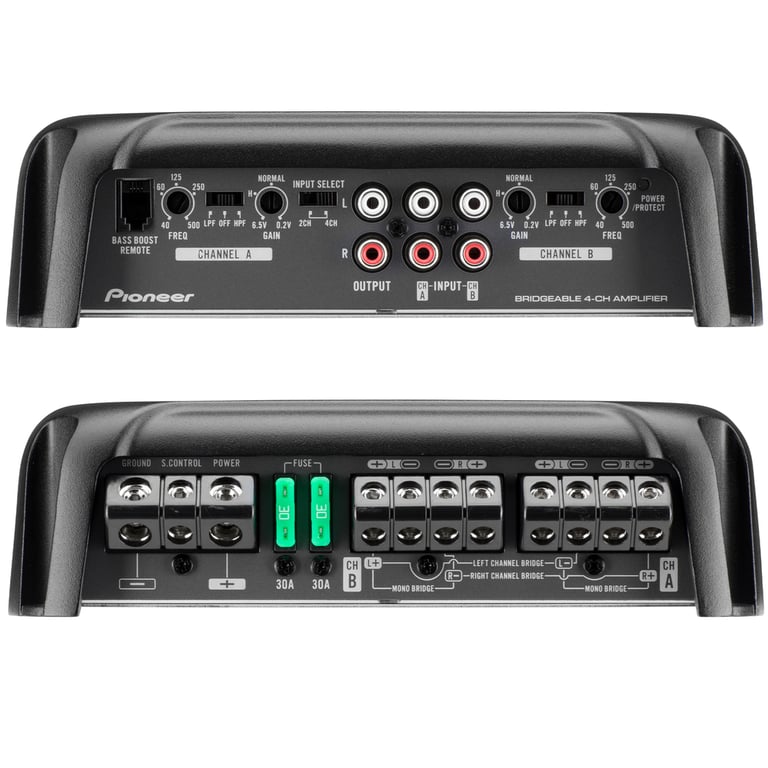

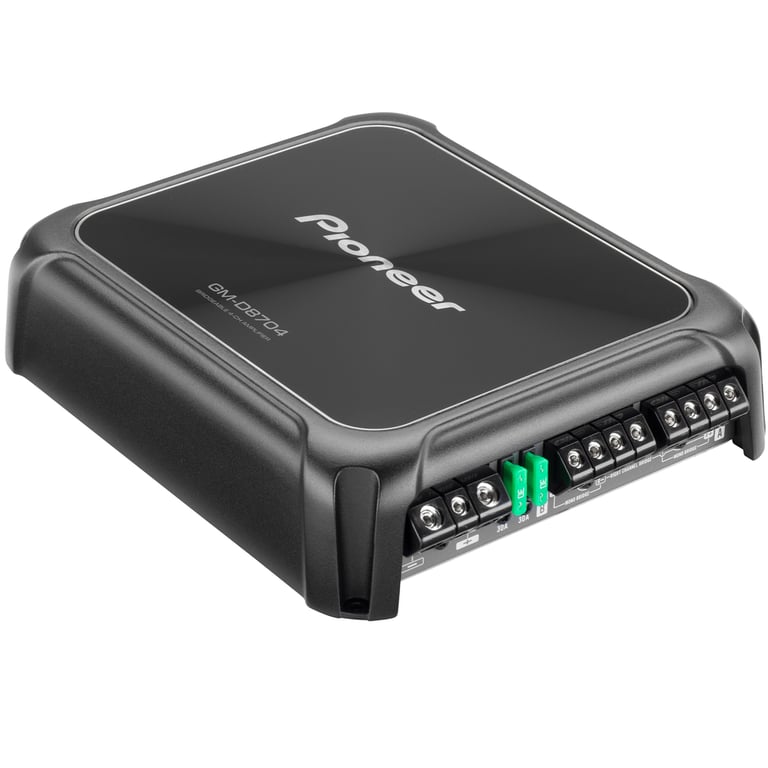

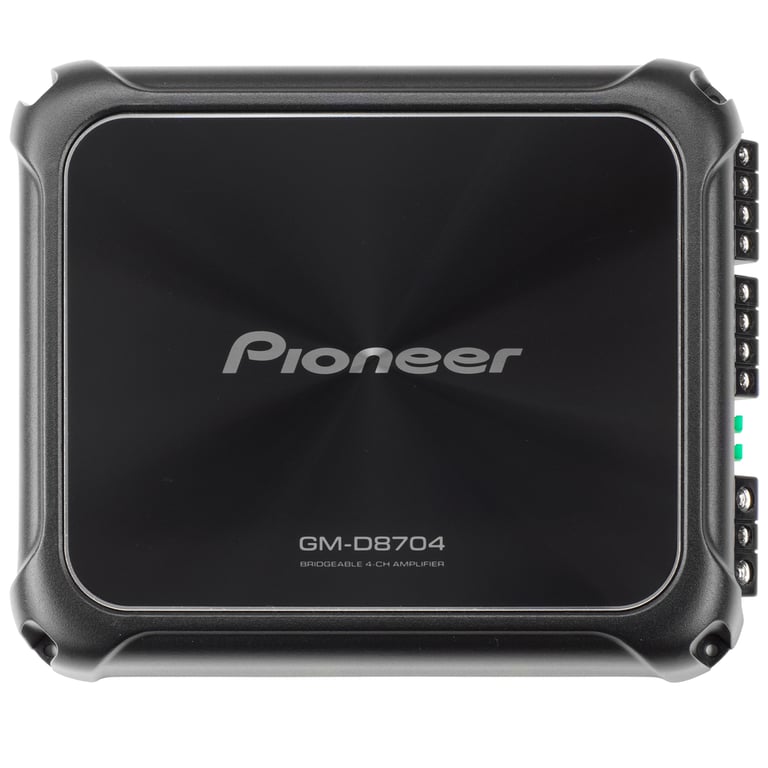

Pioneer GM-D8704( Open Box ) Image 1 — Pioneer GM-D8704( Open Box )

Pioneer GM-D8704( Open Box ) Image 2 — Pioneer GM-D8704( Open Box )

Pioneer GM-D8704( Open Box ) Image 3 — Pioneer GM-D8704( Open Box )

Pioneer GM-D8704( Open Box ) Image 4 — Pioneer GM-D8704( Open Box )

Pioneer GM-D8704( Open Box ) Image 5 — Pioneer GM-D8704( Open Box )

Product highlights

• 100W x 4-Chan. @ 4 ohm
• 150W x 4-Chan. @ 2 ohm
• 125W x 4-Chan. @ 1 ohm
• 3-Way System Protection
• 4/3/2 Channel Operation
• 4 Gauge Power and Ground Inputs
• High Power Capability with Small Size

Learn more about the ls-gmd8704-obc7

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Good Condition:
A Good Open Box used product shows wear from consistent use, but it remains in good condition and works perfectly. It may be marked, have identifying markings on it, or show other signs of previous use or installation. Original packaging, paperwork or protective wrapping may be missing or not included in its entirety. Warranty details are included in the item description or comments.

General Features:

GM Digital Series 4-Channel Class FD Car Amplifier w/ Wired Bass Boost Remote
RMS Power Rating:

4 ohm: 100 watts x 4 chan.
2 ohm: 150 watts x 4 chan.
1 ohm: 125 watts x 4 chan.
Bridged, 4 ohm: 300 watts x 2 chan.

Max power output: 600 watts x 2 chan.
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
4/3/2 channel operation
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
High-density split-dome convection heat-sink for extreme heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Input sensitivity:

Low level: 200mV-6.5V
High level: 0.8V-16V

Variable high-pass filter (40-500 Hz, 12 dB/octave)
Variable low-pass filter (40-500 Hz, 12 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 40-50,000 Hz
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 10-7/16"W x 2-3/8"D x 7-7/8"H
1-year Sonic Electronix Warranty

Check out the Pioneer GM-D8704 Owner's Manual

Product history:

	Pioneer GM-D8704( Open Box ) (newest, current model)
	Pioneer GM-D9500F (previous model, replaced by Pioneer GM-D8704( Open Box ))

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

100 watts x 4 channel

RMS Power @ 2 ohms

150 watts x 4 channel

RMS Power @ 1 ohm

125 watts x 4 channel

Bridged RMS Power

300 watts x 2 channel

Amplifier Specifications

Series

GM Digital Series

Amplifier Class

Number of Channels

4-Channel

Total Peak Power Output

1200 watts

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

.05%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

40 - 500 Hz

Low-Pass Crossover Frequency

40 - 500 Hz

Signal-to-Noise Ratio

95 dB

Remote bass/level controller

Fuse Rating

30A x 2

Total Fuse Rating

Strappable

Sonic Certified Amplifier

Amp Bluetooth Connectivity

Hi-Res Certified

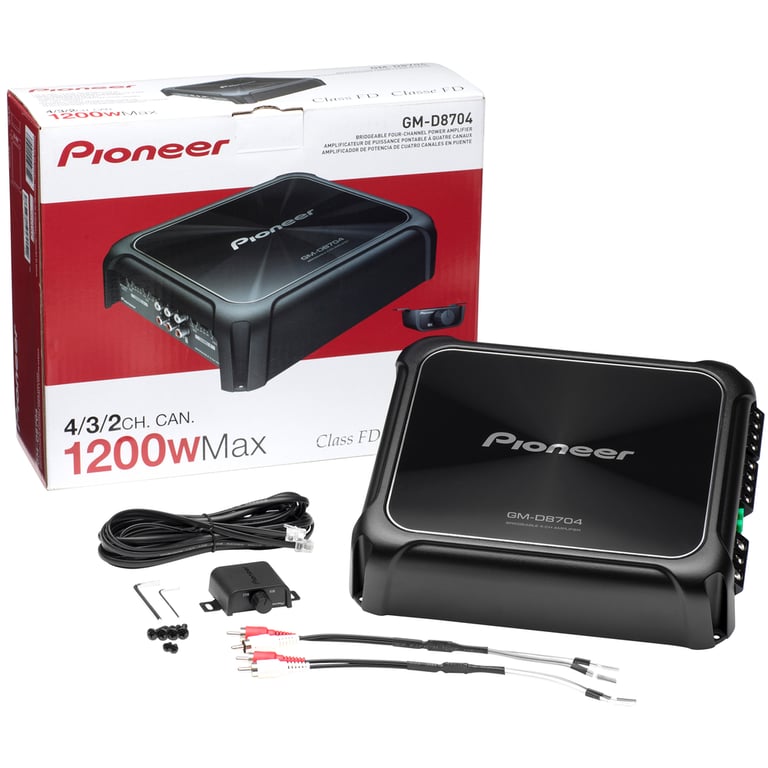

What is in the box?

Paperwork

User manual

WITB: Amplifiers

Amplifier
Wired gain knob (wire attached)

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
