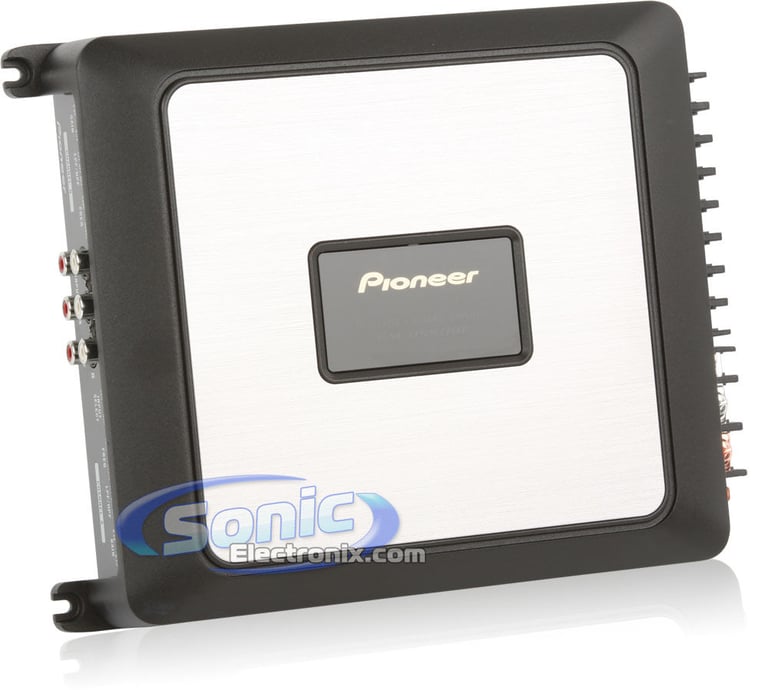

Pioneer GM-D9500F

800W Max Class FD 4-Channel Amplifier (Full-Range Class D)

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

FD Series Class D 4-Channel Car Amplifier • 75W x 4 Chan. @ 4 Ohm • 100W x 4 Chan. @ 2 Ohm • 800W Max • 4/3/2 Channel Operation • Speaker-Level Inputs • Compression-Type Terminals • LPF • HPF

Learn more about the gmd9500f

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

gmd8604 thumbnail

Pioneer GM-D8604 (Ships as 2019 model: Pioneer GM-D8704)

OUR PRICE: $169.99

View item

Loading...
82-7805 main

Metra 82-7805

6" to 6-3/4" Speaker Plate Adapter for select 2004-2023 vehicles from Honda, Acura

12
-47.38%

$19.99

List price $37.99

AXBUCH6V-H24V main

Axxess AXBUCH6V-H24V

Install a New Car Stereo and Add or Retain Backup Camera in select 2015-2025 vehicles from Honda without Touchscreen Stereos

-11.91%

$36.99

List price $41.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
KW-V660BT main

JVC KW-V660BT

6.8" Double DIN CD/DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
-16.70%

$399.00

List price $479.00

Limited time!
XAV-AX3700 main

Sony XAV-AX3700

6.95” Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Apple CarPlay (SiriusXM Ready)

1
-13.00%

$348.00

List price $399.99

Crux SWRHN-62CV

Install a New Stereo in select 2012-2020 vehicles from Honda

-35.71%

$162.00

List price $252.00

Product Highlights


FD Series Class D 4-Channel Car Amplifier • 75W x 4 Chan. @ 4 Ohm • 100W x 4 Chan. @ 2 Ohm • 800W Max • 4/3/2 Channel Operation • Speaker-Level Inputs • Compression-Type Terminals • LPF • HPF

Description


Pioneer brand icon

Authorized dealer

100% of the Power, 45% of the Size
  • FD Series Class D 4-Channel Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
    • Bridged, 4 ohm: 200 watts x 2 chan.
  • Max power output: 800 watts x 1 chan.
  • Pulse width modulated (PWM) MOSFET power supply
  • 4/3/2 Channel operation
  • Pioneer digital signal amplification technology allows for great amplification within an extremely compact design

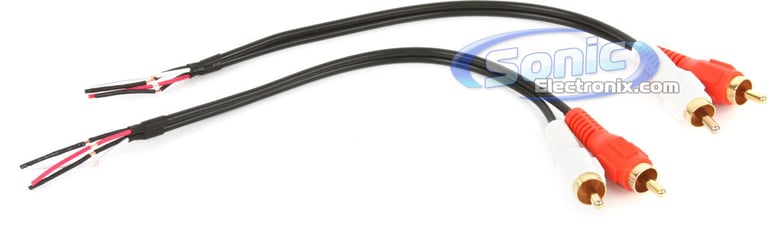

  • Balanced isolator speaker-level inputs
  • One-pair of pass through RCA outputs

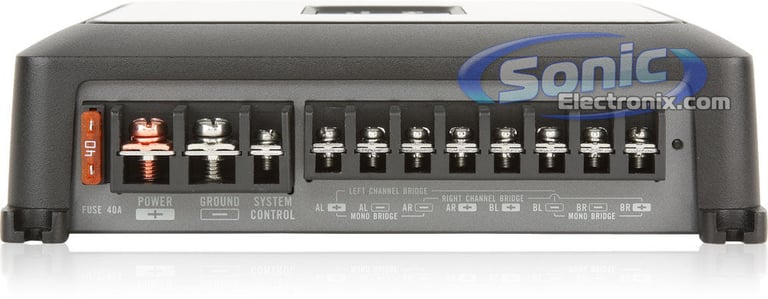

  • Compression-type speaker terminals

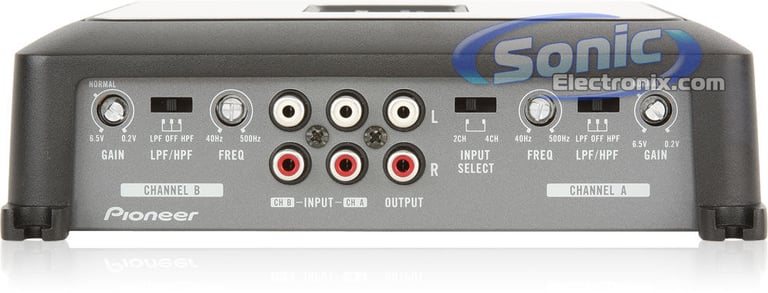

  • Hi-Volt input level control (200mV-6.5V)
  • Variable low-pass filter (40-500 Hz, 12 dB/octave)
  • Variable high-pass filter (40-500 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-35,000 Hz
  • Dimensions: 8-7/8"L x 7-7/8"W x 2-1/4"H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer GM-D8604 thumbnail
(newest, current model)
Pioneer GM-D9500F thumbnail
(previous model, replaced by Pioneer GM-D8604 (Ships as 2019 model: Pioneer GM-D8704))

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.06%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 500 Hz
Low-Pass Crossover Frequency
40 - 500 Hz
Signal-to-Noise Ratio
95 dB
Remote bass/level controller
No
Fuse Rating
40A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

GM-D9500F

Weight:

5.50lbs

Internal SKU:

gmd9500f

Internal Product ID:

22382

Product and How-to Videos


Customer Ratings & Reviews


Pioneer GM-D9500F thumbnail image

5 star
77%
4 star
19%
3 star
3%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.6
Design
4.6
Usability
4.7

Customer Reviews

Sort by:

Loading...

jhay420

Bad a** lil amp 4 the money!!! Pushin 6.5's, 5.25's, and 4x6 plates! Will buy another 4 5's n plates tho!! def worth the money!!!

By jhay420 on October 19, 2010

50 found this helpful


Good value amplifier!

This amp has a great sound, small footprint, and low energy consumption (class D "digital" amp). It is a no frills amplifier that puts all its power into sound (not flashy lights and other bells and whistles). This amp is a great value for the money. The highs could be a little more clear, but for the price I don't think there's a better digital 4-channel amp on the market. Pioneer did a great job with this one.

Since it's a new amp, I can only guess on its durability based on Pioneer's track record.

The only downside I can see is that the amp has the "old style" connections for power, ground and speakers, not the newer, more convenient allen wrench connections. Presumably this was done by Pioneer to save money, passing the savings on to the consumer. That, with some lack of definition in the high end, is the only reason I ranked it "4" instead of "5". In actuality, I'd rank it "4.5" if this were an option.

By Audio Ollie on February 19, 2010

48 found this helpful


Great Amp in a Small Package

This amp replaced a much older, larger, and less powerful Pioneer 4-channel model I had been using. I continue to use 2 channels to power my front (component) speakers, and bridge the other two channels for a trunk mounted sub in my 09 Civic Si.

Another advantage is how much cooler it runs. This isn't really a requirement for me due to where I've mounted it, but for those that are considering mounting in a confined space like behind or under a seat, it could avoid a melt down (had that problem with a Sony amp).

It took a while to "balance out" the gain and high/low pass filters for optimal sound and performance, but I'm really pleased with the results.

By Tom on December 7, 2011

46 found this helpful


Great Amp

I have this amp installed with a Pioneer double din 4200. I have two sets of the Infinity Kappa Components. The sound is incredible. I had each wired to one channel, but the amp is REALLY under rated. I already blew two sets. Luckily there were replace by Infinity. Now I have a set wired to one channel so I am only using two channels and they still sound great at only half the gain.

By Chile on November 16, 2010

47 found this helpful


Big performance, small package

If you have space or power requirement considerations, this amp is the solution. It draws less current than comparable output amps, and is small enough to fit in tight spaces. Very clean sound, adequate power to drive 4, 2 ohm speakers, nicely overcomes road and exhaust noise in my Corvette convertible at highway speeds with the top down. Great value.

By Mike on February 20, 2012

45 found this helpful


Great Buy!

I bought this to power my Polk 6501 component speakers and the 651s in the rear. So far so good, amp is very compact and powerful. The polks definitely scream hooked up to this thing, thank you SonicElectronix for a killer deal.

By Jake on January 19, 2012

45 found this helpful


Good To Go

An excellent out of the box, plug-n-play kind of amp. Very compact, stealthy. It's sturdy, durable and you can easily swear on its build quality. Above all, looks good too. Performance? Well, I used a couple of amps and this one didn't need any kinda tweaking, as if it just understands what speakers it has to drive.

By Viper Handler on December 8, 2011

44 found this helpful


Better than i Expected

This works great, have been useing it for 6 months now and am very pleased.

By KC on January 17, 2012

43 found this helpful


Perfect for speakers

This powers 4 polk audio speakers in my camaro. It is a huge gain over the factory setup. Can't go wrong. Don't waste money on more expensive ones.

By Chase on May 8, 2012

42 found this helpful


great little amp

I’m using this amp to power a set of pioneer 5-1/4 component speakers in the front and a set of pioneer 6 x 8 three way speakers in the rear door of an 02 Ford Escape. Overall, I am pretty happy with its performance alongside a powered 10" sub. I don’t know how it would sound without the sub or if you powered a sub off it too. It is a great fit, out of the way in the cargo area of my SUV. Seems pretty durable too. I was moving a large metal chair that had shifted and hit the amp pretty hard. It put a little gouge in it but no other noticable damage.

One issue I have had is when I connect my ipod to my pioneer head unit, there is a very low but noticeable white noise. Like the sound when you (use to) start a cassette tape. I can’t think of any other explanation. It may be the cable, head unit or my crappy older ipod but I didn’t notice the noise until I had the amp in. I have had a little trouble tunning amp to my speakers but only because I mostly don't know how. I am a diy'er and don't like paying people. I think I got it pretty close to its best sound. Again, that's according to my ears. All in all, this was a great upgrade to my sound system that sounds great to me. Very clear and balance sound.

By bombloader on November 29, 2011

42 found this helpful




XSVI-5520-NAV small

Axxess XSVI-5520-NAV Wiring Interface

Install new car stereo and retain accessory power in select 2006-2016 vehicles from Ford, Lincoln, Mercury

(11)

$59.99

List price $89.99

No picture

Sundown Audio SALT-3 (Open Box, Great)

3000W RMS Class D SALT Series Monoblock Car Amplifier

(1)

$1199.99

List price $1343.99

PROX84M_SDBSK2 small

DS18 PRO-X8.4M (Sold Individually) with Sound Damping

550W Peak (275W RMS) 8” PRO-X Series 4-ohm Mid-Range Loudspeaker + NVX SDBSK2 Premium Sound Damping

(46)

$75.44

List price $83.69

NTV-KIT603 small

NAV-TV NTV-KIT603

Navigation Plug & Play T-Harness (Cadillac), Must be combined with KIT552

$44.99

List price $79.99

12ZXS1000.1 small

Kicker ZXS1000.1 (12ZXS1000.1)

1000W RMS, Class D Monoblock ZX Series Amplifier

(4)

$319.95

List price $549.95

82-8155 small

Metra 82-8155 Speaker Adapter Plates

Install 5.25” aftermarket speakers in select 1996-2002 4Runner

(1)

$19.99

List price $34.99

12DVR - BRUSHED aluminum small

Atrend 12DVR - BRUSHED aluminum

Empty Dual 12" Vented Subwoofer Enclosure (Brushed Aluminum)

(1)

$204.99

List price $231.95

HDA-F60, XKIT44 small

Alpine HDA-F60 with NVX 4 Gauge Amp Kit

600W RMS Status Series Class-D 4-Channel Car Amplifier

(81)

$999.95

List price $1355.99

KMM-BT728HD small

Kenwood KMM-BT728HD

Single-DIN Digital Multimedia Receiver with Bluetooth (SiriusXM Ready)

$179.99

List price $190.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Ford Explorer

2022 Chevrolet Equinox

2012 Dodge Durango

2013 Lexus RX350

2004 GMC Envoy XUV

2009 Subaru Outback

2020 Chrysler 300

1985 Toyota Pickup

2018 Lincoln MKZ

2002 Mitsubishi Eclipse

Vehicle
Store
Delete

2017 Can-Am Defender XT HD8

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
