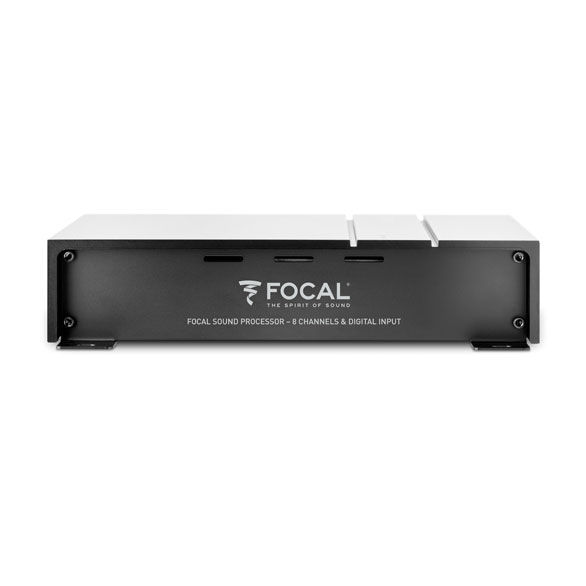

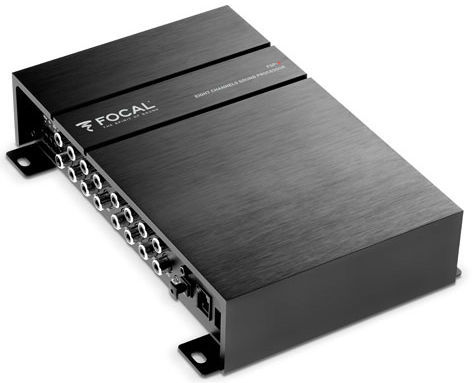

Focal Elite FSP-8 (FSP8 DSP)

8 Channel Digital Signal Processor 6 IN / 8 OUT with Digital Input and Remote Included

Focal
Shop all Focal
highlight-star-icon

• Digital Signal Processor
• Tool to optimize and shape the audio signal
• Compatible with all head units
• High-resolution digital input (24 bits/192kHz)
• Unique and intuitive user interface
• Focal DSP Manager
• Remote control included

Learn more about the fsp8

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-9002 main

Metra 72-9002

Install New Speakers in select 1994-2024 vehicles from Audi, Mercedes-Benz, Chevrolet

5
-26.68%

$10.99

List price $14.99

82-9101 main

Metra 82-9101

6" to 6 3/4" Speaker Adapter for select 2000-2023 vehicles from Audi

1
-56.27%

$13.99

List price $31.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Stage3 607C main

JBL Stage3 607C (STAGE3607CAM)

300W Peak (100W RMS) 6.5" Stage3 Series 2-way Component 3-ohm Speakers

1
-27.79%

$129.95

List price $179.95

PRO-ZT6 main

DS18 PRO-ZT6 (Sold Individually)

450W Peak (225W RMS) 6.5” PRO Series Hybrid Coaxial Midrange 4-ohm Motorcycle and Powersports Loudspeaker

6

JBL SHOCK WAVE 150W65 (JBLSPKSW150W65)

600W Peak (300W RMS) 6.5" Shock Wave Series 4-ohm Midrange Speakers

5
-7.70%

$119.95

List price $129.95

Description


Focal brand icon

Authorized dealer

Product Specifications:

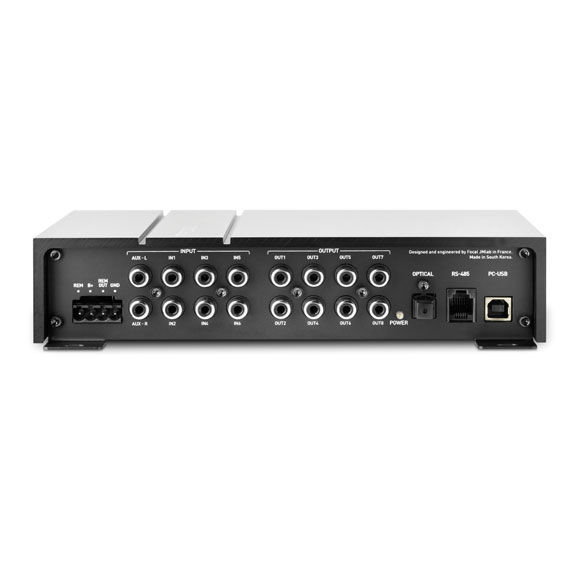

  • Inputs:
    • Low-level input sensitivity (Analog and Aux): 1.2V – 4.9V
    • High-level input sensitivity (Analog and Aux): 4.8V – 20.6V
    • Digital input formats supported (optical): up to 24 bits/192kHz
  • Outputs:
    • Number of channels: 8
    • Max. output (with 10kΩ) level: 3.4V
    • Frequency response (digital crossover off/-3dB): 5Hz – 21kHz
    • Signal/noise ratio: -90dBa (analogue input) -99dBa (optical)
    • Harmonic distortion – 10kΩ – @1kHz (with 22kHz low-pass filter): 0.02%
    • Crosstalk – 4Ω – @1kHz Gain adjustment range: -78dB
    • Equalizer: 64dB
    • Adjustable high-pass crossover: 10 bands, each fully customisable for each channel
    • Adjustable high-pass crossover: 16Hz – 20kHz
    • Adjustable bandpass crossover: 16Hz – 20kHz
    • Latency adjustment range:16Hz – 20kHz 0-22ms per channel
    • Latency adjustment steps: 0.1ms
    • Phase inverter  ✓

Product Details:

  • Easy Configuration ✓
  • Dynamic help ✓
  • Power consumption on standby (product on, no signal, 14.4 Vin): 0.7a (0.73 a with remote
  • Power consumption OFF (14.4 Vin, remote OFF): < 50μa
  • Remote control: Included (in US Market only)
  • Protection: Polarity inverter
  • Weight: 3lbs (1.35kg)
  • Dimensions (LxWxH): (1.35kg) 89/16″x57/16″x17/8″ (21.8cmx13.8cmx4.8cm)

Downloads


What's In The Box?

  1. FSP-8 Digital Signal Processor

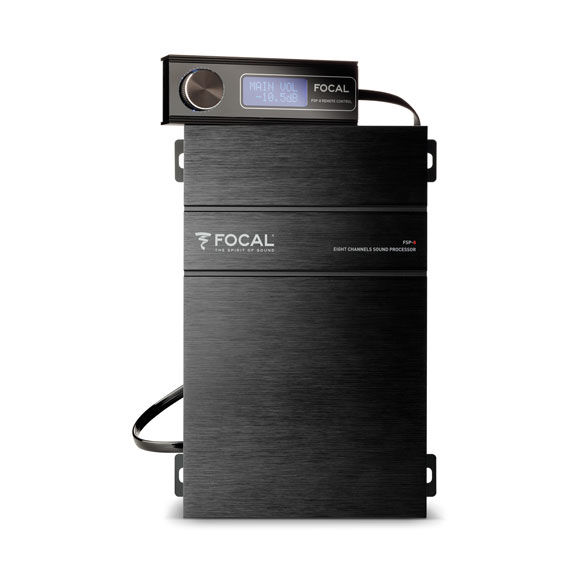

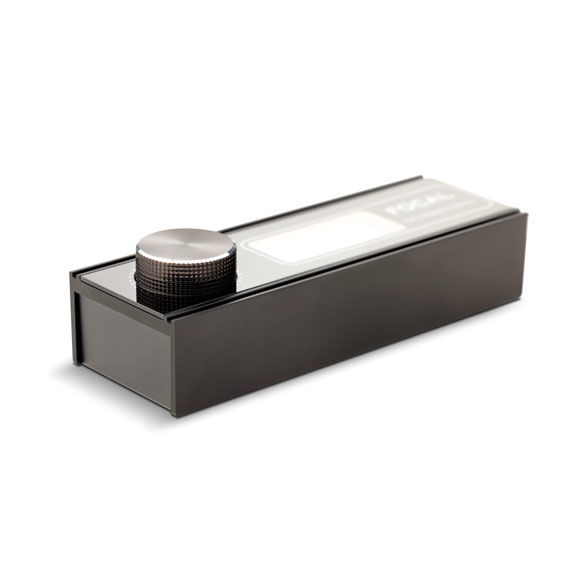

  2. FSP-8 Remote Control

FSP-8 DSP MANAGER





A UNIQUE INTERFACE DESIGNED FOR AND BY ACOUSTIC EXPERTS

The FSP-8 DSP MANAGER is our user interface for controlling the FSP-8 from a laptop. Its design was inspired by the solutions used to perfect the audio systems in production vehicles manufactured by Focal’s partners. In just a few clicks, the four main screens will give you access to all the strategic settings, reducing setup time and optimizing your listening session

FSP-8 DSP MANAGER


Version: 1.1 (updated on 2017-08-21)
Software compatibility: Windows Xp/Vista/Seven/8/10
DOWNLOAD

FSP-8 DSP FIRMWARE UPGRADE


Version: 1.1 (updated on 2018-05-18)
Software compatibility: Windows Xp/Vista/Seven/8/10

DOWNLOAD

USER MANUAL

DOWNLOAD
