Kicker CXA360.4 (46CXA3604T) (Open Box, Great)

360W RMS Class AB CX-Series 4 Channel Car Amplifier

Kicker
Shop all Kicker
Product videos
highlight-star-icon

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

Learn more about the ls-46cxa3604-u8

We apologize

This item has been discontinued

Product Highlights


• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

Description


Kicker brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

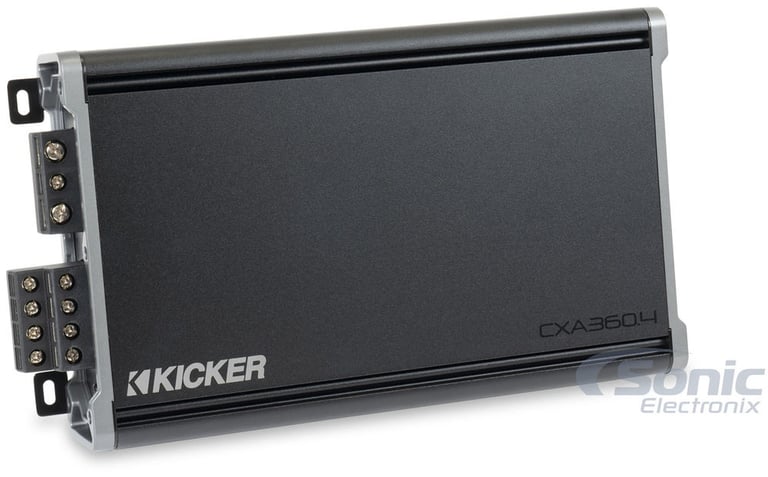

Kicker CXA360.4 (46CXA3604T)

Using Class A/B power, this amp features a variable bass boost with KickEQ, giving you as much as a 6dB of extra bump. A powerful 12dB crossover is also included, letting you quickly tune your system to perfection. CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!

Highly efficient heat sinks keep the amp cool with a sophisticated new look, while KICKER’s FIT+ (Fail-safe Integration Technology-PLUS), gives you outstanding noise rejection - even with premium factory audio systems. This CX-Series Amplifier delivers as much as 90 watts into four full-range channels, or 180 watts into two bridged channels.


Product Details:

  • CX Series Class A/B 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 65 watts x 4 channel
    • 2 ohm: 90 watts x 4 channel
    • Bridged: 180 watts x 2 channel @ 4 ohm
  • Total power output: 360 watts
  • Wired bass level remote control with optional Kicker 46CXARCT (AMP2 must be in LO-PASS X-OVER mode)
  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • Three-second turn-on/off delay to eliminate unwanted interference
  • KickEQ 6dB variable bass boost for those additional low frequencies
  • FIT+ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
  • Accepts up to 40-volt input signal
  • Small footprint for easier installation
  • Vertical mounting hardware included for another unique look
  • Input sensitivity:
    • Low level: 125mV - 5 volts
    • High level: 1 - 40 volts
  • Frequency Response: 10 - 20000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: >95 dB
  • Variable high-pass filter: 50 - 200 Hz
  • Variable low-pass filter: 50 - 200 Hz
  • Variable Bass Boost: 0 - 6 dB
  • Fuse Rating: 40A
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 12-1/2" L x 6-11/16" W x 2-5/16" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: CXA360.4

Product history:

Kicker LS-46cxa3604-u8 thumbnail
(newest, current model)
Kicker 43CXA3004 thumbnail
(previous model, replaced by Kicker CXA360.4 (46CXA3604T) (Open Box, Great))
Kicker CX300.4 thumbnail
(previous model, replaced by Kicker CXA300.4 Amplifier (43CXA3004))

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Compact Design
Speaker Level Inputs
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
65 watts x 4 channel
RMS Power @ 2 ohms
90 watts x 4 channel
Bridged RMS Power
180 watts x 2 channel
Amplifier Specifications
Series
CX Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
360 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
10 - 20000 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
>95 dB
Channel Separation
>55 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
40A x 1
Total Fuse Rating
40
Strappable
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
125mV - 5 volts
High-Level Input Sensitivity
1 - 40 volts
What is in the box?
Paperwork
User manual
Power certification
WITB: Amplifiers
Amplifier

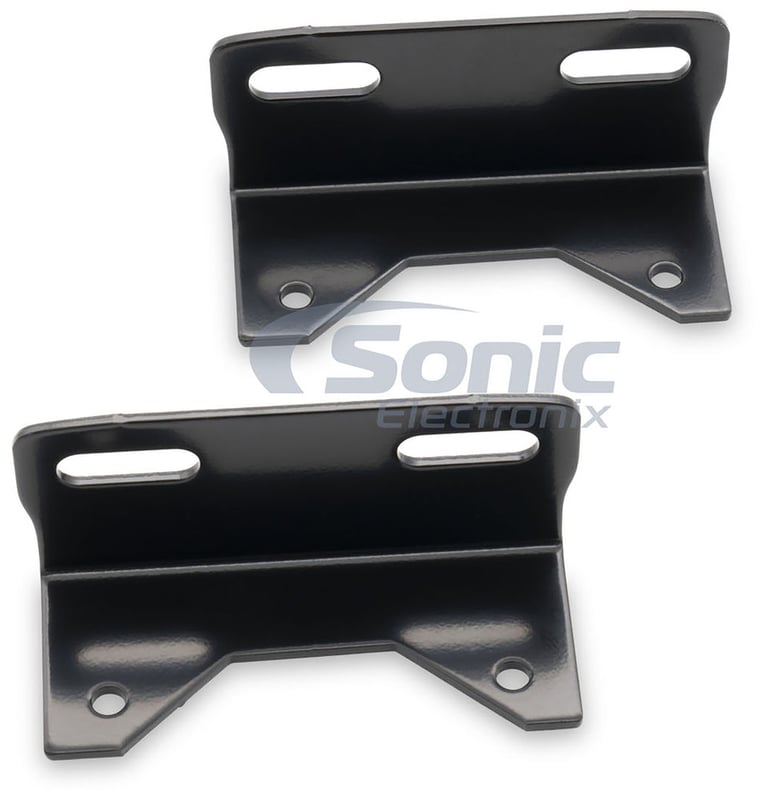

Mounting Brackets

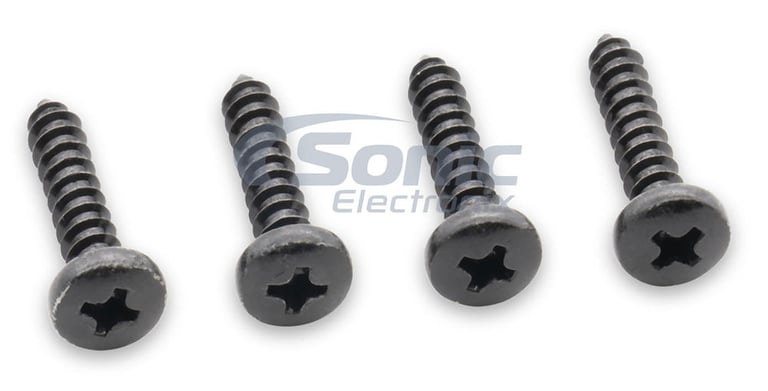

Mounting screws (4)
Allen wrenches (2)
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

LS-46cxa3604-u8

Weight:

7.10lbs

Internal SKU:

ls-46cxa3604-u8

Internal Product ID:

231350
