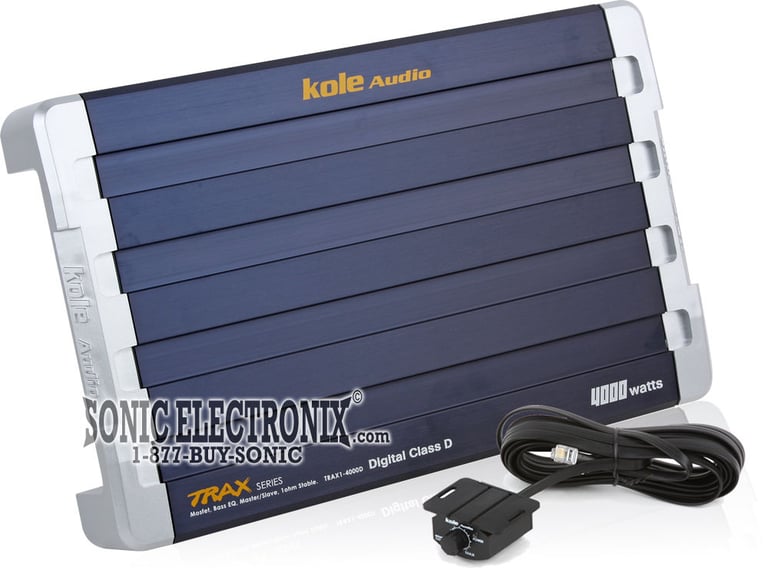

Kole Audio TRAX1-4000D (TRAX 1-4000D)

4000W Max, TRAX Series Class D Digital Monoblock Amplifier

Product videos
highlight-star-icon

TRAX Series Class D Digital Monoblock Amplifier • 2200W x 1 chan. @ 1 ohm • 1700W x 1 chan. @ 2 ohm • 1200W x 1 chan. @ 4 ohm • 4000W Max • PWM Power Supply • Midnight Blue Finish • Three-Way Protection •

Learn more about the trax14000d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
99-5716 main

Metra 99-5716

Single DIN Installation Dash Kit for select 2000-2003 Taurus and Sable w/Rotary Climate Controls

8
-10.22%

$166.99

List price $185.99

Product Highlights


TRAX Series Class D Digital Monoblock Amplifier • 2200W x 1 chan. @ 1 ohm • 1700W x 1 chan. @ 2 ohm • 1200W x 1 chan. @ 4 ohm • 4000W Max • PWM Power Supply • Midnight Blue Finish • Three-Way Protection •

Description


Kole Audio brand icon

Authorized dealer

  • TRAX Series Class D Digital Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 1,200 watts x 1 chan.
    • 2 ohm: 1,700 watts x 1 chan.
    • 1 ohm: 2,200 watts x 1 chan.
  • Max power output: 4000 watts x 1 chan.
  • Regulated PWM Power Supply

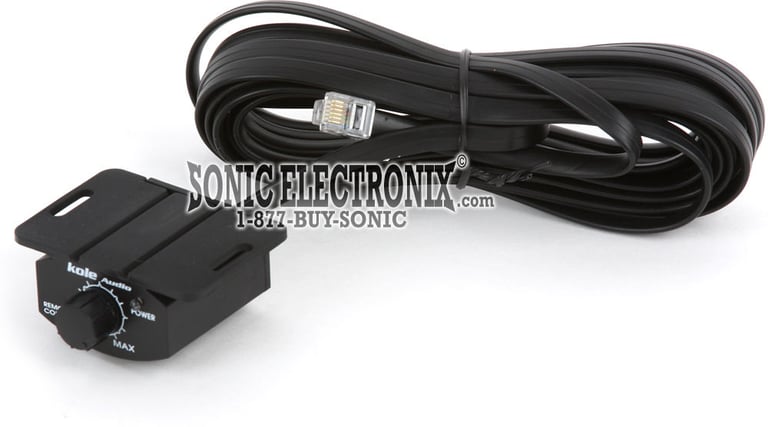

  • Wired remote bass level control included.
  • LED power indicators
  • Bass Boost: 0-18 dB at 45 Hz
  • Midnight blue anodized finish with silver end caps
  • High-speed digital circuitry
  • Three-way protection circuitry (short, thermal and overload)
  • Bridged synchronization (strap amps together for double power!)
  • Pre-amp outputs
  • 1800 Phase switch
  • Variable low-pass filter (40-200 Hz, 12 dB/octave)
  • Variable subsonic filter (12 dB at 20-50 Hz)
  • Frequency response: 15-150 Hz
  • Low Level Inputs: 200mV-6V
  • Dimensions: 16-1/8L x 10W x 2-1/4H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

Kole Audio TRAX-1-4000D thumbnail
(newest, current model)
Kole Audio KX1-4000D thumbnail
(previous model, replaced by Kole Audio TRAX1-4000D (TRAX 1-4000D))

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1200 watts x 1 channel
RMS Power @ 2 ohms
1700 watts x 1 channel
RMS Power @ 1 ohm
2200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
2200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
.5%
Speaker Level Inputs
No
Preamp Outputs
Mono output
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 200 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 4
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TRAX-1-4000D

Weight:

12.00lbs

Internal SKU:

trax14000d

Internal Product ID:

17385

Product and How-to Videos


Customer Ratings & Reviews


Kole Audio TRAX1-4000D (TRAX 1-4000D) thumbnail image

5 star
50%
4 star
17%
3 star
17%
2 star
0%
1 star
17%



Durability
3.9
Value
4.4
Features
4.2
Design
4.4
Usability
4.7

Customer Reviews

Sort by:

Loading...

Decent amp, but not 4000 watts (maybe at 20 volts)

Amp sounds good but I would say it's only pushing about 1000-1300 watts MAX in my setup which includes a pretty weak alternator (65amp), but have 2 deep cycle optimas as well.. with my Tsunami 1100d I was hitting 144 db with my 15" sub, now i am only at 140.9 with this amp. I would say that if you have the money, look for a more efficient amplifier. If money is a factor, this amp is good for the price. Also seems like if you play it loud for a period of time say a half hour or longer, the power decreases. My Tsunami amp never did that. I loved my Tsunami amp, wish they didn't switch to wiring/accessories only - I'd rather have a new Tsunami amp.

By J Keez on August 24, 2010

5 found this helpful


raw power

this amp wont cut off til u turn the power off. looking for a amp to push the big 9500 mtx 15's look no further! plus it wont over heat this amp does the job well im knocking rust outta da trunk of my 72 donk this is the amp to get but if u wanna go crazy step it up a lil higher with the 5000trax

By Shotgunn Da Bachelor on February 24, 2010

5 found this helpful


Kole Audio TRAX1-4000D (TRAX 1-4000D

Awesome amp great sound and control everyone should have one no problems at all wonderful product.

By sound man on August 10, 2011

4 found this helpful


Good amp, decent power...

Amp is good for the money, overrated power tho.

By Bobby on November 7, 2010

4 found this helpful


big power for small dollarz

I've had this amp in my car since the winter of 08 running 2 Lanzar heritage 1000rms 12's n I got people wanting me to sell it to them cuz they can hear me before they see me, this amp WORKS, no cutting out, no over heating and I ran it during last and this winter back n forth to work, but I recommend u run 0 gauge to it cuz it started to melt the jacket on the 4 gauge. I just bought 2 12 mofo's guaranteed she's gonna blow the trunk off my Cavalier.

By Z24 on March 7, 2010

4 found this helpful


well...

This amp is junk unlike the kole 5,500. I have the amp hooked to to 2 earthquake sub zero 12" 4 ohm and the amp cuts out when i turn it up. But the kole 5,500 wont and i wish i never bought this amp.

By brenda on January 10, 2012

1 found this helpful
