Parking Sensor System with On-Screen Video Out

The Rydeen BL-412PM backup sensor modules add safety and convenience to your vehicle. Connect the BL-412 to your in-dash monitor or Rydeen stand-alone monitors (BM352S) and it automatically displays what's behind your vehicle when you put your car or truck in reverse, with distance OSD (On-Screen-Display) let you see the distance to the obstacles right on the screen. You can choose from any of the Rydeen professional grade cameras to use together with BL-412 and select the best line of sight for your vehicle. And you'll get a great peripheral view including the distance OSD right on the monitor (a video monitor and a camera are required for this system and sold separately).

Product Features:

  • On-Screen-Display with use of separate video monitor
  • BackUp Camera Video In/Out
  • Highly sensitive sensors
  • Quick reaction

Product Specifications

  • Rated voltage: 12V DC
  • Operating range: 9 ~ 16V DC
  • Rated current: 20 ~ 300 mA
  • Detecting distance: 1.0 – 8.0 feet
  • Ultrasonic frequency: 40 KHz
  • Operating temperature: -22 ~ +158°F
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

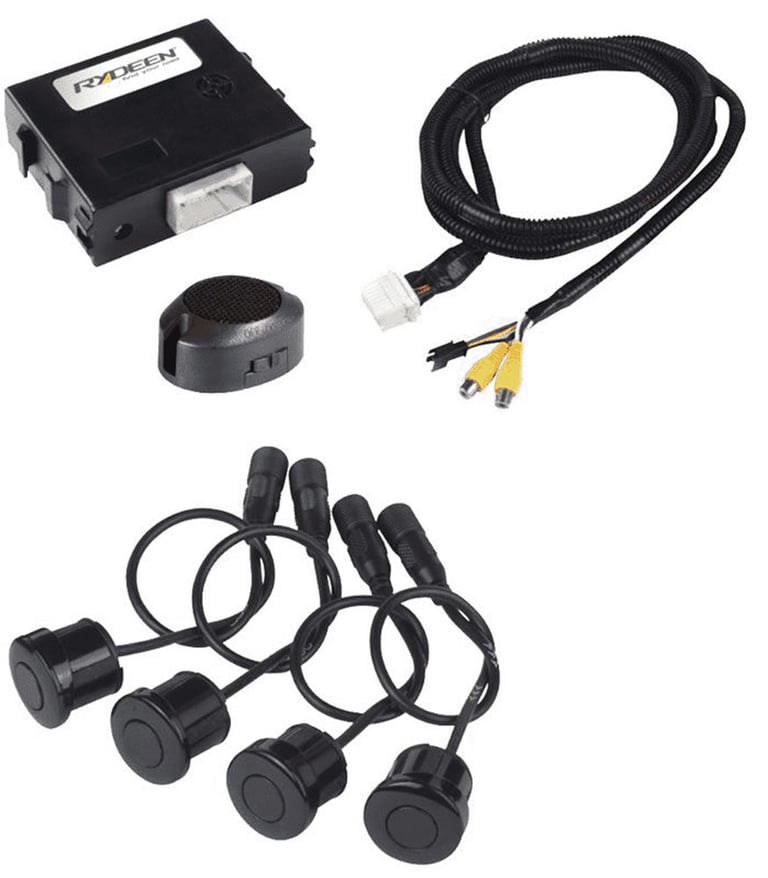

Items Included:

  • Main control box (1pcs)
  • Ultrasonic sensors (4pcs)
  • Drill bit (1pcs)
  • User’s manual (1pcs)
  • Accessories
