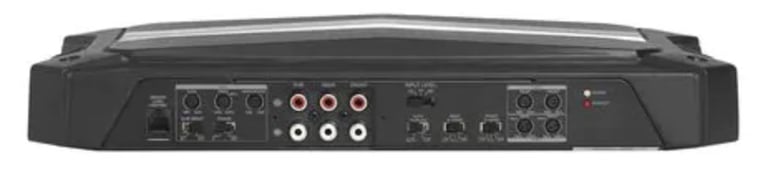

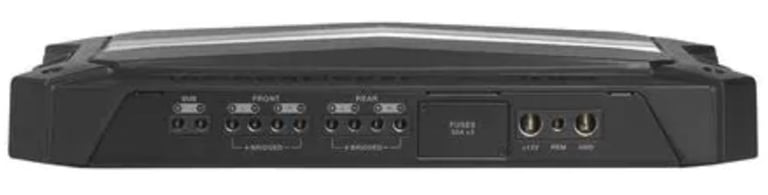

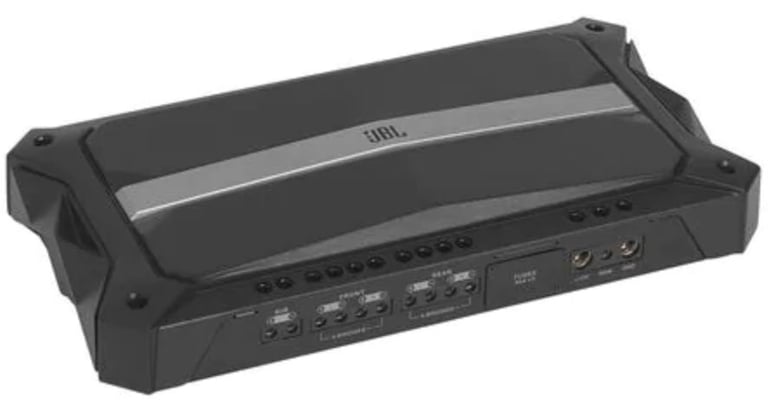

** DO NOT USE - DUPLICATE ** JBL Stadium 5AM (Stadium 5)

2300W Max (400W RMS) Stadium Series 4 ohm Stable 5-Channel Class-D Amplifier w/ Remote Bass Control

JBL
Shop all JBL
highlight-star-icon

• 75 Watts RMS x 4 @ 4 ohm
• 100 Watts RMS x 4 @ 2 ohm
• Total Peak Power: 2300 Watts
• CEA-2006 Compliant
• 0 to 9 dB Bass Boost

Learn more about the donotuse-stadium5am

We apologize

This item has been discontinued


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Description


JBL brand icon

Authorized dealer

General Features:

  • JBL Stadium 5
  • Class-D Full Range 4-Ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan. (200 watts x 1 chan.)
    • 2 ohm: 100 watts x 4 chan. (350 watts x 1 chan.)
    • 1 ohm: _ watts x _ chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohm: 200 watts x 2 chan. (350 watts x 1)
  • Total power output: 2300 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • EARL Ground Terminal and Power Block
  • 5/4/3/2 channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity: 0.2V - 2V
  • Frequency Response: 10 - 320 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ratio: 80dB
  • Variable high-pass filter: 32 - 320 Hz, 12 dB/octave
  • Variable low-pass filter: 32 - 320 Hz, 12 dB/octave
  • Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
  • Fuse Rating: 30 A x 3
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: "W x "L x "H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
