NVX 1700W Amplifier + Alpine 12" Subwoofer + Belva Amp Kit

Product Details:

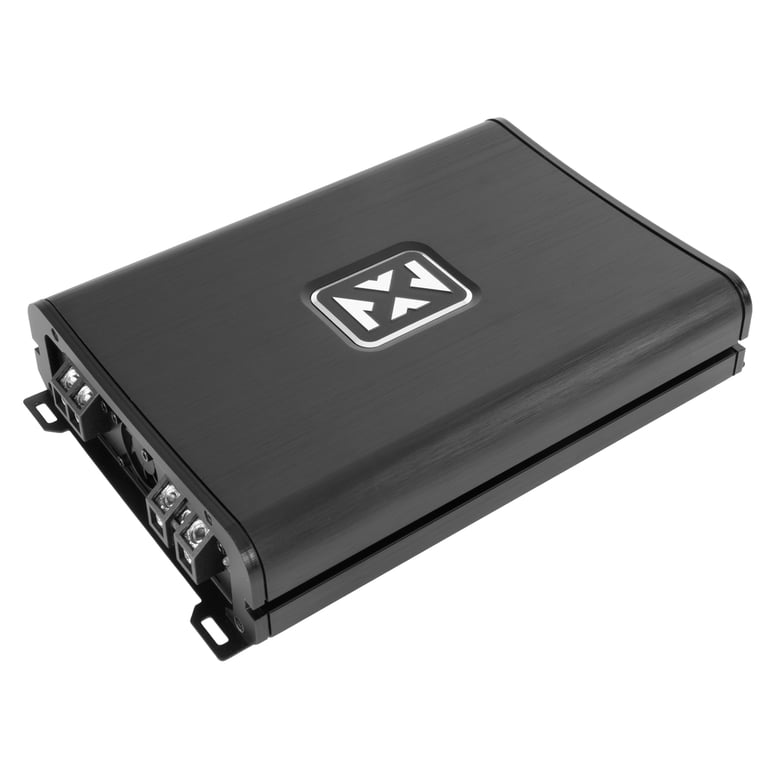

• V Series Class D 1 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 800 watts x 1 channel
• 2 ohm: 1350 watts x 1 channel
• 1 ohm: 1700 watts x 1 channel
• Total RMS power output: 1700 watts
• CEA-2006 compliant amplifier
• Power and protection LED light status indicator
• Wired bass level remote control included
• 1 pair of pre-amp outputs
• Signal sensing remote turn-on
• 3-way protection circuitry (thermal, voltage, and speaker short protection)
• IRS full range capable class-D topology
• Compact size footprint for easy installation in car and marine applications
• Surface mount component technology
• Audio precision quality control verification
• Stable and reliable four layer PCB trace layout
• Conformal coating PCB finish for water resistance
• Input sensitivity: 0.2 - 6 volts
• Frequency Response: 50 - 250 Hz
• Total Harmonic Distortion (THD): 0.3%
• Signal to Noise Ratio: 105 dB
• Variable low-pass filter: 50 - 250 Hz
• Subsonic filter: 10 - 55 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 120A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 9.2" L x 7.2" W x 2" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

• 12" Dual 4 ohm Type-R Subwoofer
• Power Handling:
• Peak: 2250 watts
• RMS: 750 watts
• Recommended power range: 300 - 750W RMS
• CTA-2031 compliant power ratings
• Parabolic pulp/kevlar cone
• H.A.M.R. surround
• Polypropylene, mica and talc dust cap
• Reinforced cone neck and spider joint
• Cast aluminum frame with integral shorting sleeve
• 8AWG push terminals with VC configuration jumpers
• 2.6" High excursion overhung voice coil
• 127 oz. Strontium ferrite segmented magnet
• Top-mount depth: 6-3/8"
• Cutout diameter: 10-7/8"
• Frequency Response: 24 - 200Hz
• Sensitivity: 84.3dB
• Resonance Frequency (Fs): 27Hz
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty

Priced Individually

Product Details:

• 4 Gauge 2-Channel Complete Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Made from 100% Copper-Clad Aluminum (CCA)

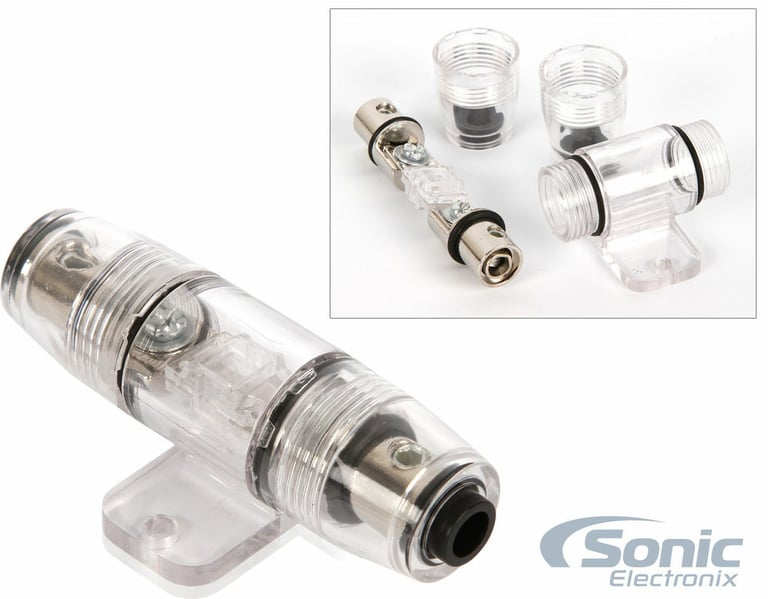

• Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• RCA Interconnect Cable
• Twisted-pair construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Gray 4 gauge power wire
2. 3 ft. Black 4 gauge ground wire
3. 17 ft. Gray 18 gauge remote lead wire
4. 20 ft. 16 gauge speaker wire
5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Chrome Plated ring terminals
9. Five 16 Gauge Spade terminal
10. One 18 Gauge Red butt connectors
11. Ten 4" Black zip ties
