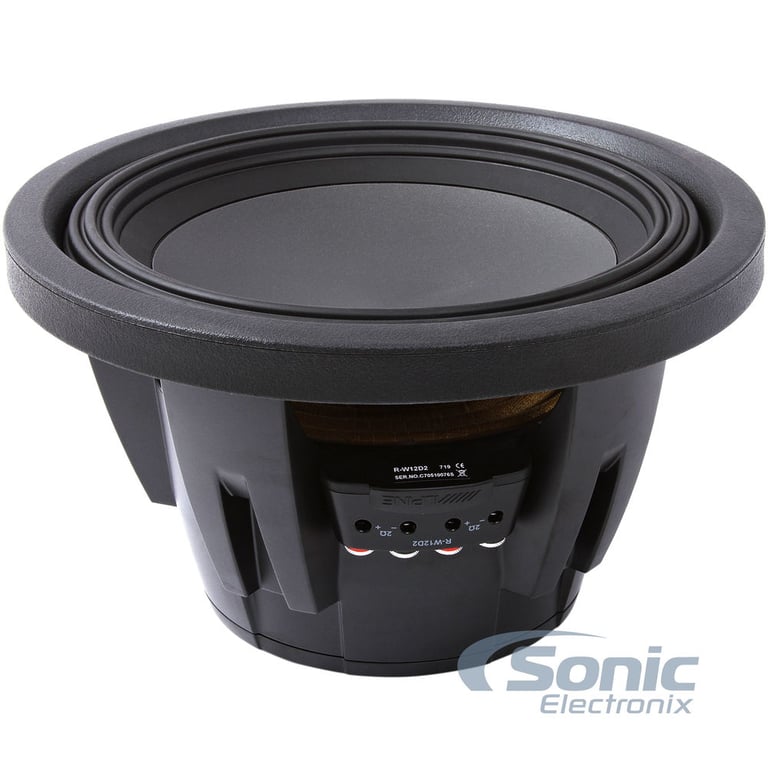

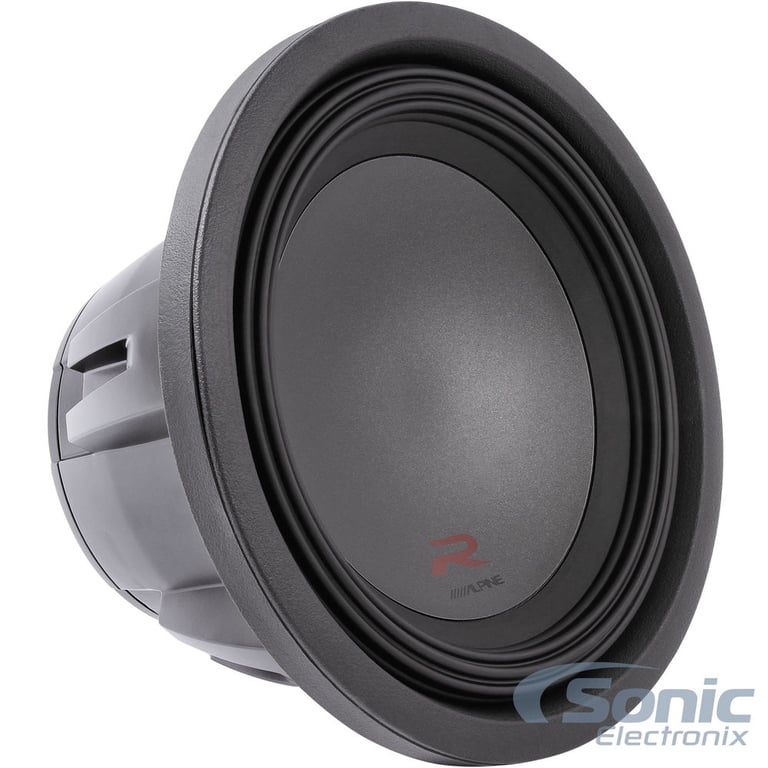

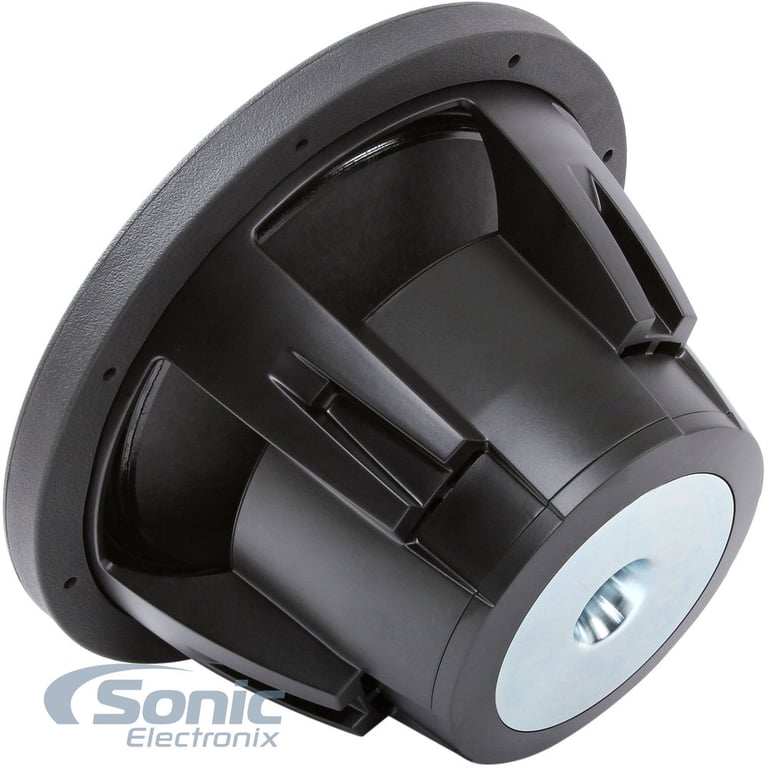

Alpine R-W12D4

2250W Max (750W RMS) 12" R-Series Dual 4-Ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 2250W Max
• 750W RMS
• Parabolic pulp/kevlar cone
• H.A.M.R. surround
• Cast aluminum frame with integral shorting sleeve
• Polypropylene, mica and talc dust cap
• 127 oz. Strontium ferrite segmented magnet

Learn more about the rw12d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

GMSB356 main

American International GMSB356

6.5" to 6.75" Speaker Mounting Adapters for select 1997-2020 vehicles from Chevrolet, GMC, Pontiac

33
-58.38%

$9.99

List price $24.00

95-7526B main

Metra 95-7526B Dash Kit

Install a new Double-DIN car stereo in select 2014-2018 3

-10.00%

$89.99

List price $99.99

40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

82-7501 main

Metra 82-7501

Speaker Brackets for select 2013-2023 vehicles from Mazda - Pair

3
-48.85%

$21.99

List price $42.99

82-3016 main

Metra 82-3016

Speaker Adapters to Mount Tweeter without Adapter or Modification for select 1990-2024 vehicles from Dodge, Subaru, Ram

1
-52.02%

$11.99

List price $24.99

SWRMZ-64C main

Crux SWRMZ-64C Wiring Interface

Install new car stereo and retains steering wheel audio controls and other factory features in select 2003-2015 vehicles from Mazda

2
-35.71%

$85.05

List price $132.30

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Description


Alpine brand icon

Authorized dealer

General Features:

  • 12" Dual 4 ohm Type-R Subwoofer
  • Power Handling:
    • Peak: 2250 watts
    • RMS: 750 watts
  • Recommended power range: 300 - 750W RMS
  • CTA-2031 compliant power ratings

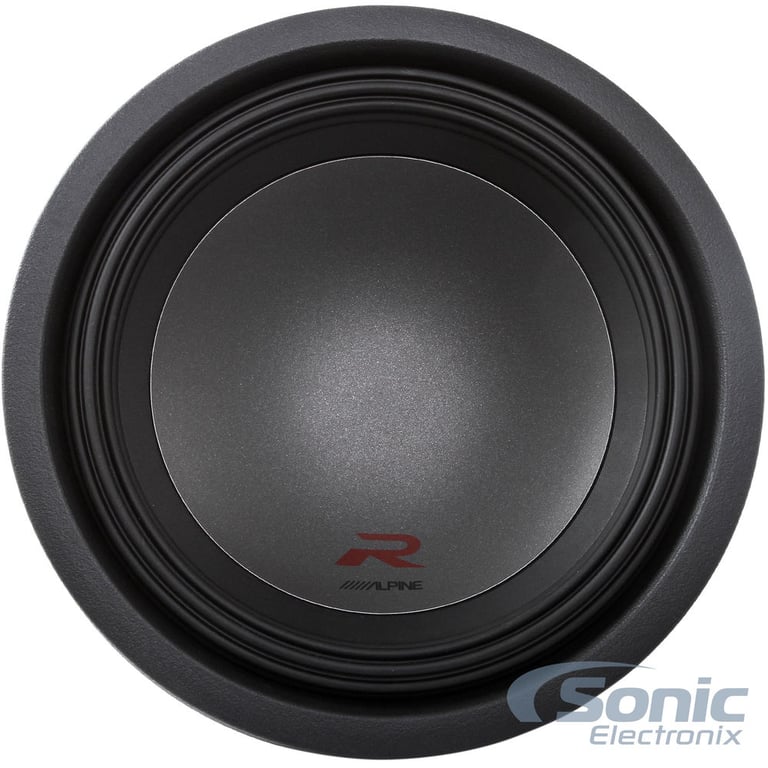

  • Parabolic pulp/kevlar cone
  • H.A.M.R. surround
  • Polypropylene, mica and talc dust cap
  • Reinforced cone neck and spider joint
  • Cast aluminum frame with integral shorting sleeve

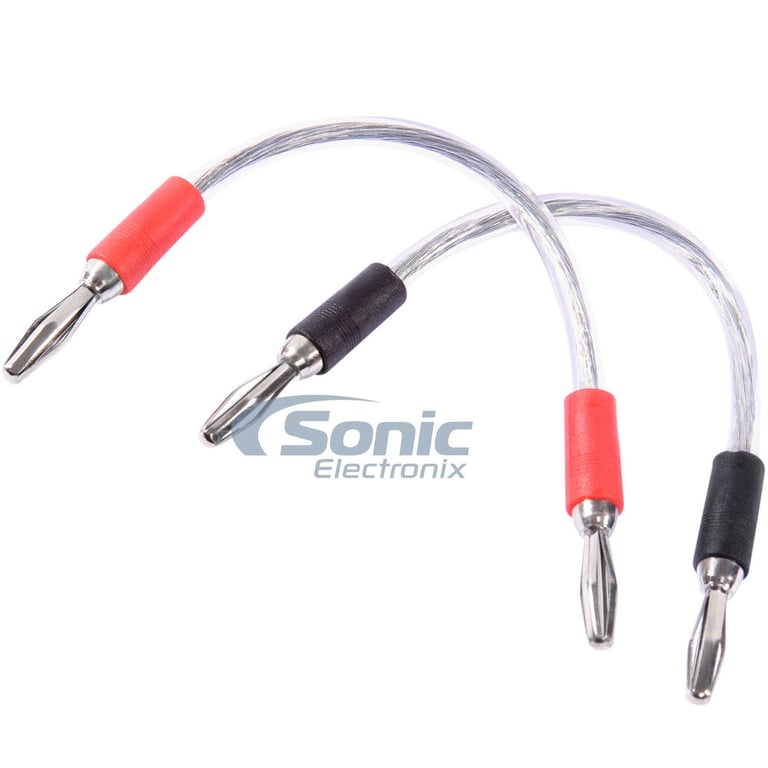

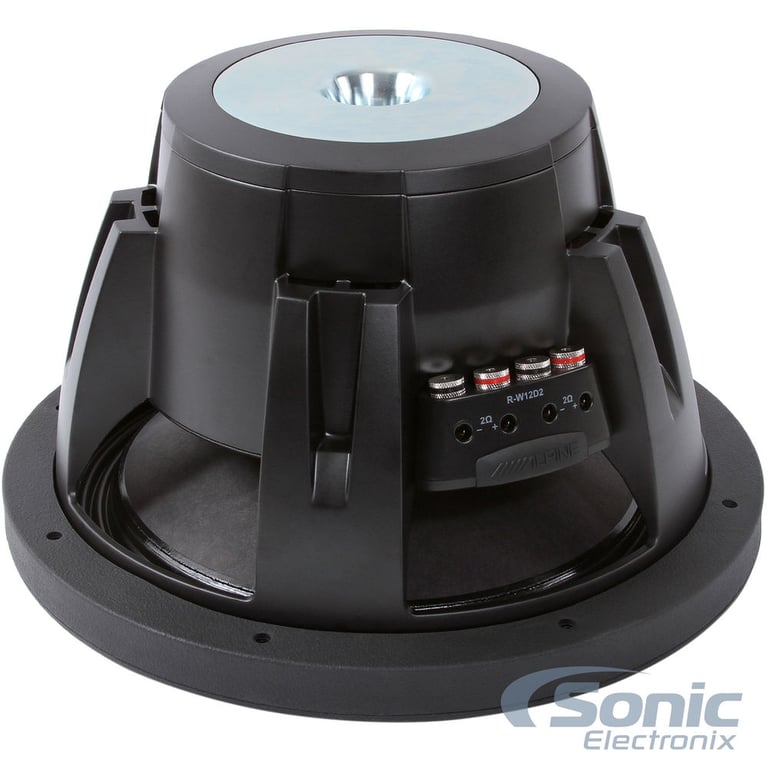

  • 8AWG push terminals with VC configuration jumpers
  • 2.6" High excursion overhung voice coil
  • 127 oz. Strontium ferrite segmented magnet
  • Top-mount depth: 6-3/8"
  • Cutout diameter: 10-7/8"
  • Frequency Response: 24 - 200Hz
  • Sensitivity: 84.3dB
  • Resonance Frequency (Fs): 27Hz
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually

Product history:

Alpine R-W12D4 thumbnail
(newest, current model)
Alpine SWR-12D4 thumbnail
(previous model, replaced by Alpine R-W12D4)
Alpine SWR-1243D thumbnail
(previous model, replaced by Alpine Type-R SWR-12D4)
Alpine SWR-1242D thumbnail
(previous model, replaced by Alpine SWR-1243D)
Alpine SWR-1241D thumbnail
(previous model, replaced by Alpine SWR-1242D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine R-W12D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine R-W12D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine R-W12D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alpine R-W12D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
12"
Peak Power Handling
2250 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.6"
Frequency Response
24 - 200 Hz
Sensitivity
84.7 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
Santoprene Rubber
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.85 cubic feet
Optimum Ported Box Volume
1.71 cubic feet
Top-Mount Depth (Mounting Depth)
6-3/8"
Cutout Diameter
10-7/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
48 liters
Total Speaker Q Value (Qts)
.56
Electrical Q Value (Qes)
.61
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
7.15
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

R-W12D4

Weight:

21.00lbs

Internal SKU:

rw12d4

Internal Product ID:

133721

Customer Ratings & Reviews


Alpine R-W12D4 thumbnail image

5 star
83%
4 star
13%
3 star
2%
2 star
1%
1 star
1%



Durability
4.8
Value
4.8
Features
4.8
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great Products; Great Prices

The following review is for a previous version (SWR-12D4).

I've had previous Alpine Type R 12" speakers, and purchasing their most recent version from Sonic Electronix was good move! Great product for way less than you'll pay anywhere else. I'm consistently impressed with Sonic Electronix 's product selection and shockingly low prices. I will continue to support and recommended this Company.

By Solo on January 31, 2015

76 found this helpful


For clean tight low end response

The following review is for a previous version (SWR-12D4).

This is definately the sub for the true audiophile that is not looking to spend a fortune, but demands the best in sound quality and true clean bass respone, this is a great purchase and a well built driver.

By Prosound on February 7, 2014

75 found this helpful


Don't be fooled

The following review is for a previous version (SWR-12D4).

Alpine say's that this sub will run 1000 watts. Don't be fooled I Bought one and blew and 3 months after the break in period I blew a voice coil. I had it hooked up to a JL Audio 1000/1 V2 slash series amp. The sub is worth the money if you're not gonna run 1000 watts to it but if you are you might want to go with the type x.

By Kevin on March 30, 2014

71 found this helpful


the hardest hitting subs ive owned

The following review is for a previous version (SWR-12D4).

I have had dual Rockford fosgate p3 12s and dual hifonics Brutus sq 12s and neither compare to these sub's. You can not beat the price and quality of sub's. Must buy!!!!!! Only issue for me is the extra rubber that hides screw's. It would stay on so I didn't use it but they still look and sound beautiful in ground shaker bandpass box.

By Tika8lack on May 16, 2014

70 found this helpful


question

The following review is for a previous version (SWR-12D4).

I want to ask someone who really have owned this new type R and owned a type x also, I had bought a type R in 2009 and it wasn't loud so I changed to a type x, I am wondering if this new Type R is the same as a Type X since as they discontinued the Type X?

By txrtr on November 6, 2014

70 found this helpful


alpine subwoofers

The following review is for a previous version (SWR-12D4).

Great buy couldn't ask for anything better. Great choice for great price.

By Tracy on February 10, 2015

68 found this helpful


Alpine type R

The following review is for a previous version (SWR-12D4).

This is a great subwoofer, for 159$ this and the RE audio line, are the best for the price. I chose alpine however for the significant power boost. Just so you guys know you really don't have to worry about power, just watch your gains. I'm giving mine 1200 rms and it takes it like a beast. Highly recommend this in a sealed box for rock, and really it gets to a great volume in a sealed, but ported for sure if you're into volume and you will only need one of these.

By Brandon on February 11, 2014

68 found this helpful


great speakers

The following review is for a previous version (SWR-12D4).

Great speakers to have, got to get them hard hitters

By Marlon on January 12, 2015

66 found this helpful


Sub Gone Bad

The following review is for a previous version (SWR-12D4).

Purchased this sub about 6 months ago and installed it in a ported box and it sounded great until the cone came unglued and now I am having to have it repaired. I am hoping after the repairs are complete it will sound as good as it did the first 6 months and that it will last a lot longer this time.

By michael on September 12, 2013

68 found this helpful


alpine swr-12d4

The following review is for a previous version (SWR-12D4).

i would recomend this for anyone that wants to spend the money i have two in a ported box with 2400 watts going them and they slam. they take a min to break in but when they do its welll worth the wait.

By brandon on December 14, 2014

62 found this helpful




CANACC small

SoundGate CANACC

12-Volt Ignition Supply for Adding Aftermarket Electronics

$50.00

List price $61.00

No picture

Legacy LCD48DX

$74.99

List price $119.99

CAM-4LP small

Power Acoustik CAM-4LP

License Plate Frame Backup Camera - Black Chrome Finish

(1)

$46.99

List price $101.99

S67NCP small

SOG S67NCP

Silver Powerassist Eod

$72.00

List price $120.00

70-5522 small

Metra 70-5522

Sub-Plug for select 2004-2014 vehicles from Ford, Lincoln, Mercury with Premier Radio

$27.99

List price $31.99

EV-790 small

Eiger Vision EV-790

Double DIN 7" TFT-LCD Touchscreen Monitor with DVD/CD/MP3 Multimedia Receiver and Remote

$249.99

List price $399.99

APVB-12ET small

Audiopipe APVB-12ET

Single 12" Vented Subwoofer Enclosure Loaded w/ TS-AR12 750W Subwoofer

$109.99

List price $179.99

AK4 small

Install Bay 4 Gauge Amplifier Power Wiring Kit (AK4)

Amplifier Installation Power Kit with RCA Interconnect Cables and Fuse Holder with Fuse

(119)

$57.99

List price $64.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 Mazda 3

1981 Audi Coupe

1997 Suzuki Sidekick

1992 GMC Typhoon

1996 Lexus LS400

2002 Volvo V70

2012 Jaguar XJ

1986 Ford LTD Crown

2017 Mazda 3

2015 Lexus ES300h

Vehicle
Store
Delete

2017 Harley Davidson FLHX Street Glide

1988 BMW K100RT

Vehicle
Store
Delete

2017 Can-Am Defender DPS HD5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
