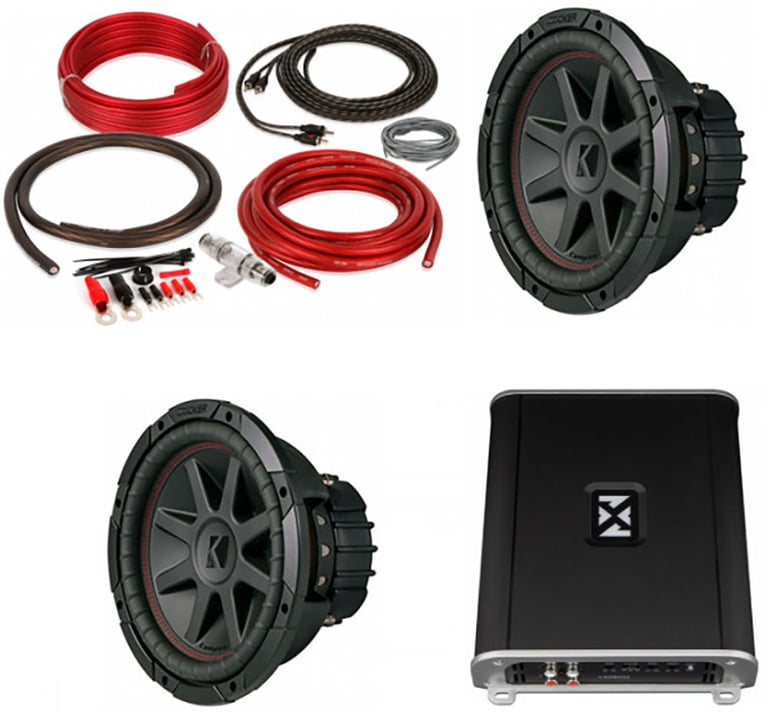

NVX VAD8402 Amplifier + (2) Kicker 10" Subwoofers + Belva Amp Kit

840W RMS NVX 2-Channel Car/Marine/Powersports Amplifier + (2) Kicker 43CVR104 Dual 4-Ohm Subwoofers + Belva Bak42

NVX
Shop all NVX
highlight-star-icon

• RMS: 300 x 2 @ 4 ohm, 420W x 2 @ 2 ohm, Bridged 840W x 1 @ 4 ohm
• Total RMS Power: 840W
• CEA-2006 Compliant
• Efficient Full Range Class D Design
• Dimensions: 10.1"W x 5.4"D x 2.0H

Learn more about the vad8402_43cvr104x2_bak42

We apologize

This item has been discontinued


Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

CR02B main

Scosche CR02B Wiring Harness

Install a new car stereo in select 2002-2007 vehicles from Dodge, Chrysler, Jeep

109
-10.73%

$7.99

List price $8.95

Description


NVX brand icon

Authorized dealer

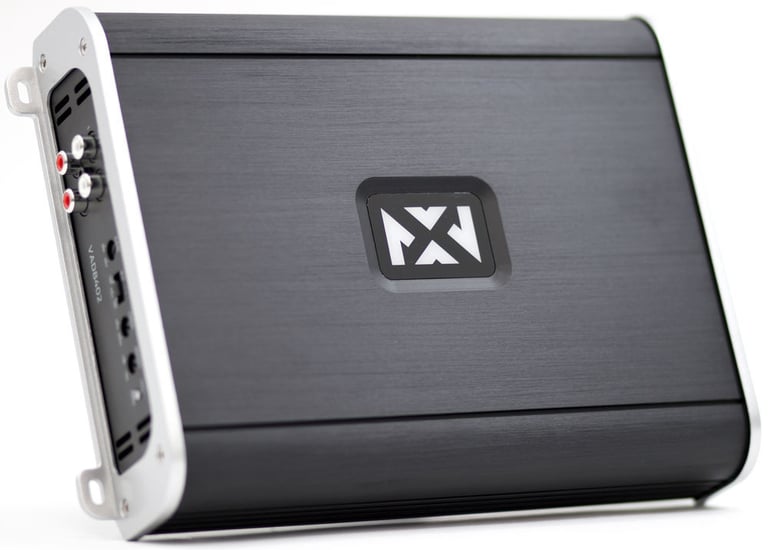

NVX VAD8402 v2 (VAD8402v2)

840W RMS Class D VAD Series 2-Channel Full-Range Car/Marine/Powersports Amplifier
Quantity: 1

Product Details:

  • Marine Certified V Series Class D 2 ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 2 channel
    • 2 ohm: 420 watts x 2 channel
    • Bridged: 840 watts x 1 channel @ 4 ohm
  • Total RMS power output: 840 watts
  • LED Indicators: Power and Protect lights
  • Conformal Coated Marine Grade Circuit Board
  • Platinum-plated Power and Speaker terminals
  • Includes a Wired Bass Level Remote Control
  • Balanced differential inputs eliminate noise picked up by signal cables
  • Speaker-Level (High-Level) Inputs (Requires adapter like the Kicker KISL)

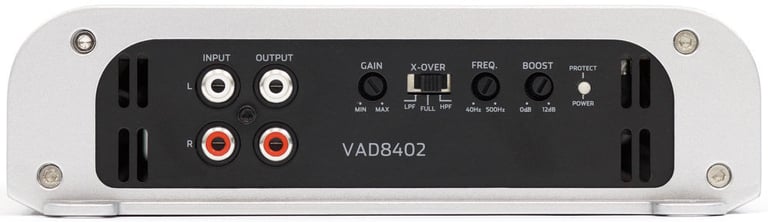

  • RCA Pre-Amp Outputs
  • Signal-Sensing Remote Turn-On: Supports Remote, DC Offset, and Audio activation
  • 4-Way Protection Circuitry: Thermal, overload, speaker short, and DC offset protection
  • Input sensitivity: 0.2 - 18 volts
  • Frequency Response: 20 - 20000 Hz
  • Total Harmonic Distortion (THD): 0.3%
  • Signal to Noise Ratio: >85 dB
  • x1 and x10 Crossover Multiplier
  • Variable high-pass filter: 40 - 400 Hz or 400 - 4000, 12 dB/octave
  • Variable low-pass filter: 40 - 400 Hz or 400 - 4000, 12 dB/octave

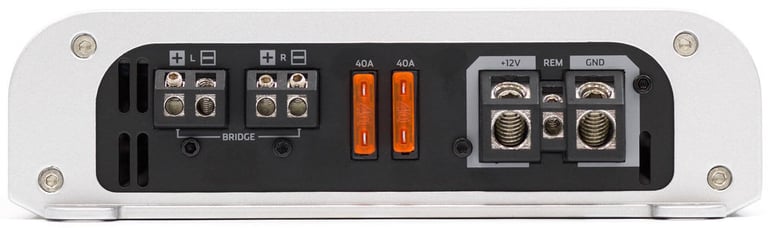

  • Fuse Rating: 80A
  • 4 AWG gauge amplifier wiring kit is recommended for installation

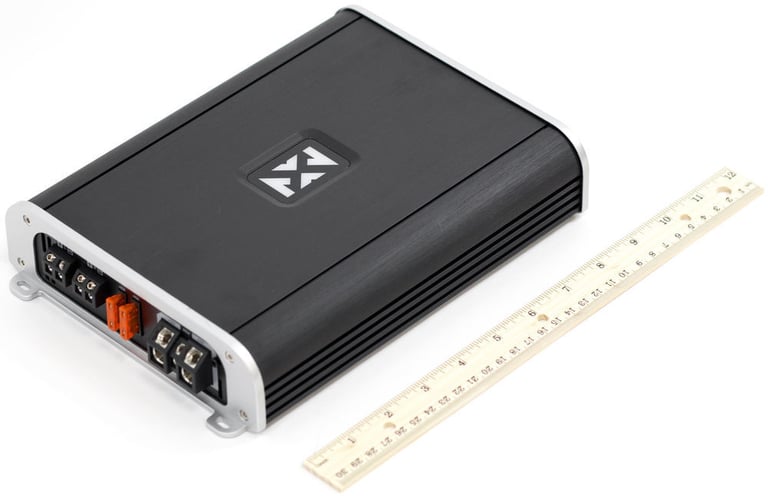

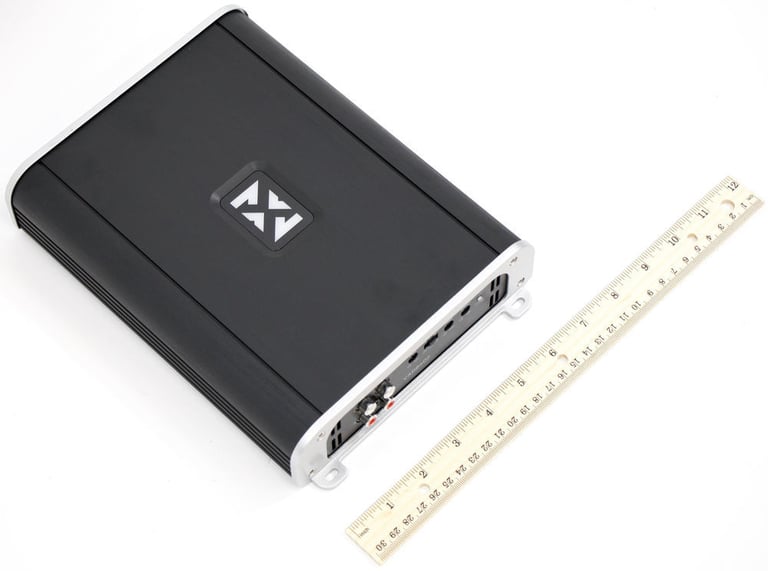

  • Dimensions: 10.32" L x 6.81" W x 2.05" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: VAD8402v2

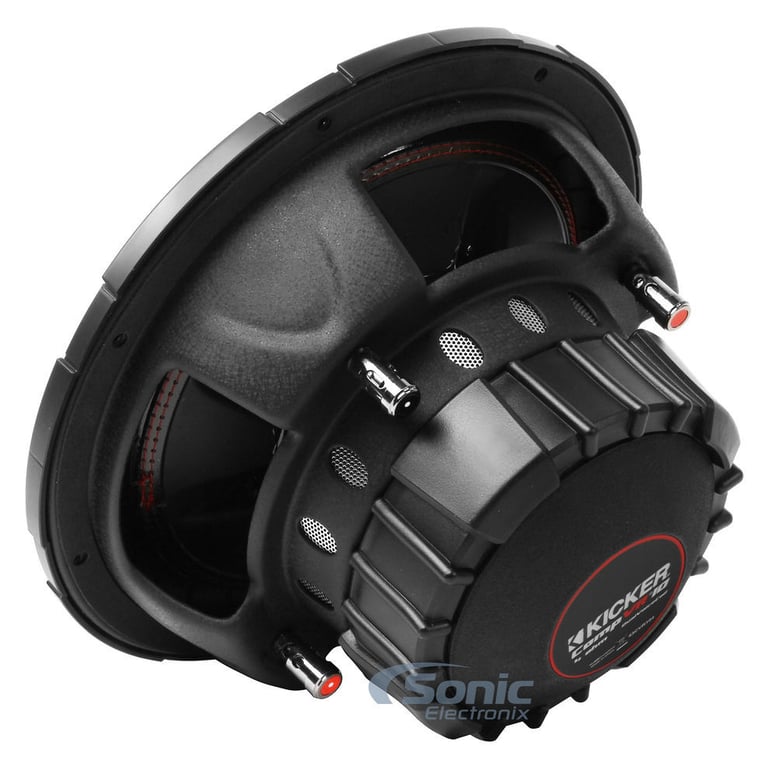

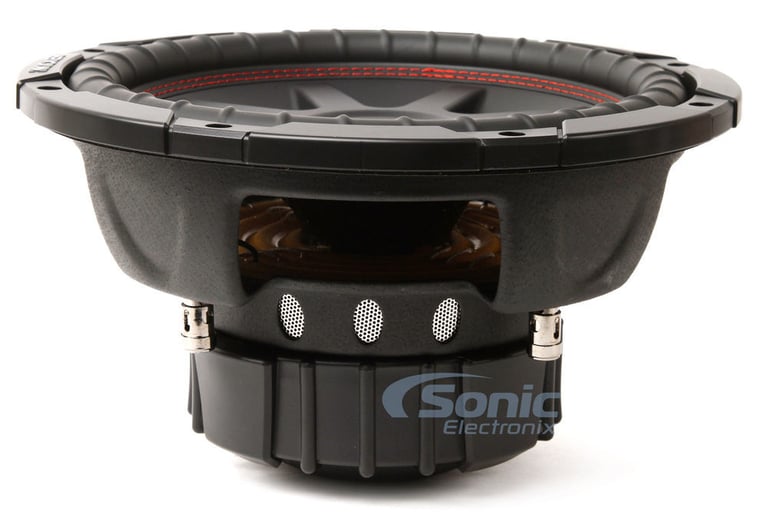

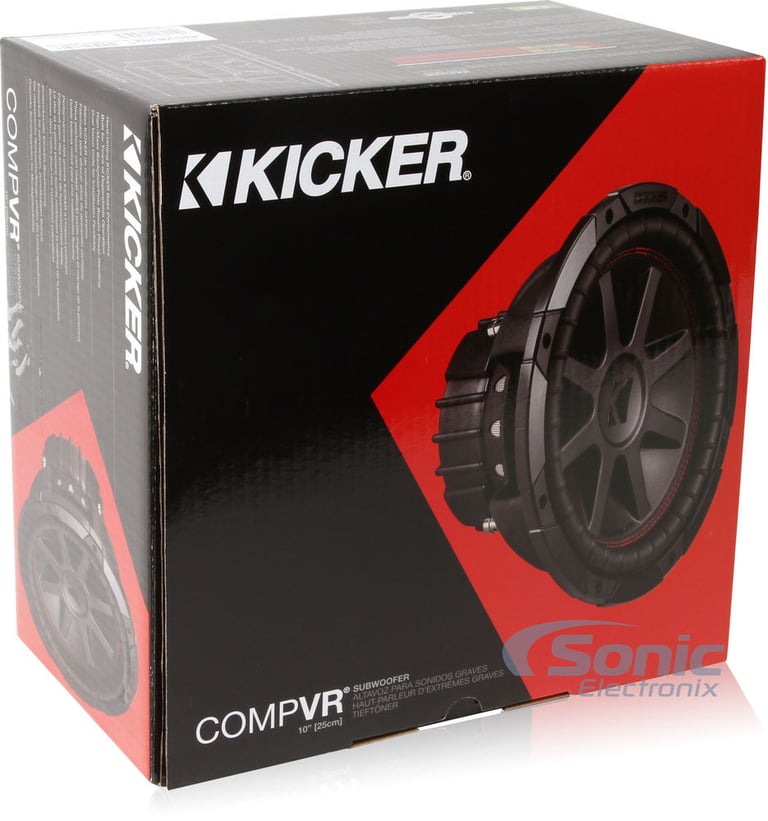

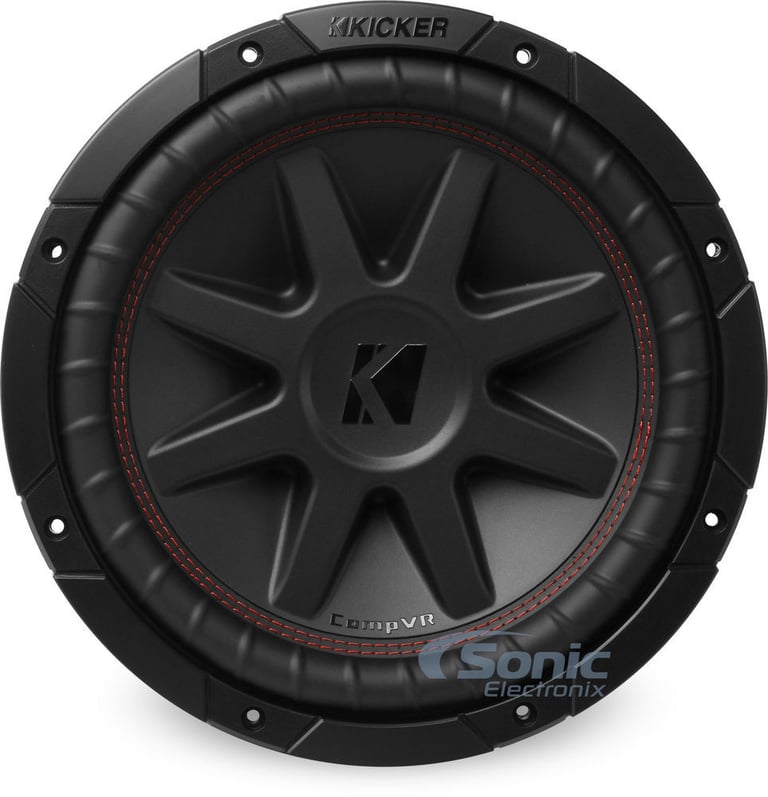

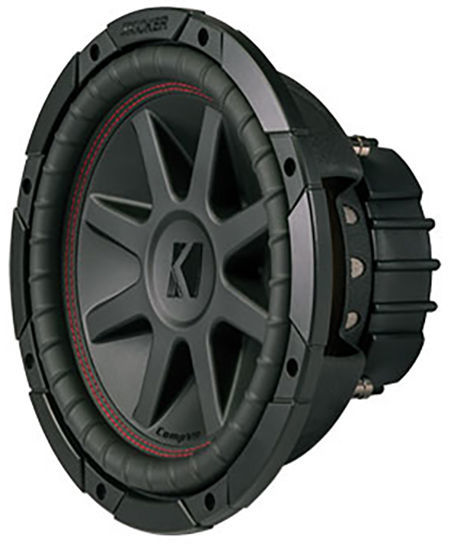

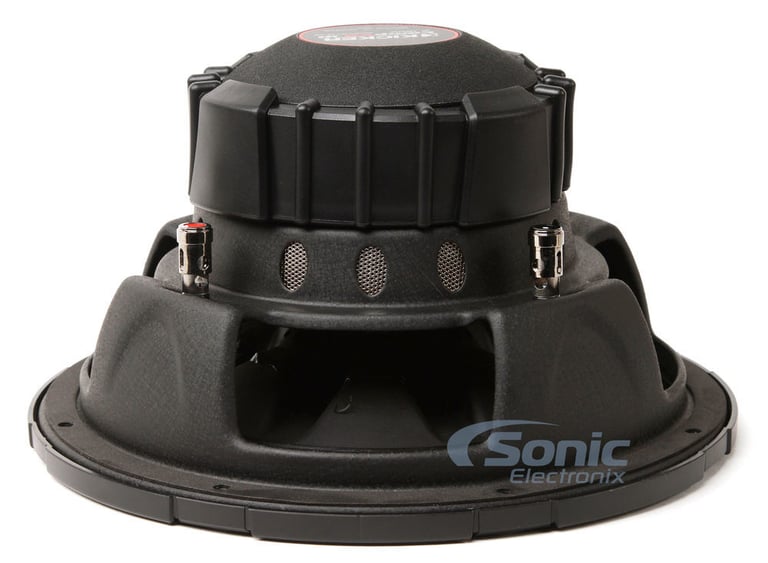

Kicker CompVR CVR104 (43CVR104)

700W Peak (350W RMS) 10" CompVR Series Dual 4-ohm Subwoofer
Quantity: 2

Product Details:

  • 10" Dual 4 ohm CompVR Series Subwoofer
  • Power Handling:
    • Peak: 700 watts
    • RMS: 350 watts
  • SoloKon Polypropylene Cone
  • Santoprene Rubber Surround
  • High-temp dual voice coils
  • Spiralead tinsel-lead technology
  • Ribbed Santoprene surround for added cone strength
  • 14 mm Xmax
  • Frequency Response: 30 - 500 Hz
  • Resonance Frequency (Fs): 43.8 Hz
  • Sensitivity: 83.6 dB
  • Recommended sealed box volume: 0.8 cubic feet - 3.0 cubic feet
  • Recommended ported box volume: 1.25 cubic feet - 1.75 cubic feet
  • Top-mount depth: 5-1/2"
  • Cutout diameter: 9-3/16"
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

  • Priced Individually

Belva BAK42BL

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - BLUE
Quantity: 1

Product Details:

  • Complete 4 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Black and Red
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

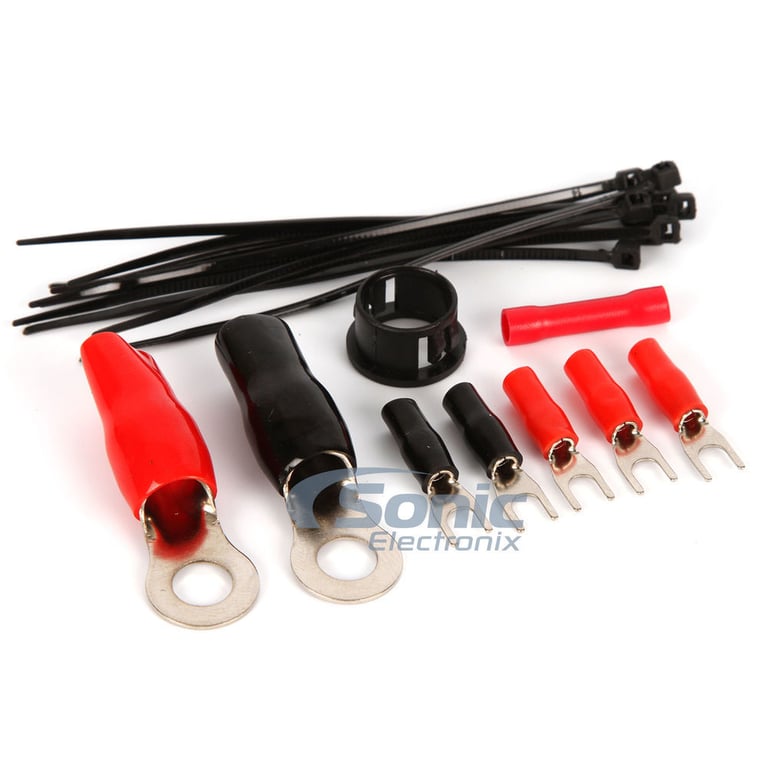

Kit includes:

  1. 17 ft. (5.2 meters) Blue 4 gauge power wire

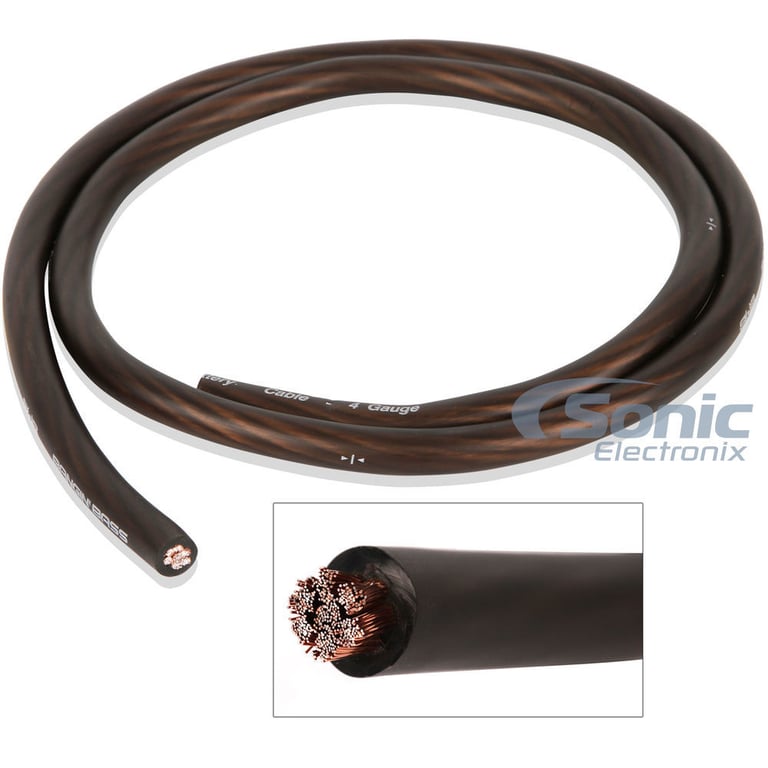

  2. 3 ft. (.91 meters) Black 4 gauge ground wire

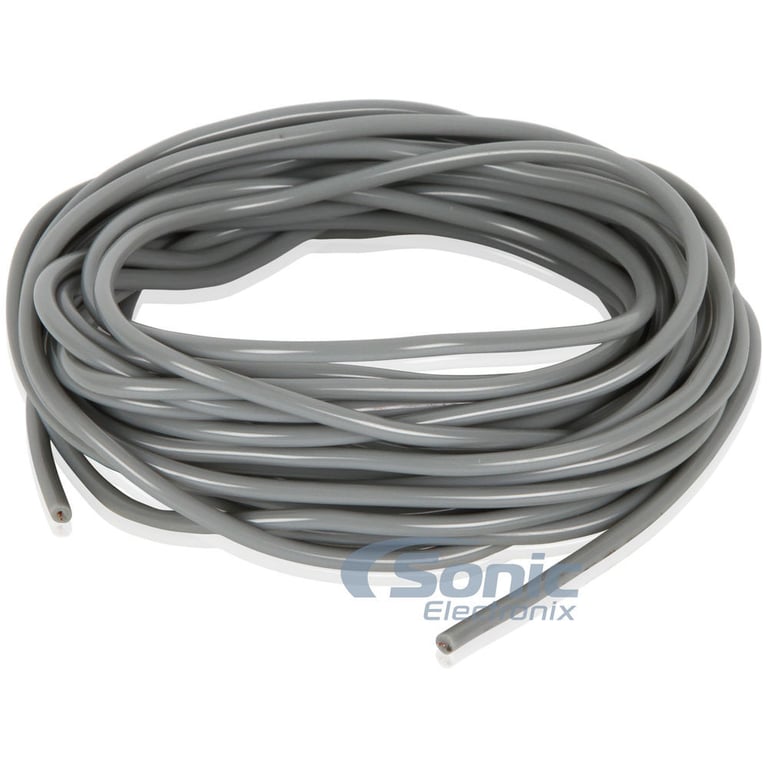

  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

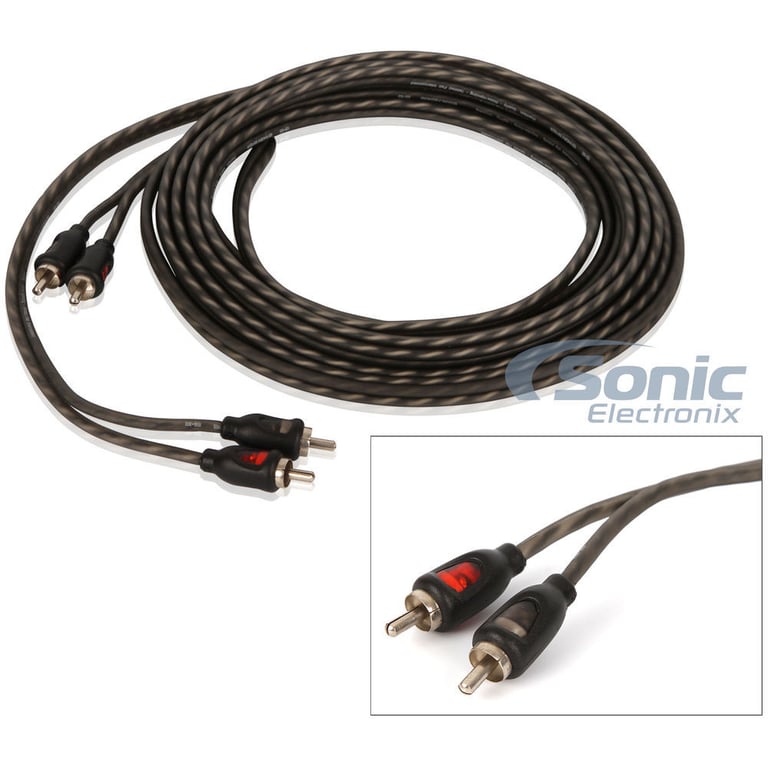

  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
  5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

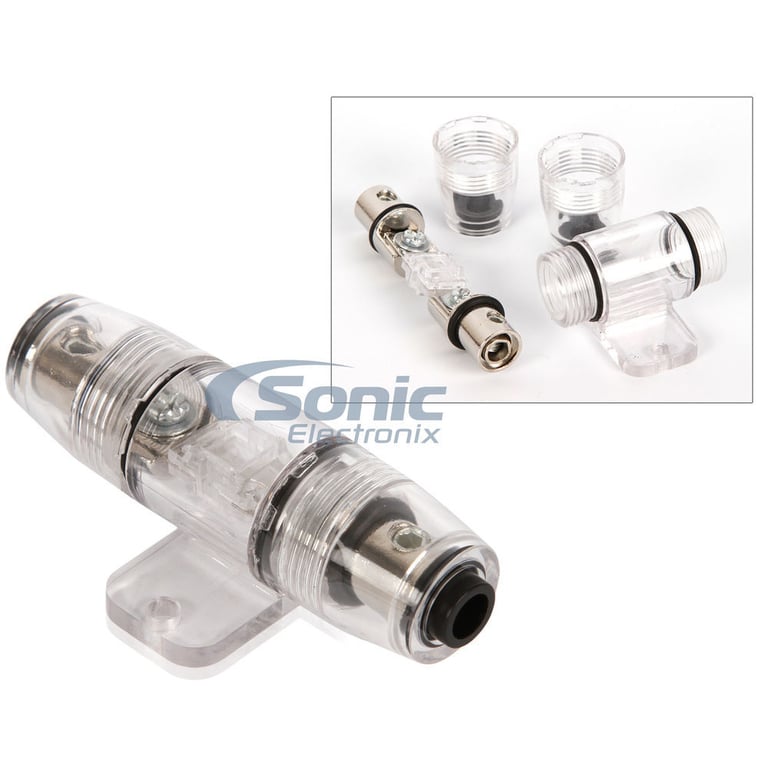

  6. One MINI-ANL Fuse Holder with a 80 amp fuse
  7. One Black rubber firewall grommet
  8. One 4 Gauge Blue chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Blue Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.13%

$211.72

List price $232.98

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
300 watts x 2 channel
RMS Power @ 2 ohms
420 watts x 2 channel
Bridged RMS Power
840 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
2-Channel
Total Peak Power Output
1680 watts
Total RMS Power Output
840 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.3%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 500 Hz
Low-Pass Crossover Frequency
40 - 500 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
40A x 2
CEA-2031 Compliant
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

(2) 43CVR104,BAK42,VAD8402

Weight:

36.24lbs

Internal SKU:

vad8402_43cvr104x2_bak42

Internal Product ID:

177305

Customer Ratings & Reviews


NVX VAD8402 Amplifier + (2) Kicker 10

5 star
80%
4 star
18%
3 star
2%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.8
Design
4.9
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

BELVA amp kit

The following review is for BAK42BL, which is a part of the bundle you are viewing.

Not much to say, its an amp kit. Great value.

By Derek on September 19, 2014

114 found this helpful


great product

The following review is for BAK42BL, which is a part of the bundle you are viewing.

Works great nice tight packaging and you get everything you need for your amp. Also it is true 4 gauge wire unlike some kits that advertise the wrong gauge wire this one is correct the correct size they say. Will buy again

By Jamal on August 29, 2014

112 found this helpful


Belva BAK42BL

The following review is for BAK42BL, which is a part of the bundle you are viewing.

Disregard the rating for durability because I have only had this product installed for a week. This kit is quality for the money. The wiring is a little sparse for 4 gauge, but it's definitely not 8 gauge in a 4 gauge sleeve. Loses one star for ease of use because the ring terminals must be crimped on by the user (which may be difficult if crimpers or a vice are not accessible to the user). Overall, I would recommend this to anyone on a budget or looking for a wiring kit for their first system.

By Dave on July 27, 2014

108 found this helpful


Good kit on a budget

The following review is for BAK42BL, which is a part of the bundle you are viewing.

I bought this kit for a buddy of mine to do a small install in his 1999 Lumina. It's very flexible and more than enough for his little daily pounder setup.

By Randominstaller on September 28, 2014

106 found this helpful


Beat kit for the $$

The following review is for BAK42BL, which is a part of the bundle you are viewing.

I ran this to my 1200 watt sony amp with 2 1000 watt pioneer subs in a sealed box . And let me just say everyone in my neighborhood can hear me before they see me. I'm only at about 75% gain . I may but 1 or 2 more as back up for the future . People said the fuse holder dosent fit , I didn't use it , but all you have to do is back the set screw all the way out and slide out the inner holer and it will fit perfectly.

By KileFTP on October 15, 2014

102 found this helpful


very easy

The following review is for BAK42BL, which is a part of the bundle you are viewing.

Bad thing is i had to buy extra gauging, metal pieces besides that everything is fine but if you want good cables buy(OFC) 1/0 gauge wiring itll save you time and money

By eduardo on April 13, 2014

102 found this helpful


Good Wire

The following review is for BAK42BL, which is a part of the bundle you are viewing.

Nice set. everything worked fine. Wire lengths were fine for installing in SUV. Would Buy again ... and have :)

By BerGyver on May 11, 2015

91 found this helpful


Belva BAK42BL (Blue)

The following review is for BAK42BL, which is a part of the bundle you are viewing.

Good wires. Is four gauge wire and good speaker wire.

By Rick on June 7, 2015

75 found this helpful


my amps is west coast customs 1500 ccwith belva kit

The following review is for BAK42BL, which is a part of the bundle you are viewing.

I install my amplifier am the one one do it myself today I used terminator mtx dual 1200 watts tne212d very nice sound am so happy with it if you familiar with electronic stuff you can do it yourself cause best buy was going to ask me 400 dollars the more you learn the better you feel don't let nothing stop you from learning am very happy with west coast customs any of you who think of buying a amplifier you wont dissatisfied thank you sonic electronic and maxsonic who made west coast customs 1500 cc am out hiting the road cuise around with my Volvo xc70

By armel brizard on June 13, 2015

72 found this helpful


Well Built

The following review is for BAK42BL, which is a part of the bundle you are viewing.

Very flexible and not thin. This wire is the right size nothing skimped. RCA cables meet expectations, a nice fit. Dark blue as opposed to bright red. Hides well.

By David on June 2, 2020 Checkmark Icon Verified purchase

57 found this helpful




XD200/2V2, P1S4-12 small

JL Audio XD200/2v2 with Rockford Fosgate P1S4-12

200W 2-Channel Class D Amplifier with 250W RMS 12" Single 4-Ohm Subwoofer

(43)

$457.48

List price $579.98

No picture

JL Audio PowerWedge+ ACS110LG-TW1 (Open Box, Great)

400W Amplified Subwoofer Sealed-Enclosure System with Single 10" 10TW1 Subwoofer

$559.99

List price $799.99

No picture

Sony MEX-BT2600 R/B

(Factory Refurbished) CD, MP3, WMA Player with Aux Input, Remote and Built-In Bluetooth

$99.99

List price $169.99

(2) 72-4568,82-3002,TS-G4620S,TS-G1320S small

Fits Chevy Silverado Pickup 1999-2006 Factory Speaker Upgrade TSG1345R TSG4620S

Simple plug and play installation, no cutting required

(163)

$106.15

List price $182.97

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 Dodge Caravan

2014 Honda Civic

2007 Isuzu i-370

2003 Chevrolet Silverado 2500

2012 Subaru Tribeca

1977 Datsun 280Z

2015 Toyota Highlander

2008 Mercedes-Benz AMG E-Class

1993 Buick LeSabre

2024 Nissan Frontier

Vehicle
Store
Delete

2010 Harley Davidson FLHT Electra Glide Standard

2013 Harley Davidson FLHT Electra Glide Standard

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
