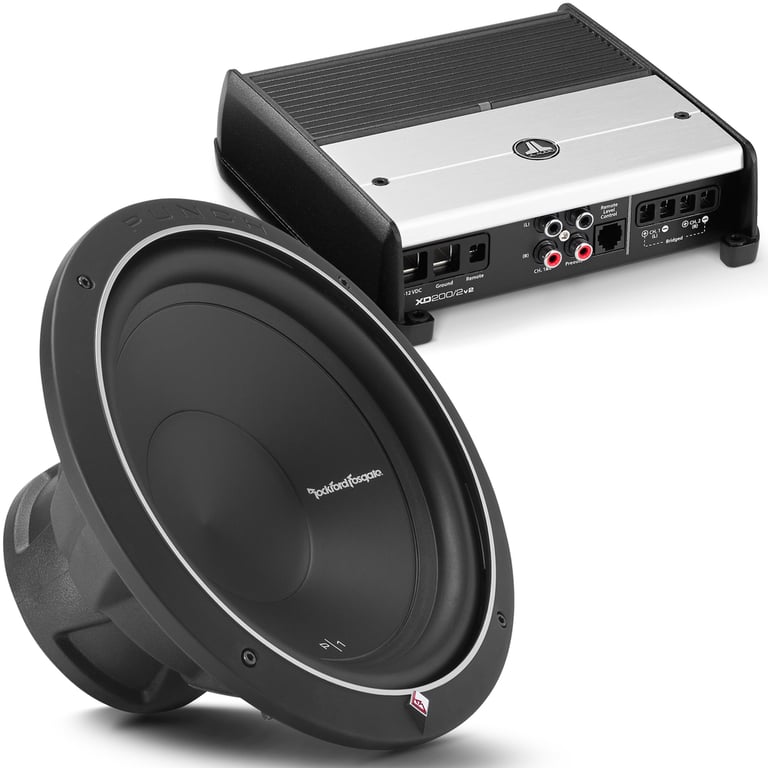

JL Audio XD200/2v2 with Rockford Fosgate P1S4-12

200W 2-Channel Class D Amplifier with 250W RMS 12" Single 4-Ohm Subwoofer

JL Audio
Shop all JL Audio
Lowest price in 30 days
highlight-star-icon

• NexD Switching Technology
• Differential Balanced Input Section
• Advanced Rollback Protection
• Frequency Response: 12 Hz - 22 kHz (+0, -1dB)
• Detented, Calibrated Filter Freq. Potentiometer
• Rockford 12" Single 4 ohm Subwoofer
• 500W Peak
• 250W RMS
• Kevlar Reinforced Paper Cone
• High Density NBR Half-Roll Surround
• 2" 4-Layer Voice Coil

Learn more about the xd2002v2_p1s412

We apologize

This item has been discontinued


Loading...
DKGM-15 main

Crux DKGM-15

Stereo Replacement Interface with Steering Wheel Control Retention, Video Switcher, and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

19
-35.71%

$162.00

List price $252.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
460BRGB main

Boss Elite 460BRGB

Single DIN Digital Media Receiver with Bluetooth (Black)

8
660BRGB main

Boss Elite 660BRGB

Double DIN CD Receiver with Bluetooth (Black)

4

Description


JL Audio brand icon

Authorized dealer

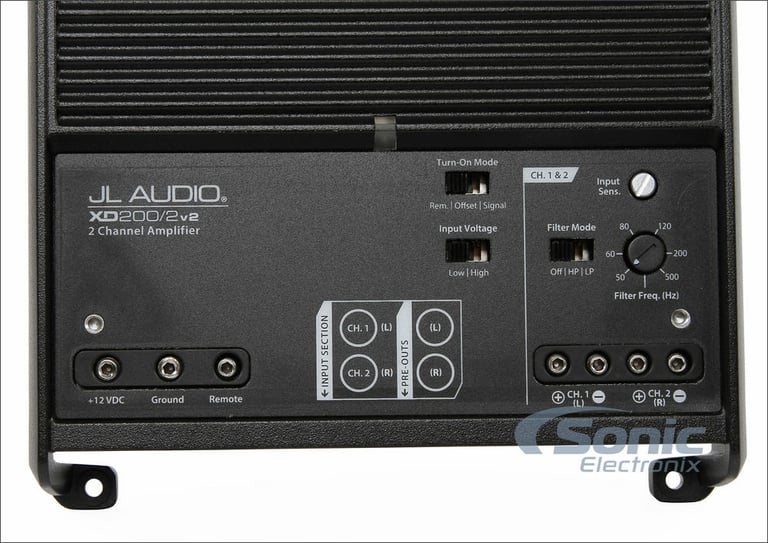

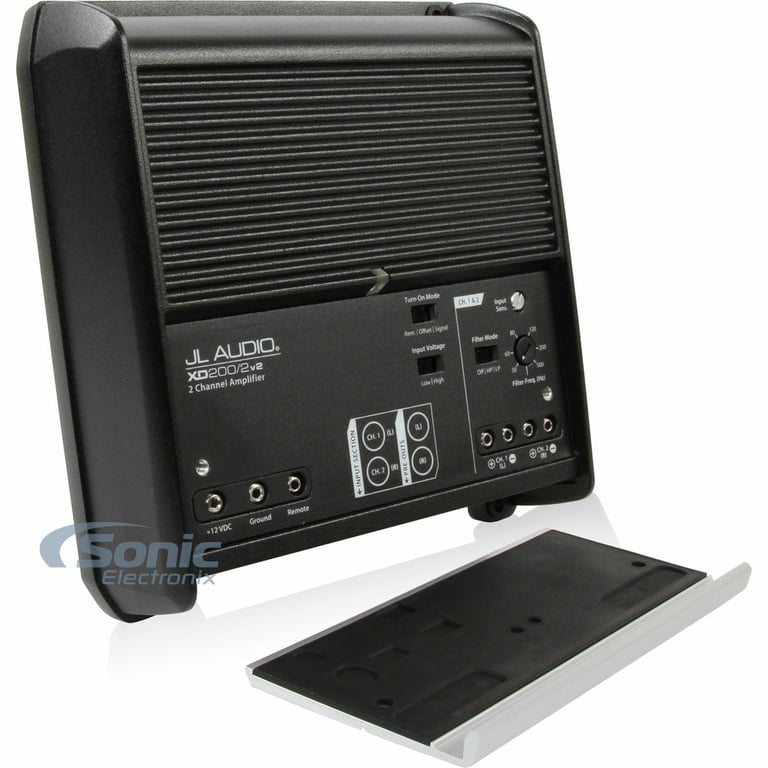

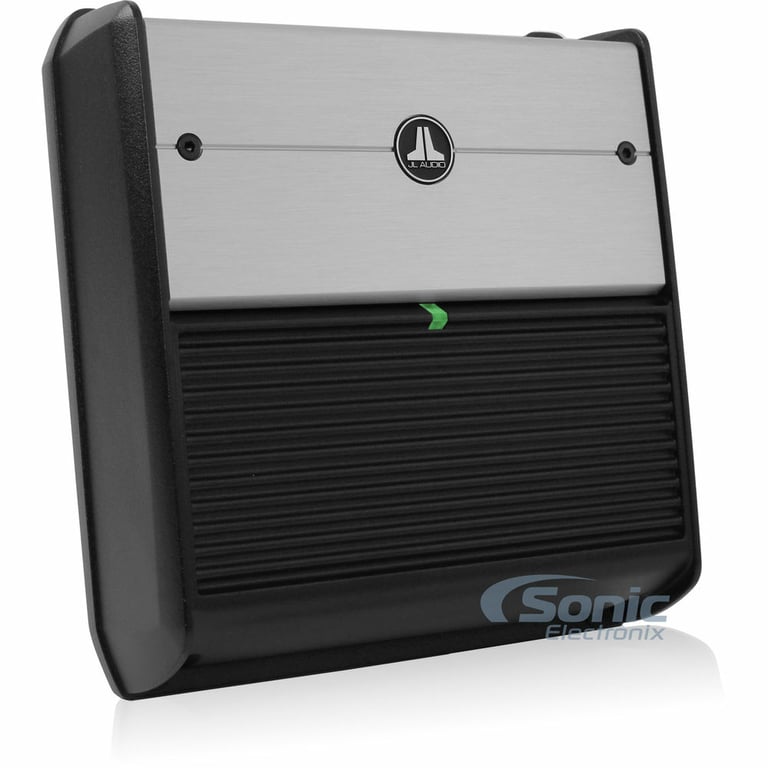

JL Audio XD200/2v2

JL Audio XD200/2v2 - XDv2 Series 2-Channel Class D Full-Range Amplifier

This potent 2-Channel amplifier employs JL Audio's high-speed NexD switching design to achieve unprecedented efficiency and amazing power output in an ultra-compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious power, delivering a full 200W of continuous power into a 4 ohm load (14.4V, 1% THD) Bridged. Targeted specifically for an audiophile-grade subwoofer or two satellite system, the XD200/2v2 includes a variable mode low-pass/high-pass filter with a continuously variable cutoff frequency selection from 50-500 Hz. The XD200/2v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), you can control the volume of the XD200/2v2 from the front of the vehicle. This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Advanced Rollback Protection

JL Audio's signature Advanced Thermal Rollback protection system eliminates annoying thermal shutdown events to keep the music playing, even under the most demanding conditions. Should the amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases.


NexD Switching Technology

From the same minds that gave us the technology found in the 'Slash' amplifiers, JL Audio has taken the simple fixed PWM design approach and enhanced it with a very high switching frequency. Full-range NexD amplifiers and channels feature a variable, ultra-high speed version of the NexD technology (switching at well over 400 kHz). In these designs, a self-oscillating modulator with "feed-forward" sends information about the instantaneous power supply voltage to the modulator, combining this with the input signal to cancel out any distortion due to supply voltage fluctuation. This reduces distortion prior to applying feedback, simplifying the overall feedback loop design.

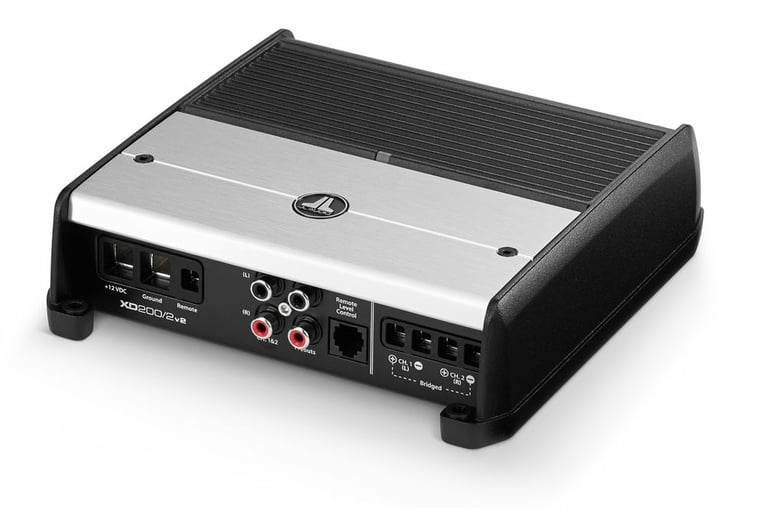

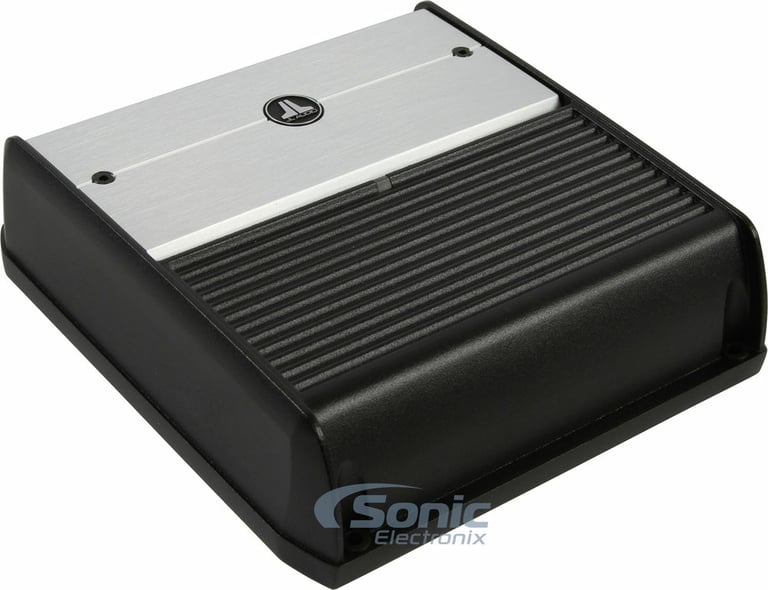

JL Audio XD200/2v2

200W RMS XDv2 Series Class-D 2-Channel Amplifier
Quantity: 1

Product Details:

  • XD-v2 Series Class D 2 ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 2 channel
    • 2 ohm: 100 watts x 2 channel
    • Bridged: 200 watts x 1 channel @ 4 ohm
  • Total power output: 200 watts

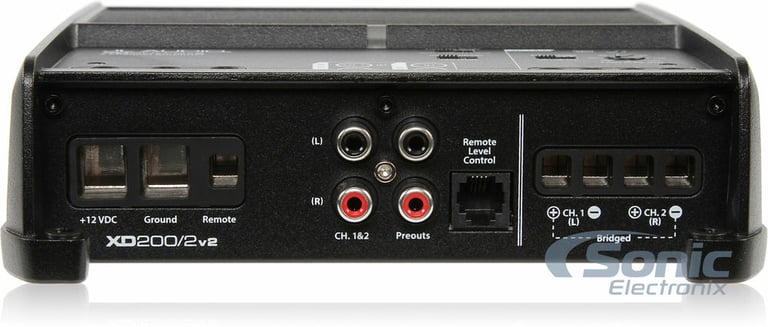

  • LED Power/Protect Light
  • Wired bass level remote control with optional JL Audio HD-RLC
  • Speaker-level (high-level) inputs (Requires adapter like the JL Audio XD-CLRAIC2-SW)
  • Signal sensing remote turn-on
  • Protection Circuitry with Status LED
  • NextD™ switching amp technology
  • Differential-balanced inputs help eliminate noise
  • Advanced Rollback Protection System prevents thermal shut-down
  • Speaker-level (high-level) inputs
  • Input sensitivity:
    • Low level: 200mV - 2 volts
    • High level: 800mV - 8 volts
  • Frequency Response: 12 - 22000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >104 dB
  • Variable high-pass filter: 50 - 500 Hz
  • Variable low-pass filter: 50 - 500 Hz
  • Fuse Rating: 20A
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 7-1/8" L x 6-7/8" W x 2" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: XD200/2V2
Check out the JL Audio XD200/2v2 Owner's Manual

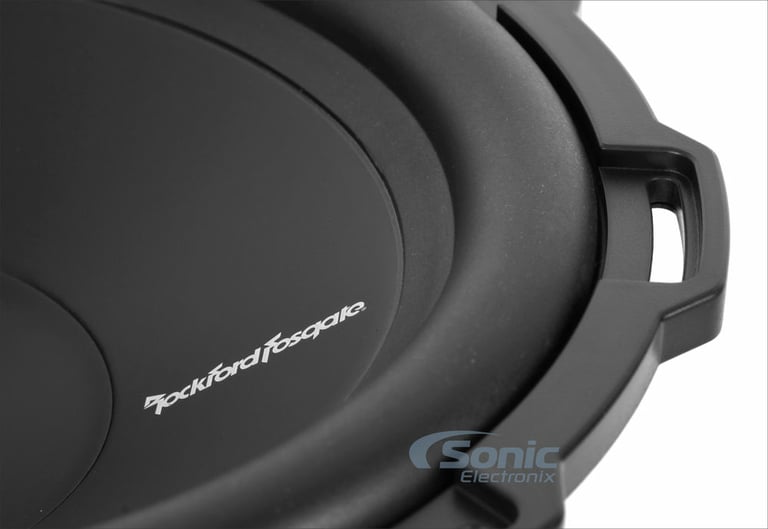

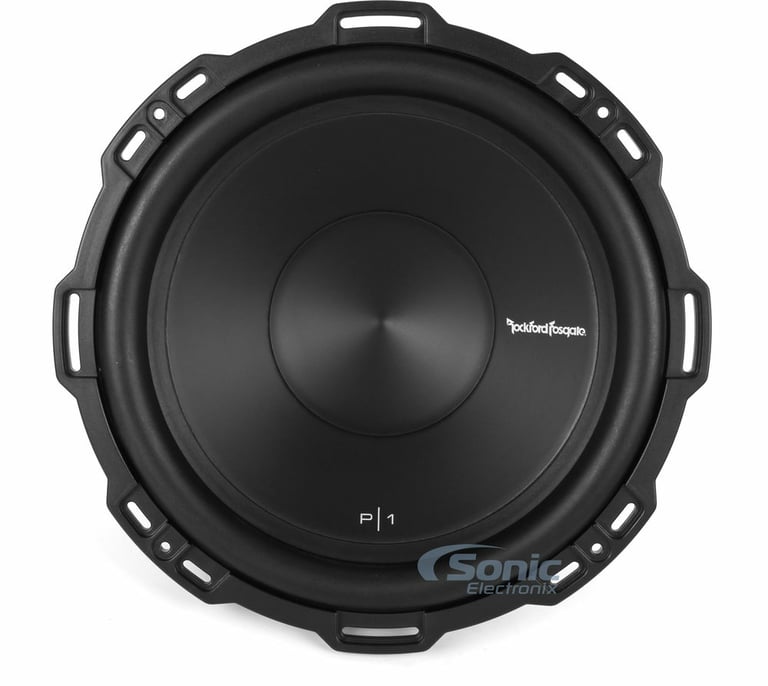

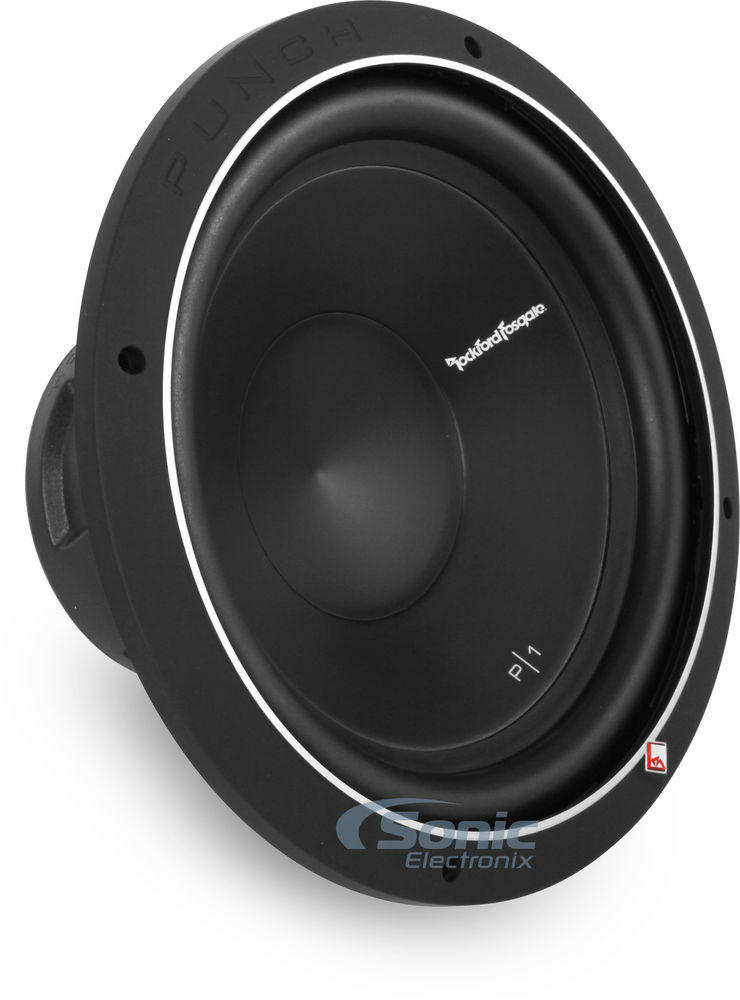

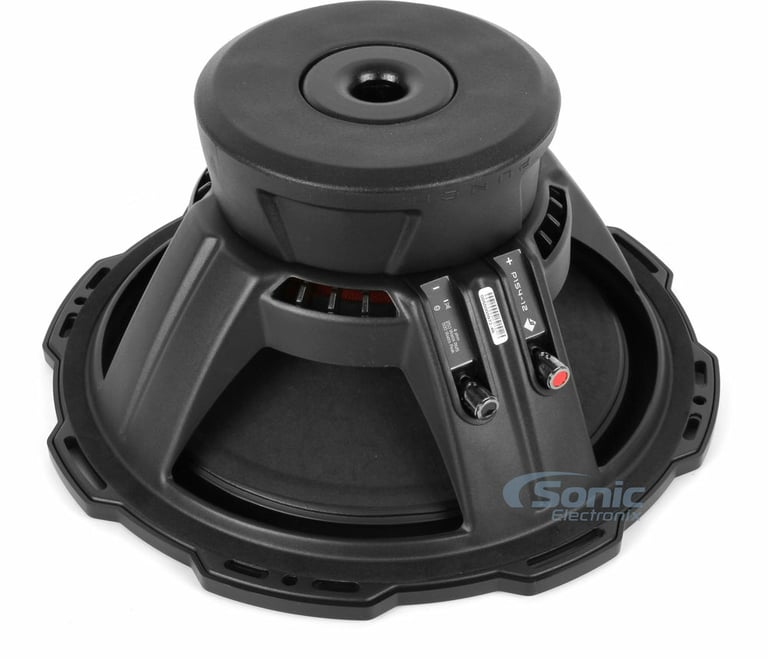

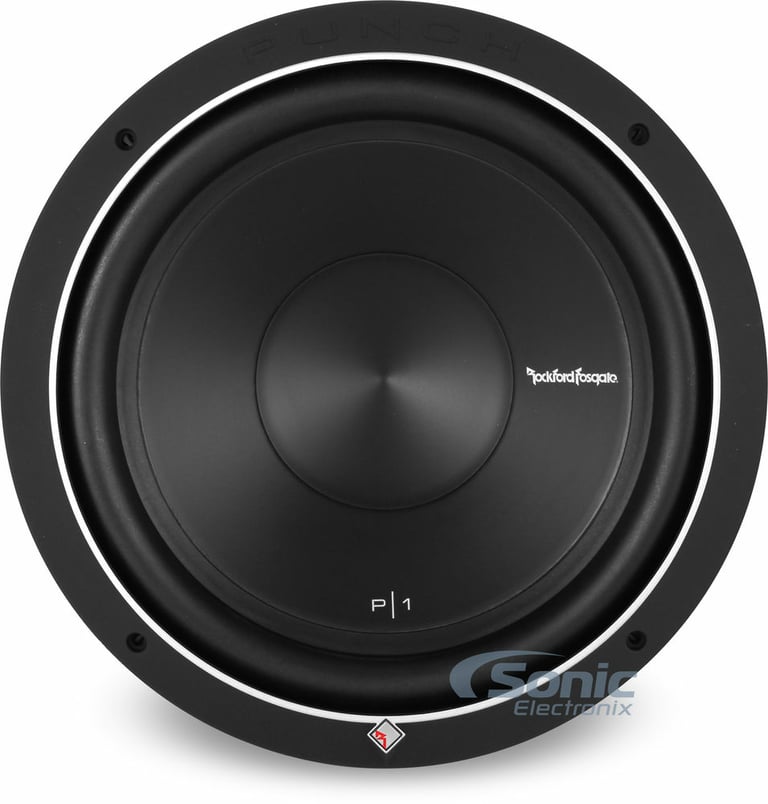

Rockford Fosgate Punch P1 P1S4-12

500W Peak (250W RMS) 12" Punch Series Single 4-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 12" Single 4 ohm Punch Series Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Kevlar Reinforced Pulp Paper Cone
  • Nitrile Butadiene Rubber NBR Surround
  • 2" High Temperature Aluminum Voice coil
  • Spun-laced Nomex re-enforcement collar
  • Linear spider with embedded 16 AWG tinsel leads

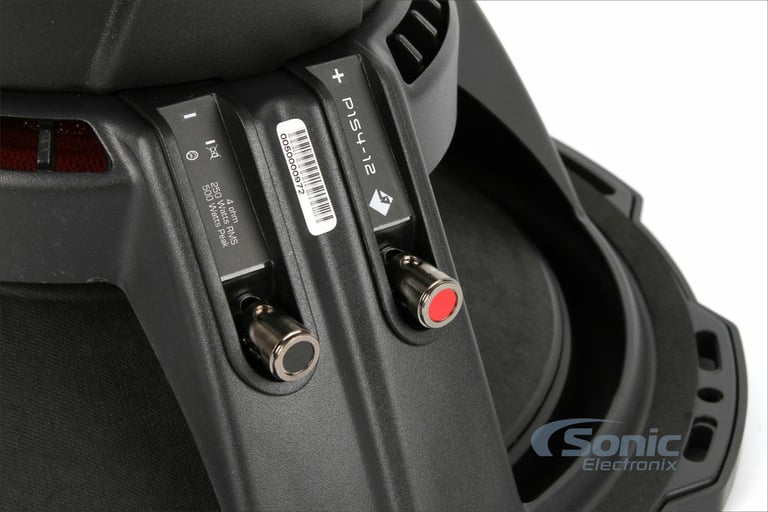

  • Custom 10-AWG nickel plated push terminals
  • Stamp Cast basket with integrated spider venting
  • Rubberized ABS trim ring
  • Extended pole piece and bumped vented backplate
  • 9 mm Xmax
  • Single Stacked magnet motor structure
  • Frequency Response: 25 - 250 Hz
  • Resonance Frequency (Fs): 25.00 Hz
  • Sensitivity: 86 dB
  • Recommended sealed box volume: 0.7 cubic feet - 1.8 cubic feet
  • Recommended ported box volume: 1.79 cubic feet
  • Top-mount depth: 6"
  • Cutout diameter: 11.22"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • Optional subwoofer grille Rockford Fosgate P1G-12 (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

Product history:

JL Audio XD200/2V2, P1S4-12 thumbnail
(newest, current model)
JL Audio XD200/2 thumbnail
(previous model, replaced by JL Audio XD200/2v2 with Rockford Fosgate P1S4-12)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.13%

$211.72

List price $232.98

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
75 watts x 2 channel
RMS Power @ 2 ohms
100 watts x 2 channel
Bridged RMS Power
200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
2-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
200 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>104 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
20A X 1 In-Line Fuse Recommended
CEA-2031 Compliant
No
Subwoofer Specifications
Series
Punch P1 Series
Subwoofer Size
12"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
250 watts
Peak Power Handling
500 watts
Woofer Surround
NBR Half Roll
Woofer Composition
Kevlar Reinforced Pulp Paper
Minimum Sealed Box Volume
.70 cubic feet
Maximum Sealed Box Volume
1.80 cubic feet
Minimum Ported Box Volume
1.50 cubic feet
Maximum Ported Box Volume
2.10 cubic feet
Sensitivity
86 dB
Frequency Response
25 - 250 Hz
Xmax (millimeters)
9 mm
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
11-1/4"
Recommended Enclosure Type
Ported / Vented
Sealed
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XD200/2V2, P1S4-12

Weight:

16.20lbs

Internal SKU:

xd2002v2_p1s412

Internal Product ID:

200991

Customer Ratings & Reviews


JL Audio XD200/2v2 with Rockford Fosgate P1S4-12 thumbnail image

5 star
84%
4 star
14%
3 star
2%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.7
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Exceeded expectations!

The following review is for P1S4-12, which is a part of the bundle you are viewing.

I purchased 2 of these in a sealed box on a 400 rms Kicker 4ch amp. These subs hit hard, deep, and accurate. Would def recommend and buy again. Quality sub.

By Dave on June 16, 2014

61 found this helpful


Great Subs

The following review is for P1S4-12, which is a part of the bundle you are viewing.

I have 4 of the p1's wired down to 1 ohm on a kole 7000 class-d amp and all i can say is wow.

By Get Low on January 6, 2012

59 found this helpful


Good bang for buck

The following review is for P1S4-12, which is a part of the bundle you are viewing.

Great sub if your looking for a good kick that doesnt drown out the music.

By Ethan09 on September 21, 2012

56 found this helpful


Great Sub

The following review is for P1S4-12, which is a part of the bundle you are viewing.

Even though this is only a 250 watt sub. If you hook up two of these, then you'll have a pretty good amount of bass. I defiantly wouldn't run these over 300 watts of constant power. Very good sound quality excellent. And my favorite part is that this sub isn't to particular with the size of the enclosure. As long as it's pretty close to what it's supposed to be. Unlike Alpine type r's where the box has to be perfect for the sub otherwise you wont get the best performance you can.

By Derek on April 16, 2013

55 found this helpful


not up 2 par

The following review is for P1S4-12, which is a part of the bundle you are viewing.

I have one of these in a ported box running off a p300-1, i have the 4ohm woofer. To start off with do not, i repeat do not over power this woofer it will fry it instantly. Hooked a t1000-1bd and it lasted 15 min. The woofer would get extremely hot just on the p300, and would distort after a good hard 20 min of playing, the woofer has great mid and low bass but the deep stuff is just out of its league. I know what your thinking well ya its going to fry on a t1000 but i put a sundown sa10 on it and it played for months.

By crazyface on April 22, 2012

54 found this helpful


Good but to better

The following review is for P1S4-12, which is a part of the bundle you are viewing.

This sub is great for the money, clean bass in a sealed enclosure, but if you were wanting a good thump with it, upgrade to a p2 or a p3.

By Jacob on October 18, 2012

52 found this helpful


Rockford Fosgate 12's..

The following review is for P1S4-12, which is a part of the bundle you are viewing.

I put 2 of these speakers under my rear seat in my 04' ford f150 with a ken wood 500watt mono amp...Hits unbelievably hard!!!... i would definitely recommend these speakers!!!

By johnyR on October 2, 2014

50 found this helpful


Best subwoofer

The following review is for P1S4-12, which is a part of the bundle you are viewing.

These things pound in a sealed enclosure with a little amp, with a big amp they pound with a ported enclosure. I used to own 2 p1s4-10. But then i decidedi needed to upgrade my system. i would highly recomend these if your looking for some hard hittin bass in the trunk.
(P.S.my friends are jealous of these)

By jonathan on February 18, 2013

50 found this helpful


Great Sub

The following review is for P1S4-12, which is a part of the bundle you are viewing.

This was my first sub woofer I have ever got for my truck and I was very pleased with its performance. I paired it with a kenwood 350watt amp. The sub was way underpowered. It was only getting 150rms. The sub woofer had a fairly good sized magnet considering its only a P1. However it is time to upgrade so i just ordered a Rockford Fosgate T0 2 Ohm 12" sub for Christmas. This product is recommended for beginner system.

By Phillip on December 11, 2011

51 found this helpful


Sick first subs

The following review is for P1S4-12, which is a part of the bundle you are viewing.

These subs see definitely a crowd pleaser! I have two in my trunk and I love watching people's faces light up when they hear them!

By jaden on December 3, 2012

50 found this helpful




MRV-M500, NSW122V2, BAK42 small

Alpine MRV-M500 + NVX 12" 2 Ohm Subwoofer + 4 Gauge Amp Kit

500W V-Power Series Class D Monoblock Digital Amplifier

(151)

$334.97

List price $409.98

TS-A2500LB, VADM1, BAK82 small

Pioneer TS-A2500LB Loaded Enclosure + NVX Monoblock + 8 Gauge Amp Kit

300W RMS A-Series 10" Shallow-Mount Loaded Sealed Truck Style Enclosure (Perfect for Behind and Underneath the Seat)

(52)

$409.99

List price $569.98

No picture

Kicker L7S154 (44L7S154) (Open Box, Great)

2000W Peak (1000W RMS) 15” Solo-Baric L7S Series Dual 4-ohm Subwoofer

$335.99

List price $509.99

(2) 43C124,46CK8,BBSW167,46CXA4001T,MDFD12 small

(2) KICKER 43C124 Comp 12" 600w Car Subwoofers+Amplifier+Amp Kit+Sealed Sub Box

300W Peak (150W RMS) 12" Comp Series Single 4 ohm Subwoofer Package

(160)

$595.00

List price $774.76

BAAUX small

Waterproof 3.5mm Aux Extension Flush Mount Input with Cable for Car, Motorcycle, Boat, ATV/UTV (Belva BAAUX)

Universal Auxiliary Input that gives you a clean install and audio input for your Cell Phone or MP3 Player

(2)

$6.99

List price $10.99

db804 small

Polk Audio db804

Single 4 ohms 8" db Series Subwoofer (Marine Certified)

(1)

$49.99

List price $99.99

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2000 Chevrolet Cavalier

2015 Toyota Highlander

1985 Buick LeSabre

2003 Buick LeSabre

2005 Buick Century

1998 Chrysler Sebring

2000 Chrysler Sebring

1995 Buick LeSabre

2003 Chrysler Sebring

2025 Nissan Rogue

Vehicle
Store
Delete

2010 Harley Davidson FLHTC Electra Glide Classic

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
