Pioneer TS-WX1010LA

10" Active Shallow sealed Subwoofer with built-in 1200W amplifier

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 1200 Watts Max
• 300 Watts RMS
• Pulp composite Cone
• Urethane Surround
• Faston Terminals
• Kapton voice coil
• CarSoundFit app

Learn more about the tswx1010la

We apologize

This item has been discontinued


Loading...
70-7903 main

Metra 70-7903 Wiring Harness

Install a new car stereo in select 2001-2021 vehicles from Mazda, Fiat

18
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17
H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

CS693 main

Crunch CS693

800W Peak (150W RMS) 6x9" CS Series 3-Way Coaxial 4-ohm Car Speakers

25
-32.01%

$33.99

List price $49.99

Limited time!
Stage3 527 main

JBL Stage3 527 (STAGE3527AM)

400W Peak (80W RMS) 5.25” Stage3 Series 2 Way Coaxial 3-ohm Speakers

2
-36.38%

$69.95

List price $109.95

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Crunch CS5768CX

500W Peak (100W RMS) 5x7"/6x8" CS Series 2-Way Coaxial 4-ohm Car Speakers

13
-11.77%

$29.99

List price $33.99

Crunch CS653

600W Peak (120W RMS) 6.5" CS Series 3-Way Coaxial 4-ohm Car Speakers

21
-9.09%

$29.99

List price $32.99

Product Highlights


• 1200 Watts Max
• 300 Watts RMS
• Pulp composite Cone
• Urethane Surround
• Faston Terminals
• Kapton voice coil
• CarSoundFit app

Description


Pioneer brand icon

Authorized dealer

Product Overview

The TS-WX1010LA housing contains a durable 10" woofer that achieves a great sharp bass reproduction by controlling the air in the housing. Which is unique to the sealed type. Upgrade your vehicle sound system with this easy-to-install, space-saving active subwoofer. It guarantees powerful enhance bass with a maximum output of 1,200 W and a nominal output of 300 W. (remote control and cable are included).

CarSoundFit App

Pioneer’s CarSoundFit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Listen to the difference between original car speakers and different Pioneer audio upgrades: Persuade yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

General Features:

  • 10" Active Shallow sealed Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 300 watts
  • Built with a high bandwidth, high output and low distortion
  • Designed for high rigidity and to reduce internal standing waves
  • Recommended power range: 150 - 300 RMS

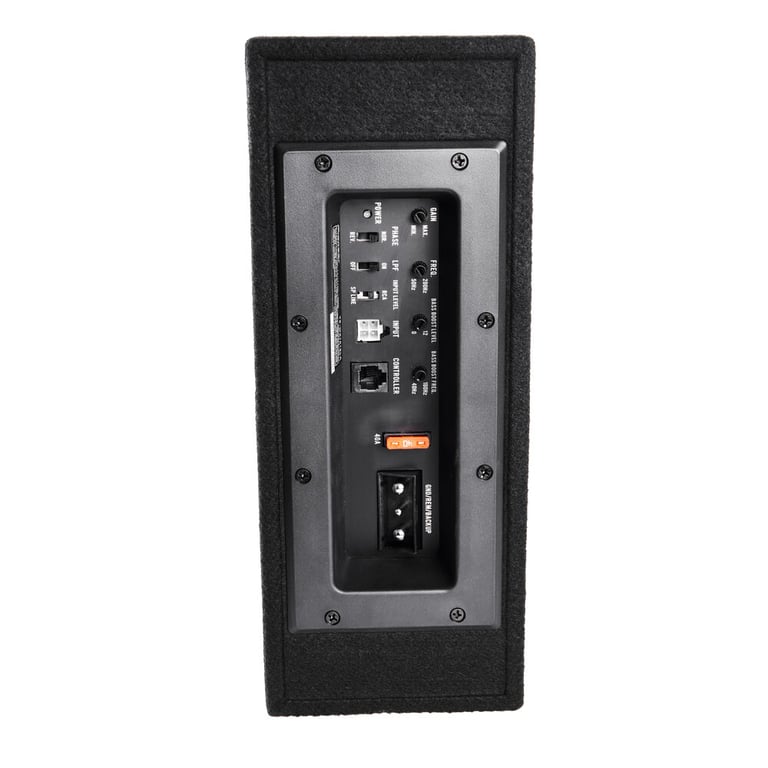

  • High & low level inputs + automatic switch-on for easy upgrading of all systems
  • Surround: Urethane
  • Woofer material: Pulp
  • Faston Terminals
  • Kapton voice coil type
  • Copper round wire 4-layers single voice coil
  • Magnets: Ferrite
  • Frequency Response: 20 Hz - 3.4 kHz
  • Sensitivity: 111 dB
  • Weight: 7.8 kg
  • Dimensions: 21" x 11-3/4" x 5-7/8"
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually

Pioneer TS-WX1010LA owner’s manual

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

QB10SPA small

NVX QB10SPA

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$179.99

List price $275.98

Specifications & Details


Amplifier Specifications
Amplifier Class
D
Bass Boost
0 - 12 dB
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
300 watts
Peak Power Handling
1200 watts
Woofer Surround
Urethane
Woofer Composition
Cellulose
Voice Coil(s)
Single
Sensitivity
83 dB
Frequency Response
20 - 3400 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
11-3/4"
Width
21"
Depth
5-7/8"
Box Exterior Color
Black
Box Finish
Carpet
Final Wired Impedance
1-ohm
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-WX1010LA

Weight:

17.20lbs

Internal SKU:

tswx1010la

Internal Product ID:

178095
