Eclipse ZA1200

1500W Max, ZA Series Class D Monoblock Car Amplifier (ZA-1200)

Eclipse
Shop all Eclipse
Product videos
highlight-star-icon

ZA Series Class D Monoblock Car Amplifier • 1000 Watts x 1 Chan. @ 4 Ohm • 1200 Watts x 1 Chan. @ 2 Ohm • 1500 Watts • Variable Low-Pass Filter • ICEpower Design • CEA-2006 Compliant • LED Power Indicators

Learn more about the za1200

We apologize

This item has been discontinued


Loading...
70-7903 main

Metra 70-7903 Wiring Harness

Install a new car stereo in select 2001-2021 vehicles from Mazda, Fiat

18
REF687F main

Infinity REF687F (INFSPKRF687FUS)

360W Peak (120W RMS) 6x8" Reference Series 2-Way Coaxial 3-ohm Speakers

1
-18.76%

$129.95

List price $159.95

Product Highlights


ZA Series Class D Monoblock Car Amplifier • 1000 Watts x 1 Chan. @ 4 Ohm • 1200 Watts x 1 Chan. @ 2 Ohm • 1500 Watts • Variable Low-Pass Filter • ICEpower Design • CEA-2006 Compliant • LED Power Indicators

Description


Eclipse ICEpower

Experience the incredible electrical engineering of Eclipse amplifiers featuring their ICEpower technology. The Eclipse ZA1200 monoblock amplifier is an extremely efficient amplifier made specifically for subwoofers. Using Eclipses latest technology, the ZA1200 features ICEpower. This means that the amplifier produces superior audio quality, is housed in a compact case, reduced energy demand, and amplifier reliability. Heat is kept low with the digital processors inside the amplifier, resulting in an increased power output. This single channel amp is designed and engineered specifically with the intent to push a subwoofer clearly, efficiently, and without the distortion that other amplifiers produce. The amp is quite small when compared to how much wattage that it is able to produce. At 4 ohm, the Eclipse ZA1200 produces 1000 watts and 1200 watts at 2 ohm. That is more than enough wattage for any mid-level to high-end system. The package includes a bass level remote that allows the user to adjust the bass level from the front seat. This is especially convenient since you do not have to adjust any settings on the amplifier itself. If you are in the market for a high powered amplifier that is efficient and clean, the Eclipse ZA1200 is the perfect amplifier for your car!

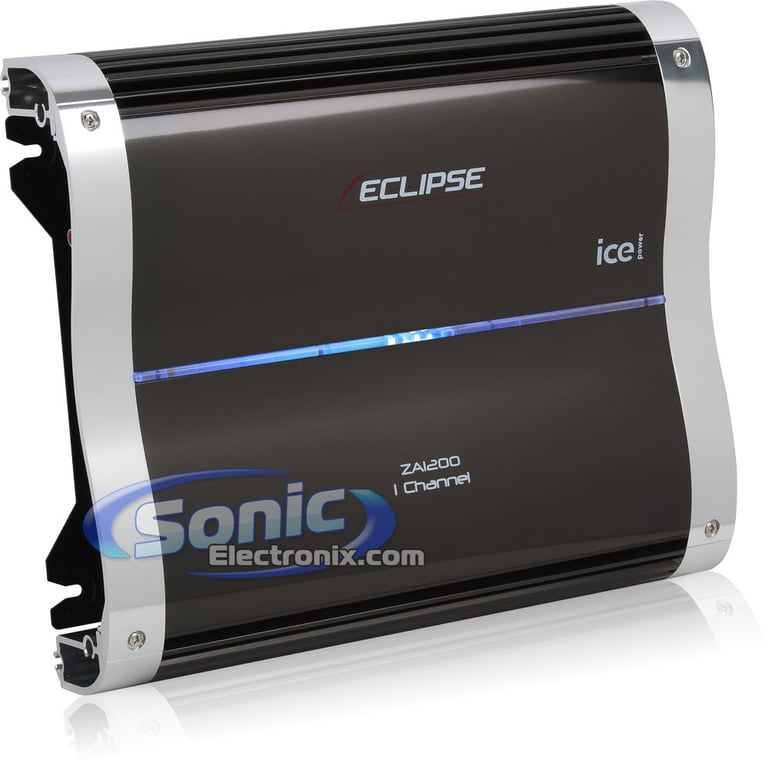

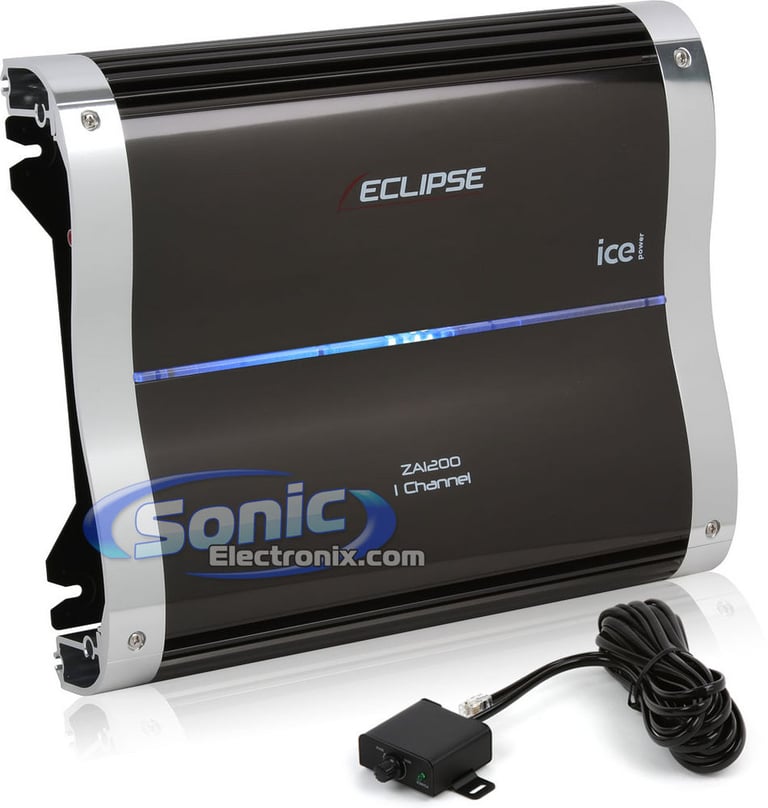

  • ZA Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1000 watts x 1 chan.
    • 2 ohm: 1200 watts x 1 chan.
  • Max power output: 1500 watts
  • MOSFET power supply

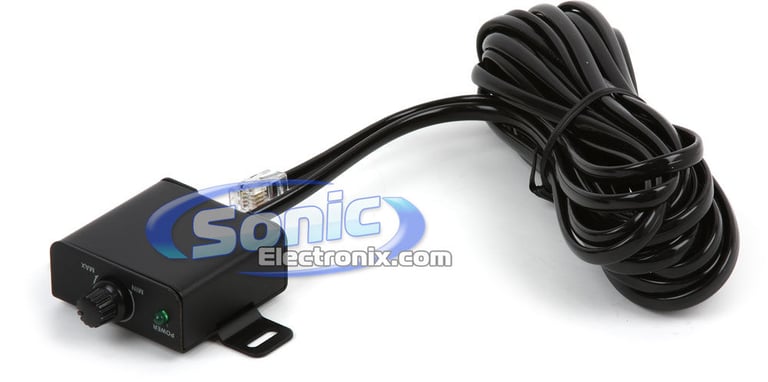

  • Bass Remote Details (Wired remote bass level control included)
  • LED power indicators
  • Bass Boost (0-8 dB at 50 Hz)
  • Bass boost frequency selection (32-64 Hz)
  • Mono channel operation
  • Protection temperature (90 C)
  • Heavy duty aluminum alloy heatsink

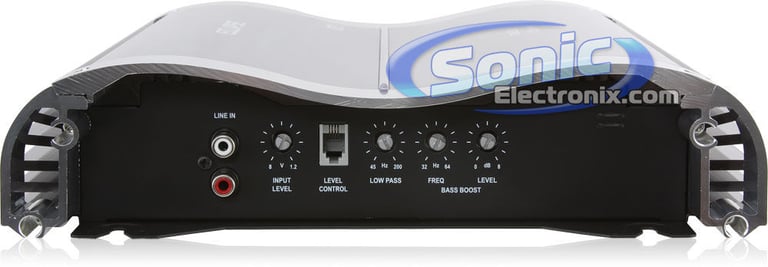

  • RCA level inputs
  • Screw terminals
  • Variable low-pass filter (40-500 Hz, Linkwitz Riley 18 dB/octave)
  • Subsonic Filter (18 dB at 20 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20,000 Hz
  • Input sensitivity: 1.2V-8V
  • Damping Factor: 100
  • Dimensions: 12-1/4"L x 10-1/8"W x 2-3/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
1000 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1500 watts
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 500 Hz
Subsonic Filter
20 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 8 dB
Remote bass/level controller
Yes

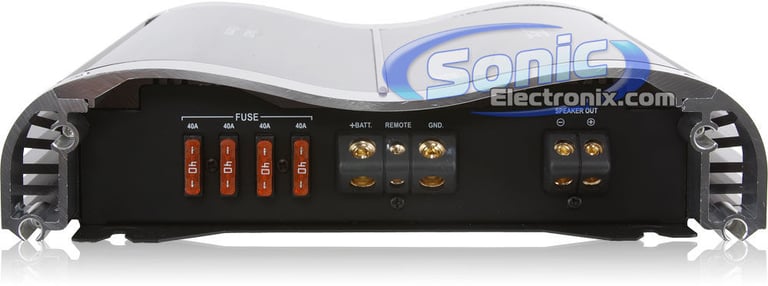

Fuse Rating
40A x 4
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

ZA1200

Weight:

12.00lbs

Internal SKU:

za1200

Internal Product ID:

17810
