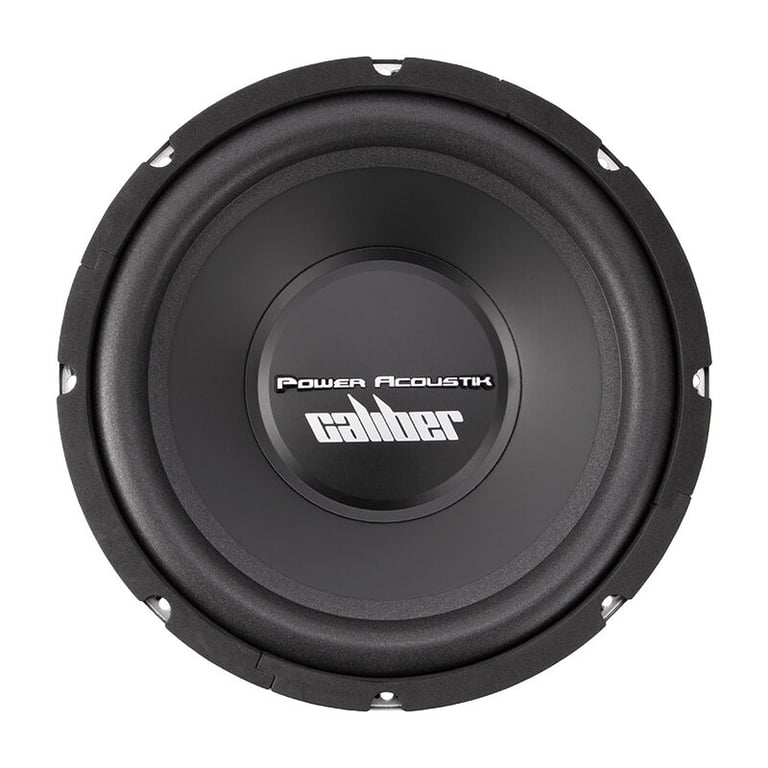

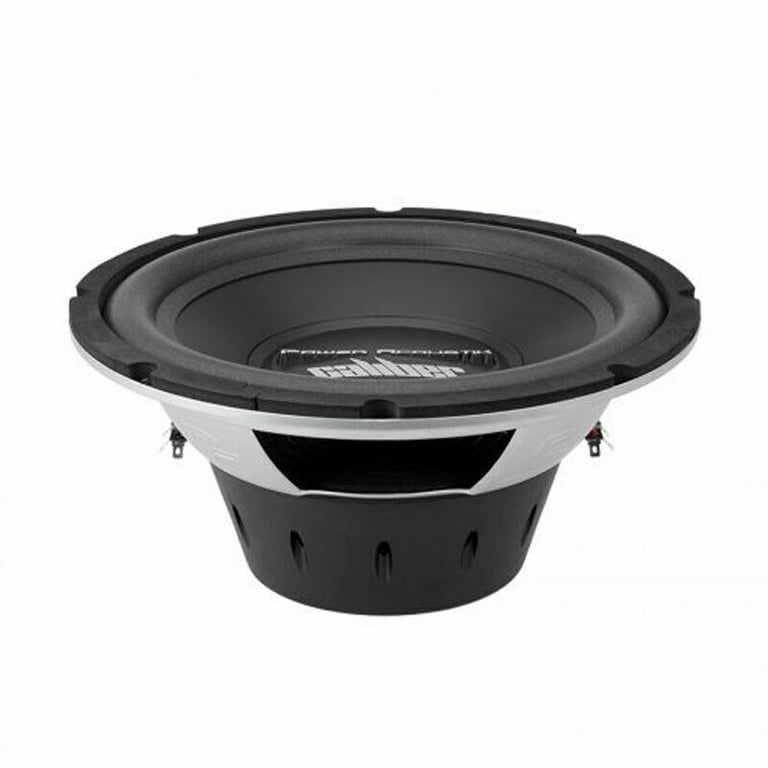

Power Acoustik CBW‐124

12" 1500 Watts Dual 4-Ohm Car Audio Subwoofer

highlight-star-icon

• 500W RMS
• 4-Ohm DVC
• Stitched Voice Coil Leads
• NQuick Disconnect Terminals
• Improved Low Frequency Dynamics

Learn more about the cbw124

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-415C main

Kenwood KFC-415C

320W Peak (80W RMS) 4x10" Performance Series 2-Way Coaxial 4-ohm Car Speakers

25
-45.00%

$99.00

List price $180.00

H46 main

Cerwin-Vega H46

300W Peak (100W RMS) 4x6" HED Series 2 Way Coaxial 4-ohm Speakers

-16.67%

$79.99

List price $95.99

T46 main

Earthquake Sound T46

600W Peak 4x6” TNT Series 2-Way Coaxial 4-ohm Car Speakers

1
-19.20%

$79.99

List price $99.00

Limited time!
THUNDER46 main

MTX Audio THUNDER46

160W Peak (80W RMS) 4x6" Thunder Series 2 Way Coaxial 4-ohm Speakers

-20.00%

$79.96

List price $99.95

Limited time!
46CSC464 main

Kicker CSC46 (46CSC464)

300W Peak (100W RMS) 4x6” CS Series 2 Way Coaxial 4-ohm Speakers

15
-29.45%

$59.96

List price $84.99

Limited time!
KFC-4675C main

Kenwood KFC-4675C

120W Peak (40W RMS) 4x6" 2 Way Coaxial 4-ohm Car Speakers

16
-39.84%

$77.00

List price $128.00

NSP46 main

NVX NSP46

300W Peak (100W RMS) 4x6" N-Series 2 Way Coaxial Car Speakers

34
-16.67%

$49.99

List price $59.99

H410 main

Cerwin-Vega H410

420W Peak (140W RMS) 4x10" Vega Series 2-Way Coaxial 4-ohm Speakers

-16.67%

$99.99

List price $119.99

Stage3 6427 main

JBL Stage3 6427 (STAGE36427AM)

350W Peak (70W RMS) 4x6” Stage3 Series 2-way 3-ohm Coaxial Car Speakers

1
-18.19%

$89.95

List price $109.95

DB462 main

Polk Audio DB462 (DB 462)

300W Peak (100W RMS) 4x6” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

7
-9.99%

$90.00

List price $99.99

Description


Power Acoustik brand icon

Authorized dealer

Product Overview

Complimenting Caliber amplifiers, 2019’s CBW woofer combines performance and afordability to bring you the best bang for your buck that you can find on the market. Each 12” woofer has a 4-layer 1.5” dual 4-ohm voice coil, with spruce paper cones attached to foam surrounds to keep the momentum in check.

General Features:

  • 12” Dual 4-ohm Voice Coil with Spruce Paper Cone & Foam Surround
  • 500 Watts RMS Power with 1500 Watts MAX Power Handling.
  • Heavy Duty Steel Stamped frame with Magnet Cover
  • Embossed Dust Cap with 1.50” 4-Layer Voice Coil
  • 6mm T-Yoke & Top Plate Improve Low Frequency Dynamics
  • Vented T-Yoke & Frame Reduces Voice Coil Heat Build-up
  • 1.50” 4-Layer Voice Coil w/ NQuick Disconects Terminals
  • High-Temperature Tolerance Adhesives Resist Thermal Failure
  • Composite Spruce Pulp Cone w/ Twisted Woven Flax Fiber
  • Stiched and Glued Surround/Cone Joints for Strongest Bonding
  • Extended Excursion NBR Rubber Surround w/ UV Protection
  • Poly-Cotton Suspension Dampen Violent Accelerations
  • Stitched Voice Coil Leads Prevent Potential Damage
  • 1-pc Gasket/Trim Ring w/ Concealed Mounting Holes Included
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Power Acoustik CBW‐124 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Power Acoustik CBW‐124 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Power Acoustik CBW‐124 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Power Acoustik CBW‐124 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

52L7XS121 small

Kicker L7XS121 (52L7XS121)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 10-1/8"

$1399.99

List price $1499.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1500 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1.50"
Sensitivity
81 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Pressed Pulp Fiber
Woofer Surround
Rubber
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.00 cubic feet
Optimum Sealed Box Volume
1.00 cubic feet
Maximum Sealed Box Volume
1.00 cubic feet
Minimum Ported Box Volume
2.00 cubic feet
Optimum Ported Box Volume
2.00 cubic feet
Maximum Ported Box Volume
2.00 cubic feet
Top-Mount Depth (Mounting Depth)
5.125"
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Mounting screws (4)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CBW‐124

Weight:

10.00lbs

Internal SKU:

cbw124

Internal Product ID:

178305
