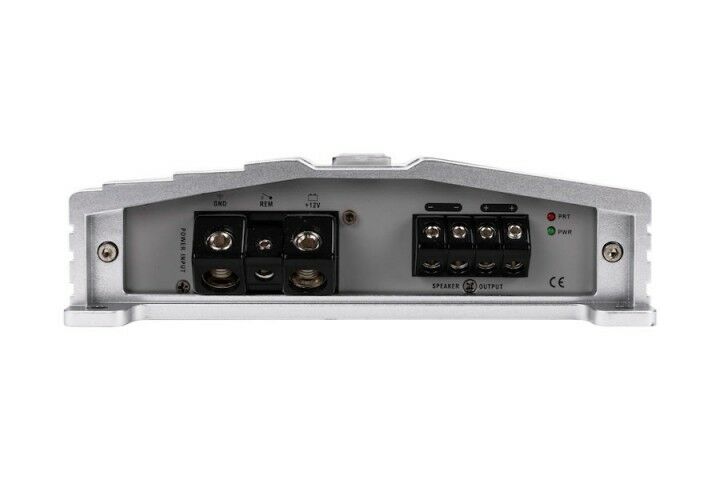

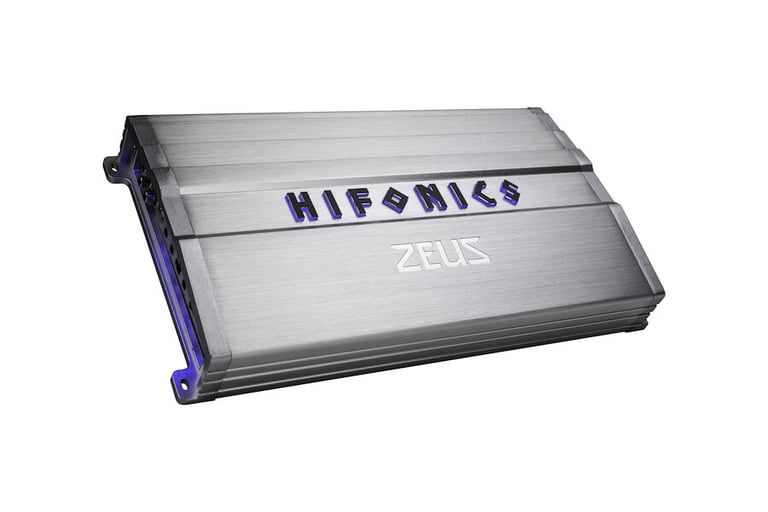

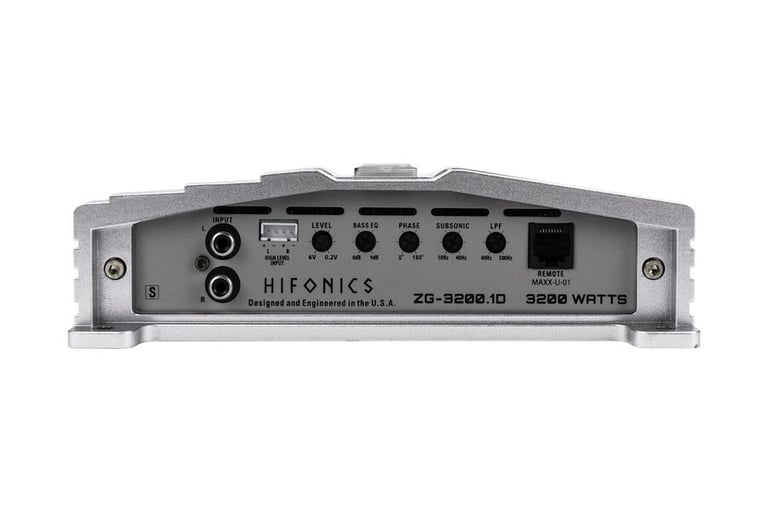

Hifonics ZG-3200.1D

3200 Watts ZEUS Gamma Mono Subwoofer Car Audio Amplifier

Hifonics
Shop all Hifonics
highlight-star-icon

• 3200 Watt Class D Amplifier
• Bass Remote Included
• Angled Terminals for Easy Installation
• Speaker and RCA Level Inputs

Learn more about the zg32001d

We apologize

This item has been discontinued

Description


Hifonics

Authorized dealer

General Features:

  • Hifonics ZG-1800.1D Class D Amplifier
  • Power Rating:
    • 4 Ohms: 800 Watts x 1
    • 2 Ohms: 1600 Watts x 1
    • 1 Ohms: 3200 Watts x 1
  • Variable Electronic 12dB Per Octave
  • Variable Low Pass Crossover 12dB per Octave: 40 - 300Hz
  • Tone Control/Parametric EQ: Built-in bass control
  • Bass Bosst: 0 - 9dB
  • Subsonic Filter: 10 - 40Hz
  • Phase Shift: 0-180 Degrees
  • Variable Voltage: .2 to 6V
  • Frequency Response: 10Hz-500Hz
  • Total Harmonic Distortion: <0.10%
  • Speaker Level Audio Inputs
  • Bass Remote Included
  • Angled Terminals for Ease of Access
  • Aluminum Heat Sink
  • PWM MOSFET Power Supply
  • Electronic Equalizer
  • Onboard Electronic Crossover
  • High Level Input
  • Nickel Plated RCA Inputs
  • Dimensions: 12"L x 8.25"W x 2.375"H
  • 4 AWG Power Terminals
  • 12 AWG Speaker Terminals
  • Fuse Rating: External
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
800 watts x 1 channel
RMS Power @ 2 ohms
1600 watts x 1 channel
RMS Power @ 1 ohm
3200 watts x 1 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
800 watts x 1 channel
Peak Power @ 2 ohms
1600 watts x 1 channel
Peak Power @ 1 ohm
3200 watts x 1 channel
Amplifier Specifications
Series
Zeus Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3200 watts
Total RMS Power Output
1600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
1 ohm
THD at Rated RMS Power
>.1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Low-Pass Crossover Frequency
40 - 300 Hz
Subsonic Filter
10 - 40 Hz
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Strappable
No
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Mounting screws (4)
Washers (4)
One spare fuse
High-level input wiring harness w/ molex connector
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZG-3200.1D

Weight:

14.40lbs

Internal SKU:

zg32001d

Internal Product ID:

178567
