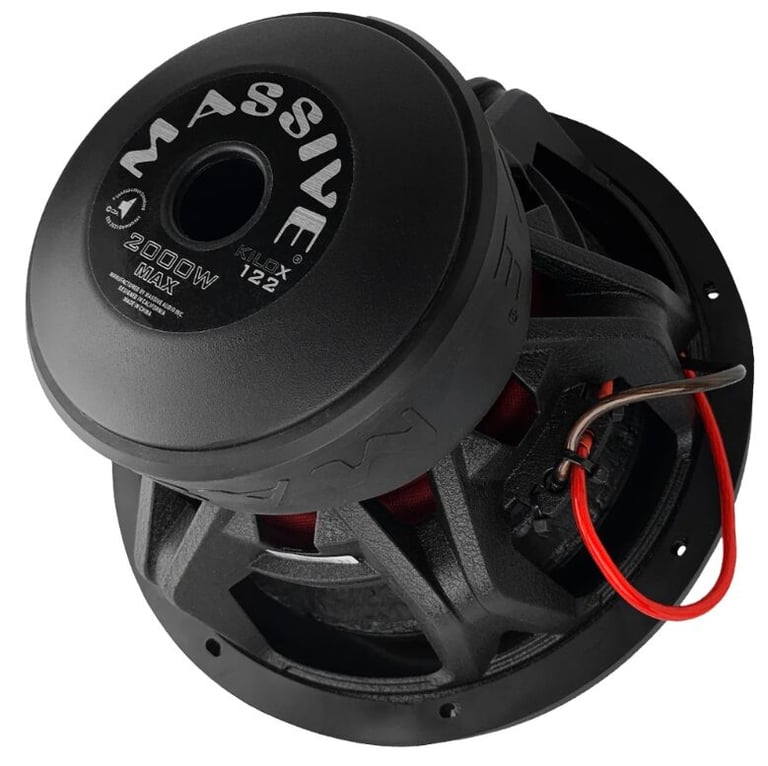

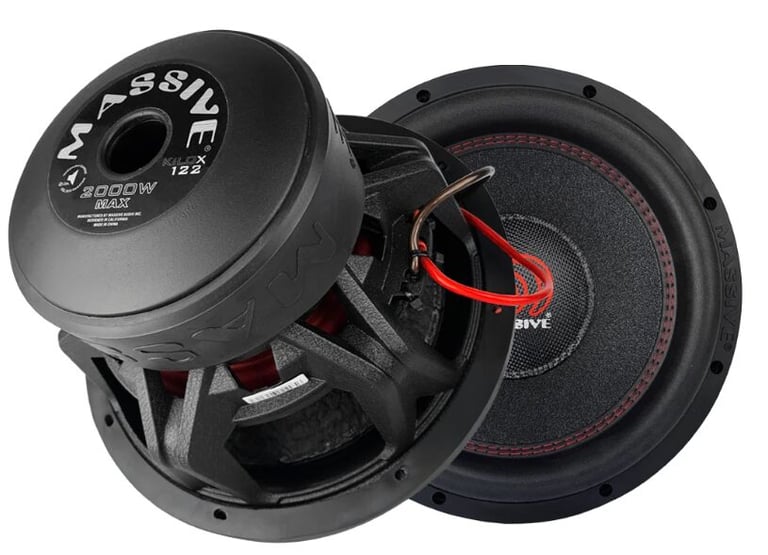

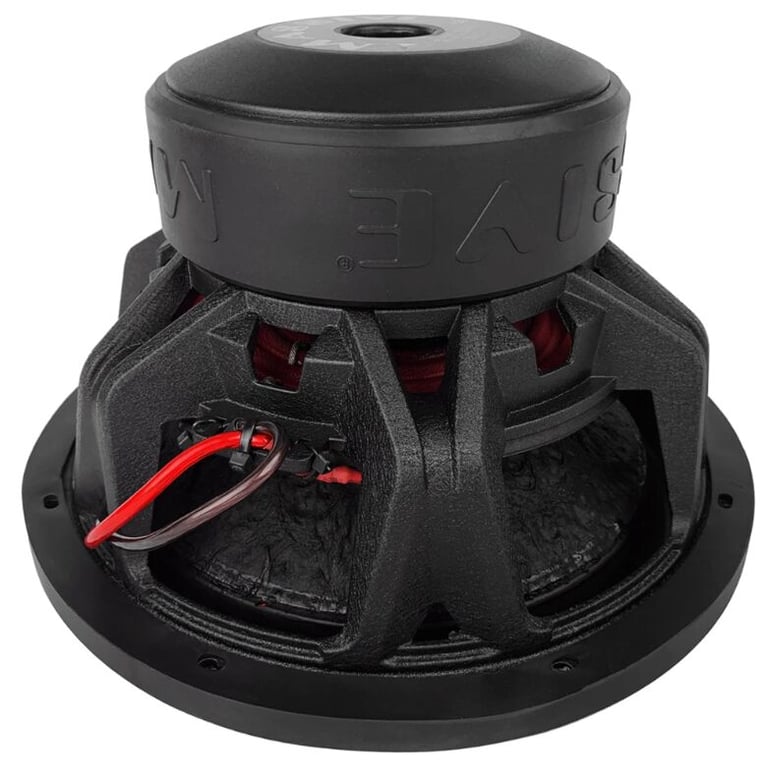

Massive Audio KILOX122

12" 2000W Dual 2 Ohm Car Audio Subwoofer

Massive Audio
Shop all Massive Audio
highlight-star-icon

• 2000W Peak
• 1000W RMS
• Paper/ Woven Fiber Cones
• High Quality Tall Foam Surround
• Heavy Duty Cast Aluminum Basket

Learn more about the kilox122

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

AXABH-CH2 main

Axxess AXABH-CH2

Amplifier Bypass Harness for select 2007-2021 vehicles from Ram, Dodge, Jeep

2
-11.77%

$29.99

List price $33.99

HRN-RR-SA1 main

iDataLink Maestro HRN-RR-SA1 Wiring Harness

Install a New Car Stereo in select 2004-2020 vehicles from Nissan, Honda, Hyundai (Requires ADS-MRR or ADS-MRR2 Module)

2
-25.94%

$19.99

List price $26.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

48
-42.51%

$22.99

List price $39.99

Limited time!
REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-34.13%

$111.95

List price $169.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

43DSC69304 main

Kicker DSC6930 (43DSC69304)

720W Peak (180W RMS) 6x9” DS Series 3-way 4-ohm Coaxial Car Speakers with Integrated Midrange

129
-14.29%

$119.99

List price $139.99

P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

47

Description


Massive Audio brand icon

Authorized dealer

El Toro

The new Massive Audio TORO X Series is engineered for serious pounding bass. They are designed to take high amounts power while limiting distortion for exceptional clarity and tonality. These subs have 2.55" voice coils for higher power handling, 5 way binding posts, push or banana nickel-plated terminals, Paper/ Woven Fiber cones and powder coated thick aluminum cast basket. With these subs, you'll be heard coming down the street like a thundering bull!

General Features:

  • 12" Dual 2-Ohm Toro X Series Car Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000 watts
  • Impedance: Dual 2 ohm
  • Paper/ Woven Fiber cones
  • High Quality Tall Foam Surround
  • Heavy Duty Cast Aluminum Basket
  • 5 Way Binding Push Terminals
  • 2.55" Voice coil
  • 200 oz. Magnet
  • Resonance Frequency (Fs): 45 Hz
  • Top-mount depth: 6-14/16"
  • Sensitivity: 85.4 dB
  • 1-year SonicElectronix.com Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Massive Audio KILOX122 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Massive Audio KILOX122 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Massive Audio KILOX122 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Massive Audio KILOX122 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
KFC-XP6903C, XBAF69, SDSK2, SDRLR1, BTK106 main

Kenwood eXcelon KFC-XP6903C with Installation Accessories

200W RMS 6"x9" 3-way Component Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

189
-38.14%

$255.32

List price $412.71

82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.15%

$211.66

List price $232.98

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Toro X Series
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.55"
Sensitivity
58.4 dB
Xmax (millimeters)
9.5 mm
Subwoofer Design
Round / Circle
Woofer Composition
Pressed Pulp Fiber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.00 cubic feet
Optimum Sealed Box Volume
1.43 cubic feet
Maximum Sealed Box Volume
1.00 cubic feet
Minimum Ported Box Volume
1.50 cubic feet
Maximum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
6-14/16"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
45 Hz
Equivalent Compliance (Vas)
23.47 liters
Total Speaker Q Value (Qts)
0.622
Electrical Q Value (Qes)
0.978
Electrical Resistance of Voice Coil (Re)
1.8 ohm
Mechanical Q Value (Qms)
1.708
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KILOX122

Weight:

28.80lbs

Internal SKU:

kilox122

Internal Product ID:

179041
