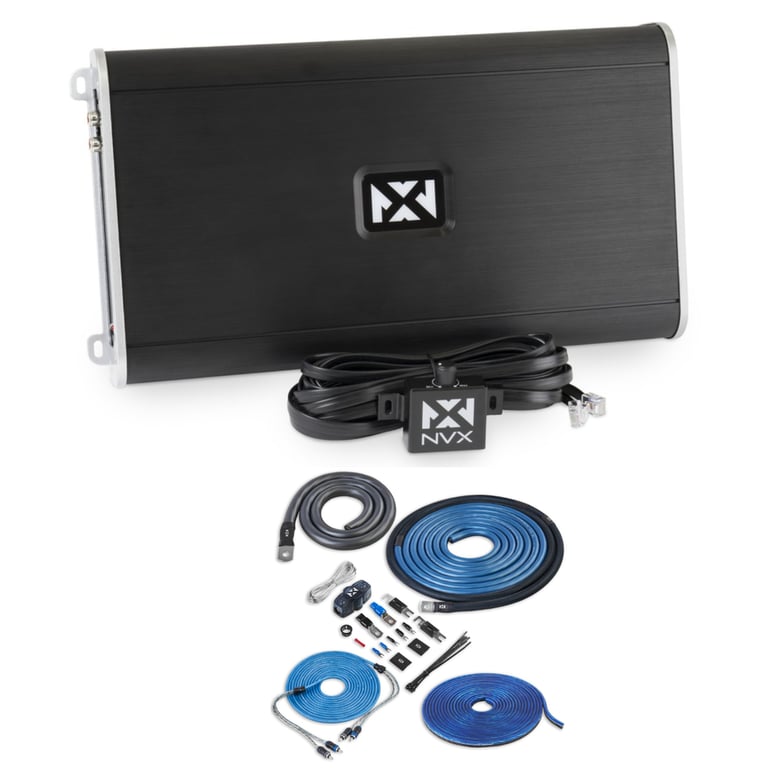

NVX VAD27001 with Amplifier Wiring Kit

2700W RMS Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote (Marine Certified)

NVX
Shop all NVX
Out of stock
highlight-star-icon

• RMS: 1250 x 1 @ 4 ohms, 1950W x 1 @ 2 ohms, 2700W x 1 @ 1 ohm
• Total RMS Power: 2700W
• CEA-2006 Compliant

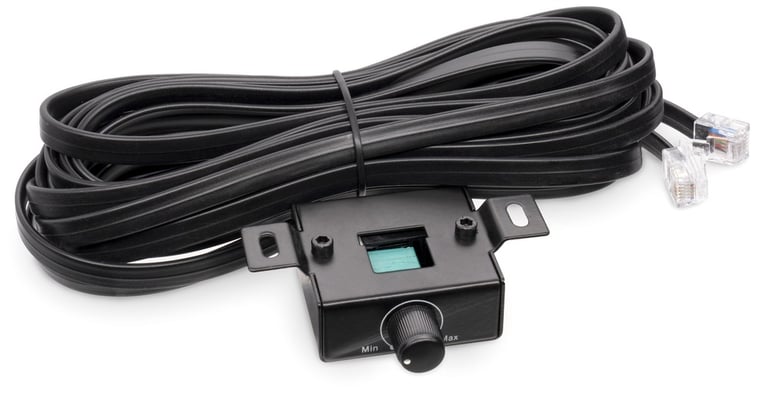

• Wired Bass Remote Included
• Efficient Class D Design
• Includes Amplifier Wiring Kit

Learn more about the vad27001_xkit02
Was $799.98 Details
Thanks , You Pay:

$399.98

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one vad27001_xkit02.

Set your vehicle or Return to product page
Quantity
Out of stock - Order risk-free, cancel any time.
Brand new

Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7
Swoosh Icon Icon of Swoosh

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


NVX brand icon

Authorized dealer



  Best Value!


NVX VAD27001

NVX VAD27001

$$199.99

Kicker CXA1800.1

Kicker CXA1800.1

$$399.99

# of Channels

Monoblock Monoblock

Amplifier Class

Class-D Class-D

Total Peak Power

5400W 1800W

Total RMS Power

2700W 3600W

Marine Certified



CEA-2006 Compliant



Bass Remote Included


Dimensions  12.8"L x 7.2"W x 2.0"H 14.38"L x 6.75"W x 2.38"H

NVX VAD27001

2700W RMS Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote (Marine Certified)
Quantity: 1

Product Details:

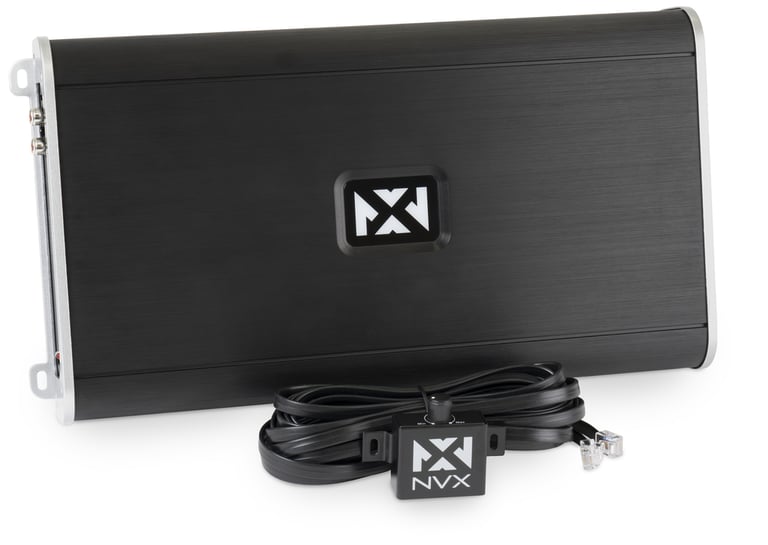

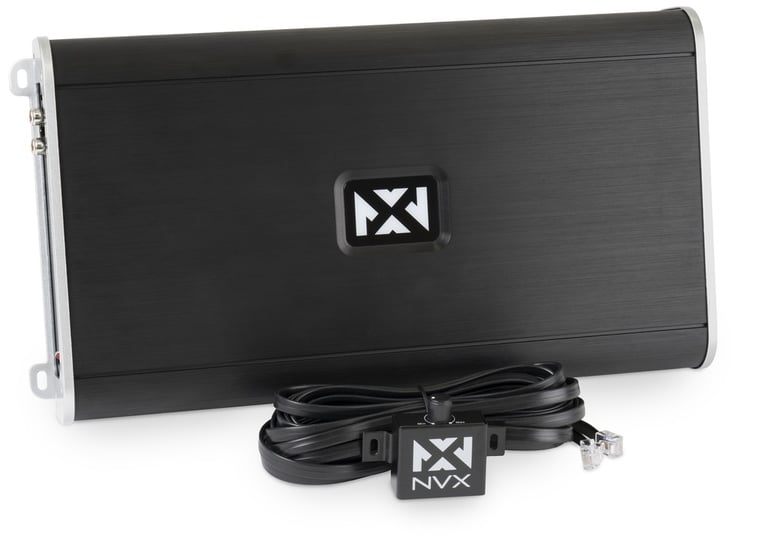

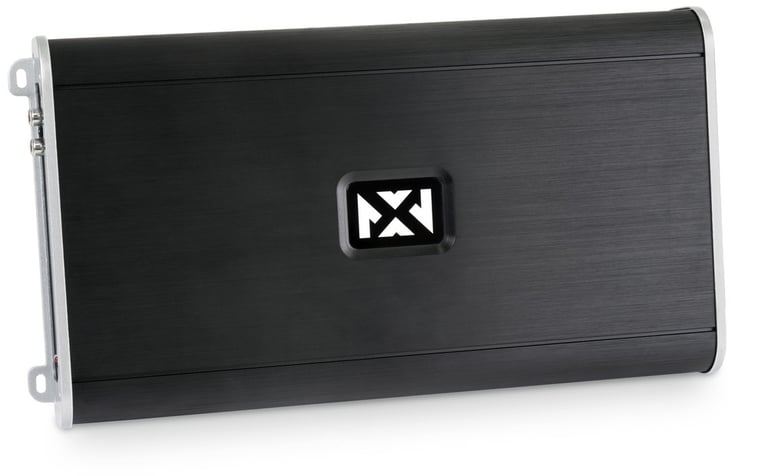

  • Marine Certified Class D Monoblock Amplifier with Bass Remote
  • CEA-2006 Compliant
  • Peak Power Rating: 5400 Watts
  • RMS Power Rating:
    • 4 ohms: 1250 watts x 1 chan.
    • 2 ohms: 1950 watts x 1 chan.
    • 1 ohm: 2700 watts x 1 chan.
  • LED power (blue) and protect (red) indicators

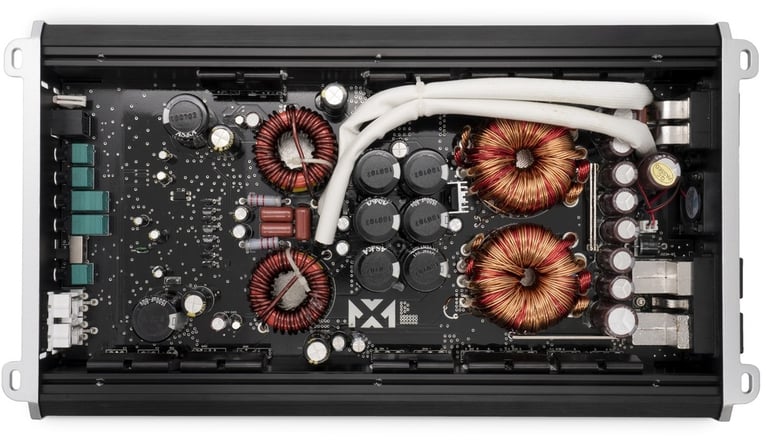

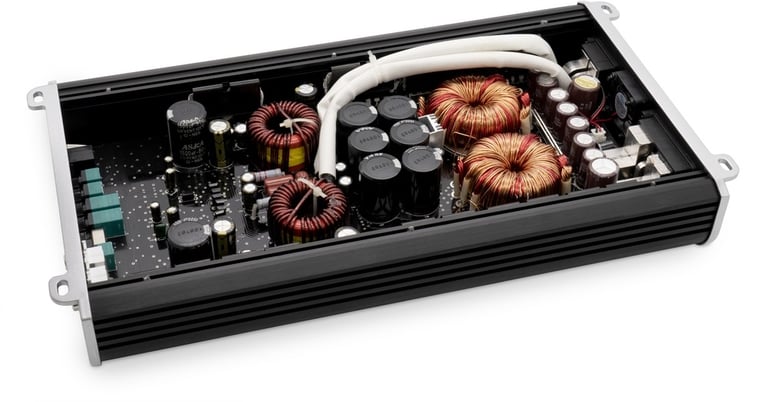

  • Conformal Coated Marine grade circuit board
  • Heavy duty aluminum alloy heat-sink

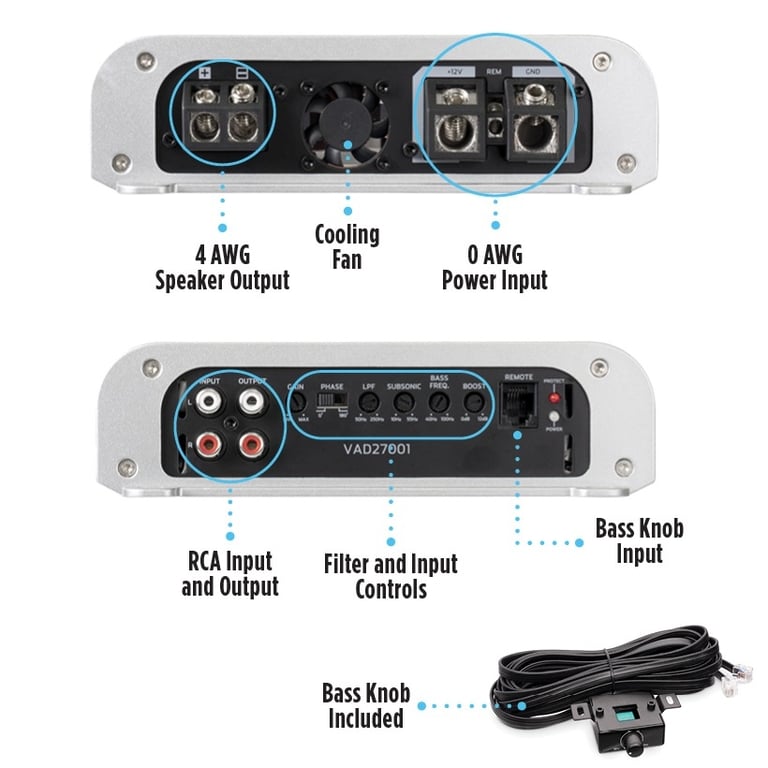

  • Platinum-plated RCA level inputs

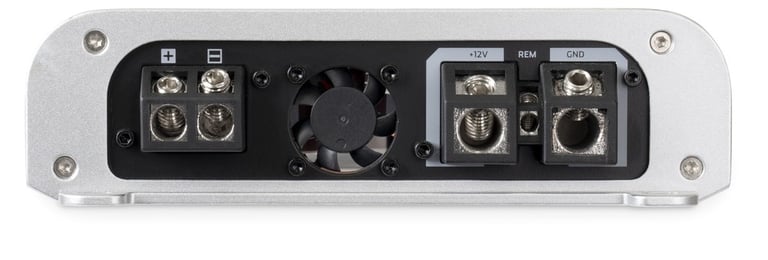

  • Platinum-plated screw terminals
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Variable subsonic filter: 10 - 55 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
  • Bass Boost: 0 - +12dB boost @ 45Hz
  • Input Sensitivity: 200mV-6V
  • Phase: 0-180 Degree Switch
  • Total Harmonic Distortion: <0.3%
  • Recommended In-line Fuse: 200 - 250A
  • Power Wire Gauge: 0 AWG
  • Speaker Wire Gauge: 4 AWG

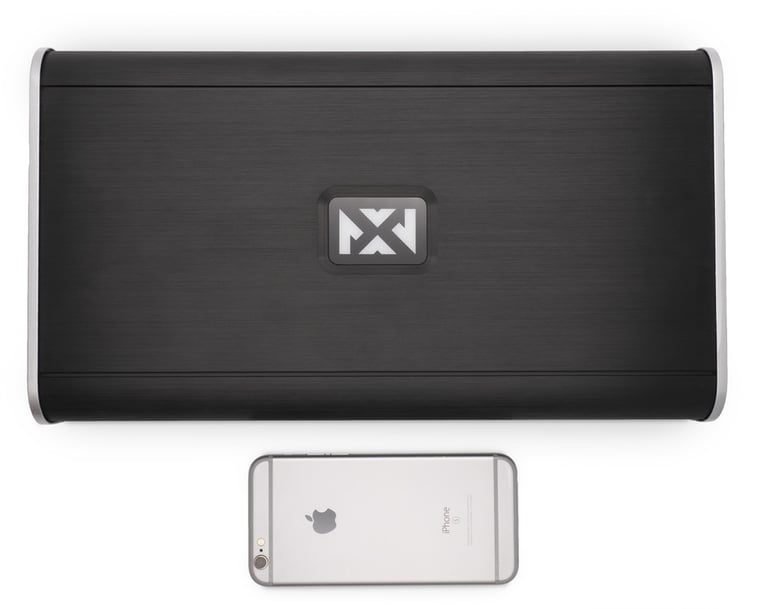

  • Dimensions: 12.8"L x 7.2"W x 2.0"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

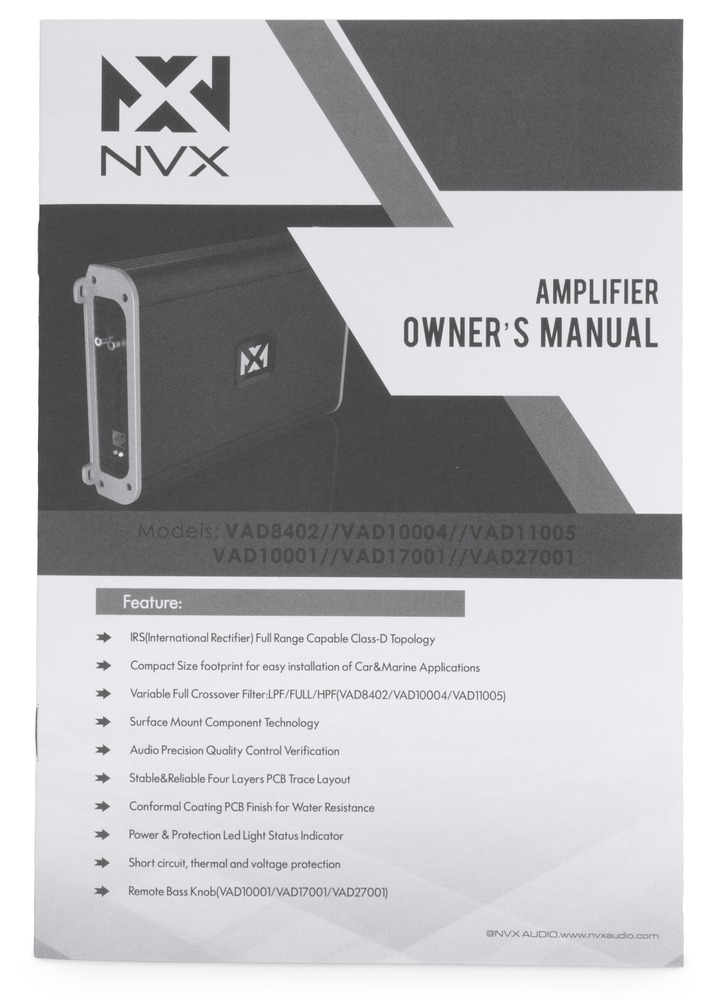

NVX VAD27001 owner’s manual


WARNING: UPGRADE VEHICLE CHARGING SYSTEM

Your warranty is void if you do not have a minimum amp charging system of 200A. Such a charging system can only be achieved with the installation of a High Output Alternator. Failure to upgrade your vehicle's charging system will damage your amplifier due to distortion, short-circuit, or other failure. This may also cause damages to your charging system and/or subwoofer(s).

NVX XKIT02

Full Spec 1/0 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 4000 Watts
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 4000 watts RMS
  • Made from 100% (OFC) Oxygen-Free Copper for pure uninterrupted power and current transfer
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects power wire from being damaged
  • Solid Brass and Satin Chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full Spec cables meet or exceed the American Wire Gauge standards
  • Strand Count: 4704
  • CEA-2015 and BC5W2 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

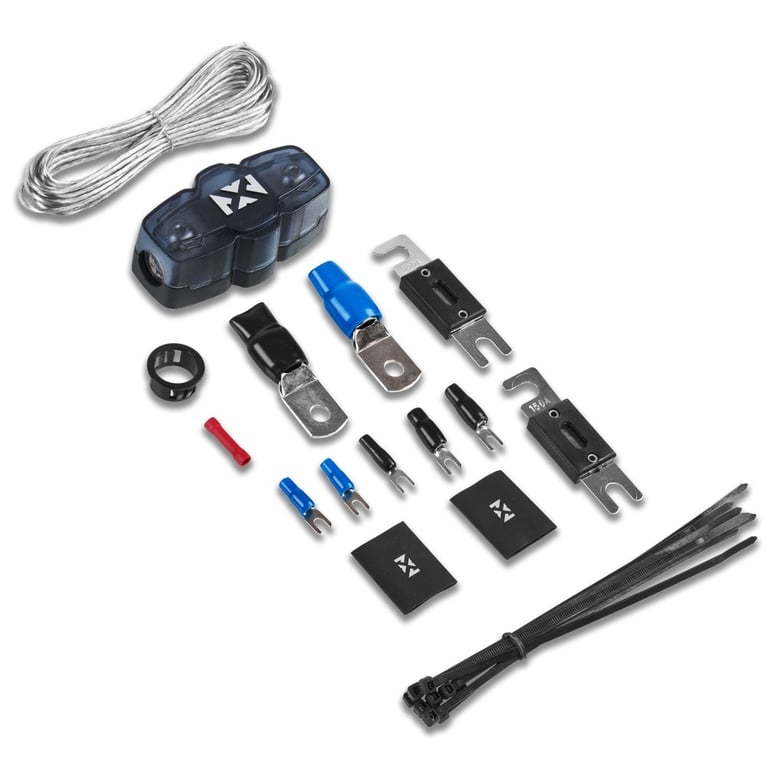

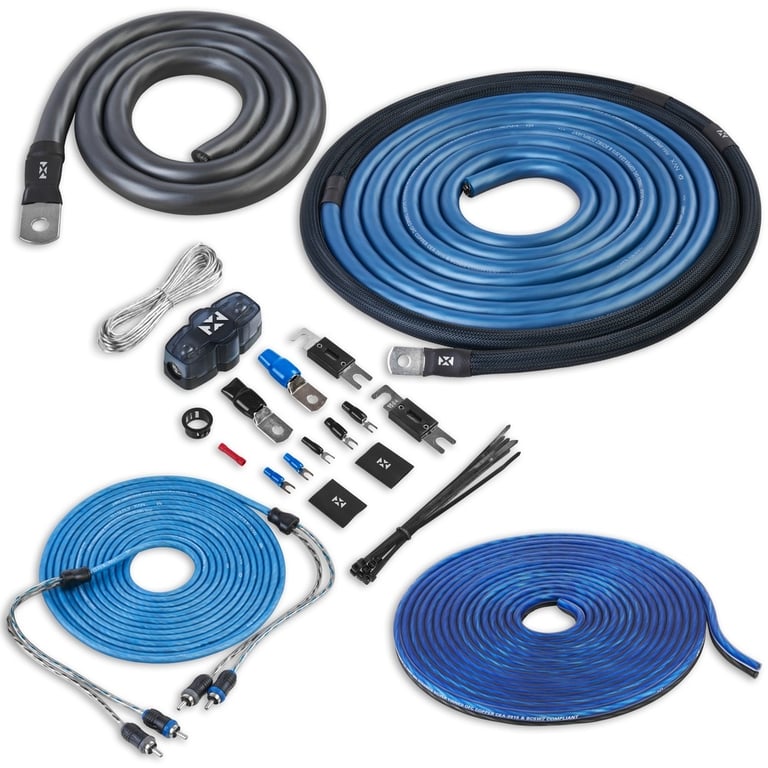

Kit includes:

  1. 20 ft. (6.1 meters) Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal
  2. 3 ft. (.91 meters) Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
  3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire
  4. 20 ft. (6.1 meters) Frosted Black/Blue 12 gauge speaker wire
  5. One 16 ft. (5 meters) 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

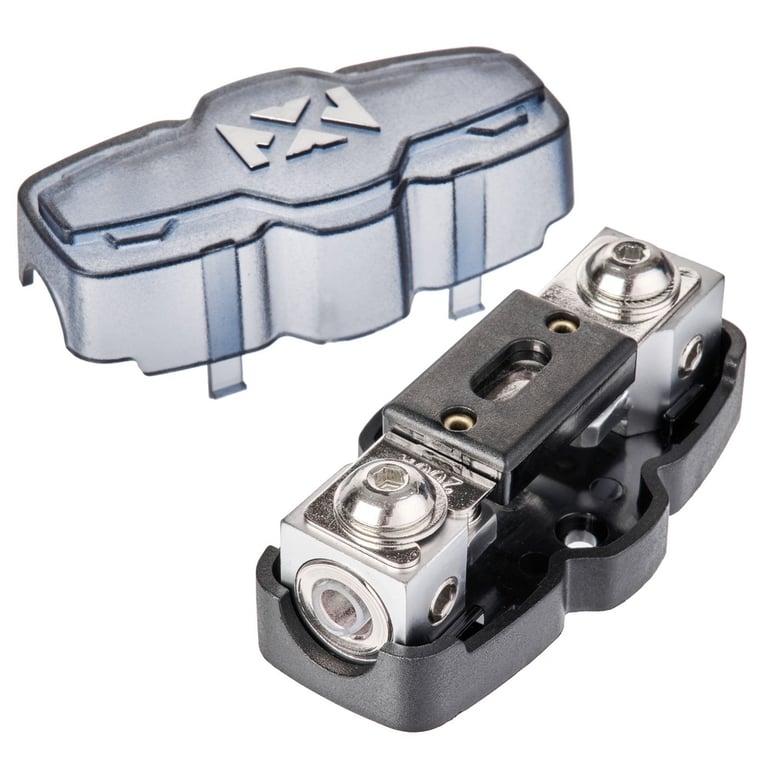

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 1/0 Gauge Nickel Plated ring terminals
  9. Four 12 Gauge Spade terminal
  10. Two 12 Gauge Red butt connectors
  11. Two Heat Shrink tube with NVX logo
  12. Ten 6" Black zip ties

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1250 watts x 1 channel
RMS Power @ 2 ohms
1950 watts x 1 channel
RMS Power @ 1 ohm
2700 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5400 watts
Total RMS Power Output
2700 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.3%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 55 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
Yes
CEA-2031 Compliant
Yes
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
1/0 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
20 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
AFS
Fuse Size
150A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XKIT02,VAD27001

Weight:

24.88lbs

Internal SKU:

vad27001_xkit02

Internal Product ID:

179125

Customer Ratings & Reviews



5 star
88%
4 star
10%
3 star
0%
2 star
0%
1 star
2%



Durability
4.9
Value
4.8
Features
4.7
Design
4.8
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Awesome Kit!

The following review is for XKIT02, which is a part of the bundle you are viewing.

Came With Everything described in kit. If Your looking to push that power to your system, This kit will do it! Worth Every Penny!!

By Raymond on January 12, 2015

82

found this helpful.

NVX XKIT02

The following review is for XKIT02, which is a part of the bundle you are viewing.

This is a nice wiring kit no doubt about it. Very sturdy and flexible, easy to work with. It is definitely true 1/0 cable and seems to be pushing the Hifonics BRX2000 amp I have with more than enough power. Rca's are also pretty nice and seem to be working as stated (no feedback or humming). I also like the fact that the battery side of the power cable is pre-sleeved and has the ring terminal already installed for you with heat shrinks as well. Same on the ground cable. Over all its a nice kit, might be a little pricey compared to other kits, but you pay for quality. Well worth the money in my opinion.

By Shawn on January 13, 2014

84

found this helpful.

Nothing but the best!

The following review is for XKIT02, which is a part of the bundle you are viewing.

A little heavy but my stereo system sounds great! Would buy this again!

By Mark on May 1, 2014

79

found this helpful.

Fine Wire

The following review is for XKIT02, which is a part of the bundle you are viewing.

Wires seem accurate. They transfer plenty power but I do have to upgrade battery to turn amp up more only running it at .25(1/4) and even then my lights dim front to back.

By Jermiah on October 27, 2014

75

found this helpful.

fuccin aye

The following review is for XKIT02, which is a part of the bundle you are viewing.

Well worth the money, go hard or go home!!! Only mess with the best

By Michael on March 31, 2014

74

found this helpful.

Good kit

The following review is for XKIT02, which is a part of the bundle you are viewing.

Comes with everything except rca cables, includes some terminals and boots, look for the bundle and save a lot

By Dutch on May 4, 2014

69

found this helpful.

premiun

The following review is for XKIT02, which is a part of the bundle you are viewing.

Very good quality and fast shipping, i recommended buy nvx products

By jesus on May 7, 2015

64

found this helpful.

great kit

The following review is for XKIT02, which is a part of the bundle you are viewing.

nice kit good quality but says in description 300a fuse but only comes with 150a fuse

----

NOTE FROM SONIC ELECTRONIX:
300A Fuse sent to customer due to typo on our behalf. We also updated the description.

By sam on December 6, 2013

55

found this helpful.

Super Value

The following review is for XKIT02, which is a part of the bundle you are viewing.

I've owned wiring kits before but this NVX kit put in great work, it has oxygen free copper that is flexable and put clean power to your amp. You will not be dissapointed this is a good value product.

By Carl on December 16, 2017

43

found this helpful.

Awesome

The following review is for XKIT02, which is a part of the bundle you are viewing.

I got this kit to wire a boss 2600 watt amp. The wires were huge there was no way I could run it to my amp. The quality was so great that instead of returning it I used it to upgrade my battery cables and my chassis ground. I only wish it came with more ground wire as I need a few more feet to finish my chassis ground upgrade.

By Ace on June 24, 2015 Checkmark Icon Verified purchase

47

found this helpful.
