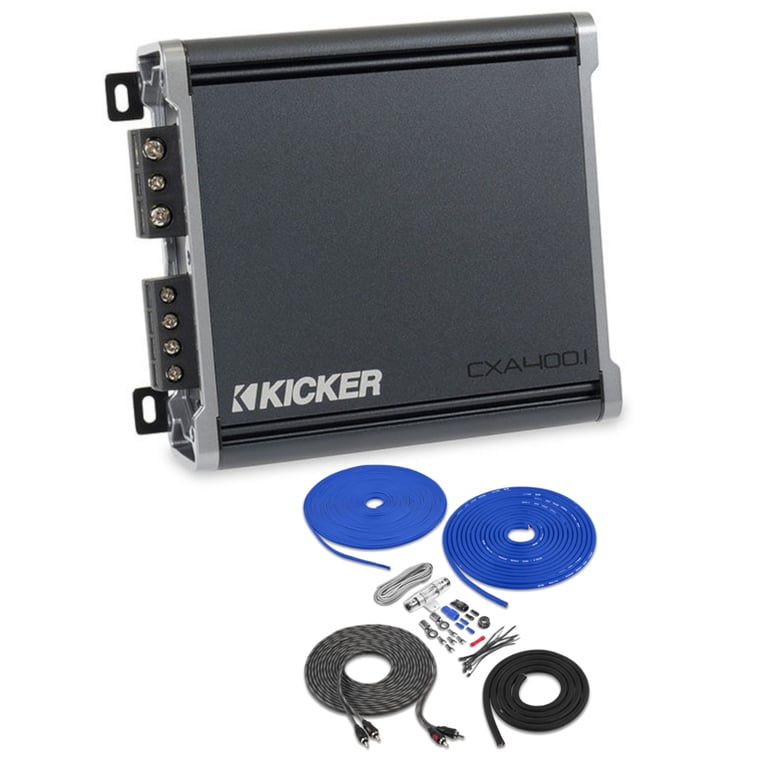

Kicker 46CXA4001 with Amplifier Wiring Kit

400W RMS CX-Series Class-D Monoblock Amplifier

Kicker
Shop all Kicker
Lowest price in 30 days
highlight-star-icon


• 150 Watts RMS x 1 @ 4 ohms
• 300 Watts RMS x 1 @ 2 ohms
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

Learn more about the 43cxa3001_bak42
List $269.98

$169.96

with warranty

Thanks , You Pay:

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one 43cxa3001_bak42.

Set your vehicle or Return to product page
shipping truck icon
FREE 2-day shipping to VA. Get it Thu, Mar. 23
Quantity
In Stock
Brand new

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision


protection

Add an extended warranty

allStateProtection
3-years for

For over 22 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

AwardWinning
Award-Winning Service
Shipping
FREE Shipping Orders $49+
60Days
60-Day Easy Returns
lowestPrice
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


Kicker

Authorized dealer

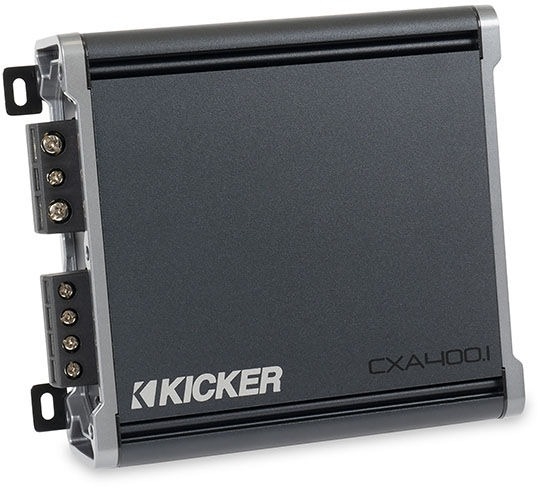

Mount a Kicker CX amp vertically to save space

The CX Series spans all kinds of systems, whether you're just trying to get a little more out of your factory radio or you're ready to blow the doors off with a completely aftermarket setup. Either way, the quality of your sound is at the heart of the CX Series. Sleek, simple styling and installation flexibility all round out the amplifiers' functionality.

Kicker makes your installation simple, but gives you plenty of options. Make it easy on yourself when plugging in with Kicker's KISL so you can take high-level signal from the headunit's speaker outputs straight into the amp's RCA input. Also, most models are just more than two inches thick and included brackets allow you to install these vertically. If space is at a premium in your ride, the CX series gives off plenty of power while saving you some room.

CXA300.1

The CXA300.1 puts the thunder in your bass. This Class-D 2-ohm stable single channel amp is built to handle 300 watts at 2 ohms for 1 channel, or 150 watts at 4 ohms.

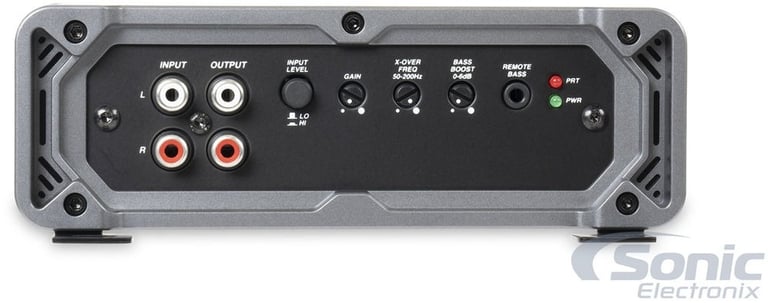

Like most of the amps in the CX series, it's easy to control your bass output from the driver's seat. Pick up a Kicker CXARC wired remote bass level control, plug it in, and optimize your sound easily.

Under the hood

The CX Series has a lot of built-in technology to make sure your system just keeps going for the long haul. With litz-wound transformers to maximize power transfer while minimizing power loss, high current switching, buffered RCA outputs, these amps are built to put out lasting, quality power.

These amps also include their own crossovers and an adjustable KickEQ Bass Boost. A 3-second turn-on delay helps eliminate any additional interference that might affect your system.

Power a sub or a whole system with Kicker CX amps

But these amps also have Kicker's Failsafe Integration Technology inside. That means they can take signal from any audio source and run it straight into the amp. For you, it means no need for line-out converters, step down modules, processors or less conventional wiring to complete your system. Kicker's FIT eliminated the need for additional equipment that could introduce additional noise to your signal. It even works well with factory amplified systems from other premium brands.

For a potent, versatile power solution for your sound system, pick up as many CX Series amps as you need here at Sonic Electronix. Add one, or however many you need, to your cart today.

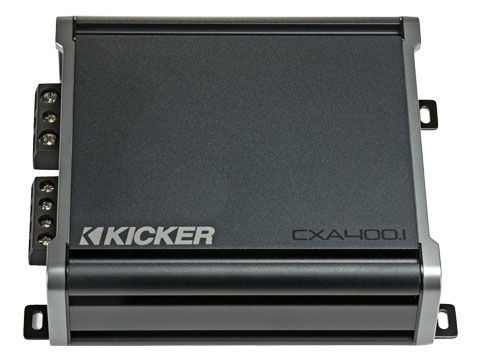

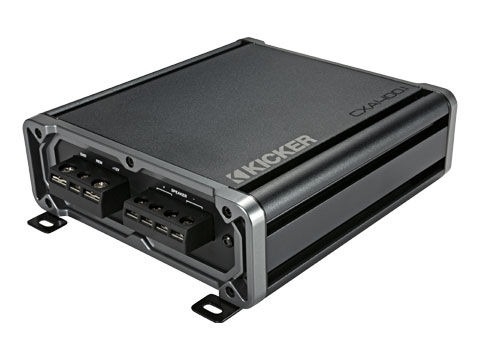

Kicker CXA400.1

400W RMS CX-Series Class-D Monoblock Amplifier
Quantity: 1

Kicker CXA400.1

CX-Series Mono Amps are now one-ohm stable, giving you even more power and wiring options for your system! Using efficient Class-D power, the CXA400.1 features a variable bass boost with KickEQâ„¢, giving you as much as a 6dB of extra bump with a simple turn of the optional CXARC Remote Bass Controller. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. Use the full-range outputs to expand your system with other bass amps, or a full-range amp to complete your system.

Product Details:

  • CX Series Class D 4 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 150 watts x 1 channel
    • 2 ohms: 300 watts x 1 channel
    • 1 ohm: 400 watts x 1 channel
  • Total RMS power output: 400 watts
  • CEA-2006 Compliant Amplifier
  • Wired remote bass level control not included (sold separately)
  • Automatic Turn-On Selection
  • Speaker-level (high-level) inputs
  • Kicker's Fail-Safe Integration Technology (FITâ„¢)
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 250mV - 10 volts
    • High level: 1 - 40 volts
  • Frequency Response: 25 - 200 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >95 dB
  • Variable low-pass filter: 80 - 200 Hz
  • Subsonic filter: 0 - 25 Hz
  • Variable Bass Boost: 0 - 6 dB
  • Fuse Rating: 40A
  • 8 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 6-3/4" W x 8-1/8" L x 2-3/8" H

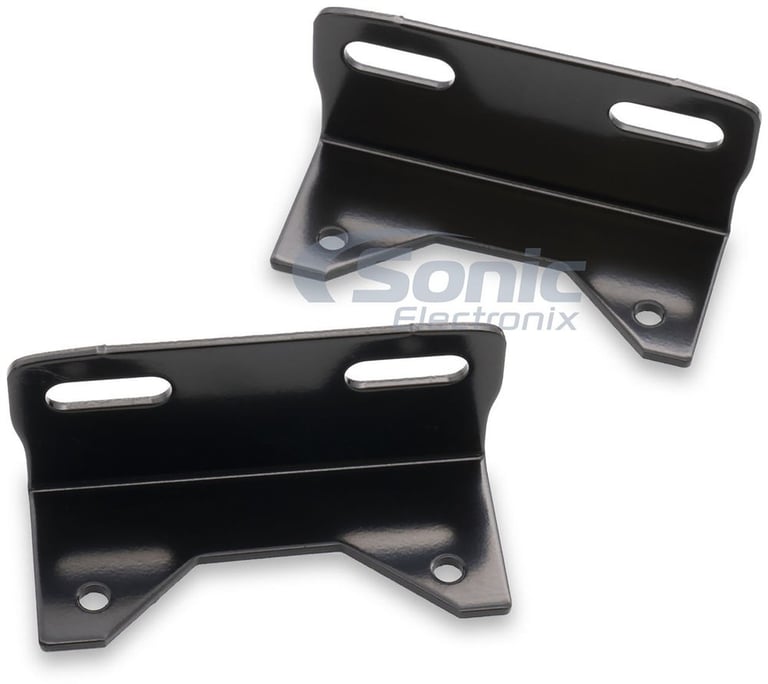

  • Includes hardware for vertical mounting
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Belva BAK82BL

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - BLUE
Quantity: 1

Product Details:

  • Complete 8 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS

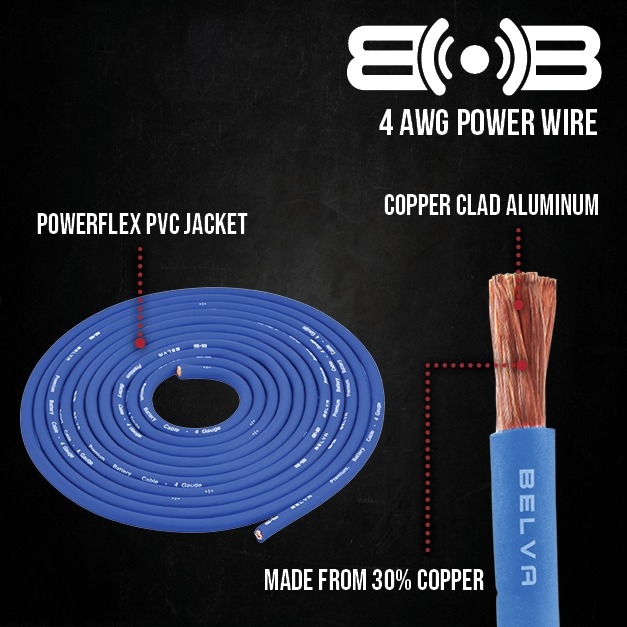

  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 60 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Red
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

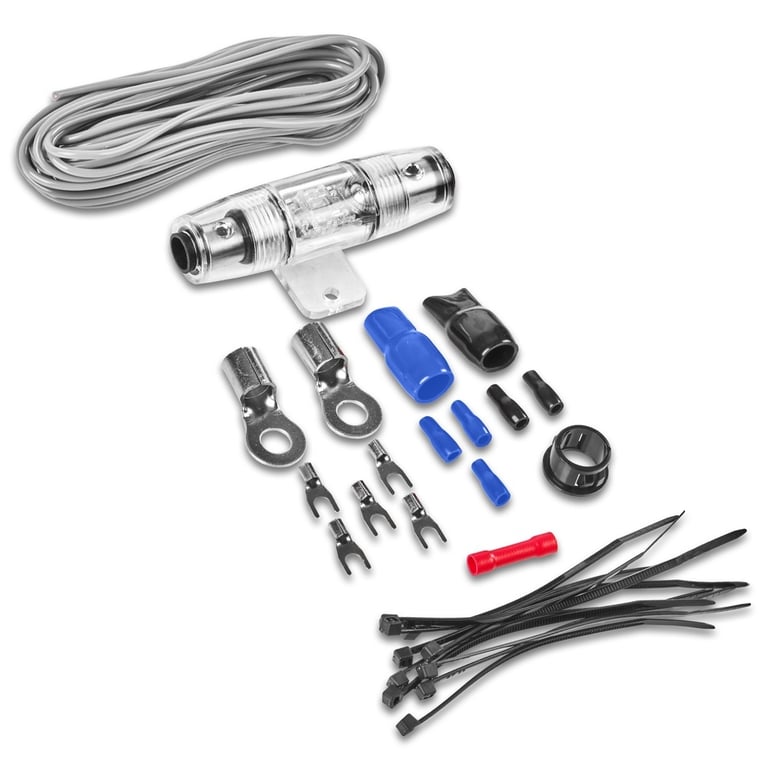

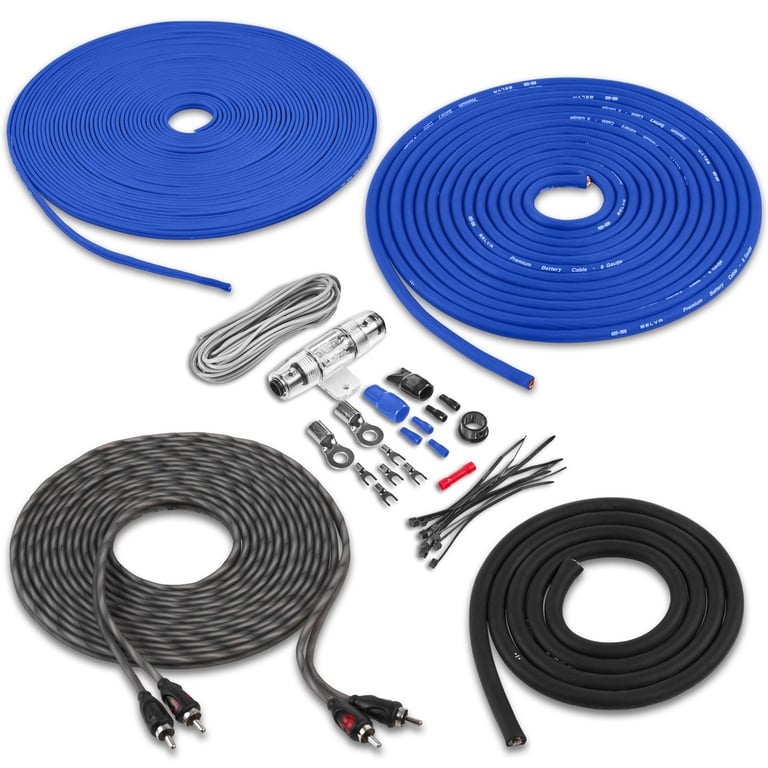

Kit includes:

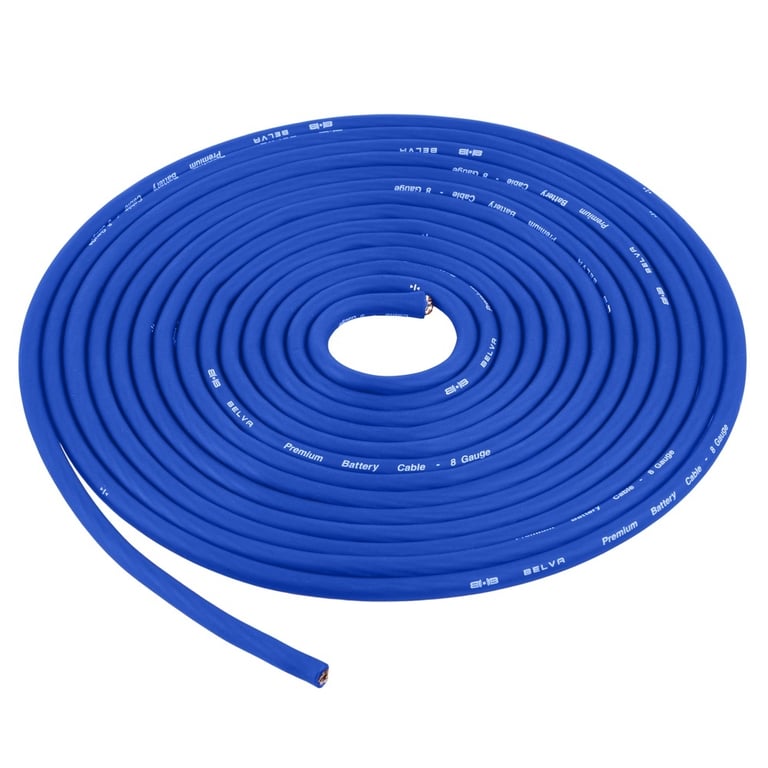

  1. 17 ft. (5.2 meters) Blue 8 gauge power wire
  2. 3 ft. (.91 meters) Black 8 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
  5. 20 ft. (6.1 meters) 16 Gauge Speaker cable
  6. One MINI-ANL Fuse Holder with a 60 amp fuse
  7. One Black rubber firewall grommet
  8. One 8 Gauge Blue chrome plated ring terminals
  9. One 8 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Blue Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
150 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
600 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
THD at Rated RMS Power
<1.00%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
25 - 200 Hz
Subsonic Filter
25 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Total Fuse Rating
CEA-2031 Compliant
Yes
Sonic Certified Amplifier
Amp Bluetooth Connectivity
Hi-Res Certified
Low-Level Input Sensitivity
High-Level Input Sensitivity
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
20 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
ANL
Fuse Size
80A
Distribution Block Included
No
Dimensions
Width
Height
Length
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BAK42,46CXA4001T

Weight:

7.60lbs

Internal SKU:

43cxa3001_bak42

Internal Product ID:

174217

Customer Ratings & Reviews



5 star
67%
4 star
27%
3 star
3%
2 star
0%
1 star
3%



Durability
4.7
Value
4.8
Features
4.7
Design
4.8
Usability
4.8
Sort by:

Loading...

Pretty Good for the Price

The following review is for CXA400.1, which is a part of the bundle you are viewing.

Overall, the amp is super solid and seems to be built rather well. Having a rated power certificate in the box was also helpful to see that it actually is putting out the claimed RMS power or above. Currently using it to power a single CompR 12" and it hits hard with the gain barely over 1/3 and no bass boost. Only complaint is that the power and ground inputs are not designed for bare wire, you'll need to buy a U or spade connector to reliably attach your power and ground.

By Anonymous on December 7, 2019 checkmarkIcon Verified purchase

29

found this helpful.

Cheap kit that did it's job

The following review is for BAK82BL, which is a part of the bundle you are viewing.

Inexpensive kit that works great for the 300 watt amp I'm running.

By Anonymous on November 6, 2019

21

found this helpful.

Kicker amp

The following review is for CXA400.1, which is a part of the bundle you are viewing.

This is my first kicker amp and love this product and was easy to hook up. I have had other amps and wasn't satisfied on how you had to hook the amp up because the controls you had to use an Allen wrench to loosen or tighten the controls. Kickers product a flat head or a Phillips screwdriver will work on their amps to hook it up and made it easy and fast to hook up! I would recommend this product to anyone else for a small amp that just brings the power to your subwoofer!

By Gary on March 12, 2020 checkmarkIcon Verified purchase

19

found this helpful.

Under rated quality amp for the price

The following review is for CXA400.1, which is a part of the bundle you are viewing.

This cx 400 is amazing! On the higher end of resistance its minimal, push a c10 or c12 but bump it down and let it go to work. 2 c10's at 300 at 2 ohm, you'll feel it knock, drop it to 1 ohm, good god, I set the sensitivity to run 500 rms, per the rated rms of 533w on kickers birth certificate, this little guy moves single p3d2-12, pounding so hard my rear view mirror shakes to the point you can it rattling the windshield. I recommend this to anyone who wants a lower total rms output or a bi-amp system (given youb match up your impedance and wattage (rms) of chosen sub. I messed up my original purchase, got a JL 12W0 crank it up and live loud

By Joseph on May 19, 2020 checkmarkIcon Verified purchase

15

found this helpful.

Great transaction

The following review is for CXA400.1, which is a part of the bundle you are viewing.

Fast transaction fast shipping love doing business with Sonic Electronix

By Anonymous on November 28, 2019

14

found this helpful.

Not worth it.

The following review is for BAK82BL, which is a part of the bundle you are viewing.

This wiring kit isn't worth your money. Just buy a decent one for $50 than wasting your time with this piece of crap.

By Ray on December 19, 2015 checkmarkIcon Verified purchase

17

found this helpful.

Small and powerful

The following review is for CXA400.1, which is a part of the bundle you are viewing.

This amp is great. I have it mounted behind the backseat and it takes no room at all. It's got pre-amp and output RCA connections so I have my stereo amp getting signal. You can only use fork terminals with the connections but the connections are solid. Unlike some amps. Two speaker outputs for easier wiring if you are using 1ohm which I have two 10" Kicker DVC 4 ohm subs running at. Overall 5 out of 5 would buy again.

By Clay on March 7, 2020 checkmarkIcon Verified purchase

12

found this helpful.

Very good wire for subwoffer install

The following review is for BAK82BL, which is a part of the bundle you are viewing.

The wire looks like good quality and had everything I needed for a subwoofer install

By Anonymous on December 10, 2019

12

found this helpful.

Great value

The following review is for BAK82BL, which is a part of the bundle you are viewing.

Worked great for the system I installed. It came with everything to complete the project. Sonic has great service and fast shipping.

By Mike on January 22, 2017 checkmarkIcon Verified purchase

12

found this helpful.

Great deal

The following review is for BAK82BL, which is a part of the bundle you are viewing.

Worked great for a 240 watt amp powering 4 6x9's in a custom built enclosure

By Anonymous on October 31, 2019 checkmarkIcon Verified purchase

12

found this helpful.
