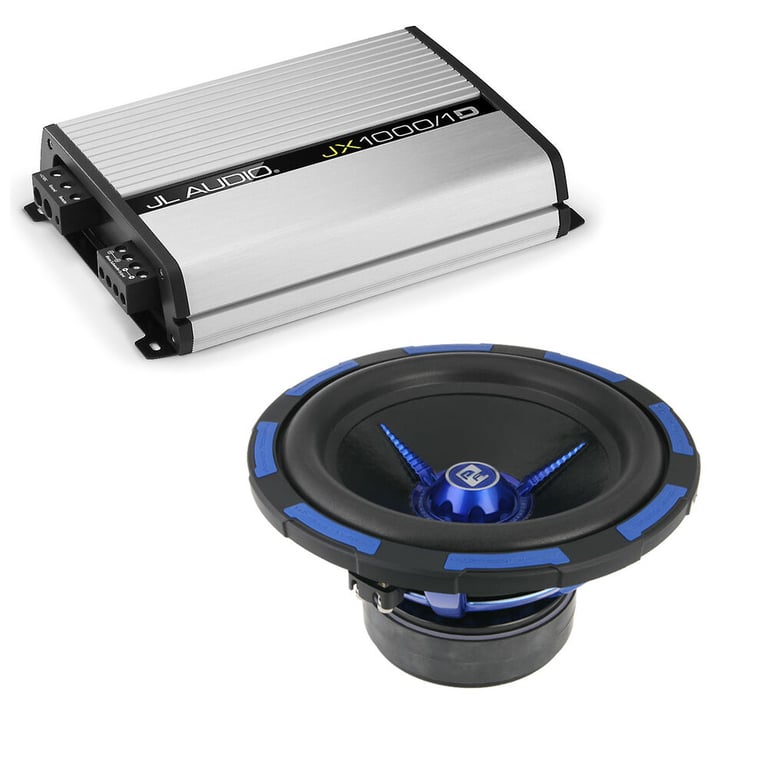

JL Audio JX1000/1D w/ Power Acoustik 10" Subwoofer

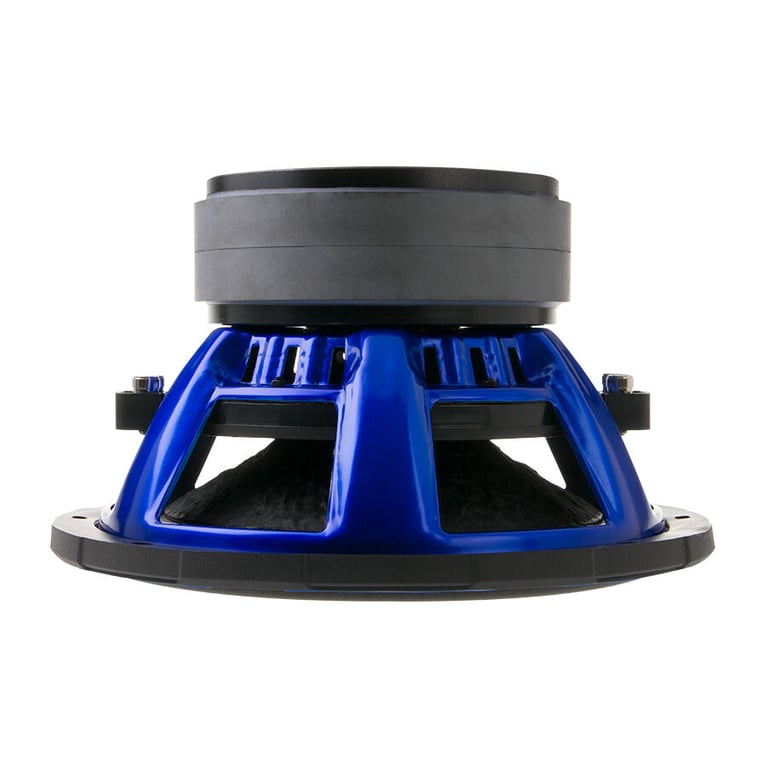

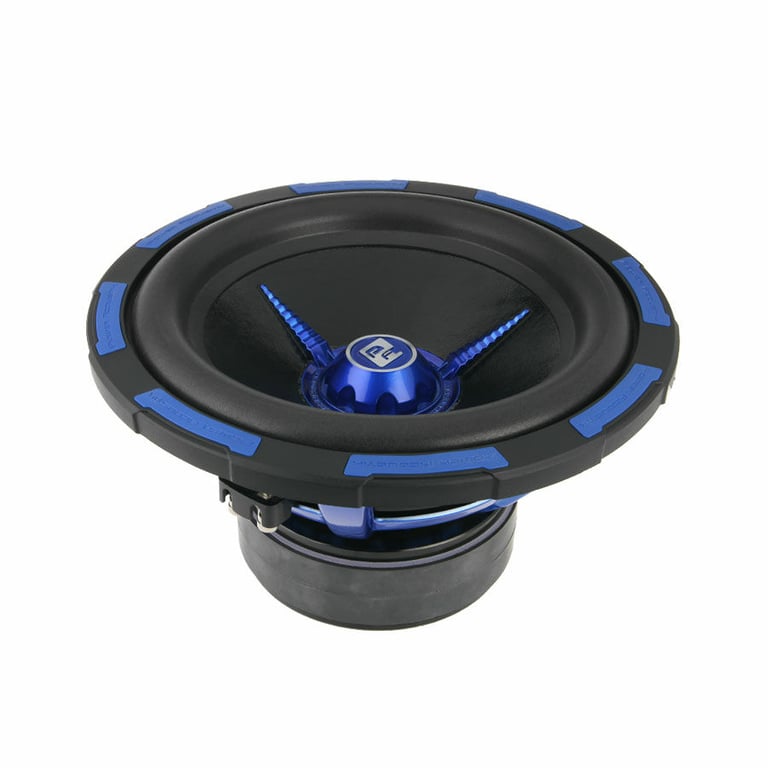

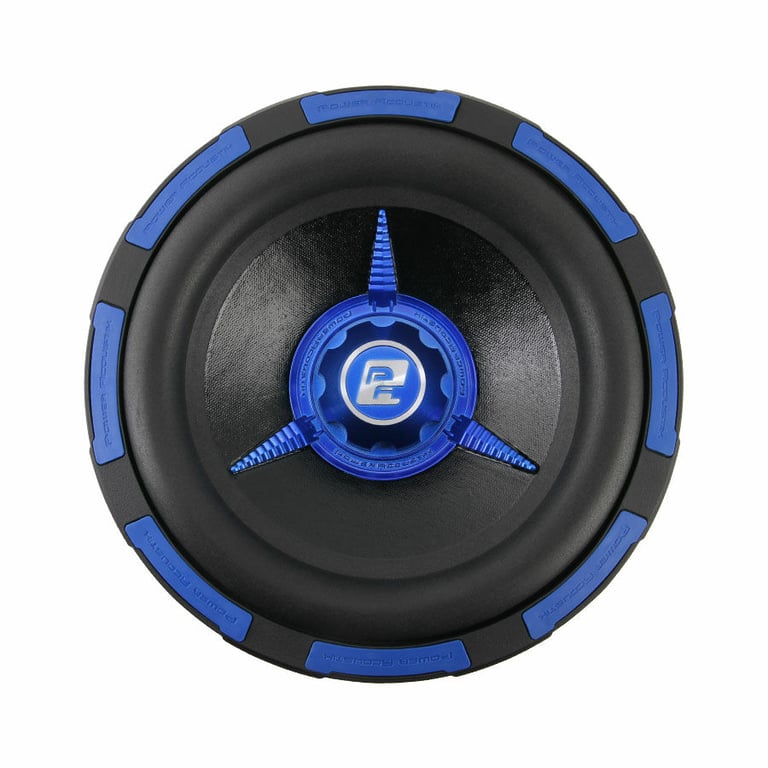

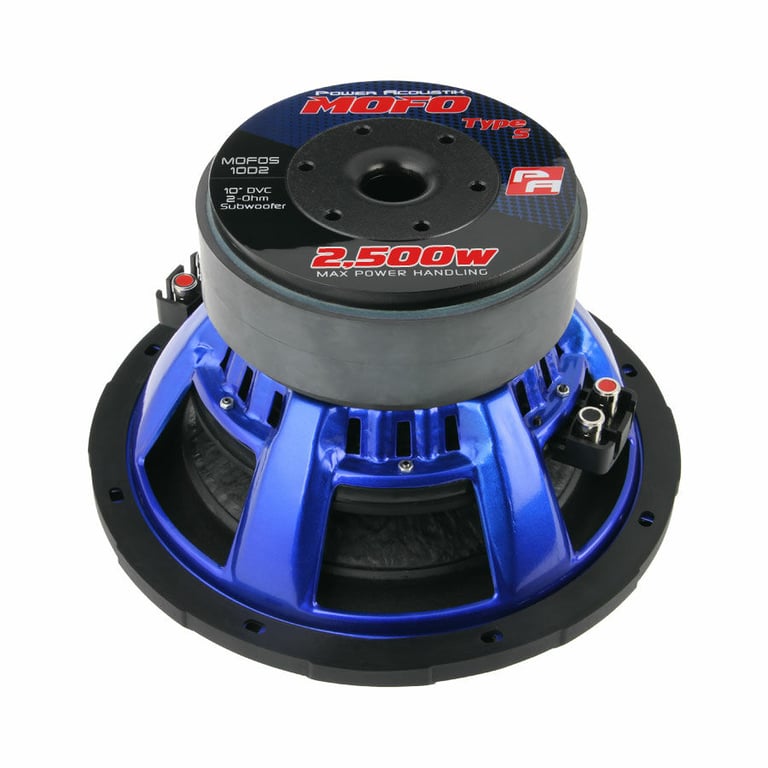

1000W Monoblock Class-D Amplifier + MOFOS10D2 2-Ohm Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

• Peak: 500W x 1 @ 4 ohm, 750W x 1 @ 3 ohm, 1000W x 1 @ 2 ohm
• Unregulated PWM switching type power supply
• Class D Circuitry
• Bass Boost: 0-12 dB
• Speaker-level (high-level) inputs with included harness
• Dimensions: 7.68"W x 10.94"L x 2.09"H

Learn more about the jx10001d_mofos10d2

We apologize

This item has been discontinued


Loading...
DKGM-49 main

Crux DKGM-49 Stereo Replacement Interface

Stereo Replacement Interface with Steering Wheel Control Retention and Double DIN Dash Kit for select 2006-2020 vehicles from GMC, Chevrolet, Buick

41
-35.71%

$129.60

List price $201.60

AXBUCH-GM29 main

Axxess AXBUCH-GM29

Install a New Car Stereo and Retain Backup Camera in select 2006-2017 vehicles from GMC, Chevrolet, Cadillac

1
-16.68%

$9.99

List price $11.99

AXRSEH-GL29 main

Axxess AXRSEH-GL29

Install a New Car Stereo and Retain Rear Seat Entertainment (RSE) in

-10.35%

$25.99

List price $28.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-16.67%

$119.99

List price $143.99

Limited time!
KW-V660BT main

JVC KW-V660BT

6.8" Double DIN CD/DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
-16.70%

$399.00

List price $479.00

Limited time!
ILX-W770-M main

Alpine ILX-W770M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, SiriusXM Ready, and iDataLink Maestro Ready

-25.01%

$449.95

List price $600.00

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

ESP65 main

NVX ESP65

360W Peak (120W RMS) 6.5" E-Series 2 Way Coaxial Car Speakers

13
-18.19%

$44.99

List price $54.99

Limited time!
CS-DF620 main

JVC CS-DF620

600W Peak (50W RMS) 6.5" DRVN DF Series 2-Way 4-ohm Shallow-Mount Coaxial Car Speakers

4
-39.08%

$38.99

List price $64.00

Description


JL Audio brand icon

Authorized dealer

JL Audio JX1000/1D

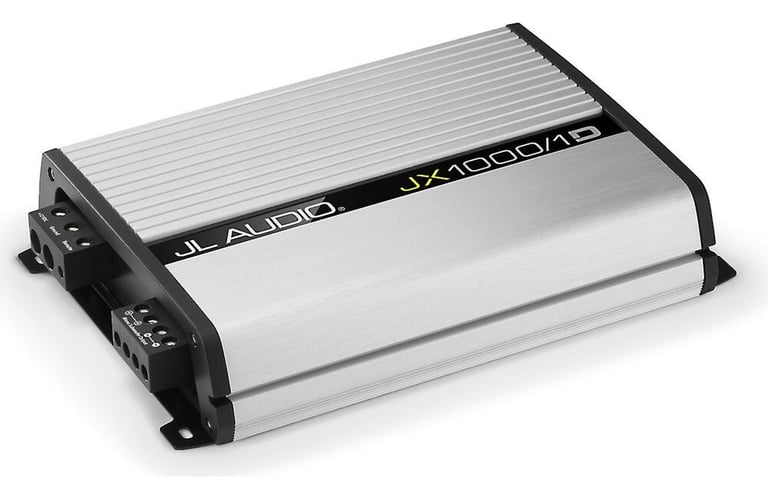

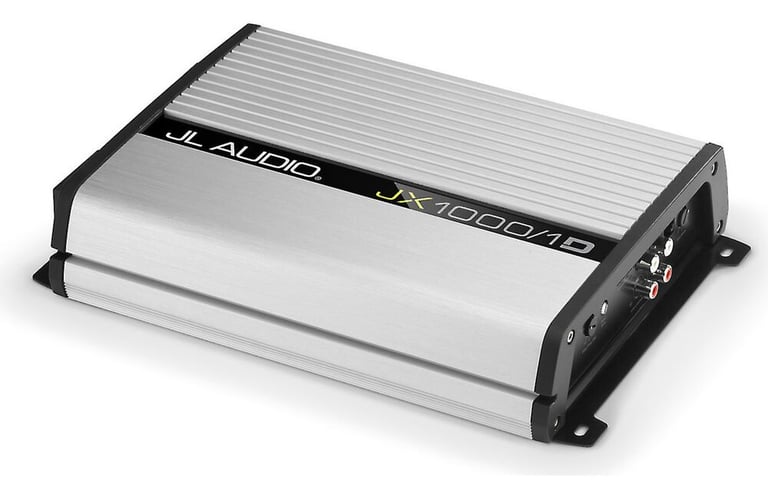

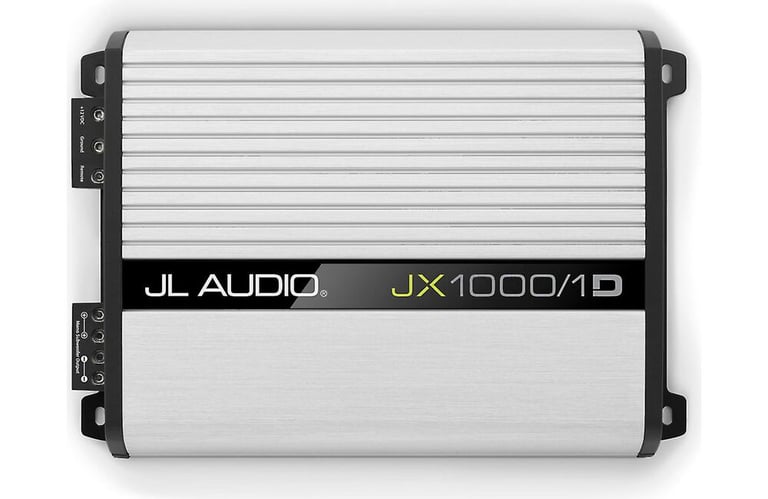

JL Audio JX1000/1D - JX Series Monoblock Class D Subwoofer Amplifier

The JL Audio JX Series of amplifiers are designed with a specific purpose; to deliver clean, rock-solid performance and reliability at an affordable price. Unlike gimmicky price-conscious amplifiers, JL Audio employs specified oversized output transistors and rugged MOSFET power supplies to unsure proper current, thermal capacity and better overall performance. In addition, the JX1000/1D includes flexible signal processing capabilities with a fully variable 12 dB/octave crossover filter, pass-through preamp outputs and a Bass EQ. With the optional JL Audio RBC-1 Remote Level Control (sold separately), you can control the subwoofer volume from the front of the vehicle.

JX monoblock subwoofer amplifiers are specifically designed to drive subwoofers. Their frequency response is limited to the range below 150 Hz., making them unsuitable for driving midrange speakers or tweeters.

Integration Flexibility

Integration Flexibility

For those systems that do not offer a preamp level signal option, you can connect speaker level signals directly to the "Hi-Level Inputs" connector using the supplied connector and wire harness. Simply splice the appropriate left/right and positive/negative wires to the included harness and plug the harness into the "Hi-Level Inputs" connector on the amplifier. The JX monoblock will attenuate the high-level signal to make it compatible with its input stage. Alternatively, a traditional left/ right pair of RCA type jacks is used for preamp level (low-level) signals. This is the preferred connection method whenever available.

Low-Pass Active Filter

Low-Pass Active Filter

The JX monoblock features a 12 dB/octave low-pass active filter for its internal channel. This feature is designed to attenuate frequencies above its filter frequency, so that the system's subwoofer(s) do not reproduce any audible and often harmful mid-range frequencies. The low-pass filter is fully variable between 50 Hz and 200 Hz via the "Filter Frequency" control knob. 80 Hz is a good starting point for system tuning, but its also advisable to match the crossover point with that of your satellite speakers' high-pass filter - this ensures that your system is properly distributing the frequencies to the appropriate medium.




General Features:

  • JX Series Monoblock Class D Subwoofer Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 500 watts x 1 chan.
    • 3 ohm: 750 watts x 1 chan.
    • 2 ohm: 1000 watts x 1 chan.
  • RMS Power Rating (12.5V):
    • 4 ohm: 500 watts x 1 chan.
    • 3 ohm: 700 watts x 1 chan.
    • 2 ohm: 900 watts x 1 chan.

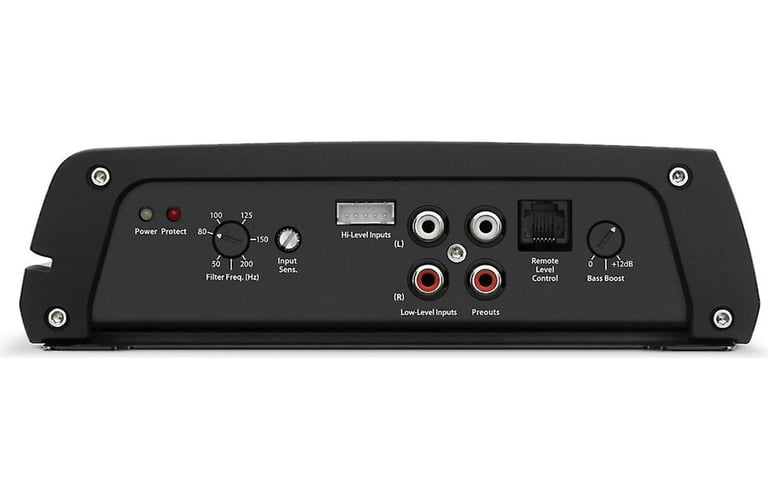

  • Unregulated PWM switching type power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on prevent clicking and popping when system turns on
  • Speaker-level (high-level) inputs with included harness
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

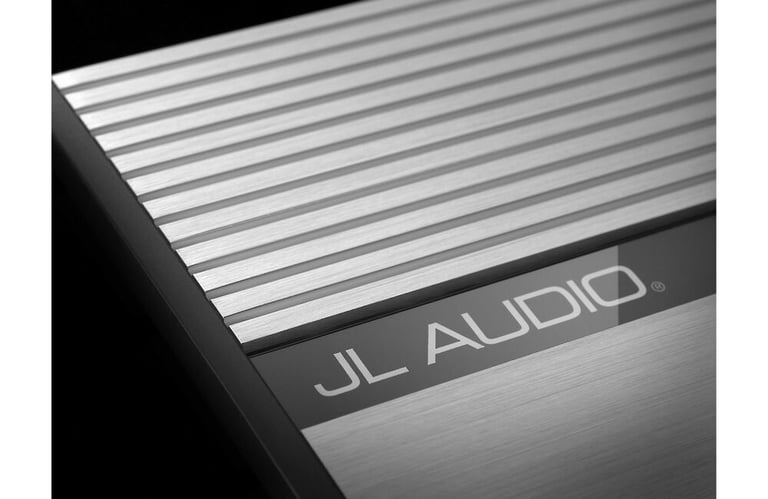

  • Heavy duty aluminum alloy heatsink for effective heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals

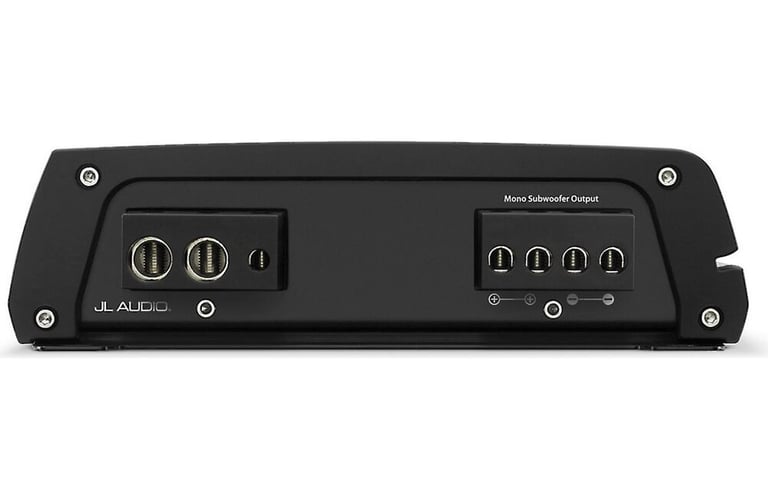

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Remote bass level input (JL Audio RBC-1 sold separately)
  • Input sensitivity:
    • Low level input: 200mV - 4V
    • High level input: 2.0mV - 10.0V
  • Variable Bass Boost: 0 to +12 dB bass boost centered at 45 Hz
  • Variable low-pass filter: 50 - 200 Hz, 12 dB/octave
  • Frequency Response: 20 - 150 Hz ± 1 dB
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: >75 dB
  • Damping Factor @ 4 ohm: >1000 @ 4 ohm
  • Fuse Rating: 80A x 1 inline (not supplied)
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Weight: 7.0 lb
  • Dimensions: 7.68"W x 10.94"L x 2.09"H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
Check out the JL Audio JX1000/1D Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1456.96

List price $2074.96

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.97

List price $2479.97

DAX800XR_MRR_S8GM3_CI small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1605.96

List price $2254.96

DAX800XR_MRR_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1403.96

List price $2053.96

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1348.96

List price $1973.96

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(39)

$1383.97

List price $1778.97

KWZ800AW_MRR2_S8FO1_S small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(8)

$1473.96

List price $1892.96

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
1000 watts x 1 channel
Amplifier Specifications
Series
JX Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
>75 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
80A X 1 In-Line Fuse Recommended
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

JX1000/1D,MOFOS10D2

Weight:

13.11lbs

Internal SKU:

jx10001d_mofos10d2

Internal Product ID:

180183

Customer Ratings & Reviews


JL Audio JX1000/1D w/ Power Acoustik 10

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


KS65.2 small

Kicker KS65.2

6-3/4" (Oversized 6-1/2") KS-Series 2-way Component System 05KS65.2

(4)

$139.99

List price $279.99

BH-726PL-GRAY small

TKO Audio BH-726PL (Gray)

Pair of 7.2" TFT-LCD Monitors Loaded in Gray Leather Headrest Pillows with Remotes

$174.99

List price $349.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Buick Enclave

1998 Lincoln Continental

2011 Ford Crown Victoria

2009 Lexus GS350

1978 Jeep Wagoneer

2017 Audi A3

2015 Chevrolet Impala

1966 BMW 2000c

1976 Jeep Cherokee

1975 Mazda RX-4

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
