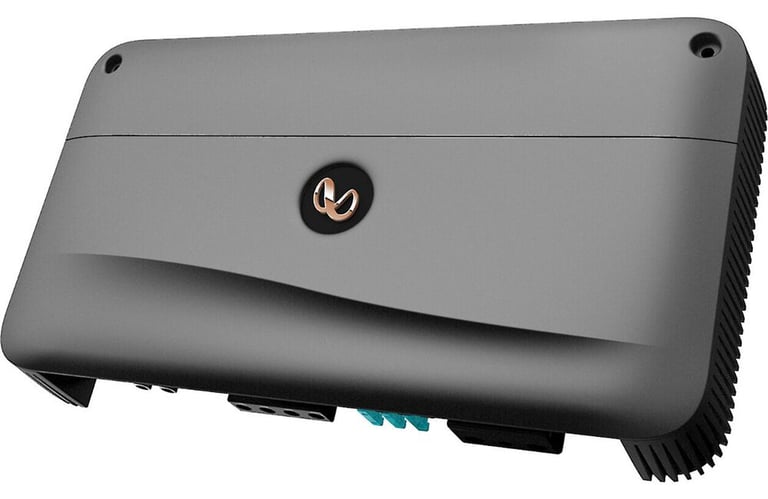

Infinity Reference 10001A (AMPRF10001AAM)

Reference Series 1000 Watts RMS Monoblock Class-D Amplifier

Infinity
Shop all Infinity
highlight-star-icon

• 600 Watts RMS x 1 @ 4 ohms
• 1000 Watts RMS x 1 @ 2 ohms
• Total Peak Power: 2000 Watts
• Preamp Outputs/LPF
• Variable Bass Boost
• 12-5/8"W x 2-3/16"D x 7-1/8"H

Learn more about the amprf10001aam

We apologize

This item has been discontinued

Description


Infinity

Authorized dealer

General Features:

  • Infinity Reference AMPRF10001AAM
  • Class-D Monoblock Amplifier
  • Power Ratings
    • 600 Watts Rms X 1 At 4 Ohms
    • 1000 Watts Rms X 1 At 2 Ohms
    • 2000 Total Watts Rms X 1 At 4 Ohms When Strapped To A Second Reference 10001a
  • Preamp and Speaker-level Inputs
  • Bare Wire To Rca Adapters Included For High-level Input
  • Low-profile Chassis Makes for a Compact Amplifier
  • Preamp Outputs
  • Variable Low-pass Filter (32-320 Hz, 12 Db/octave)
  • Variable Bass Boost (0-12 Db At 45 Hz)
  • Phase Switch (0, 180 Degrees)
  • Fuse Rating: 35A x 3
  • Wired Remote Bass Control Module Included
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 12-5/8"W x 2-3/16"D x 7-1/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
1000 watts x 1 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
1000 watts x 1 channel
Amplifier Specifications
Series
Reference Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
2000 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Frequency Response
10 - 320 Hz
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
32 - 320 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 3
Total Fuse Rating
105
Strappable
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Mounting screws (4)
High-level input wiring harness w/ molex connector
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Reference 10001A

Weight:

9.00lbs

Internal SKU:

amprf10001aam

Internal Product ID:

180495
