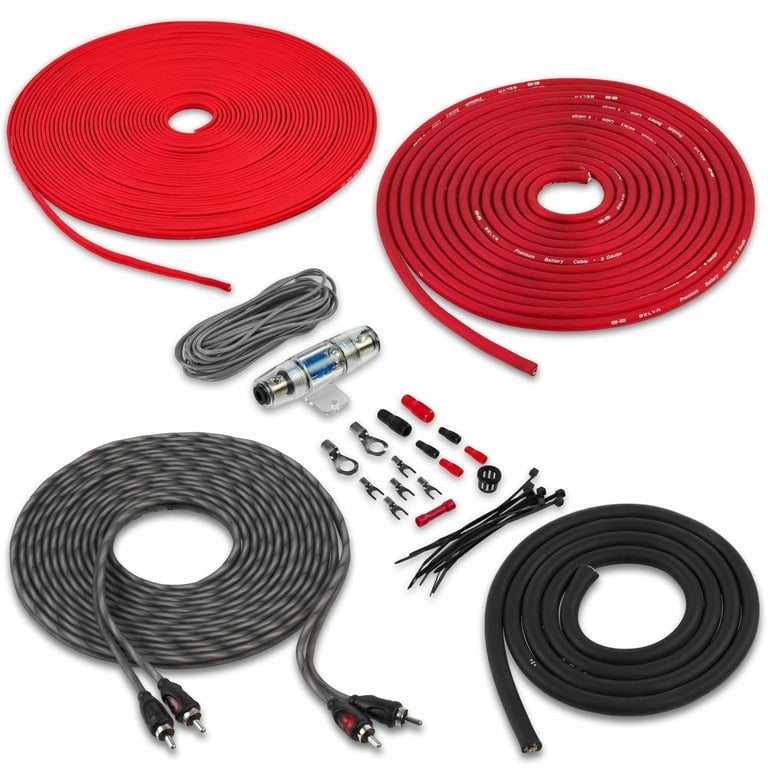

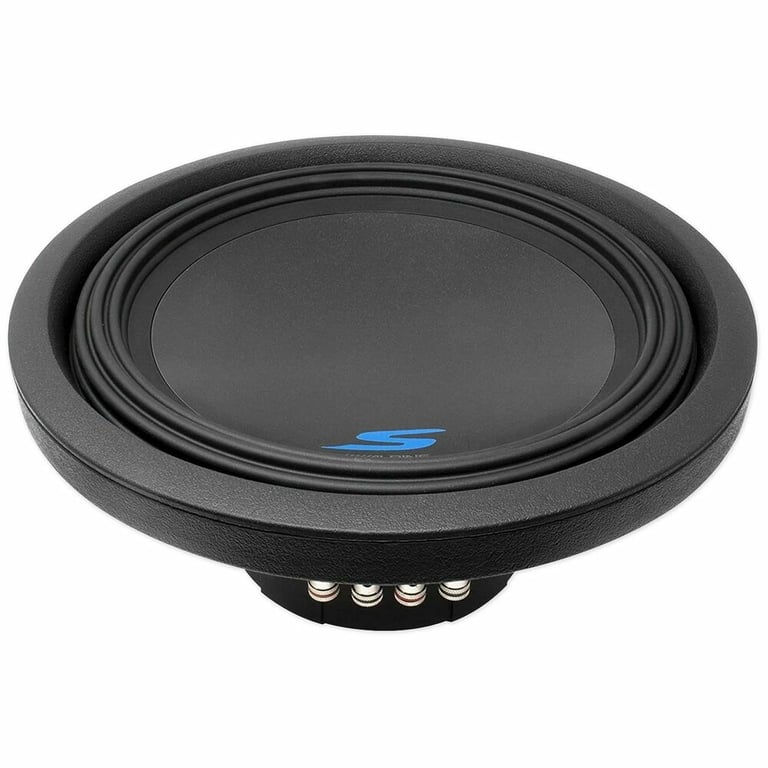

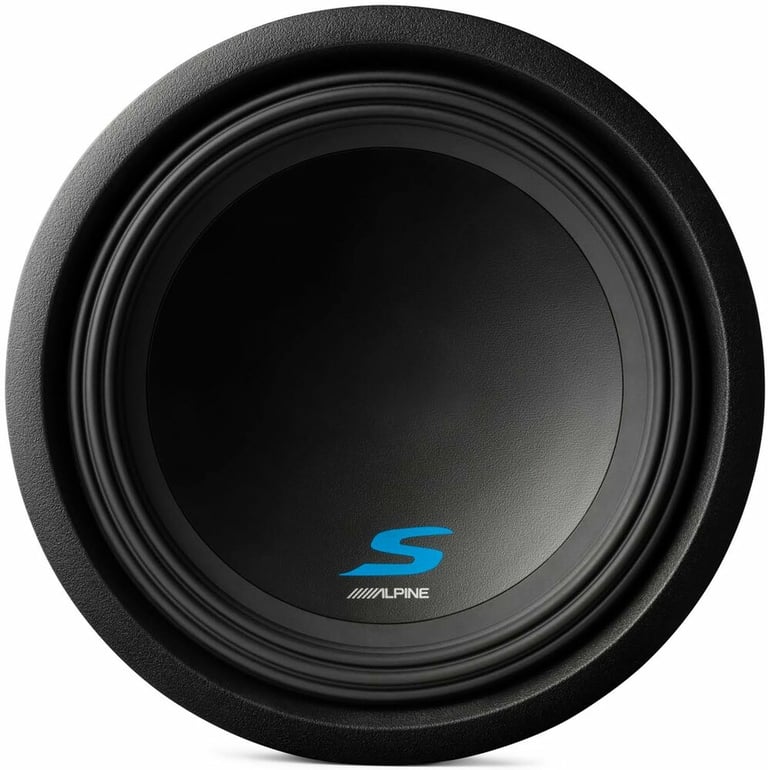

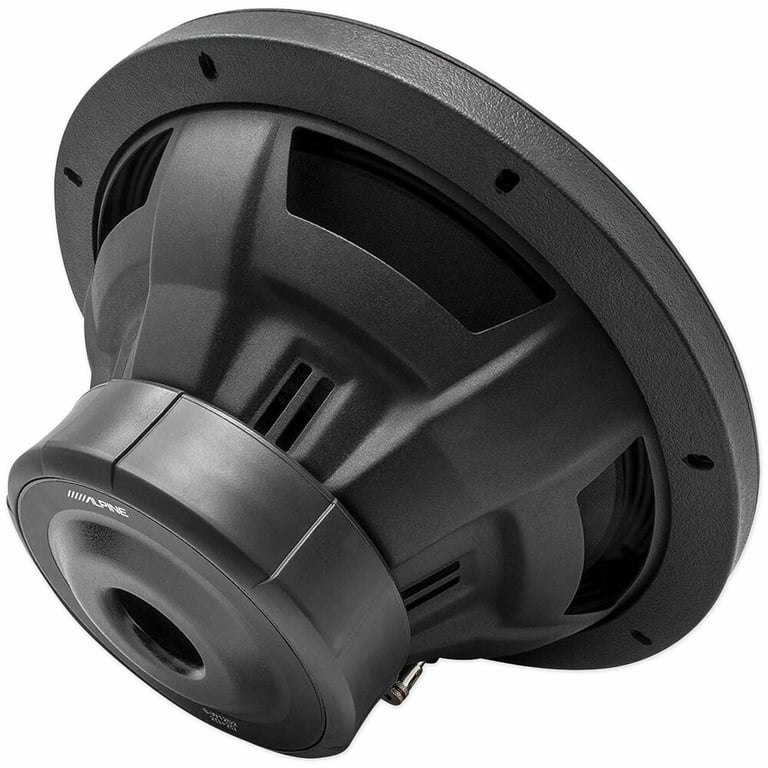

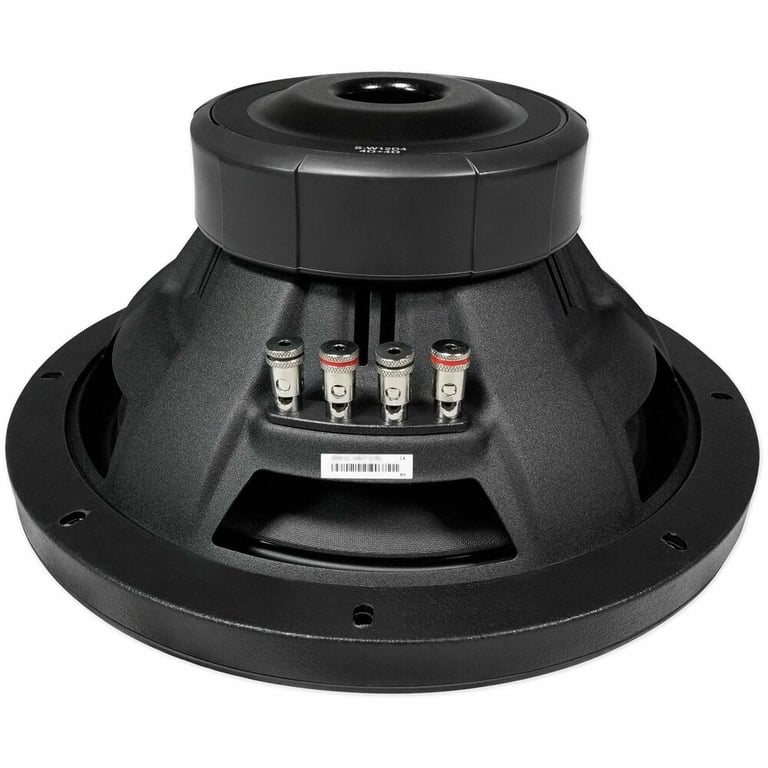

Alpine ILX-W650 + KTA-200M Amplifier + S-W10D2 Subwoofer + Wiring Kit

PowerStack Installation

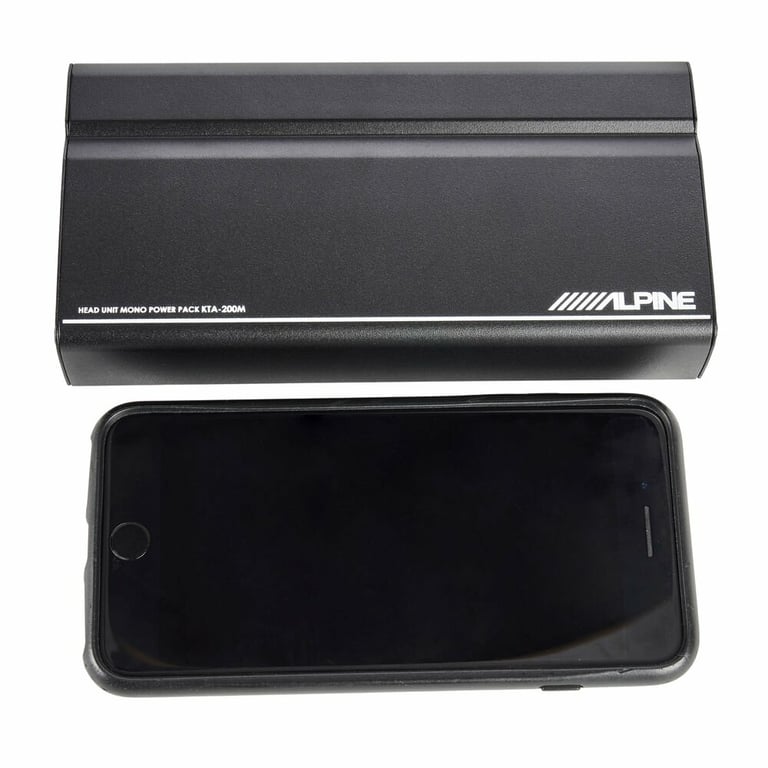

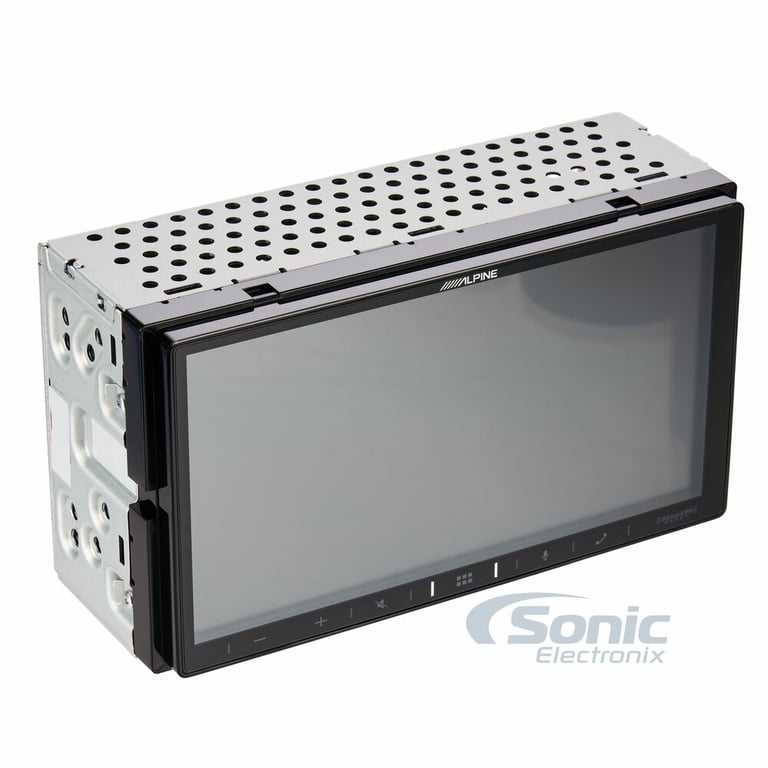

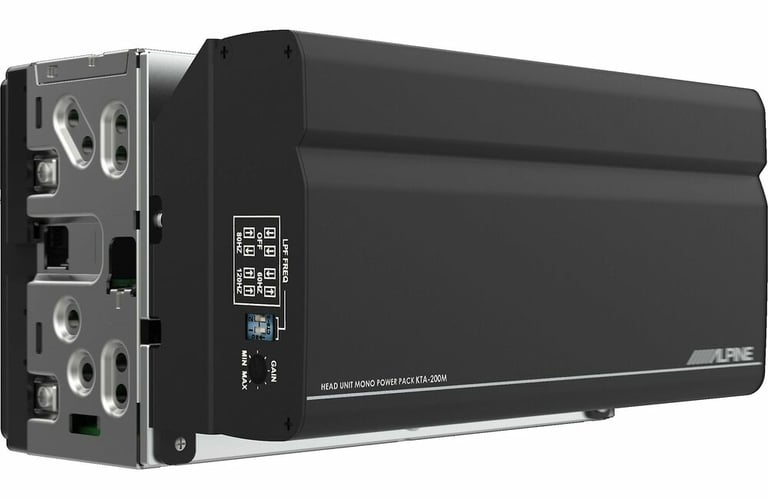

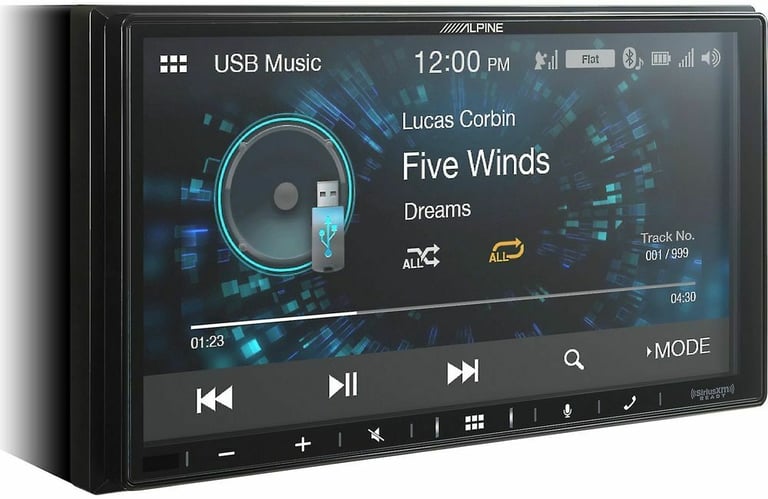

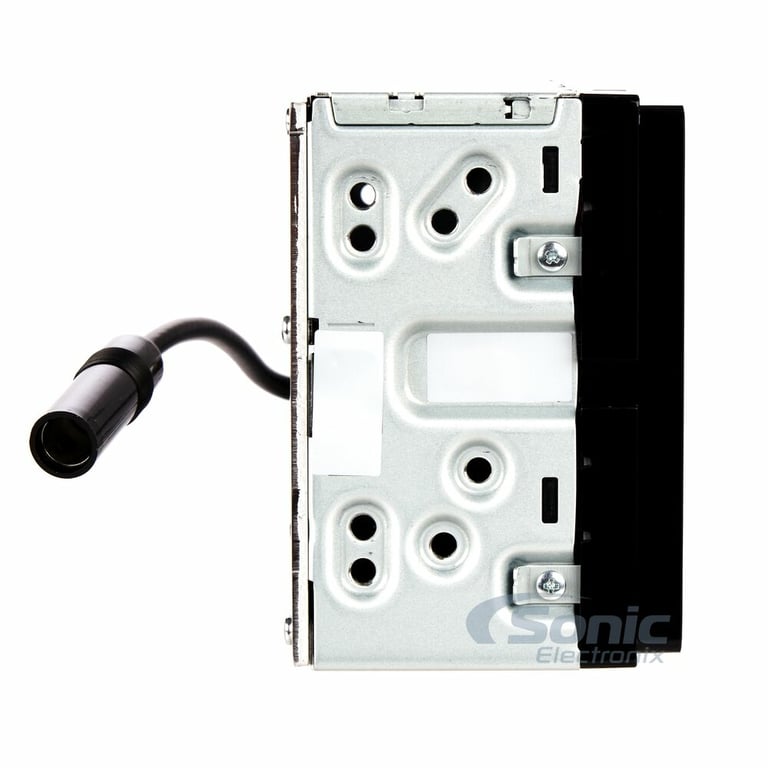

The KTA-200M fits in the open space behind Alpine’s iLX-W650 7-inch Mmech-Less (no CD/ DVD) Audio/Video receiver to create Alpine’s unique PowerStack application. The compact footprint of the amplifier (7-inch W x 1.5-inch H x 3.5-inch D) and the shallow chassis of the iLX-W650 (1.9-inch D) occupies the same depth as a traditional 2-DIN chassis, resulting in an easy, hideaway bass solution that adds more power to the sound system without taking up space.

The KTA-200M follows the same format as the KTA-450 4-Channel Power Pack Amplifier, in compact size, easy installation and overall power. Both amplifiers, while designed to “stack” behind the iLX-W650, or similar 2-DIN radio, can also be used as standalone solutions in vehicles that don’t have space for a traditional amplifier.

Dynamic Bass

the KTA-200M produces 400 watts with Alpine’s DPP technology. During powerful, or “dynamic,” passages of music, DPP will adapt to the needs of the music by adjusting the gain of the amplifier and delivering bursts of power that match the peak demands of the music. Alongside that is the new voltage adapting input circuit to maintain the maximum source signal level without clipping.

General Features:

• PowerStack capable with the Alpine iLX-W650
• Alpine’s Class D Amplifier Circuit with DPP
• CTA-2006

Power Outputs:

• 100W x 1 RMS (4Ω, 14.4V, ≤1% THD+N)
• 200W x 1 RMS (2Ω, 14.4V, ≤1% THD+N)
• 400W x 1 DPP (2Ω, 14.4V, ≤1% THD+N)
• Signal to Noise Ratio 85dB (ref. 1W into 4Ω)
• ≤0.1% THD+N (ref. 10W into 2Ω)
• Single-side 22-pin connector
• RCA inputs (selectable, Low range=0.2-4V)

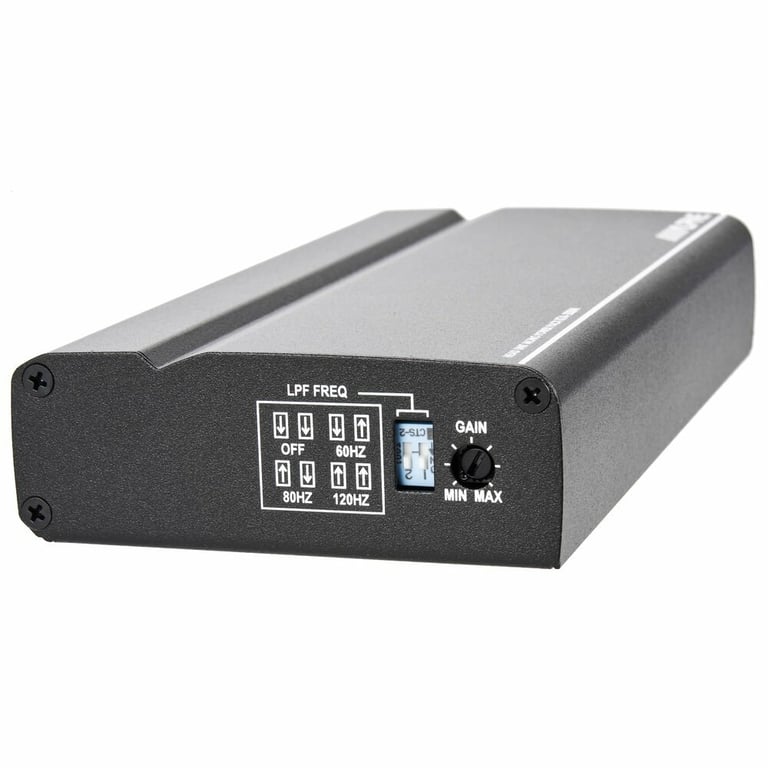

• Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
