See all parts that fit your 2008 Taurus X

Alpine ILX-W650 + KTA-200M Amplifier + S-W12D2 Subwoofer + Wiring Kit

7" Double DIN Receiver with 200W RMS Monoblock Amplifier, 600W RMS 12" Dual 2 Ohm Subwoofer and Amp Wiring Kit

Alpine
Shop all Alpine
highlight-star-icon

• Alpine Power Stack Complete Bass Package
• Works with Apple CarPlay® and Android Auto™
• Premium Audio/Video (AV) System (No CD/DVD)
• Unique ultra-shallow installation

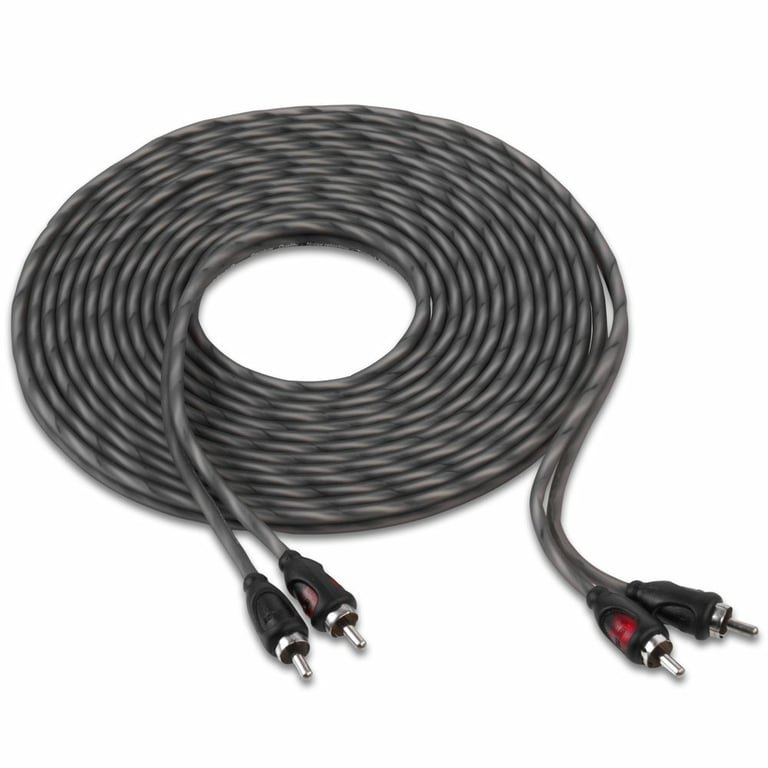

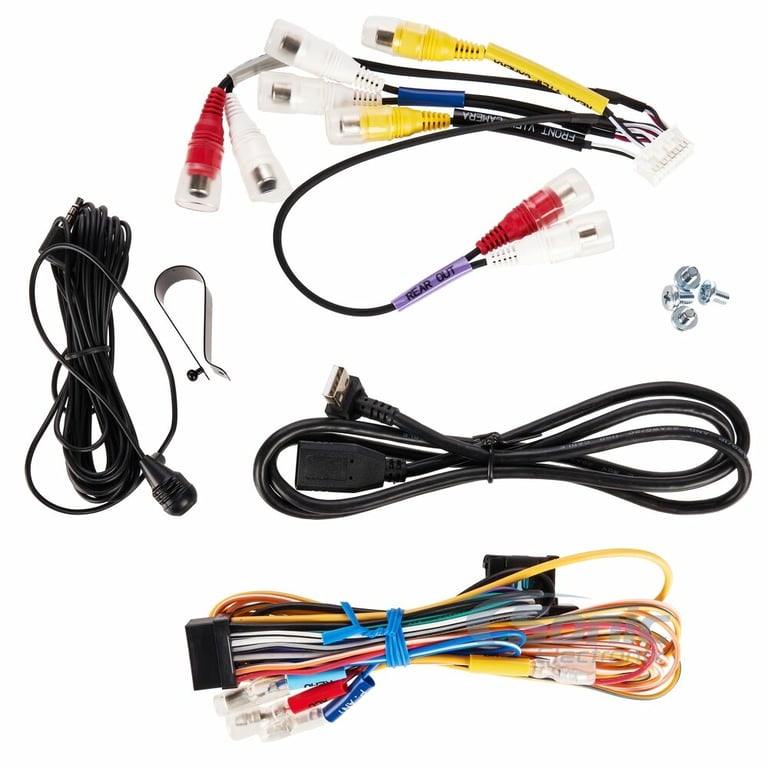

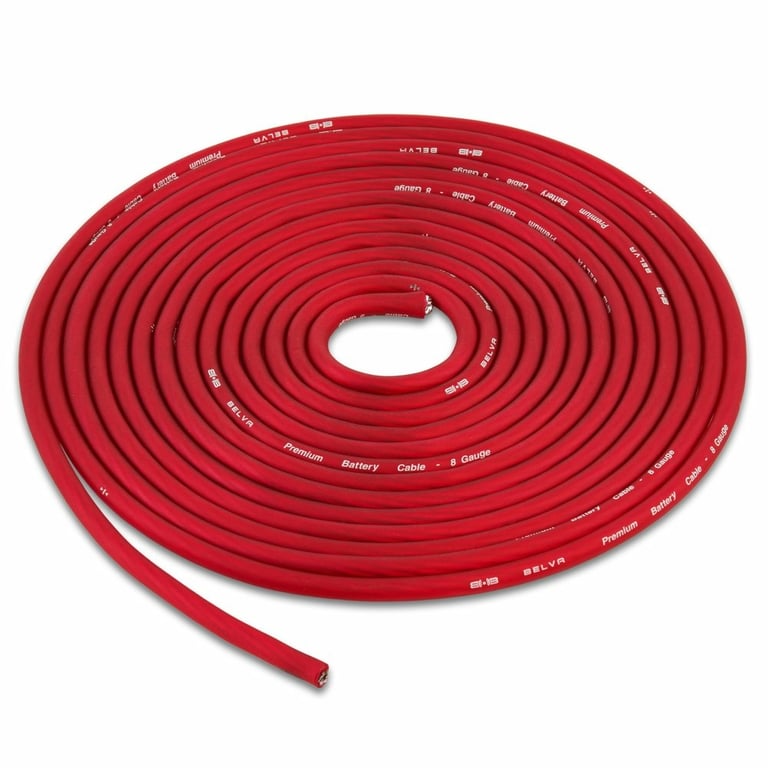

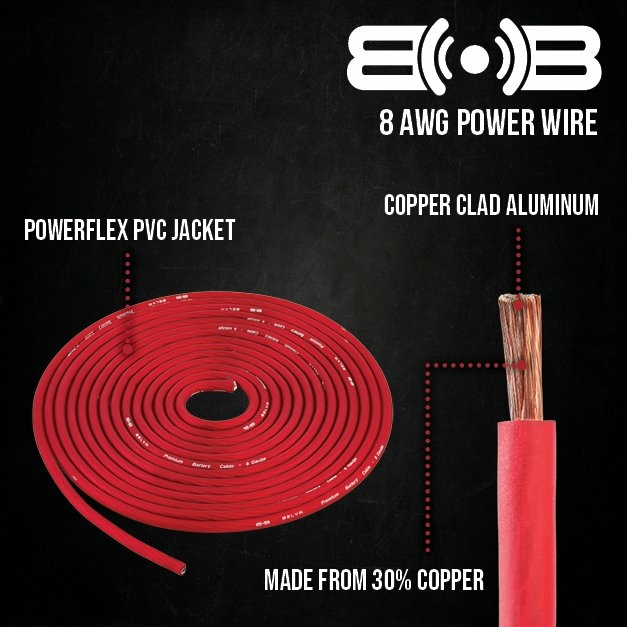

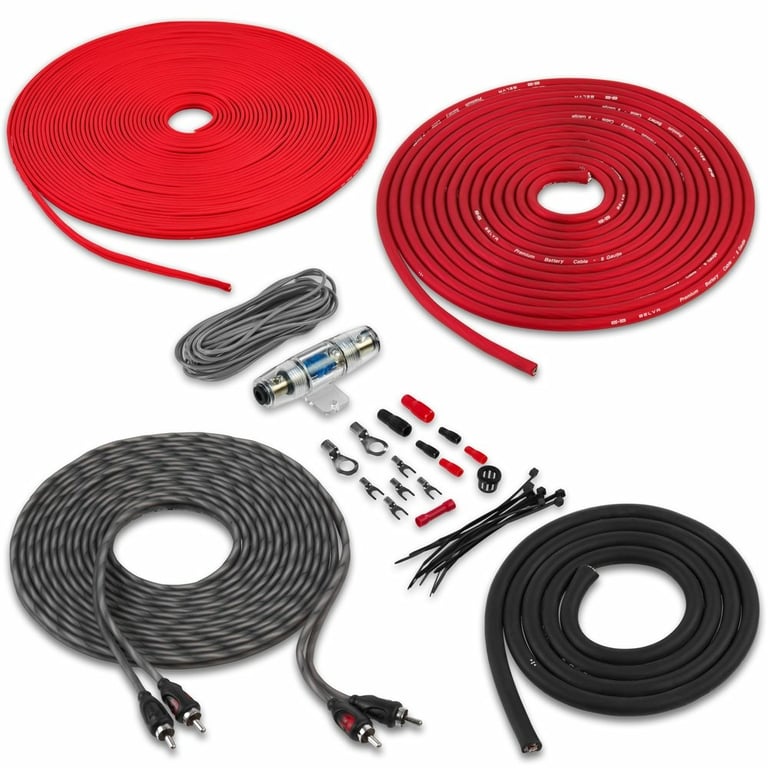

• Includes: Alpine ILX-W650, Alpine KTA-200M, Alpine S-W12D2, and Belva BAK82

Learn more about the kta200m_ilxw650_sw12d2

We apologize

This item has been discontinued


Loading...
NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

43DSC6804 main

Kicker DSC680 (43DSC6804)

400W Peak (100W RMS) 6x8” DS Series 2 Way Coaxial 4-ohm Car Speakers

13
-10.53%

$84.99

List price $94.99

DMH-341EX main

Pioneer DMH-341EX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Amazon Alexa

14
-31.43%

$240.00

List price $350.00

Pioneer AVH-241EX

6.2" Double DIN Touchscreen DVD Receiver with Bluetooth and Built-in Alexa

4
-13.16%

$329.99

List price $380.00

Description


Alpine brand icon

Authorized dealer

PowerStack Installation

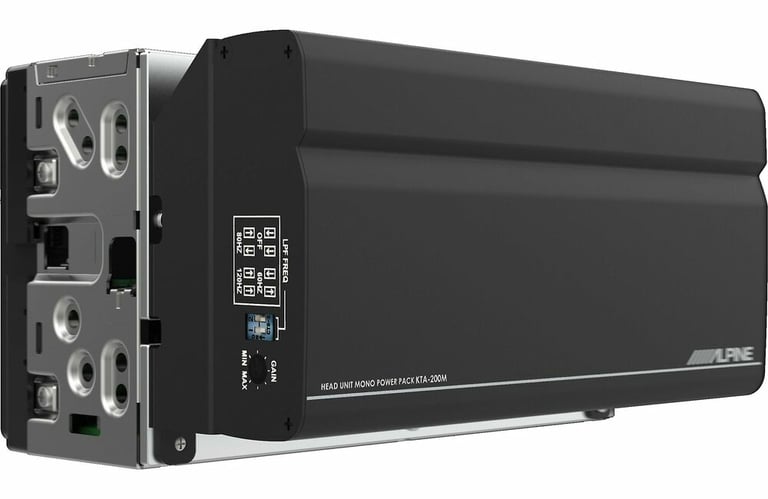

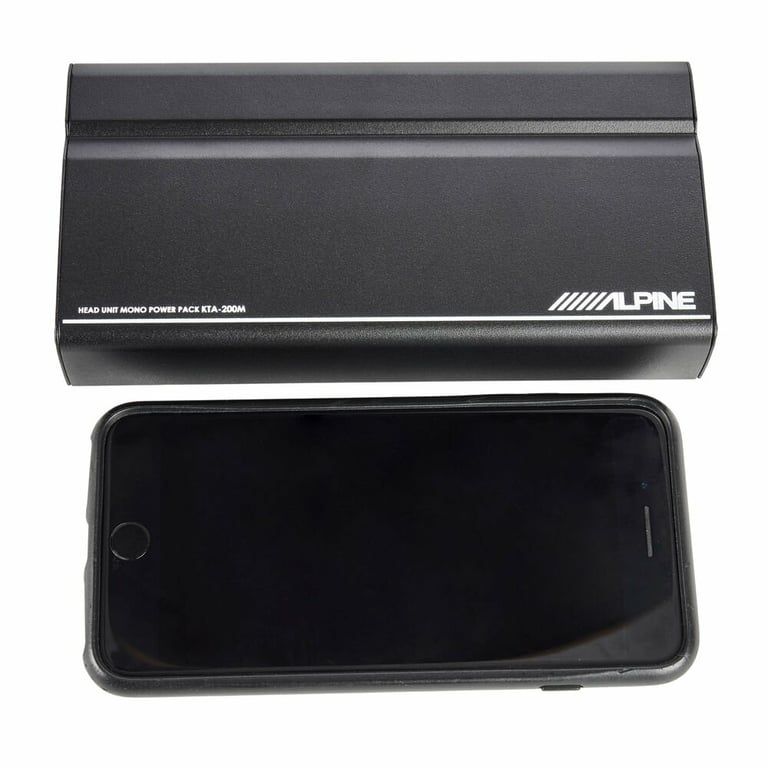

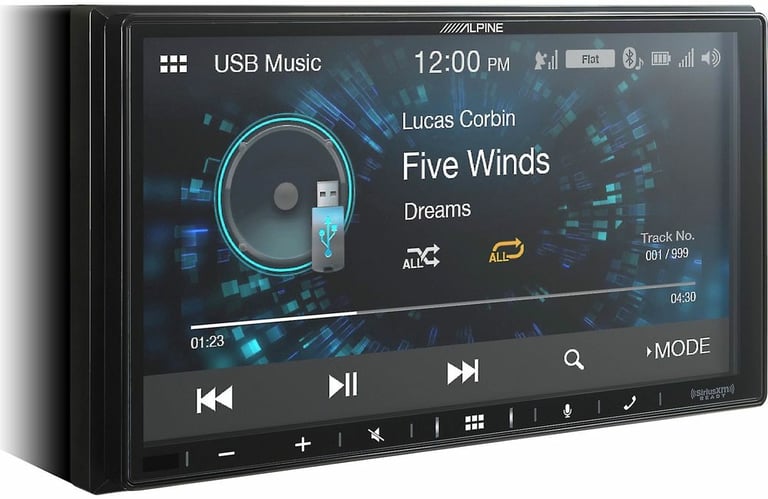

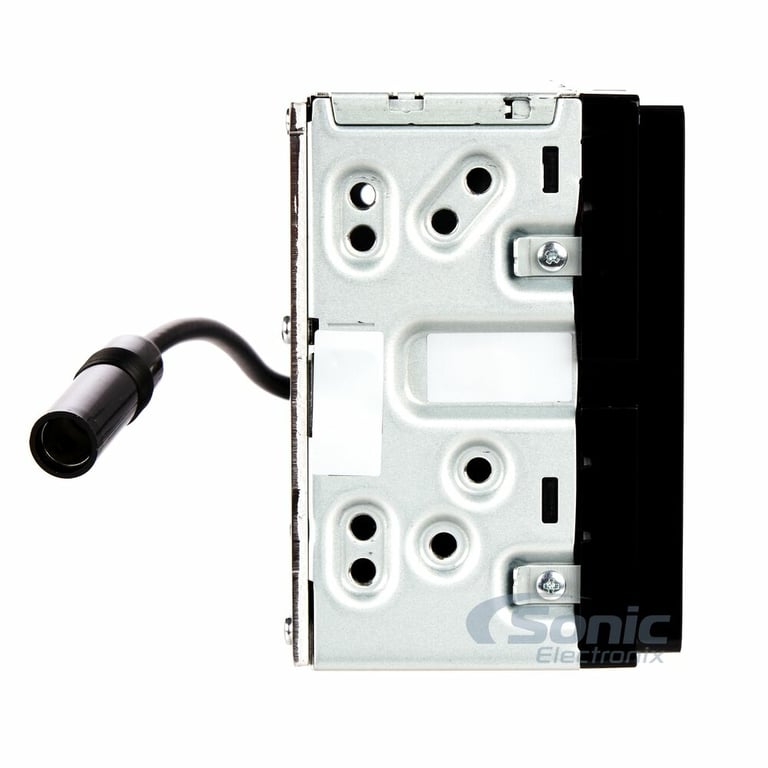

The KTA-200M fits in the open space behind Alpine’s iLX-W650 7-inch Mmech-Less (no CD/ DVD) Audio/Video receiver to create Alpine’s unique PowerStack application. The compact footprint of the amplifier (7-inch W x 1.5-inch H x 3.5-inch D) and the shallow chassis of the iLX-W650 (1.9-inch D) occupies the same depth as a traditional 2-DIN chassis, resulting in an easy, hideaway bass solution that adds more power to the sound system without taking up space.

The KTA-200M follows the same format as the KTA-450 4-Channel Power Pack Amplifier, in compact size, easy installation and overall power. Both amplifiers, while designed to “stack” behind the iLX-W650, or similar 2-DIN radio, can also be used as standalone solutions in vehicles that don’t have space for a traditional amplifier.

Dynamic Bass

the KTA-200M produces 400 watts with Alpine’s DPP technology. During powerful, or “dynamic,” passages of music, DPP will adapt to the needs of the music by adjusting the gain of the amplifier and delivering bursts of power that match the peak demands of the music. Alongside that is the new voltage adapting input circuit to maintain the maximum source signal level without clipping.

General Features:

  • PowerStack capable with the Alpine iLX-W650
  • Alpine’s Class D Amplifier Circuit with DPP
  • CTA-2006
  • Power Outputs:

    • 100W x 1 RMS (4Ω, 14.4V, ≤1% THD+N)
    • 200W x 1 RMS (2Ω, 14.4V, ≤1% THD+N)
    • 400W x 1 DPP (2Ω, 14.4V, ≤1% THD+N)
  • Signal to Noise Ratio 85dB (ref. 1W into 4Ω)
  • ≤0.1% THD+N (ref. 10W into 2Ω)
  • Single-side 22-pin connector
  • RCA inputs (selectable, Low range=0.2-4V)

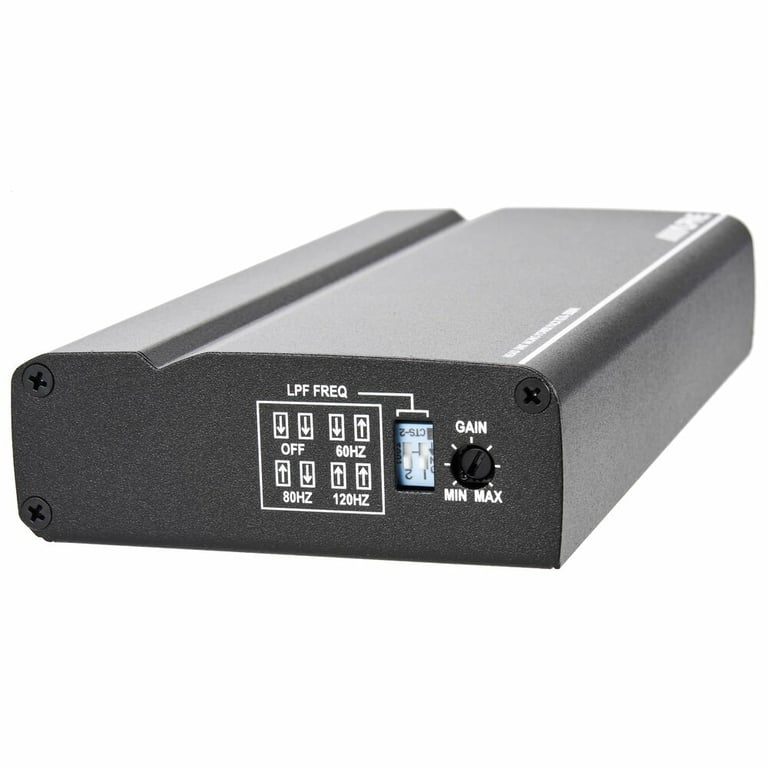

  • Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
100 watts x 1 channel
RMS Power @ 2 ohms
200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
400 watts
Total RMS Power Output
400 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
60 - 120 Hz
Signal-to-Noise Ratio
85 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
CEA-2031 Compliant
Yes

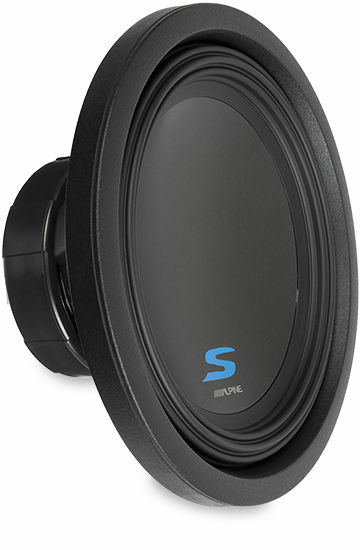

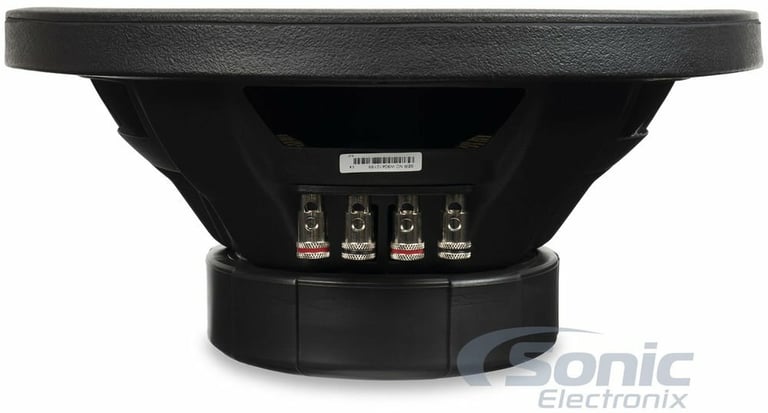

Subwoofer Specifications
Number of Subwoofers
1
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Total RMS Power Handling
600 watts
Total Peak Power Handling
1800 watts
Sensitivity
86.2 dB
Frequency Response
26 - 200 Hz
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KTA-200M, ILX-W650, S-W12D2

Weight:

28.85lbs

Internal SKU:

kta200m_ilxw650_sw12d2

Internal Product ID:

181009
