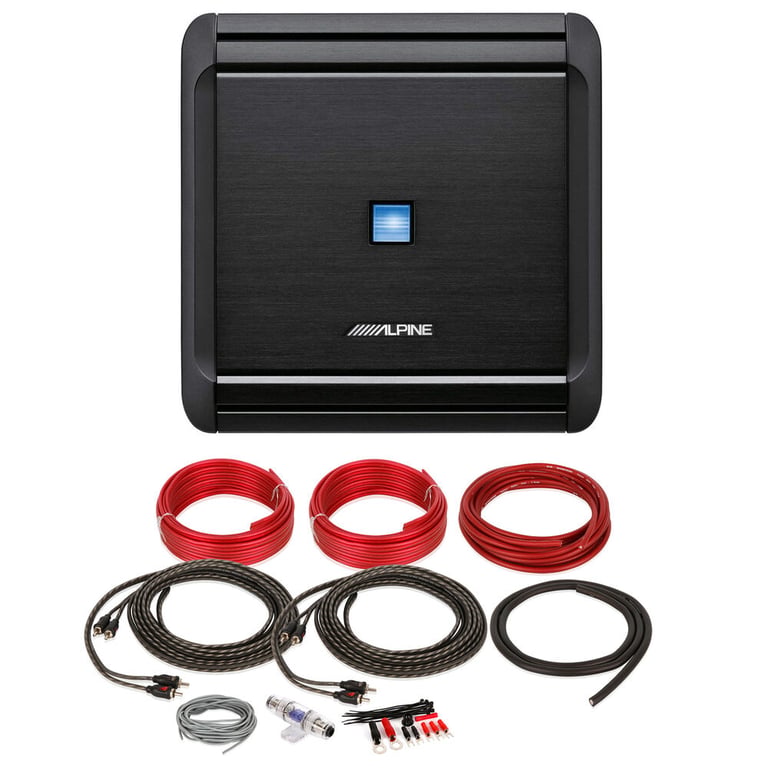

Alpine MRV-F300 with Amplifier Wiring Kit

300W 4-Channel Class D V-Power Series Compact Car Amplifier

Alpine
Shop all Alpine
highlight-star-icon

• RMS Power: 50W x 4-Chan. @ 4 ohm, 75W x 4-Chan. @ 2 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation

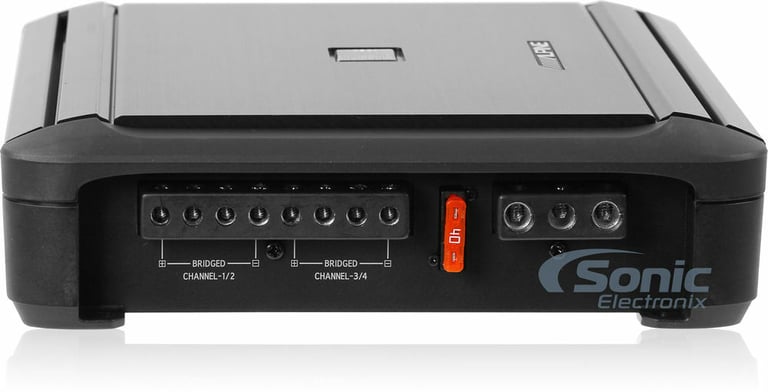

• 8 Gauge Power and Ground Inputs
• Includes Amplifier Wiring Kit

Learn more about the mrvf300_bak84

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

VPRO8BM main

NVX VPRO8BM (Sold Individually)

500W Peak (250W RMS) 8" V-Series Pro Midrange Loudspeaker

1
-40.48%

$49.99

List price $83.99

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Description


Alpine brand icon

Authorized dealer

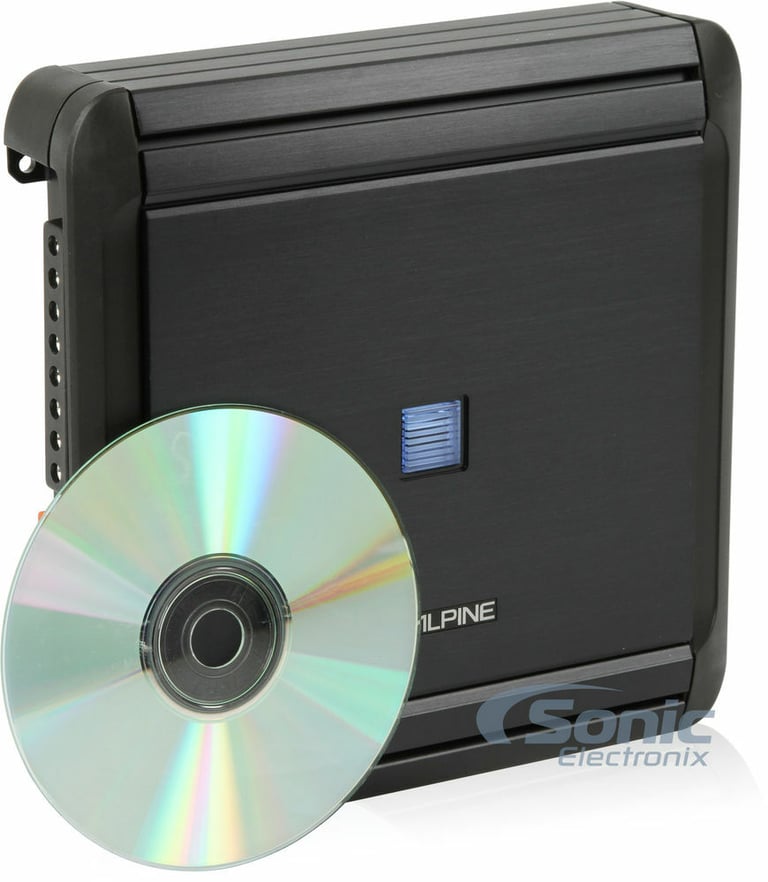

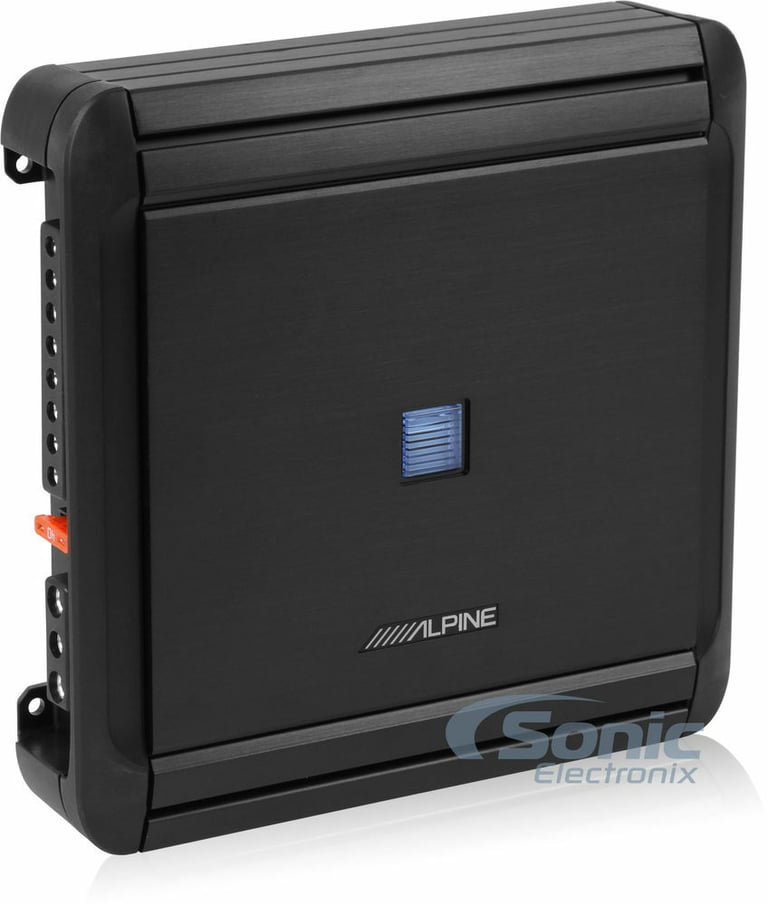

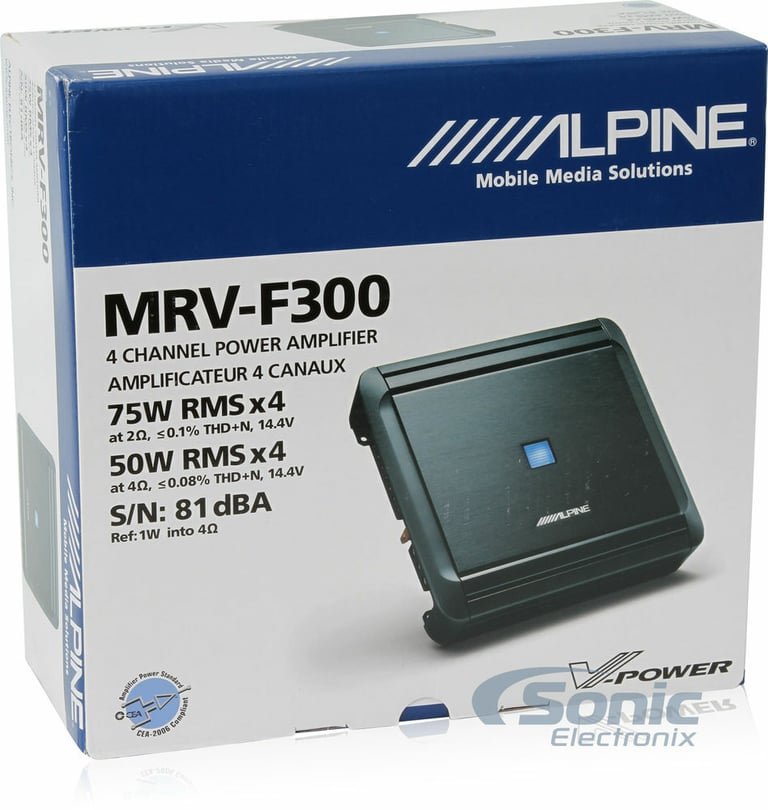

Alpine MRV-F300

300W 4-Channel Class D V-Power Series Compact Car Amplifier
Quantity: 1

General Features:

  • V-Power Series 4-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 chan.
    • 2 ohm: 75 watts x 4 chan.
    • Bridged, 4 ohm: 150 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Selectable Bass Boost (0 or +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 4/3/2 or Mono channel operation

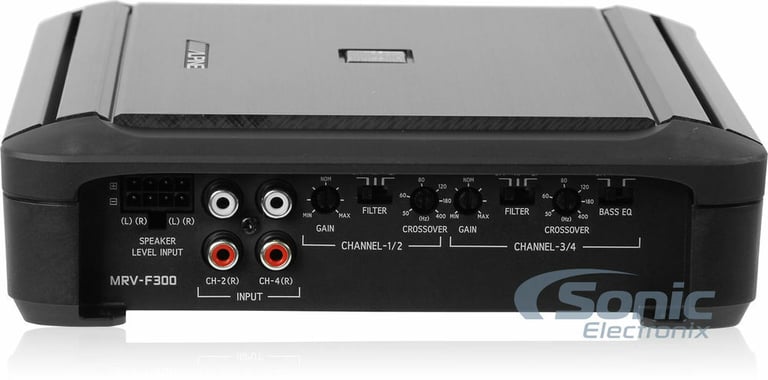

  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: 200mV-4V
    • High level: 500mV-10V
  • Variable high-pass filter (50-400 Hz, 12 dB/octave)
  • Variable low-pass filter (50-400 Hz, 24 dB/octave)
  • CEA-2006 compliant amplifier
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 7-7/8"W x 7-7/8"L x 2-3/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Alpine MRV-F300 Owner's Manual

Belva BAK84

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • 8 Gauge 4-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

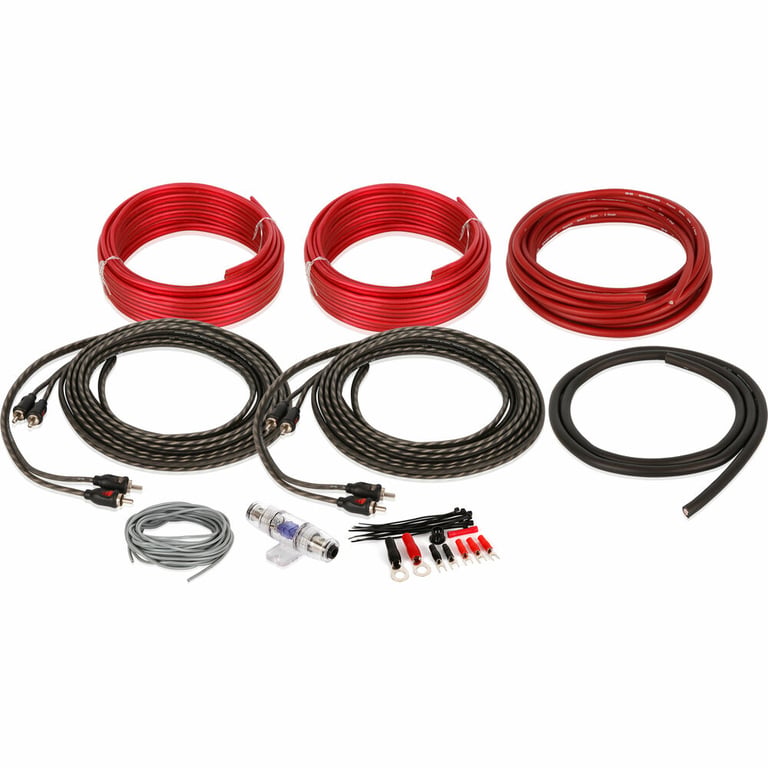

Kit includes:

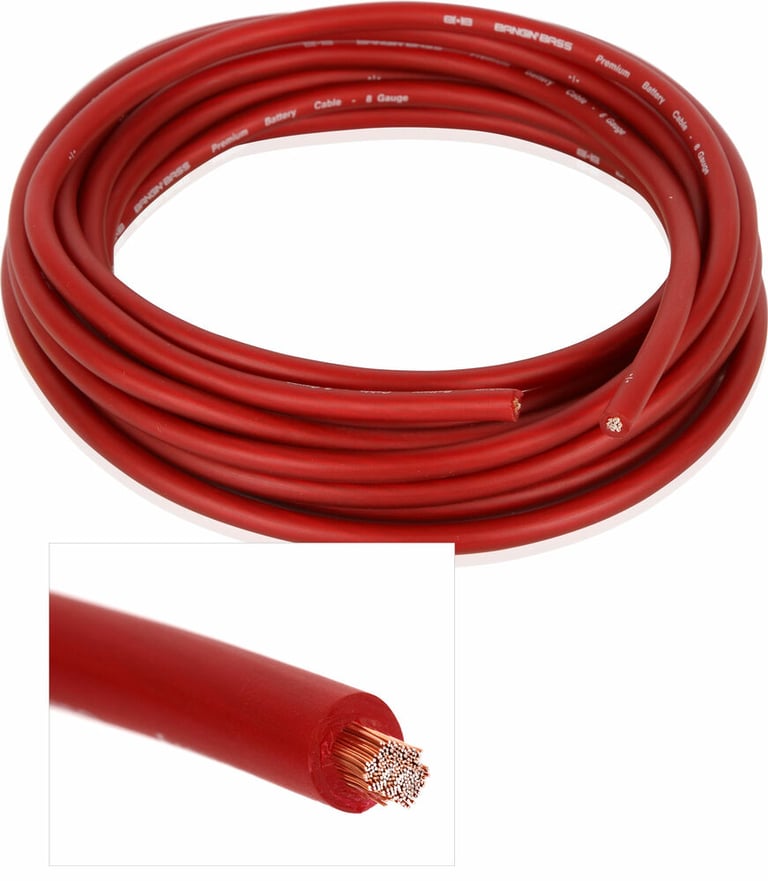

  1. 17 ft. Red 8 gauge power wire

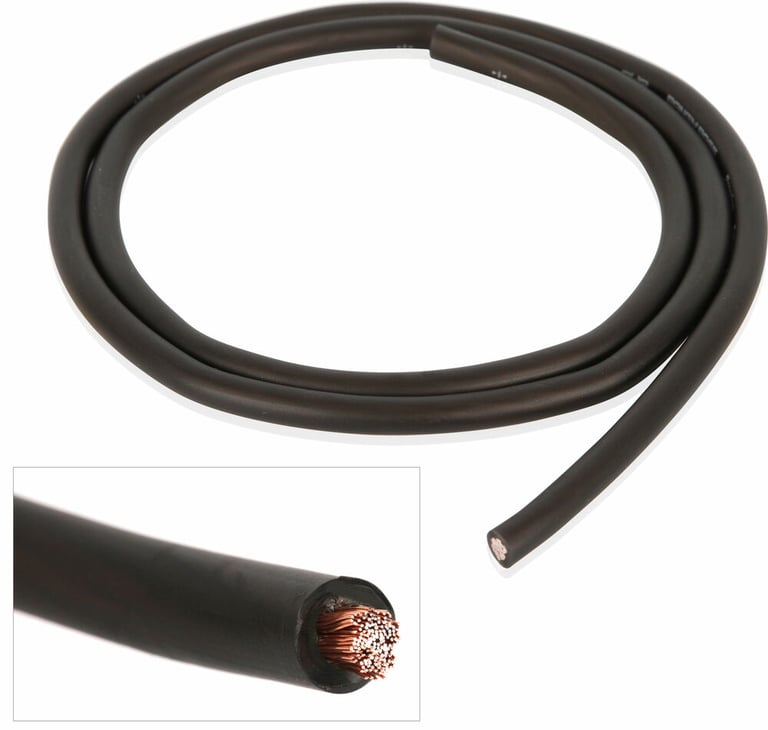

  2. 3 ft. Black 8 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire

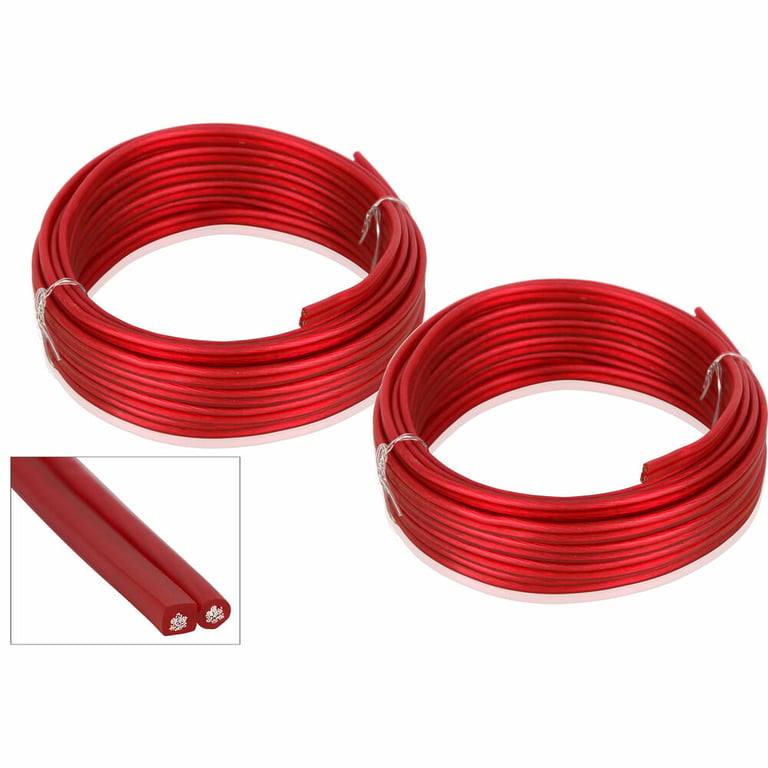

  4. 40 ft. 16 gauge speaker wire

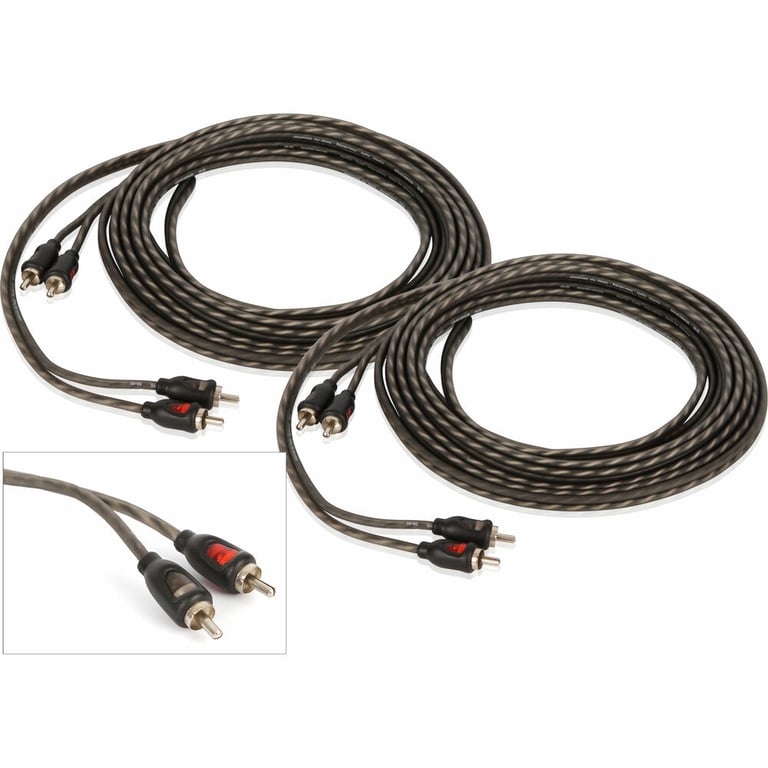

  5. One 17 ft. 4-channel twisted-par construction RCA interconnect Cable

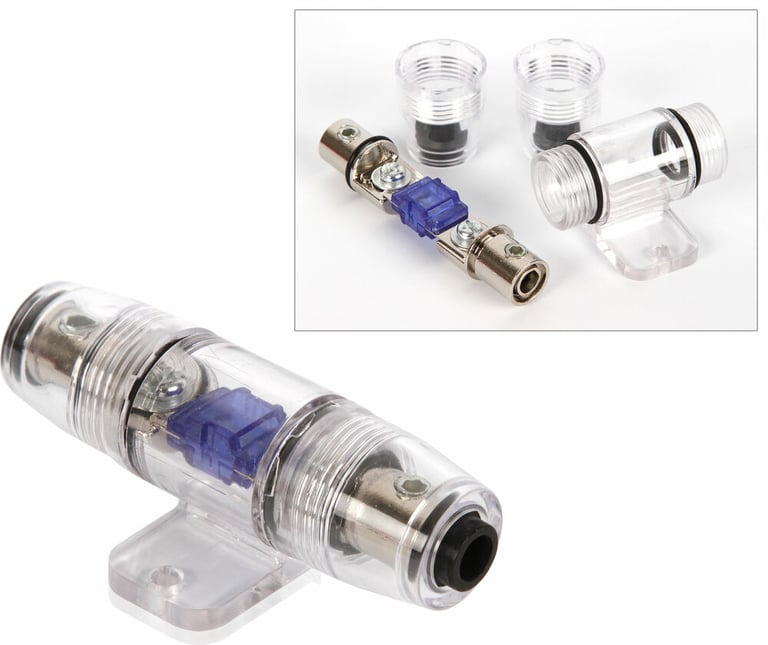

  6. One Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Product history:

Alpine MRV-F300, BAK84 thumbnail
(newest, current model)
Alpine MRP-F300 thumbnail
(previous model, replaced by Alpine MRV-F300 with Amplifier Wiring Kit)
Alpine MRP-F250 thumbnail
(previous model, replaced by Alpine MRP-F300)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

T500-1bdCP, BAK42 small

Rockford Fosgate Power T500-1bdCP & BAK42 4 AWG Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm, 500W x 1 @ 1 ohm
• Dynamic Power Output: 690W
• CEA-2006 Compliant
• Variable Bass Boost: 0 to +18 dB at 45 Hz
• Ultra Efficient Class bD Circuitry
• Dimensions: 11-7/16"L x 8-3/16"W x 2-3/16"H

(216)

$574.48

List price $609.98

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
Bridged RMS Power
150 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 400 Hz
Low-Pass Crossover Frequency
50 - 400 Hz
Signal-to-Noise Ratio
98 dB
Bass Boost
Selectable 0/+12 dB
Remote bass/level controller
No
Fuse Rating
40A x 1
Total Fuse Rating
40
CEA-2031 Compliant
Yes
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
8 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
40 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
4 Channel
Fuse Holder
Mini ANL
Fuse Size
60A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MRV-F300, BAK84

Weight:

8.80lbs

Internal SKU:

mrvf300_bak84

Internal Product ID:

181131

Customer Ratings & Reviews


Alpine MRV-F300 with Amplifier Wiring Kit thumbnail image

5 star
90%
4 star
8%
3 star
1%
2 star
1%
1 star
0%



Durability
4.9
Value
5
Features
4.9
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

Great value

The following review is for BAK84, which is a part of the bundle you are viewing.

Fast shipping works great with no problems. I would order other if i ever needed it

By Anonymous on August 5, 2018

86 found this helpful


Ok starter Kit

The following review is for BAK84, which is a part of the bundle you are viewing.

It's a ok kit to buy but check the RCA jacks my kit came defective one pair of RCA jacks failed. When I finished completely installing it in my truck and turned on the head unit only to fine out 3 of my 4 channel amp was working had to take out the multimeter tested the Amp then uninstall all the head unit tested RCA jacks and one pair was defective I would assume that they would work they are New. So save time and test the RCA jacks for continuity.

By JESUS C on December 28, 2020 Checkmark Icon Verified purchase

83 found this helpful


Great value!

The following review is for BAK84, which is a part of the bundle you are viewing.

Fast shipping and I recommend it for anyone. Everything u see in the picture is what u get.

By Anonymous on August 14, 2018

86 found this helpful


Good Value Kit!

The following review is for BAK84, which is a part of the bundle you are viewing.

Everything I needed and good quality wire, not like some other cheap thin gauge wire you get in similarly priced kits elsewhere.

By Adam on February 1, 2018 Checkmark Icon Verified purchase

83 found this helpful


Works as said

The following review is for BAK84, which is a part of the bundle you are viewing.

Everything needed for a 4 ch amp install. Better quality than other cca kits I have used before. Nice thick strands.

By brian on October 19, 2015

82 found this helpful


Great deals

The following review is for BAK84, which is a part of the bundle you are viewing.

I recommend this to anyone. The shipping is fast and you always get a good deal.

By Anonymous on September 22, 2018

80 found this helpful


Great value

The following review is for BAK84, which is a part of the bundle you are viewing.

Included in a bundle package for the price well worth it

By Chad on September 15, 2017 Checkmark Icon Verified purchase

77 found this helpful


Awesome Buy

The following review is for BAK84, which is a part of the bundle you are viewing.

It was everything I needed one package for a great price

By Frankie on April 24, 2017

76 found this helpful


Works as said

The following review is for BAK84, which is a part of the bundle you are viewing.

Works good and is high quality cca wiring, better than many others I have used. Fine for about a 400 watt rms 4 ch amp set up. Larger go with 4ga to be safe.

By brian on November 15, 2015 Checkmark Icon Verified purchase

75 found this helpful


Good value

The following review is for BAK84, which is a part of the bundle you are viewing.

Good value. All the stuff you need for a couple of speakers and a sub to an amp. Easier than buying it individually.

By Jason on April 11, 2020 Checkmark Icon Verified purchase

70 found this helpful




PZ-1520.2, BAK42 small

Crunch PZ-1520.2 with Amplifier Wiring Kit

1500W Powerzone Series 2 ohm Stable 2-Channel Class-A/B Amplifier

(172)

$89.99

List price $209.98

TN250/1-RB_REX10D4 small

400W Complete MTX Audio + RE Audio Bass Package

MTX Audio Terminator TN250/1 Amplifier + RE Audio REX10 Sub + 8 Gauge Amp Kit + 10" Ported Enclosure

(57)

$136.71

List price $479.96

GM5602DDSHB small

Scosche GM5602DDSHB

Double DIN, Full Dash Installation Solution for select 1999-2002 vehicles from GMC, Chevrolet (Shale)

(1)

$119.99

List price $198.31

HB 2 10-GRAY small

Ground Shaker HB 2 10-GRAY

10" Dual Sealed Hatchback Subwoofer Box

$89.95

List price $119.95

XM-GS100, XKIT42 small

Sony XM-GS100 Monoblock Amplifier with Amplifier Wiring Kit

1100W Max GS Series CEA Compliant Compact Monoblock Amplifier with High Level Inputs, Crossover Filters and a 3-year warranty! + NVX 4 Gauge 2-Channel Amp Wiring Kit

(131)

$252.99

List price $593.98

CLUB-5501AM, BAK42 small

JBL CLUB-5501 + Free Belva Amp Kit

1300W Peak (650W RMS) Club Series Class D Monoblock Amplifier

(71)

$169.95

List price $378.99

ST2.1000D, BAK82 small

Soundstream ST2.1000D Amplifier + 8 Gauge Amp Wiring Kit

1000W Max (500W RMS) Stealth Series 2 ohm Stable 2-Channel Class-D Amplifier

(98)

$139.98

List price $199.98

SQ 3 12-GRAY small

Ground Shaker SQ 3 12-GRAY

12” Triple Sealed Square Subwoofer Box

$119.95

List price $159.95

GM1520B small

Scosche GM1520B / GM1520

Double DIN or Single DIN w/ Pocket Installation Kit for select 2005-2011 Aveo and Aveo5 and G3 Vehicles

(2)

$13.99

List price $17.70

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Audi A4 Quattro

2014 Kia Optima

2005 Dodge Viper

1989 Mercury Topaz

1988 Isuzu Pickup

1991 Jeep Cherokee

2000 Toyota Solara

2006 Toyota Camry

2009 Volvo S80

1981 Oldsmobile Ninety Eight Regency

Vehicle
Store
Delete

2024 Can-Am Defender XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
