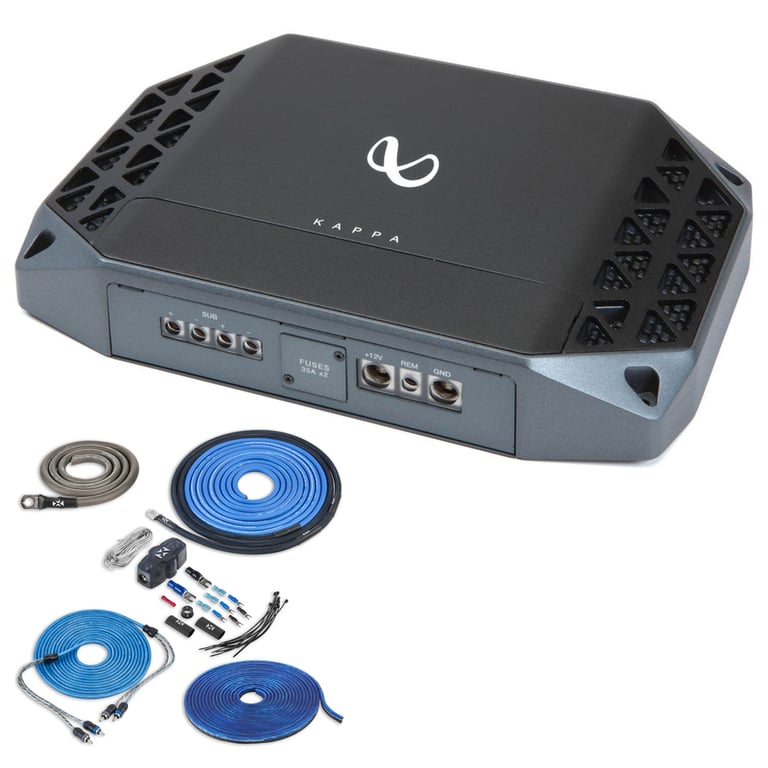

Infinity Kappa One 6 with Amplifier Wiring Kit

600W RMS Kappa Series Class D Monoblock Subwoofer Amplifier

Infinity
Shop all Infinity
highlight-star-icon

• Peak Power: 1500 watts x 1 chan
• 4 ohm: 380 watts x 1 chan.
• 2 ohm: 600 watts x 1 chan.
• Frequency Response: 10 - 320 Hz
• Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
• Includes Amplifier Wiring Kit

Learn more about the kappaone6am_xkit42

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Description


Infinity brand icon

Authorized dealer

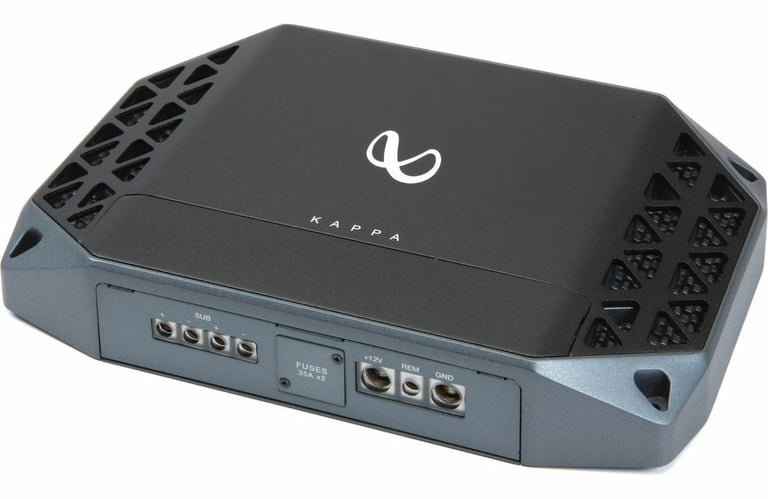

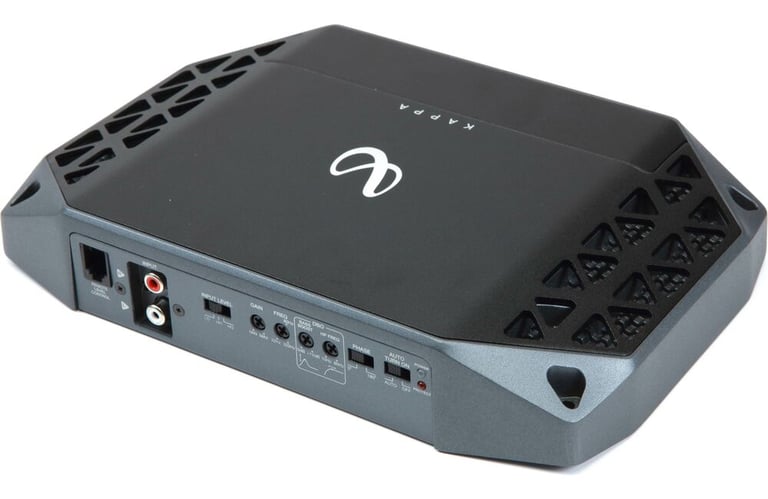

Infinity Kappa One 6 (KAPPAONE6AM)

1500W Peak (600W RMS) Class D Kappa Series Monoblock Car Amplifier with Bass Remote
Quantity: 1

Product Details:

  • Kappa Series Class D 2 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 380 watts x 1 channel
    • 2 ohm: 600 watts x 1 channel
  • Total RMS power output: 600 watts
  • LED power (green) and protect (red) light indicator

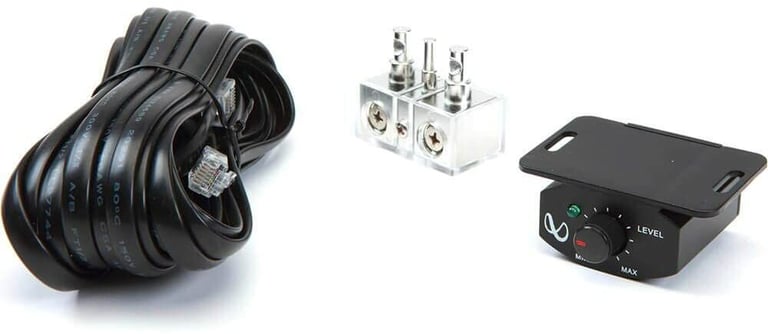

  • Wired bass level remote control included
  • Speaker-level (high-level) inputs via included adapter
  • Signal sensing remote turn-on
  • Engineered to deliver the lowest distortion possible
  • 4-way protection circuitry (short, temperature, over and under voltage)
  • Equipped with newly introduced E.A.R.L terminal for better grounding
  • Developed in a small compact form factor for more versatility
  • Anodized aluminum chassis and screwdriver access concealed by panel
  • Clean and streamlined industrial design
  • Features a DBO (Dynamic Bass Optimizer)
  • Input sensitivity:
    • Low level: 0.2 - 2 volts
    • High level: 2 - 20 volts
  • Frequency Response: 10 - 320 Hz
  • Total Harmonic Distortion (THD): 0.1%
  • Signal to Noise Ratio: 80 dB
  • Variable low-pass filter: 32 - 320 Hz
  • Subsonic (sealed): set frequency to 35 Hz and adjust boost control
  • Subsonic (vented): set frequency to 10 Hz and adjust boost control
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 70A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 10.23" L x 6.97" W x 1.69" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: Kappa One 6

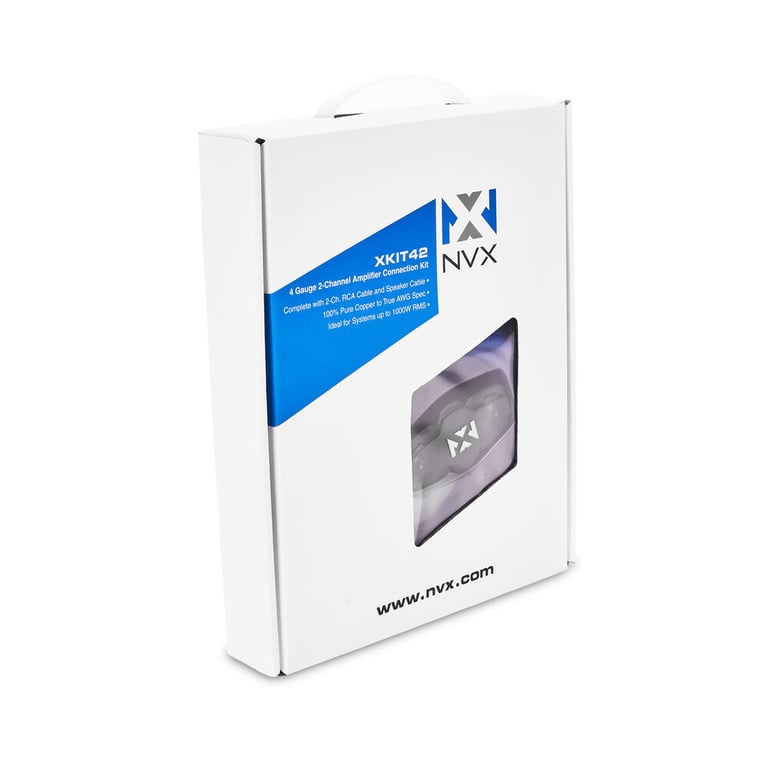

NVX XKIT42

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

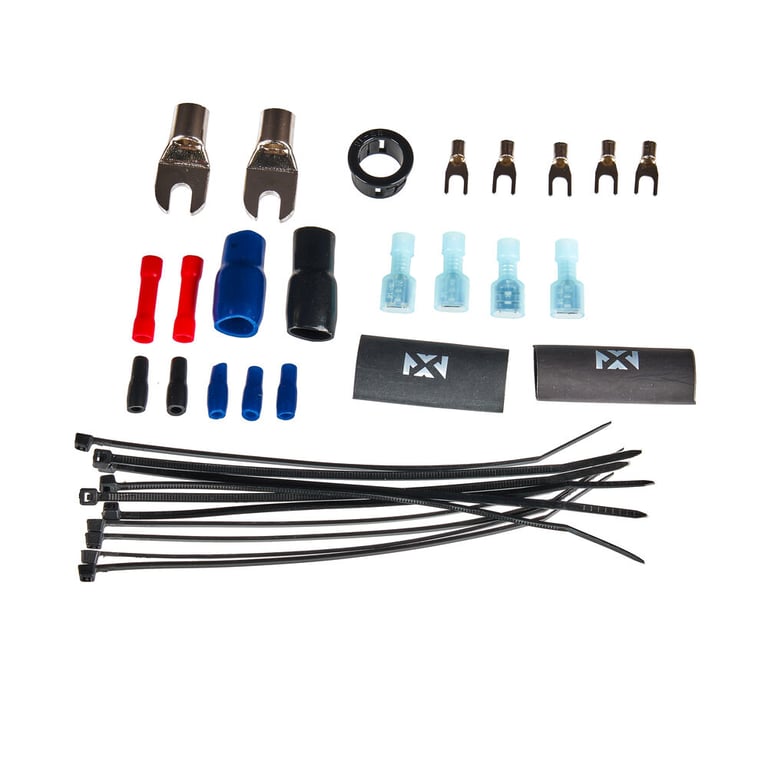

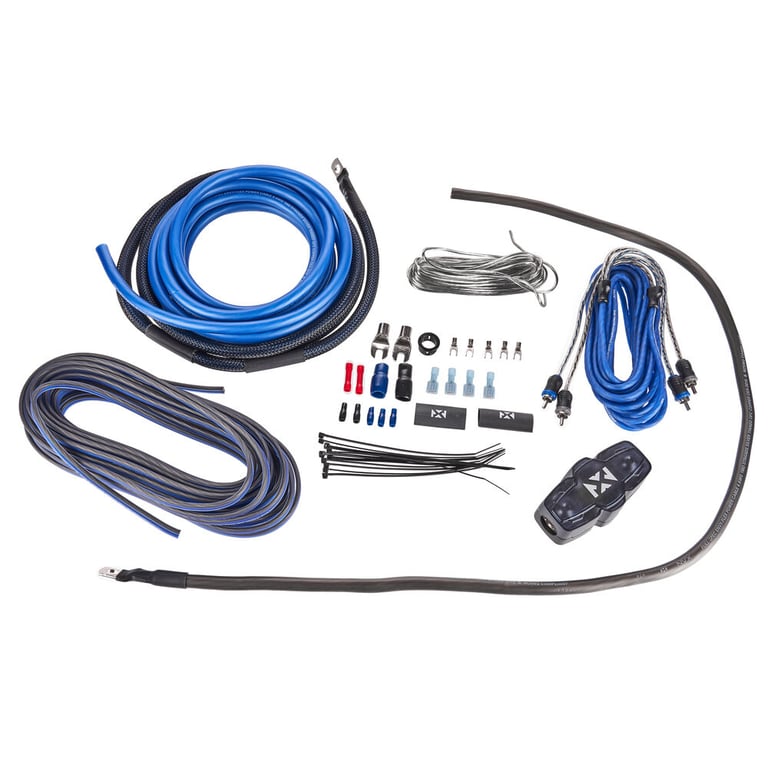

Kit includes:

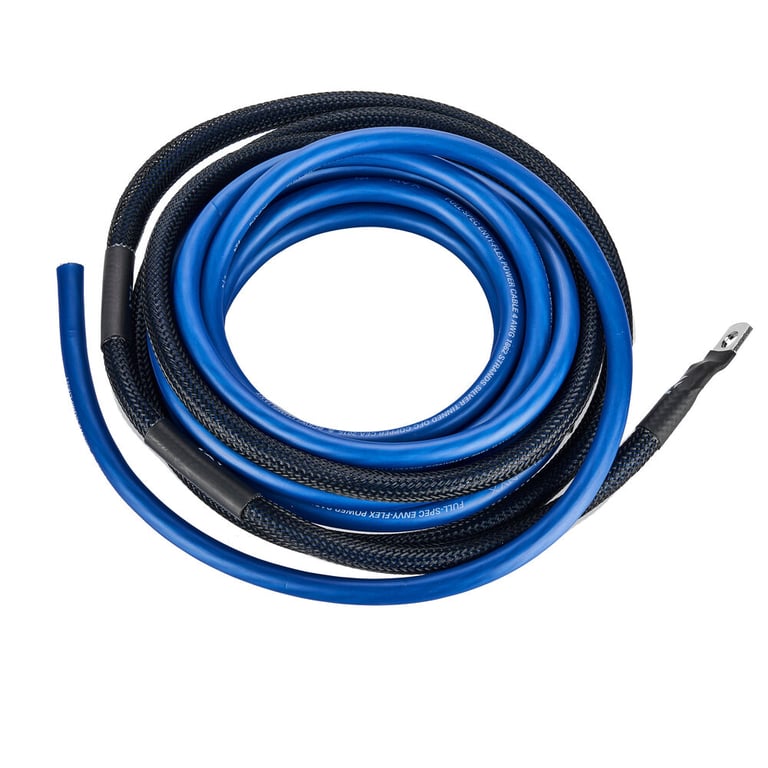

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal

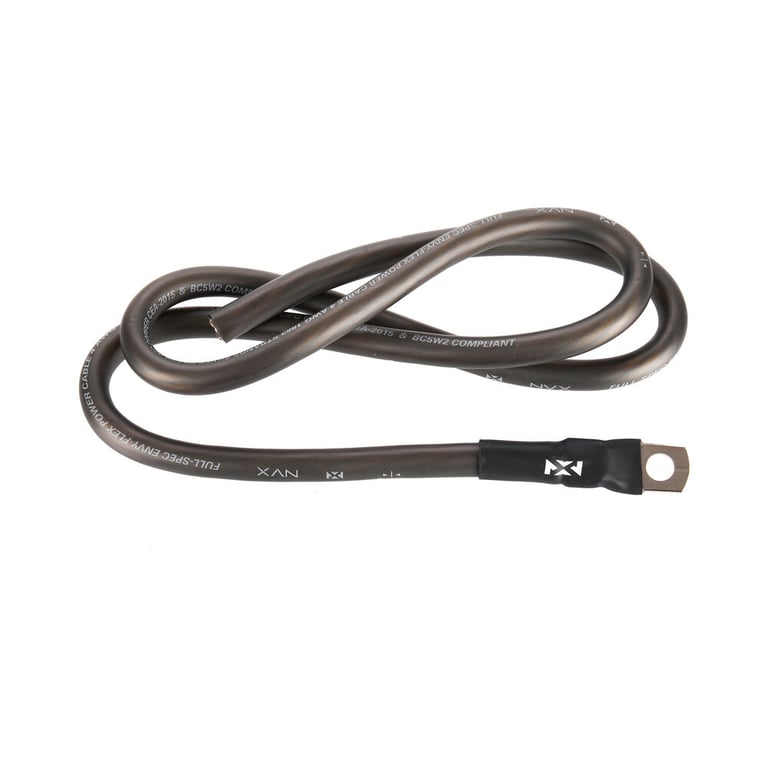

  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire

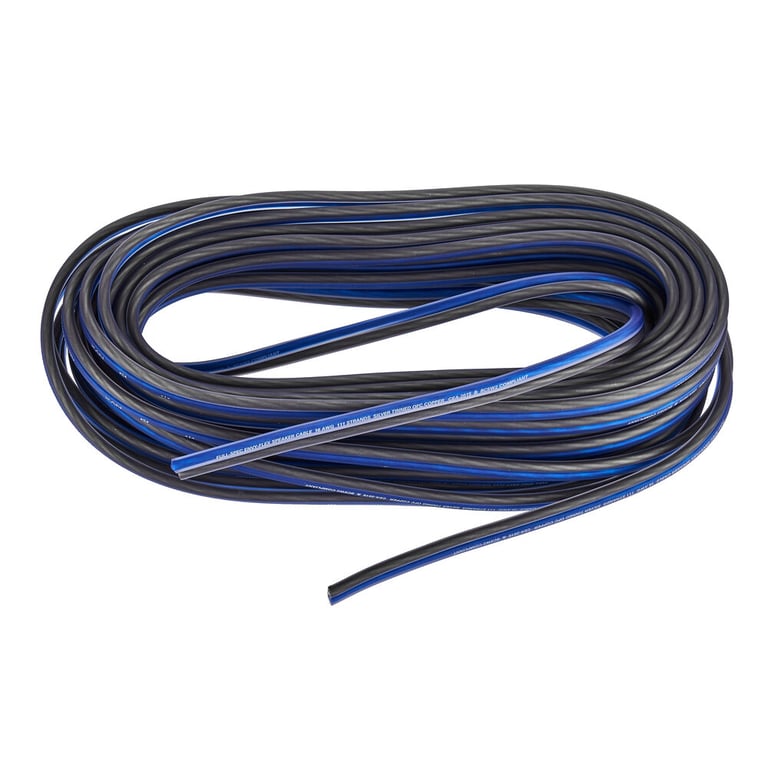

  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire

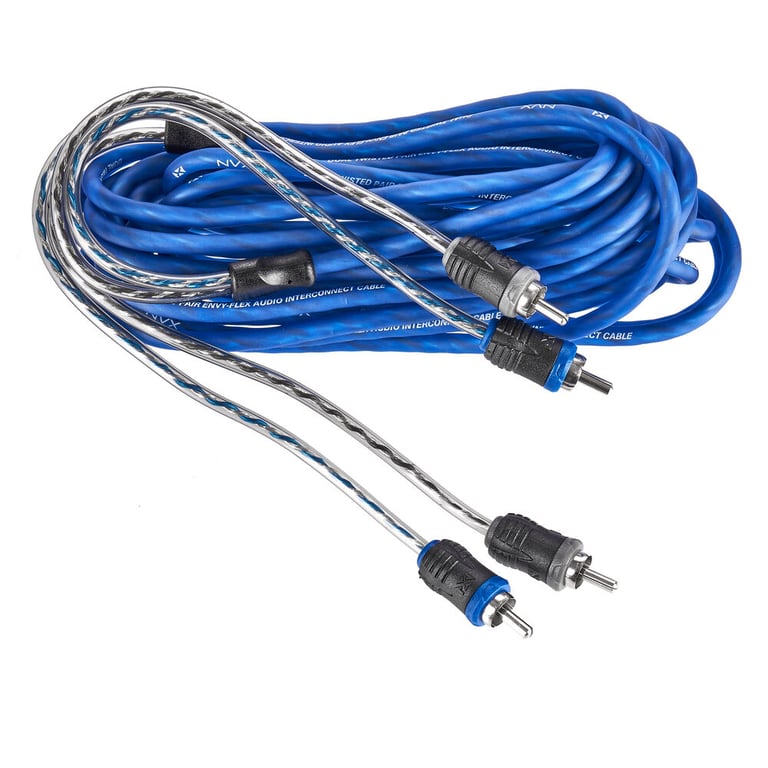

  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

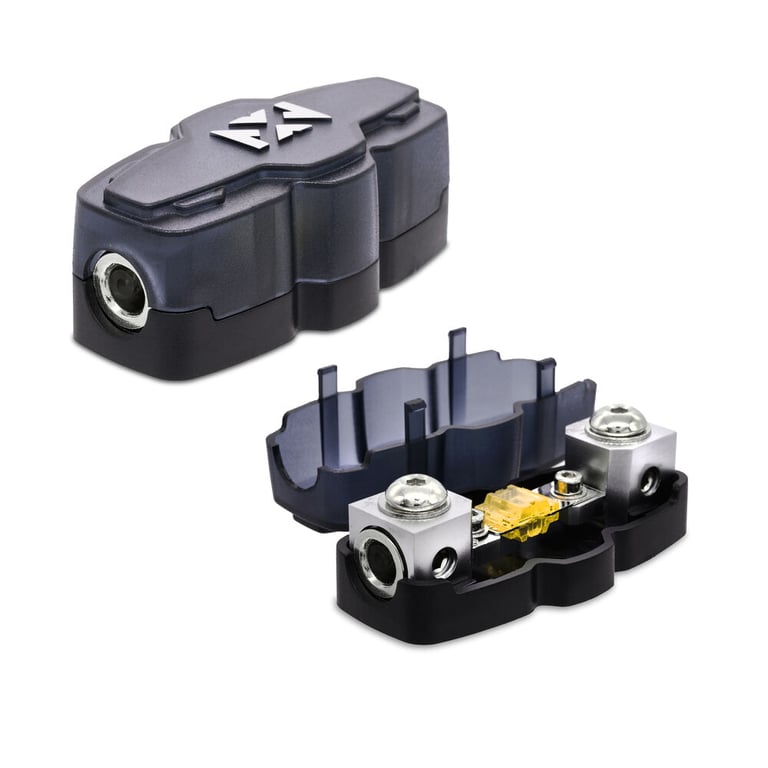

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
380 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1500 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
32 - 320 Hz
Subsonic Filter
10 - 80 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 2
Total Fuse Rating
70
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KAPPAONE6AM, XKIT42

Weight:

13.40lbs

Internal SKU:

kappaone6am_xkit42

Internal Product ID:

181179

Customer Ratings & Reviews


Infinity Kappa One 6 with Amplifier Wiring Kit thumbnail image

5 star
84%
4 star
15%
3 star
1%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
5
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Durable

The following review is for XKIT42, which is a part of the bundle you are viewing.

The wire is so thick for quality sound production and yet so flexible. I didn't do my own install but the installer guy asked me about the kit and seemed to like the ease it offered

By Joseph on September 18, 2013

161 found this helpful


Quality

The following review is for XKIT42, which is a part of the bundle you are viewing.

Top quality kit. The power cable is very easy to bend, and the fuse block is well built. My only complaint is the oddball fuse

By Alex on January 13, 2014

156 found this helpful


NVX XKIT42

The following review is for XKIT42, which is a part of the bundle you are viewing.

This is the perfect kit for anything around 1000 watts RMS. I have it hooked to a NVX JAD1200.1, and it is perfect. I literally have nothing bad to say about this kit. Every wire is true to gauge and it comes with plenty of wire, even 40ft of speaker wire! The RCA works great and the wires are strong and flexible. It'd be nice if it was a little cheaper, but it's definitely worth it. NVX makes some of the best, high quality wires and instillation equipment.

By Smuck on January 9, 2014

154 found this helpful


Real nice

The following review is for XKIT42, which is a part of the bundle you are viewing.

This is a really nice kit has everything you need

By Clint on July 17, 2014

153 found this helpful


Great service again

The following review is for XKIT42, which is a part of the bundle you are viewing.

Another great buy! Chris took care of me again! Every one looking for car audio and your not shopping here your getting robbed!!!! If you don't believe me check for yourself. Just the customer service makes it worth buying anything from here. And any questions you have they are quick to get back to you and help you out.

By craig on August 31, 2014

148 found this helpful


great product!!!!

The following review is for XKIT42, which is a part of the bundle you are viewing.

this has to be the best connection kit I have ever used.. everything was flawlessly constructed and everything you need is in the kit, remember you get what you pay for... I am using this in a small suv that has no carpet but herculiner throughout and I need pure copper for corrosion resistance.. could be cheaper I guess..

By Dan on September 20, 2013

149 found this helpful


Best wiring overall

The following review is for XKIT42, which is a part of the bundle you are viewing.

when i received this and opened it up i was amazed when i saw how a 4ga. wire could look so much like 0ga. and bend so easily. the speaker wire is so thick that you would not believe that it is speaker wire. the wires also make your music sound so much clearer than any other wiring can. all the components are the best in quality.

By Kevin S. on June 2, 2013

146 found this helpful


Not your average amp kit.

The following review is for XKIT42, which is a part of the bundle you are viewing.

If you're picking up a bad*ss amp, why wouldn't you pick up a PROPER wiring kit ?!
I've previously used NVX Power/Ground wire for a BIG 3 Upgrade install, and was blown away by the Quality of the wire. High Strand, True To Spec, Super Flexible, Very Durable, and Conducts Very Well. Same can be said for the Speaker Wire and RCAs. I wish NVX made a kit with their higher end RCA cables, but the ones with this kit definitely get the job done. The fact that the Power/Ground come Crimped and Shrink Wrapped really save on install time, and the flex wrap on the Power Wire makes the install look Very professional. I ended up using the other goodies (ties and connectors) for various other things, but its pretty cool that it comes with the kit.

By REM on July 8, 2014

146 found this helpful


Very good wires at a cheap price

The following review is for XKIT42, which is a part of the bundle you are viewing.

Wire if true to gauge, also 100 percent copper very cheap price for the better quality of wires you get plus the hyper flex material makes it very easy to run wires ,overall great wires for price

By jason on May 26, 2014

145 found this helpful


Love this kit

The following review is for XKIT42, which is a part of the bundle you are viewing.

Great true 4 gauge wire kit. Both power/ground cables are flexible easy to work with, rca calbe is great. This kit comes with everything you need for an amp install. I will be using NVX amp kits for now on future installs.

By Ben on January 9, 2014

143 found this helpful



7341X small

Clifford 7341X

LCD 2-Way Responder Remote for Clifford Matrix 1X

(4)

$69.99

List price $249.99

CO2000.4 small

Orion CO2000.4

2000W Cobalt Series 4-Channel Stereo Bridgeable Car Amplifier

$189.99

List price $299.99

VSM350 small

Viper SmartStart VSM350 (CDMA)

Add-On SmartStart GPS Module for Apple/Android Smartphone/Smartwatch

$199.99

List price $399.99

KD-ABT22 small

JVC Arsenal KD-ABT22

In-dash CD, MP3 Receiver with Built-in Direct Bluetooth, USB and Aux Inputs, iPod Connectivity and Remote

(7)

$179.99

List price $319.99

SPACE12D4-V4 small

VIBE Audio SPACE12D4-V4

12" Dual 4 ohm Space Series Car Subwoofer

(3)

$109.95

List price $399.99

JP-FPIN small

Metra JP-FPIN

Replacement Fender Rivets for Select 2018-2026 Jeep Wrangler and Gladiator (Pack of 30)

$10.99

List price $12.99

KW-ADV793 small

JVC Arsenal KW-ADV793

Double DIN In-Dash 7" Touchscreen Monitor w/ DVD, CD, MP3, WMA, WAV Receiver, Detachable Panel and USB Input

(3)

$379.99

List price $599.99

82-8157 small

Metra 82-8157

Speaker Mounting Adapter Plates for select 2022-2025 vehicles from Toyota (Sold as Pair)

$27.99

List price $29.99

No picture

NVX QBSTA (Open Box, Great)

900W Max (300W RMS) 11" Powered Spare Tire Subwoofer Box with Built-in Amp and Remote Bass Knob

(1)

$179.00

List price $299.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Lincoln LS

1980 Volkswagen Scirocco

2018 MINI Cooper

1992 Ford Escort

2021 Subaru Outback

1997 Ford Taurus

2005 Lexus SC430

2016 Ford C-Max

2001 Dodge Ram 2500 Van

2000 Cadillac Catera

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
