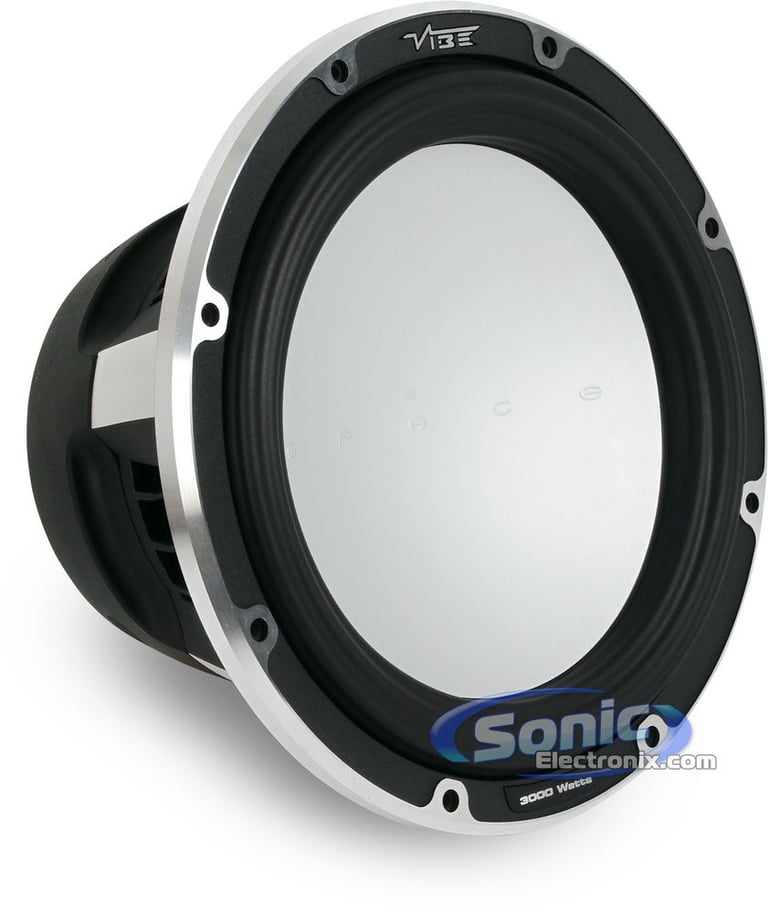

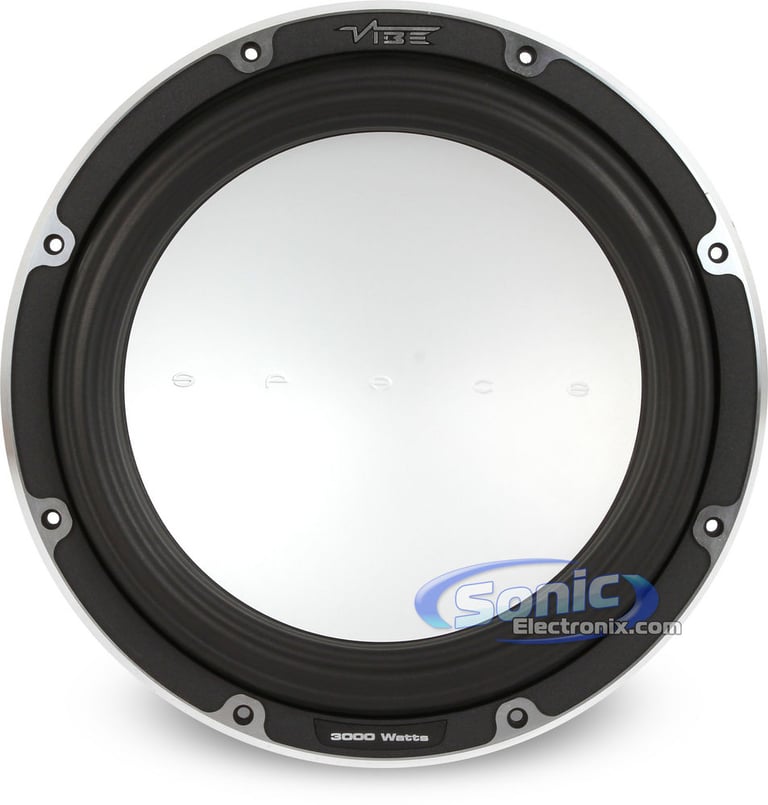

VIBE Audio SPACE12D4-V4 12" Dual 4 ohm Space Subwoofer

VIBE Audio SPACE12D4-V4

12" Dual 4 ohm Space Series Car Subwoofer

12" Dual 4 Ohm Space Series Subwoofer • 3000W Peak • 1000W RMS • One Piece Aluminum Cone • Designed Using Finite Element Analysis • Multi-Roll Surround • Machined Cast Aluminum Basket

We apologize

This item has been discontinued

DESCRIPTION
VIBE

Authorized dealer

Out of this World Bass

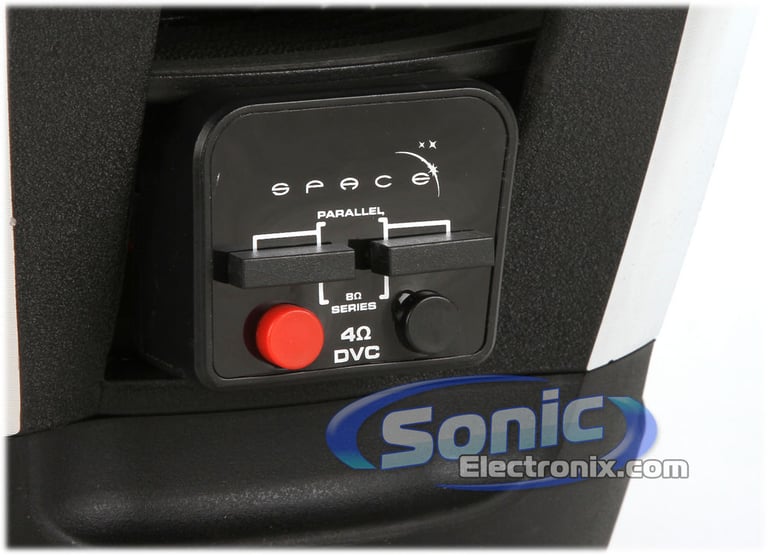

The Vibe Audio Space subwoofers are the perfect mix of sound quality and build quality. While the construction is rock solid, the sound quality is superb. This is a subwoofer that you can count on to have for many years in the future. High power handling and the large voice coil assist these Space subs in producing deep, clean bass. Vibe integrates pro terminals into the subwoofer basket to accept heavy gauge speaker cable as well as flexibility in both series and parallel wiring. Give you car out of this world bass with the Vibe Space subwoofers!

Vibe Audio Space Subwoofer

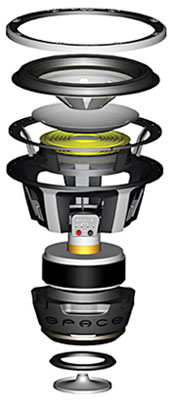

Anatomy of a Vibe Space Subwoofer

The more you understand how a subwoofer works, the greater appreciation you will have for these incredible Vibe Audio Space subwoofers. With incredible build quality and advanced materials, even the strictest audiophile will respect this sub. Defined by immense motor strength, superior power handling, low distortion and near perfect linear movement, Space subwoofers are literally the future of car audio.

1) Aluminum Front Gasket: The front gasket is made from high quality machined aluminum for a high-end aesthetic.

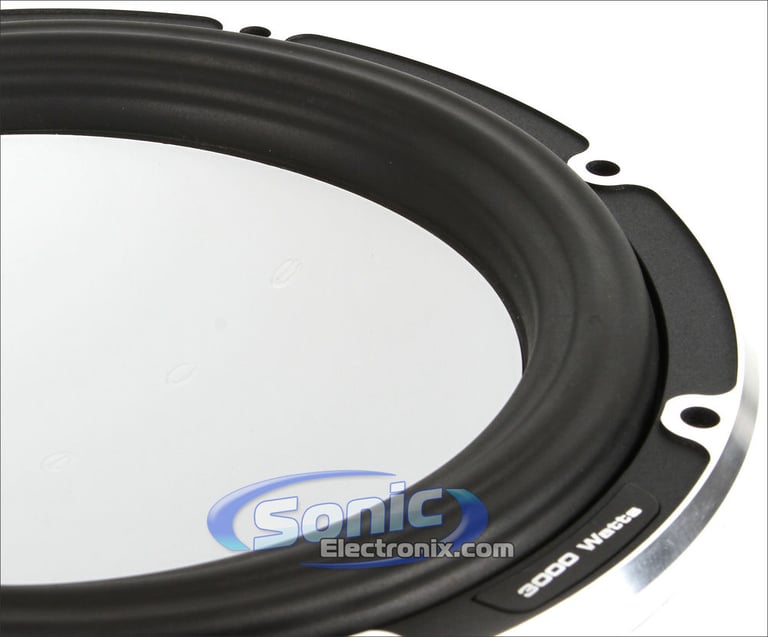

2) Multi-Roll Rubber Surround: Whilst traditional rubber surrounds will have different suspension characteristics at the extreme ends of excursion; The Space subwoofer features a specially developed foam rubber multi-roll surround allowing much better linearity throughout the subwoofers excursion range.

3) FEA Optimized Aluminum Cone: The FEA (Finite Element Analysis) designed aluminum cone delivers unmatched weight and dynamics, and is seamlessly joined to the flanged alloy voice coil for perfect unity, resulting in more efficient cooling.

4) Cone Design: The specially designed cone support adds rigidity without excessive weight to the subwoofer.

5) Single Spider: The single spider provides control and stability for the woofer cone for 100% linear movement.

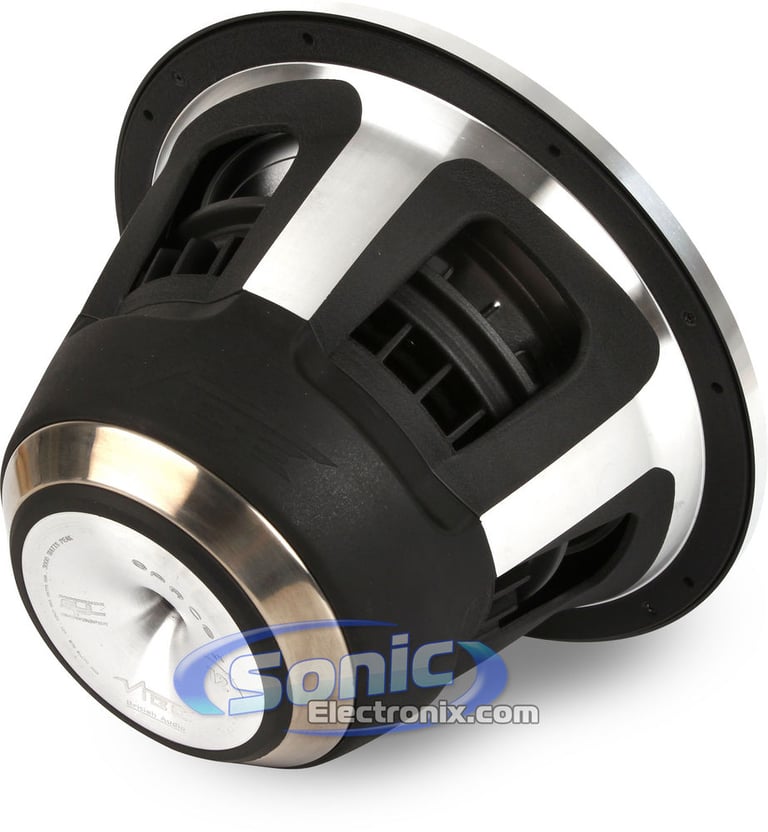

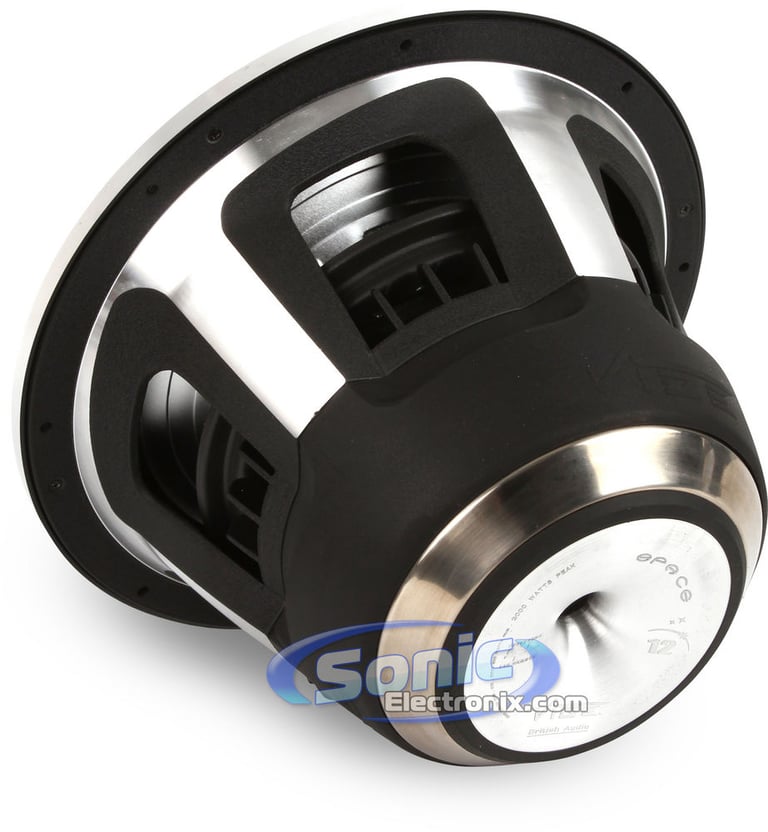

6) Aluminum Alloy Basket: The alloy torsion basket is machined from cast aluminum for high rigidity and support of the motor and moving parts of the subwoofer. The vented arms of the torsion basket cradle the coil and allow it to breathe cool air when in motion which offers significant performance gains.

7) Two Powerful Magnets: Double stacked Y30 ferrite magnets are used for immense power handling.

8) FEMM Motor: The subwoofer motor was designed using FEMM (Finite Element Method Magnetics) giving linear flux saturation and low distortion, to ensure great sound quality. Using FEMM we can use the maximum magnetic force of the Space’s double stacked magnets to drive the cone.

Vibe Space Subwoofer Features

  • 12" Dual 4 Ohm Space Series Subwoofer
  • Power Handling:
    • Peak: 3000 watts
    • RMS: 1000 watts
  • Impedance: Dual 4 Ohms
  • One piece aluminum cone for increased depth and bass clarity
  • Single spider provides control and stability for the woofer cone
  • Specially designed cone support adds rigidity without excessive weight
  • Cone designed using Finite Element Analysis to ensure maximum rigidity to weight ratio
  • Moving parts of the subwoofer can be replaced
  • Multi-roll surround achieves better linearity throughout the woofers excursion range
  • Heavy gauge cable connects directly to the voice coil for easy wiring
  • Alloy gasket made from high quality machined aluminum
  • Machined cast aluminum basket for high rigidity and support
  • Mechanical thermal unity increases heat dissipation
  • 3" Aluminum 4 layer voice coil
  • 120oz Y30 rated double stacked ferrite magnet for immense power handling
  • Removable rubber boot for magnet protection
  • Frequency response: 25-500 Hz
  • Sensitivity: 89 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
FEATURES & SPECS
Subwoofer Specifications
Subwoofer Series
Space
Subwoofer Size
12"
Peak Power Handling
3000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
Voice Coil Diameter
Frequency Response
25 - 500 Hz
Sensitivity
89 dB
Xmax (millimeters)
14 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Aluminum
Woofer Surround
Rubber
Magnet Structure
Subwoofer Grille
No
Re-Cone Kit Available
Yes (Accessory available and sold separately)
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.0 cubic feet
Optimum Sealed Box Volume
Maximum Sealed Box Volume
2.0 cubic feet
Minimum Ported Box Volume
2 cubic feet
Optimum Ported Box Volume
Maximum Ported Box Volume
2 cubic feet
Top-Mount Depth
7-7/16"
Cutout Diameter
11-1/8"
Shallow Mount Installation
No
Electromechanical Parameters
Free-Air Resonance (Fs)
Equivalent Compliance (Vas)
Total Speaker Q Value (Qts)
Electrical Q Value (Qes)
Electrical Resistance of Voice Coil (Re)
Mechanical Q Value (Qms)
Efficiency Bandwidth Product (EBP)
What is in the box?
WITB: Subwoofers
Paperwork
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Authorized Dealer
Authorized Dealer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
VIDEOS AND HOW - TO
REVIEWS
VIBE Audio SPACE12D4-V4

VIBE Audio SPACE12D4-V4

5.0

(3)

Write a review

Overall rating distribution

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
5
Value
5
Features
4.4
Design
5
Usability
4.7

Marcus

July 24, 2012

Great

just got it today and took it to get a box made cant wait to hook it up

Mike

July 16, 2012

Sharp piece of kit!

I built a box before I chose a sub, so I ended up having to match a sub to the box. Luckily, I had several options, but ended up settling on this Vibe Space 12" guy. I was looking for sound quality first, then flash, and honestly wasn't too sure about Vibe as I've never heard of them. But I figured I'd give it a shot, and if it sounded like junk, I could always return it.

It didn't.

I don't know how it compares against other subs in this price range as far as loudness goes (it gets loud enough for my needs) but I was pleasantly surprised with the sound quality. It isn't muddy at all, and looks pretty sharp. So far I'm happy, and I'd buy it again, it's a solid sub for the price.

Luis

October 28, 2011

Really good!

I just bought 2 of this and ooh boy i can make my whole house shake!!!

ACCESSORIES
WIRING GUIDE
Wiring Guide to Wire 1 VIBE Audio SPACE12D4-V4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 VIBE Audio SPACE12D4-V4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 VIBE Audio SPACE12D4-V4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 VIBE Audio SPACE12D4-V4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp
