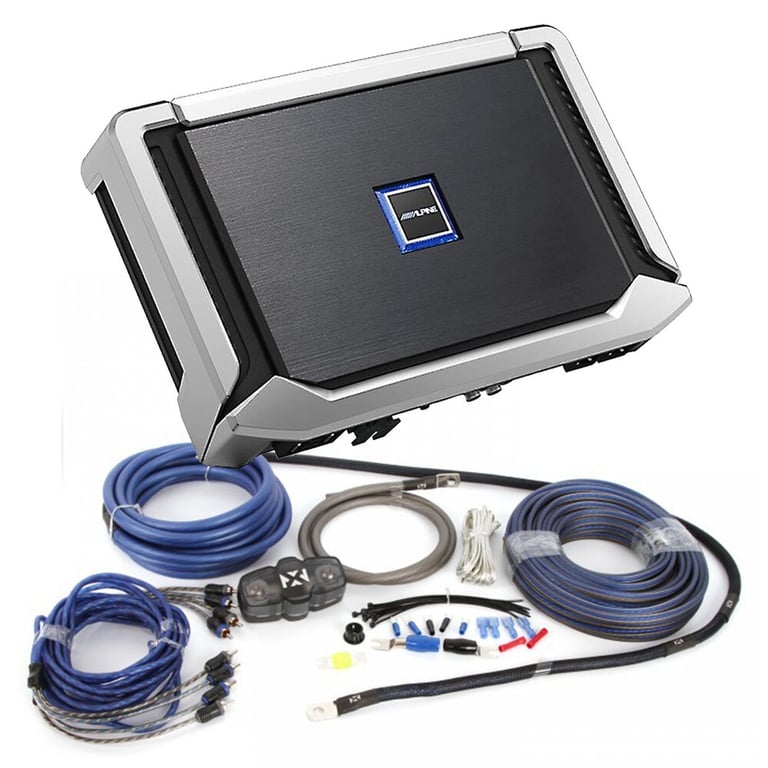

Alpine X-A70F Amplifier + Free High Quality NVX Amp Kit

700W RMS X-Series Class-D 4-Channel 2 ohm Stable Amplifier

Alpine
Shop all Alpine
highlight-star-icon

• 120 Watts RMS x 4 @ 4 ohms
• 715 Watts RMS x 4 @ 2 ohms
• 350 Watts RMS x 2 @ 4 ohms, Bridged
• CEA-2006 Compliant
• Low Pass and High Pass Filters
• 0 - 12dB Bass Boost
• Aluminum Heatsink
• Dimensions: 11-3/4" W x 7-5/8" L x 2" H

Learn more about the xa70f_xkit44

We apologize

This item has been discontinued

Description


Alpine

Authorized dealer

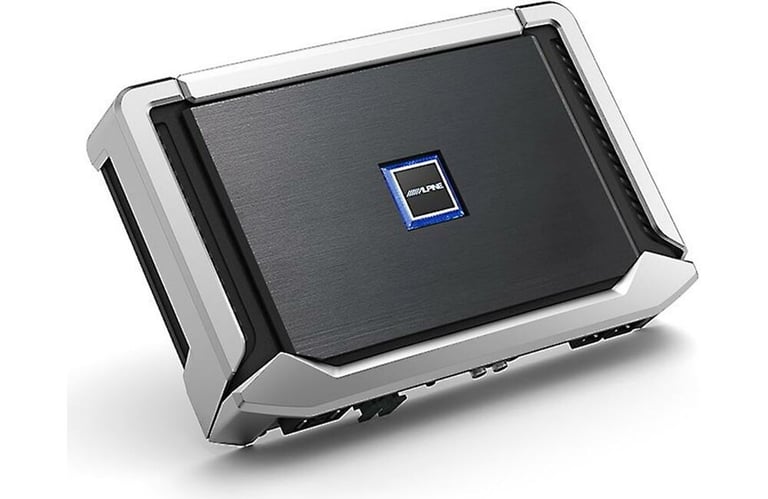

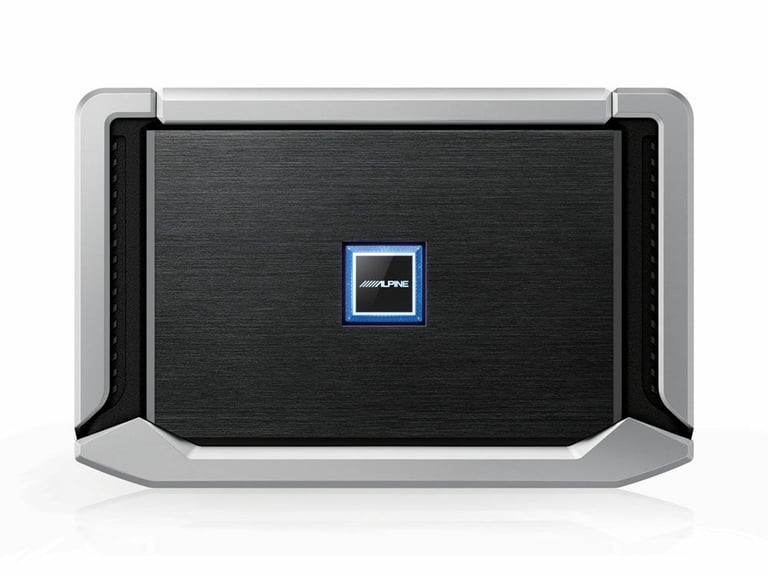

Alpine X-A70F

700W RMS X-Series Class-D 4-Channel 2 ohm Stable Amplifier
Quantity: 1

General Features:

  • Alpine X-Series X-A70F
  • Class-D Full Range 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 120watts x 4 chan.
    • 2 ohms: 175 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohms: 350 watts x 2 chan.
  • Total power output: 700 watts
  • CEA-2006 Compliant Amplifier
  • Hi-Res Audio compatible
  • Wired remote level control, Alpine RUX-KNOB.2, available
  • Included plastic covers available to offer a brushed aluminum finish around the edges
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity
    • High level: .5 - 10V
    • Low level: .2 - 4V
  • Frequency Response: 10 - 60,000
  • Total Harmonic Distortion (THD): .07%
  • Signal to Noise Ratio: >106dB
  • Variable high-pass filter: 50 - 400Hz, -24dB/octave
  • Variable low-pass filter: 50 - 400Hz, -24dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
  • Fuse Rating: 35A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 11-3/4"W x 7-5/8"L x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty


PROP 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov



Alpine X-A70F owner’s manual

NVX XKIT44

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 4-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% (OFC) Oxygen-Free Copper for pure uninterrupted power and current transfer
  • Tinned conductors for corrosion resistance

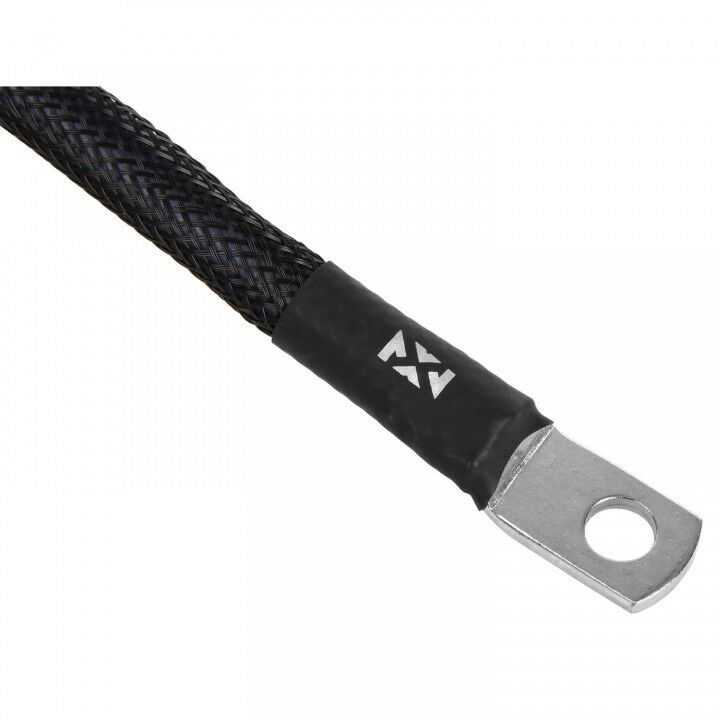

  • Pre-installed black nylon mesh covering protects power wire from being damaged
  • Solid Brass and Satin Chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full Spec cables meet or exceed the American Wire Gauge standards
  • Strand Count: 1862
  • CEA-2015 and BC5W2 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

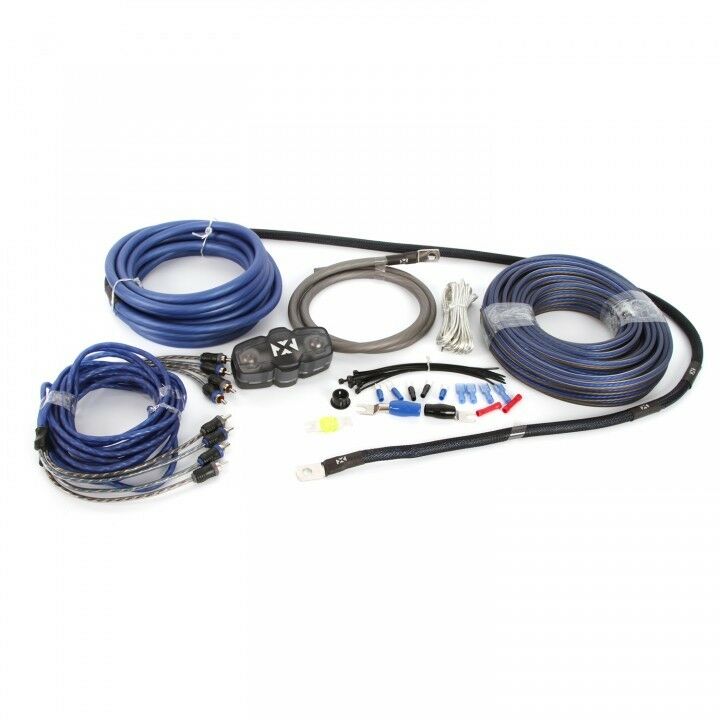

Kit includes:

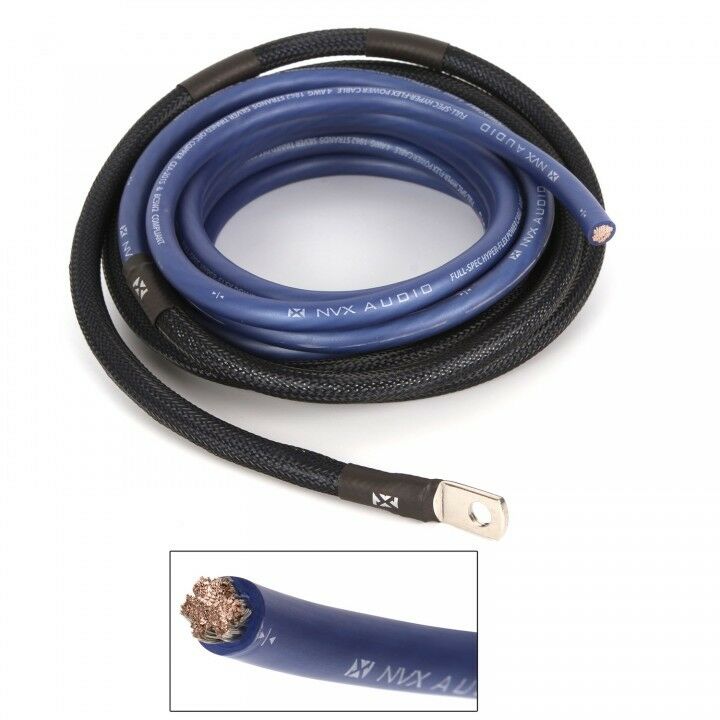

  1. 20 ft. (6.1 meters) Frosted Blue 4 gauge power wire with seamless crimp ring terminal

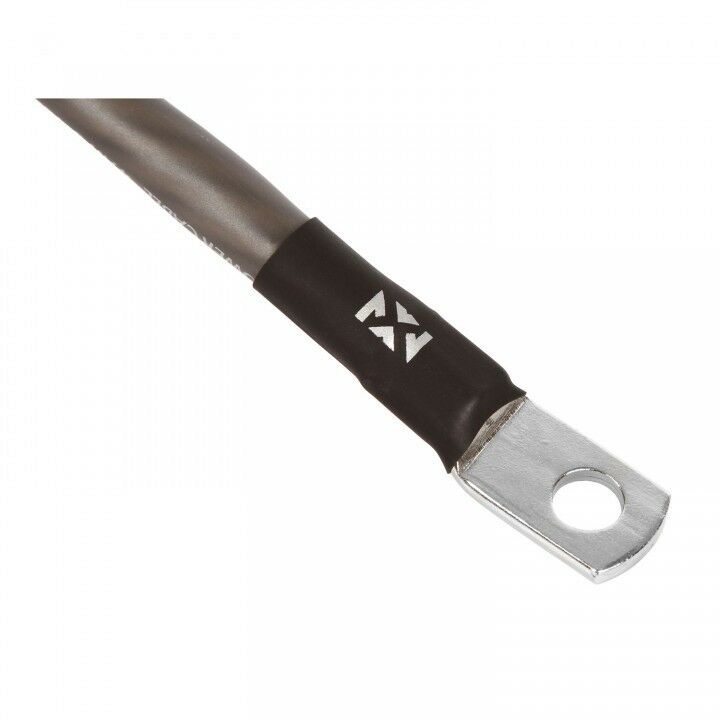

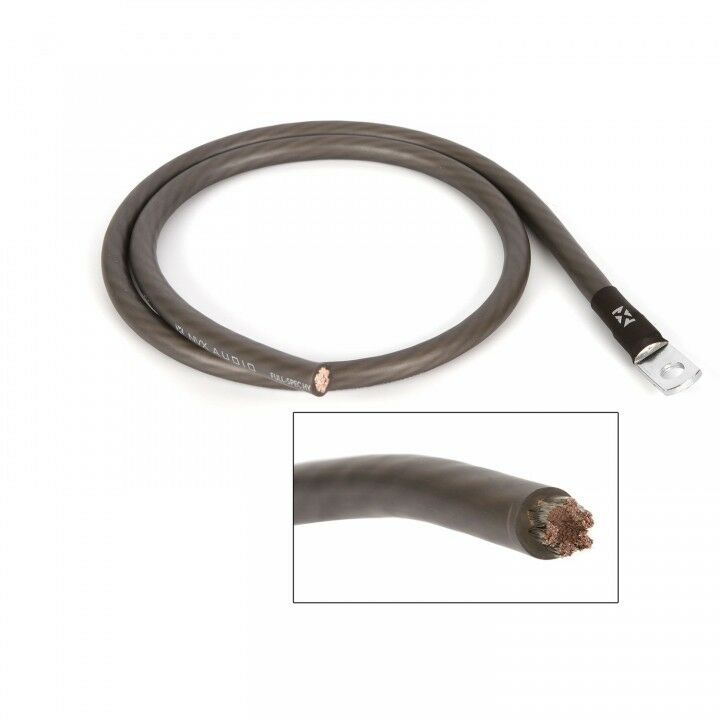

  2. 3 ft. (.91 meters) Frosted Black 4 gauge ground wire with seamless crimp ring terminal

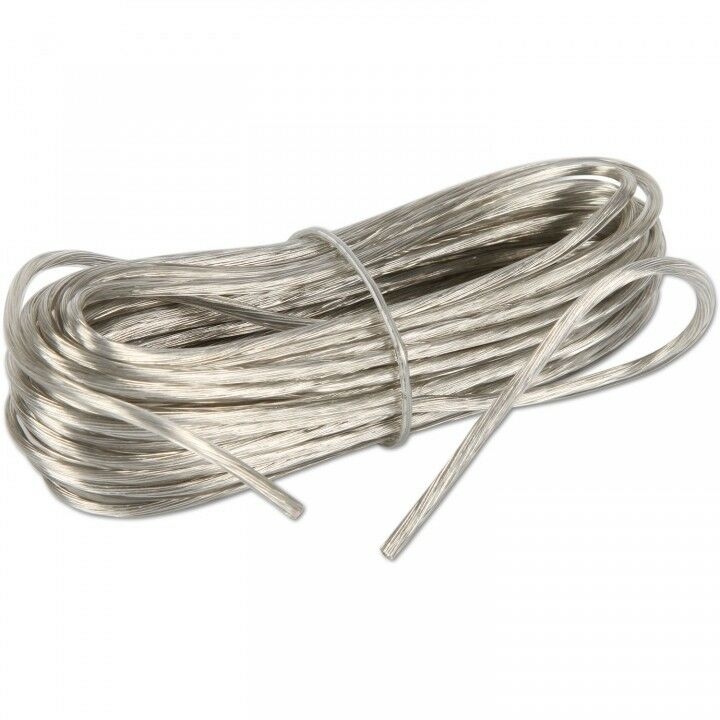

  3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

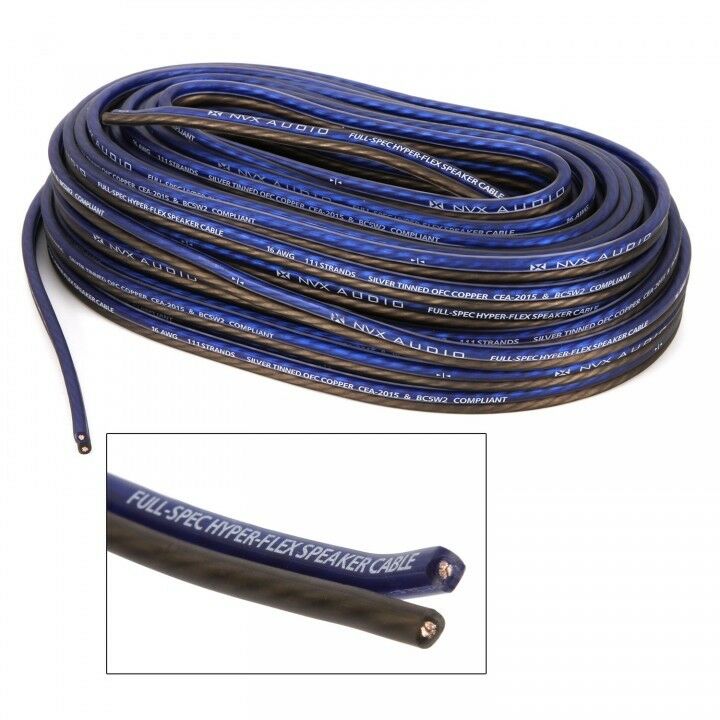

  4. 60 ft. (18.29 meters) Frosted Black/Blue 16 gauge speaker wire

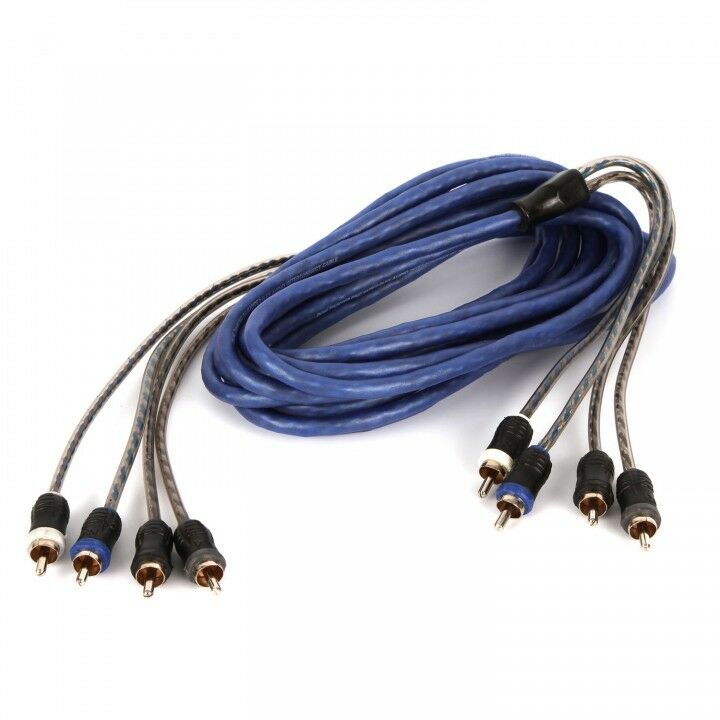

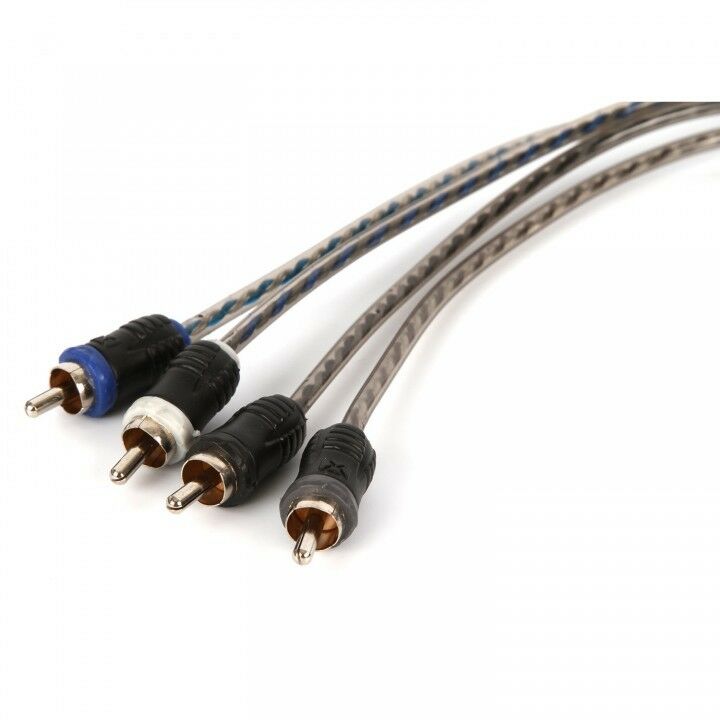

  5. One 16 ft. (5 meters) 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)

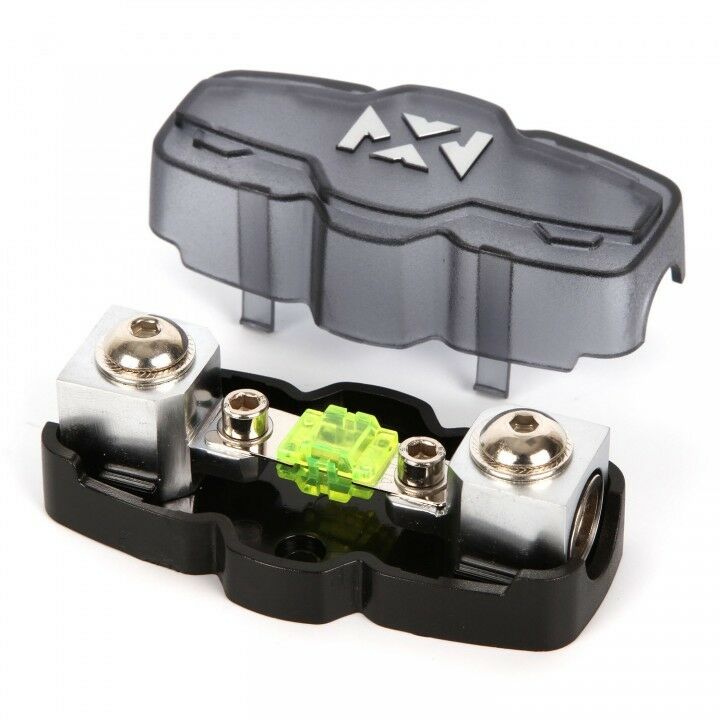

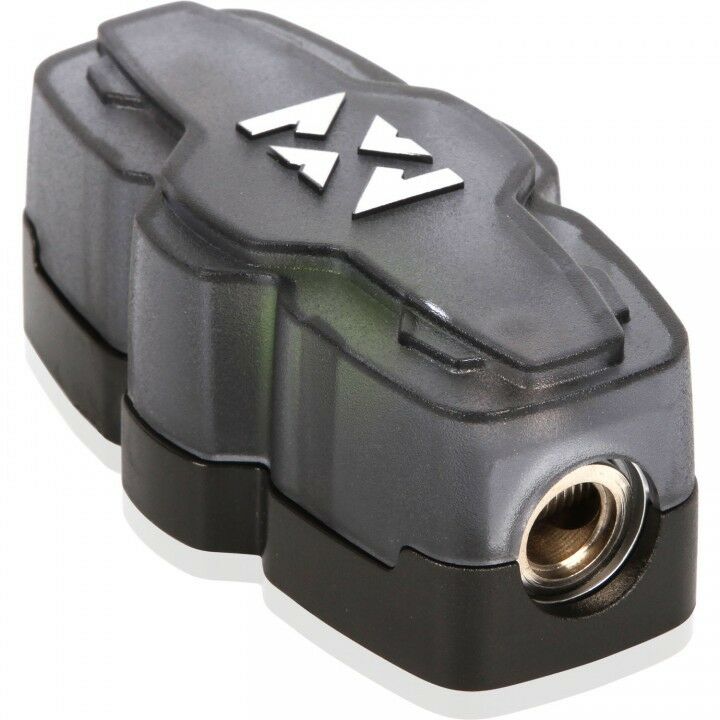

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse

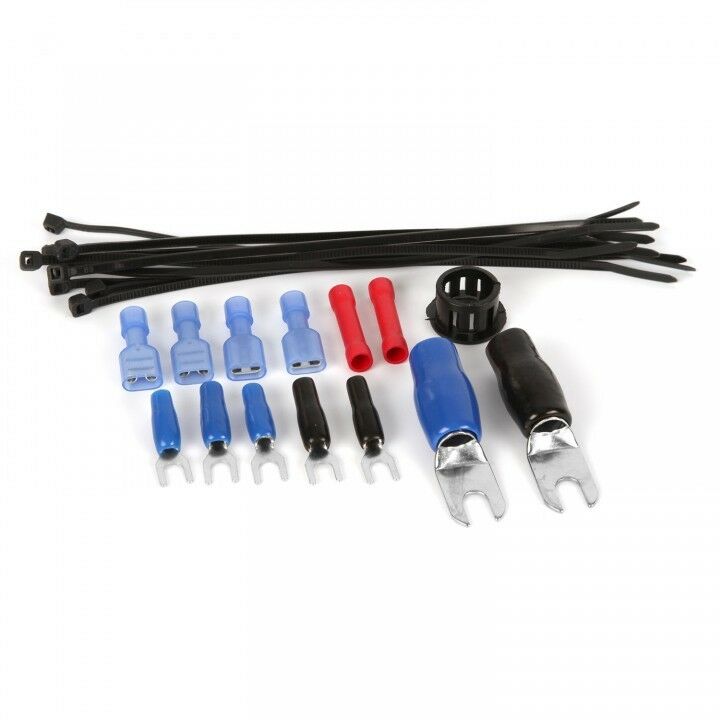

  7. One Black rubber firewall grommet
  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tube with NVX logo
  14. Ten 6" Black zip ties

Product history:

Alpine X-A70F, XKIT44 thumbnail
(newest, current model)
Alpine PDX-F4 thumbnail
(previous model, replaced by Alpine X-A70F Amplifier + Free High Quality NVX Amp Kit)
Alpine MRX-F65 thumbnail
(previous model, replaced by Alpine PDX-F4)
Alpine MRP-F600 thumbnail
(previous model, replaced by Alpine MRX-F65)
Alpine MRP-F550 thumbnail
(previous model, replaced by Alpine MRP-F600)

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
120 watts x 4 channel
RMS Power @ 2 ohms
175 watts x 4 channel
Bridged RMS Power
350 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
700 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.07%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 400 Hz
Low-Pass Crossover Frequency
50 - 400 Hz
Signal-to-Noise Ratio
106 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
35A x 2
Total Fuse Rating
70
CEA-2031 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

X-A70F, XKIT44

Weight:

11.90lbs

Internal SKU:

xa70f_xkit44

Internal Product ID:

181309
