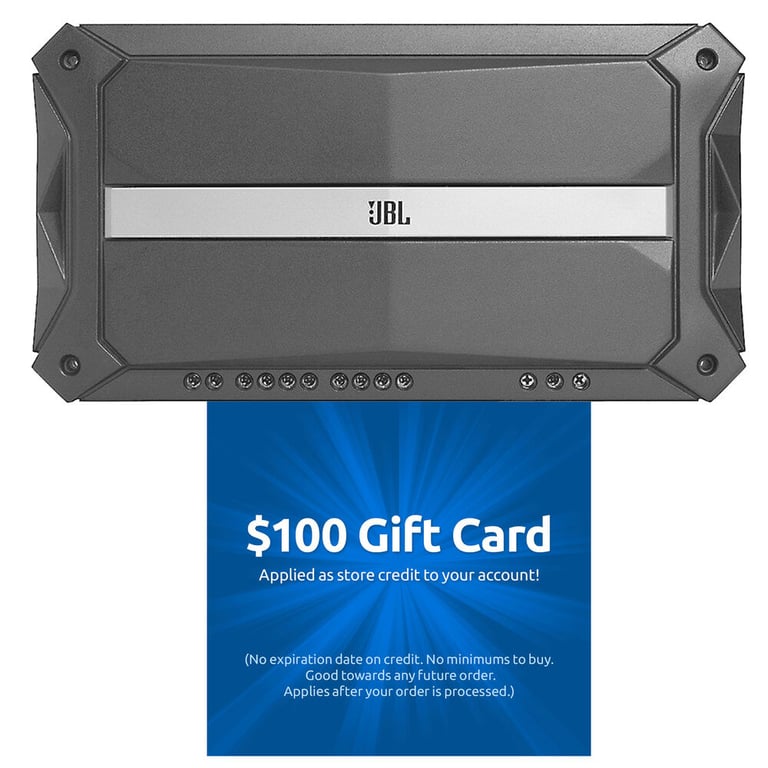

JBL Stadium 5 Amplifier + Free $100 Gift Card

2300W Max (400W RMS) Stadium Series 4 ohm Stable 5-Channel Class-D Amplifier w/ Remote Bass Control

JBL
Shop all JBL
highlight-star-icon

• 75 Watts RMS x 4 @ 4 ohm
• 100 Watts RMS x 4 @ 2 ohm
• Total Peak Power: 2300 Watts
• CEA-2006 Compliant
• 0 to 9 dB Bass Boost

Learn more about the stadium5am_100egift

We apologize

This item has been discontinued


Loading...
99-7010 main

Metra 99-7010 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2006-2012 Eclipse (Silver)

4
-56.53%

$39.99

List price $91.99

70-7001 main

Metra 70-7001 Wiring Harness

Install a new car stereo in select 1992-2012 vehicles from Mitsubishi, Eagle, Dodge

7
FH-S722BS main

Pioneer FH-S722BS

Double DIN CD Receiver with Bluetooth, Amazon Alexa and SiriusXM Ready

7
-11.54%

$229.99

List price $260.00

DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Description


JBL brand icon

Authorized dealer

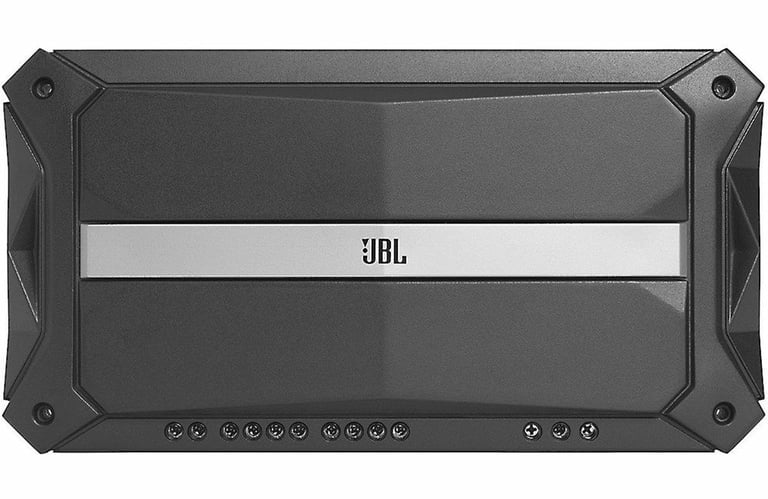

JBL Stadium 5

2300W Max (400W RMS) Stadium Series 4 ohm Stable 5-Channel Class-D Amplifier w/ Remote Bass Control
Quantity: 1

General Features:

  • JBL Stadium 5
  • Class-D Full Range 4-Ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan. (200 watts x 1 chan.)
    • 2 ohm: 100 watts x 4 chan. (350 watts x 1 chan.)
    • 1 ohm: _ watts x _ chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohm: 200 watts x 2 chan. (350 watts x 1)
  • Total power output: 2300 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on

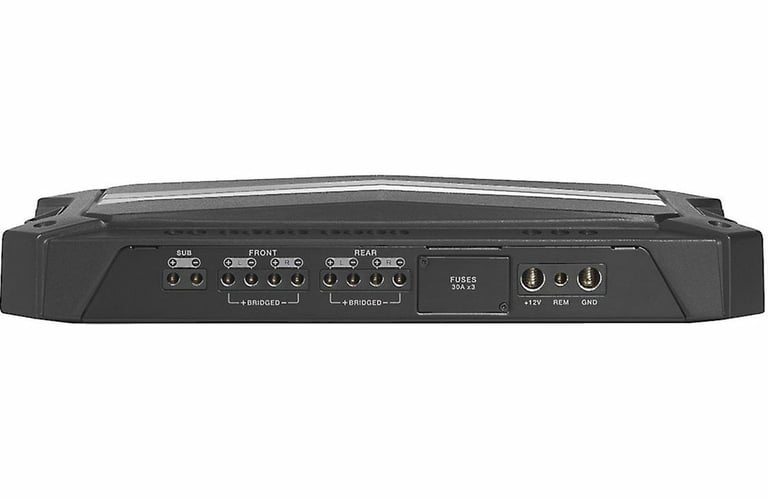

  • EARL Ground Terminal and Power Block
  • 5/4/3/2 channel operation

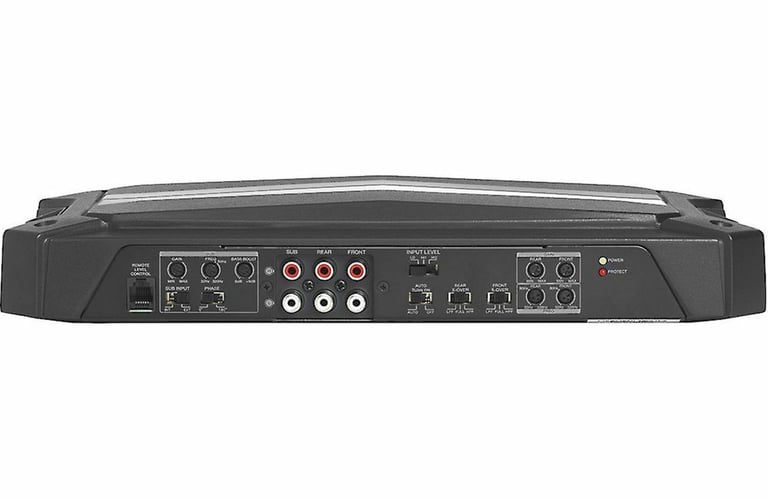

  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity: 0.2V - 2V
  • Frequency Response: 10 - 320 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ratio: 80dB
  • Variable high-pass filter: 32 - 320 Hz, 12 dB/octave
  • Variable low-pass filter: 32 - 320 Hz, 12 dB/octave
  • Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
  • Fuse Rating: 30 A x 3
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: "W x "L x "H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the JBL Stadium 5 Owner's Manual

$100 e-Gift Card at Sonic Electronix

Digital e-Gift Card for value of $100 applies electronically to account
Quantity: 1

Sonic Electronix Gift Card Features:

  • No minimums or restrictions
  • No expiration date
  • Tied to your account so you'll never lose the value or card
  • Easily see the value by simply logging into your account
  • Easy to apply at checkout (see instructions below)

Redemption Instructions:

  • Credit will be issued to your account after 60 days of purchase
    1. Add items to your shopping cart
    2. Begin Checkout
    3. Login to your account
    4. On the Second step of checkout you will have the option to apply the gift card (store credit) value.

    Loading...
    BV850ACP main

    Boss Elite BV850ACP

    6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

    5
    Limited time!
    46CSC654 main

    Kicker CSC65 (46CSC654)

    600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

    122
    -33.36%

    $79.96

    List price $119.99

    DMH-1800NEX main

    Pioneer DMH-1800NEX

    6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

    2
    -16.67%

    $349.99

    List price $420.00

    iLX-W650 main

    Alpine iLX-W650

    7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

    123
    -5.72%

    $329.95

    List price $349.95

    DMH-W4660NEX main

    Pioneer DMH-W4660NEX

    6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

    2
    -20.00%

    $599.99

    List price $750.00

    43DSC6504 main

    Kicker DSC650 (43DSC6504)

    480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

    28
    -10.53%

    $84.99

    List price $94.99

    DB652 main

    Polk Audio DB652 (DB 652)

    600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

    12
    -9.16%

    $109.00

    List price $119.99

    Limited time!
    Club 622 main

    JBL Club 622

    360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

    5
    -28.58%

    $99.95

    List price $139.95

    CV15BT main

    Cerwin-Vega CV15BT

    Single Din Digital Media Receiver with Bluetooth

    3
    MPK 163.3 main

    Hertz MPK163.3

    600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

    2
    -14.89%

    $999.99

    List price $1175.00


    Best selling similar products

    VAD11005v2 small

    NVX VAD11005 v2 (VAD11005v2)

    • 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
    • 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
    • Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
    • Total RMS Power: 1100 watts
    • Class D 2 ohm Stable 5-Channel Amplifier

    (46)

    $349.99

    List price $419.99

    VAD22008v2 small

    NVX VAD22008 v2 (VAD22008v2)

    • 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
    • 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
    • Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
    • Total RMS Power: 2200 watts
    • Class D 2 ohm Stable 8-Channel Amplifier

    (2)

    $399.99

    List price $539.99

    NDA11005 small

    NVX NDA11005

    • 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
    • 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
    • Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
    • Total RMS Power: 1100 watts
    • Class D 2 ohm Stable 5-Channel Amplifier

    (9)

    $259.99

    List price $323.99

    MVPA6 small

    NVX MVPA6

    • 100 watts x 6 channel @ 4 ohm
    • 150 watts x 6 channel @ 2 ohm
    • Bridged: 300 watts x 3 channel @ 4 ohm
    • Total RMS Power: 900 watts
    • Class D 2 ohm Stable 6-Channel Amplifier

    (7)

    $319.99

    List price $383.99

    HDP-D90 small

    Alpine Status HDP-D90

    • 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
    • Total RMS Power: 720 watts
    • Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
    • High-resolution (Hi-Res) audio playback
    • Selectable pre-configured sound system configurations
    • Embedded RTA signals for customized sound tuning
    • Bluetooth audio streaming with included external module

    (1)

    $1999.95

    List price $3480.00

    LC-5.1300 small

    AudioControl LC-5.1300

    • 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
    • 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
    • Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
    • Total RMS Power: 1300 watts
    • Class D 2 ohm Stable 5-Channel Amplifier

    (2)

    $660.00

    List price $1369.00

    EPICFIVE small

    AudioControl EPICFIVE

    • 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
    • 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
    • 700 watts x 1 channel @ 1 ohm (subwoofer output)
    • Bridged: 400 watts x 2 channel @ 4 ohm
    • Total RMS Power: 1100 watts
    • Class D 1 ohm Stable 5-Channel Amplifier

    (2)

    $259.00

    List price $259.00

    MICRO85U small

    Diamond Audio MICRO85U

    • + @ 4 ohm
    • 85 watts x 1 channel + 375 watts x 1 channel @ 2 ohm
    • Bridged: 200 watts x 1 channel @ 4 ohm + 375 watts x 1 channel @ 2 ohm
    • Total RMS Power: 1035 watts
    • Class D 2 ohm Stable 5-Channel-Channel Amplifier

    $659.99

    List price $719.99

    46CXA6605t small

    Kicker CXA660.5T (46CXA6605T)

    • 65 watts x 4 channel + 150 watts x 1 channel @ 4 ohm
    • 90 watts x 4 channel + 300 watts x 1 channel @ 2 ohm
    • Bridged: 180 watts x 2 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
    • Total RMS Power: 660 watts
    • Class A/B 2 ohm Stable 5-Channel Amplifier

    $449.99

    List price $479.99

    XQA16005 small

    NVX XQA16005

    • 125 watts x 4 channel + 300W x1 @ 4 ohm
    • 200 watts x 4 channel + 500W x 1 @ 2 ohm
    • Bridged: 400 watts x 2 channel @ 4 ohm + 800W @ 1 ohm
    • Total RMS Power: 1600 watts
    • Class D 1 ohm Stable 5-Channel Amplifier

    (2)

    $449.99

    List price $719.99

    Specifications & Details


    Power Specifications - Full Range Channels
    RMS Power @ 4 ohms
    75 watts x 4 channel
    RMS Power @ 2 ohms
    100 watts x 4 channel
    Bridged RMS Power
    200 watts x 2 channel
    Power Specifications - Subwoofer Channel
    RMS Power @ 4 ohms
    200 watts x 1 channel
    RMS Power @ 2 ohms
    350 watts x 1 channel
    Amplifier Specifications
    Series
    Stadium Series
    Amplifier Class
    D
    Number of Channels
    5-Channel
    Total Peak Power Output
    2300 watts
    Maximum Input Gauge Size
    4 AWG
    Minimum Impedance Unbridged
    2 ohm
    Minimum Impedance Bridged
    4 ohms
    Speaker Level Inputs
    Yes
    Preamp Outputs
    1 pair
    Built-in Crossover
    Low-Pass (LP)
    High-Pass (HP)
    High-Pass Crossover Frequency
    32 - 320 Hz
    Low-Pass Crossover Frequency
    32 - 320 Hz
    Signal-to-Noise Ratio
    80 dB
    Bass Boost
    0 - 9 dB
    Remote bass/level controller
    Yes
    Fuse Rating
    30A x 3
    Total Fuse Rating
    90
    Strappable
    No
    Sonic Certified Amplifier
    No
    Amp Bluetooth Connectivity
    No
    Hi-Res Certified
    No
    What is in the box?
    Paperwork
    User manual
    WITB: Amplifiers
    Amplifier
    Wired gain knob (wire attached)
    Mounting screws (4)
    Three spare fuses
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    JBL

    Model Number:

    STADIUM5AM, 100EGIFT

    Weight:

    10.15lbs

    Internal SKU:

    stadium5am_100egift

    Internal Product ID:

    181533

    Customer Ratings & Reviews


    JBL Stadium 5 Amplifier + Free $100 Gift Card thumbnail image

    5 star
    100%
    4 star
    0%
    3 star
    0%
    2 star
    0%
    1 star
    0%



    Durability
    4.2
    Value
    5
    Features
    4.4
    Design
    4.6
    Usability
    5

    Customer Reviews

    Sort by:

    Loading...

    You cant go Wrong

    The following review is for SonicElectronix-100-Gift-Card, which is a part of the bundle you are viewing.

    You cant go wrong if the person your getting this for, loves stuff for their car!

    By RG on May 2, 2014

    66 found this helpful


    100 free dollars

    The following review is for SonicElectronix-100-Gift-Card, which is a part of the bundle you are viewing.

    I got this for free with a pair of sony speakers and I got 100 dollars in store credit. I didn't get a card in the mail or anything it just added 100 dollars to my account and when I was checking out I just had to select the credit and pick how much of it I wanted to use

    By Brennen on June 9, 2014

    62 found this helpful


    It's a giftcard...

    The following review is for SonicElectronix-100-Gift-Card, which is a part of the bundle you are viewing.

    It's a giftcard....what more do you want? Why am I reviewing this?

    By Ken on November 15, 2015 Checkmark Icon Verified purchase

    38 found this helpful


    Great Value!

    The following review is for SonicElectronix-100-Gift-Card, which is a part of the bundle you are viewing.

    This gift card was free as part of a promotion when I bought other car audio parts. I promptly used it to buy more!

    By EZ on August 9, 2020

    34 found this helpful


    Giftcard

    The following review is for SonicElectronix-100-Gift-Card, which is a part of the bundle you are viewing.

    I received this with my alpine x 6x9 speaker purchase. But great gift for someone that loves music.

    By Tombo on April 28, 2020 Checkmark Icon Verified purchase

    33 found this helpful




    I509WRAJL_XCAMLP small

    Alpine i509-WRA-JL with License Plate Camera

    Custom-fit Digital Multimedia Receiver With 9" Screen for select 2018-2023 Wrangler (JL) and Gladiator + High-resolution Rearview Backup Camera

    (52)

    $2949.94

    List price $3539.99

    180-MT-2A small

    SSV Works MT-2A (180-MT-2A)

    2 Speaker Audio Upgrade Kit for select 2018-2020 Maverick Trail and Maverick Sport and Maverick Sport Max 1000R DPS Includes One Bluetooth Receiver and Pair of Loaded 6.5" Front Kick Panel Speaker Pods

    $789.99

    List price $789.99

    MX6 small

    Hifonics Mercury MX6

    6-1/2" 2-way Mercury Series Coaxial Car Speakers

    (12)

    $64.99

    List price $399.99

    VET95WT small

    Xscorpion VET95WT (White)

    60 Ft of 3/4" High Temp Vinyl Electrical Tape

    $2.99

    List price $3.99

    VPRO65BM_2 small

    NVX VPRO65BM Pair (2)

    400W Peak (200W RMS) 6.5" V-Series Pro Midrange Loudspeaker with Bullet Aluminum Phase Plug

    $75.98

    List price $143.98

    MVH-P8200 small

    Pioneer MVH-P8200

    3" In-Dash Multimedia Receiver with Built-in SD Card Slot and USB/iPod Direct Control

    (9)

    $154.99

    List price $299.99

    MM220 small

    Boston Acoustics MM220 (Mist/White)

    Powered Stereo Speaker System for Computers (MM-220MIST, MM-220 MIST)

    $59.99

    List price $119.99

    MA8D4_11DX500.1_SQ 1 8-BLACK_CK4_KI22_XBBR small

    Loaded SKAR Audio 8" Subwooofer + Kicker Amplifier + Kit Bass Package

    Bass Package: SKAR Audio MA8D4 8" Subwoofer + Kicker DX500.1 + Sub Box + Wiring + Bass Processor

    $352.77

    List price $864.78

    AD-TDST1 small

    Mobile Solutions Template Tape (AD-TDST)

    1" x 108 feet of Double-Sided Template Tape

    $12.99

    List price $19.99

    Related Searches


    Save up to 10 different vehicles in your garage
    Vehicle
    Store
    Delete

    2008 Mitsubishi Eclipse

    2016 Volvo XC70

    2014 Fiat 500

    1985 Buick Century

    2009 BMW M5

    1975 Mercury Comet

    2007 GMC Envoy

    2011 Ford Explorer

    1994 Dodge Shadow

    2006 BMW M3

    Add vehicle Clear all vehicles
    Where to find vehicle info
    Are you sure you want to clear your garage?
    This action cannot be undone. Confirm
    This page was not designed for products.
    If you continue, you will be redirected to a category customized for your vehicle. Continue
    Loading...
    Identify your vehicle and submodel details
    • Owner's manual
    • Vehicle's insurance card
    • Vehicle registration
    • Vehicle produced after 2005: Inside driver's side door
    • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
    Car Info Side Door Icon
    Vehicle Registration Icon
    Vehicle Insurance Icon

    Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

    • You see only parts engineered for your exact vehicle
    • You avoid incompatible radios, speakers, or wiring
    • Installation is smoother, faster, and frustration-free
    • You get the correct accessories the first time

    Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
