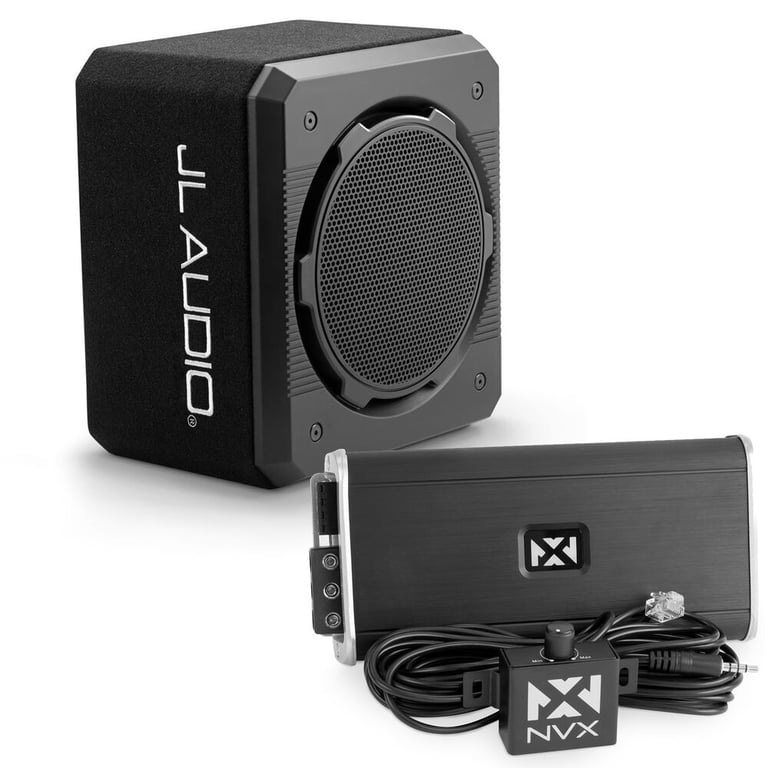

JL Audio CS112G-TW3 + Free NVX VADM1 Amplifier ($199 Value)

Sealed ProWedge enclosure with one 12" TW3 subwoofer, 2-Ohm

JL Audio
Shop all JL Audio
highlight-star-icon

• 200 - 400W RMS Power Handling Range
• Precision-built in USA at JL Audio’s Miramar, Florida factory
• Injection molded, mica-filled polypropylene cone
• Rubber Surround
• Cast Alloy Basket
• DMA-optimized motor design
• Very small sealed enclosure volume requirements

Learn more about the cs112gtw3_vadm1

We apologize

This item has been discontinued


Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

121
-33.36%

$9.99

List price $14.99

DKGM-15 main

Crux DKGM-15

Stereo Replacement Interface with Steering Wheel Control Retention, Video Switcher, and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

19
-35.71%

$162.00

List price $252.00

SAC656 main

Scosche SAC656

Add 5-1/4" or 6-1/2" Speakers to Factory 7" Mounting Locations

50
-6.69%

$13.95

List price $14.95

MDA1B main

Scosche MDA1B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

366
-33.07%

$5.99

List price $8.95

GMK421 main

American International GMK421

Single DIN or Double DIN Stereo Dash Kit for select 1992-2012 vehicles from Chevrolet, GMC, Buick

15
-66.69%

$12.99

List price $39.00

DKGM-48D main

Crux DKGM-48D Stereo Replacement Interface

Stereo Replacement Interface with Steering Wheel Control Retention and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

1
-35.71%

$132.30

List price $205.80

SOCGM-17 main

Crux SOCGM-17 Wiring Interface

Install a new car stereo and retains the safety warning chimes in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

6
-35.71%

$58.05

List price $90.30

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

116
-37.15%

$21.99

List price $34.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Description


JL Audio brand icon

Authorized dealer

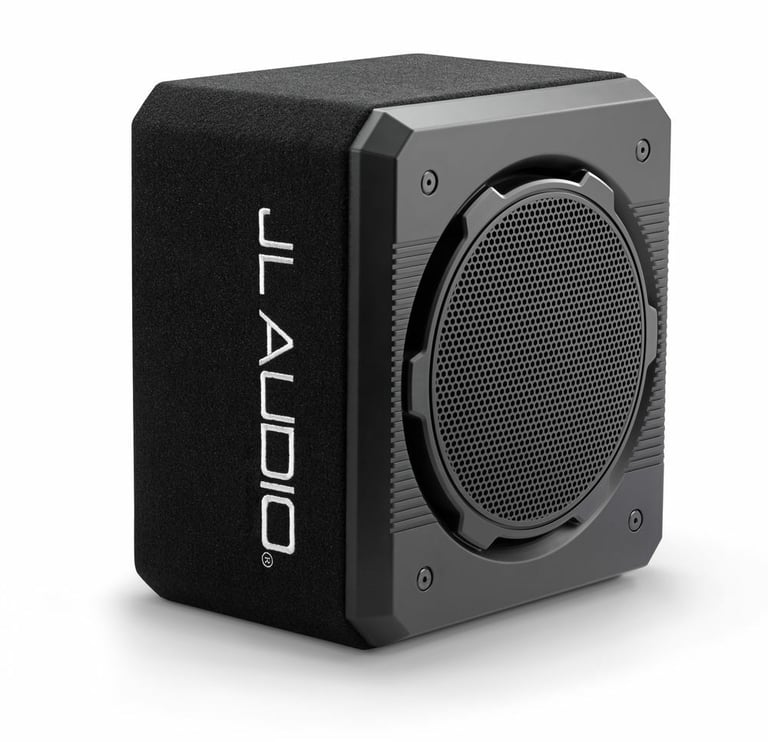

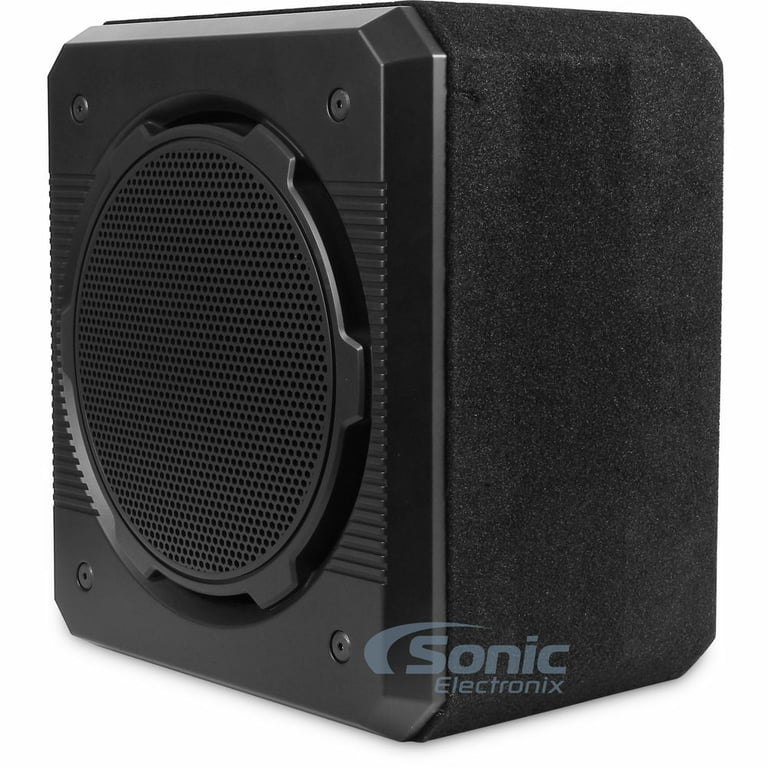

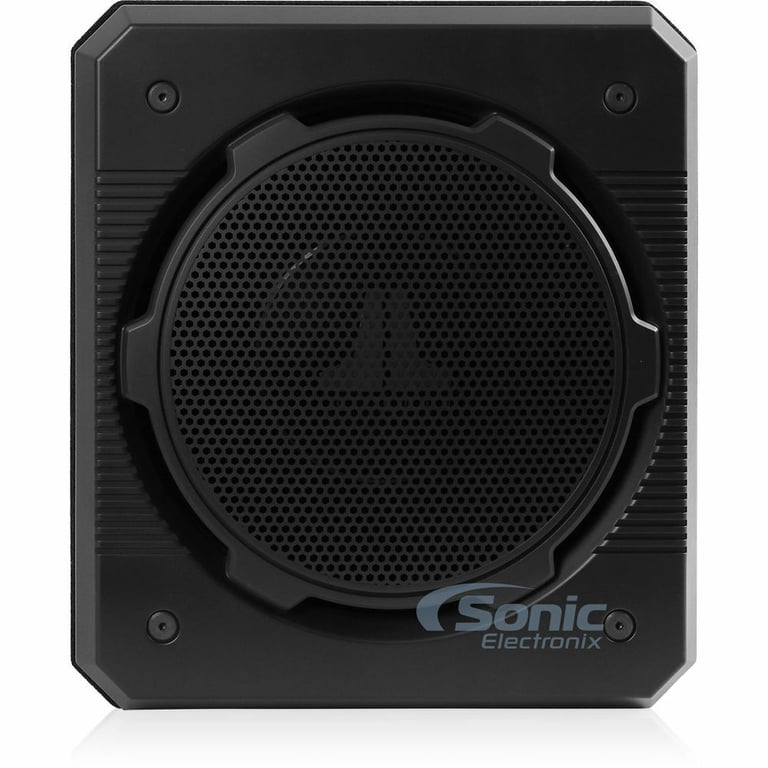

JL Audio CS112G-TW3

Sealed ProWedge enclosure with one 12" TW3 subwoofer, 2-Ohm
Quantity: 1

General Features:











  • 400W Single 12" ProWedge Sealed Subwoofer Enclosure
  • Power Handling:
    • RMS: 400 watts
  • Recommended Power Range: 200 - 400 watts
  • Final Impedance: 2 ohm (Dual 4-ohm subwoofer wired to 2-ohm)
  • Preloaded with single 12TW3-D4
  • Sealed enclosure with black automotive carpet wrap
  • Net Weight: 28.00 lb
  • Enclosure Dimensions: 10.50" D x 14.375" W x 16.25" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Subwoofer Features:

  • Injection molded, mica-filled polypropylene cone
  • Rubber surround
  • No pole vent: permits mounting close to rear wall of enclosure.
  • Very small sealed enclosure volume requirements
  • Very long linear excursion capability
  • DMA-optimized motor designs
  • Patented concentric tube architecture
  • Patented floating cone attach method technology
  • Cast alloy frame
  • Aluminum-alloy dust cap and rear cap with JL Audio logo
  • Precision-built in USA at JL Audio Miramar, Florida factory
  • Frequency Response: 22-200 Hz
  • Sensitivity: 84.11 dB
  • Xmax: 15.2 mm

Enclosure Features:

  • CNC-Cut High-Grade MDF Construction
  • Black high-grade automotive carpet finish
  • Ultra-compact design
  • Super-tough, polymer grille is included
  • "JL AUDIO Built in USA" logo embroidered into the black carpet finish

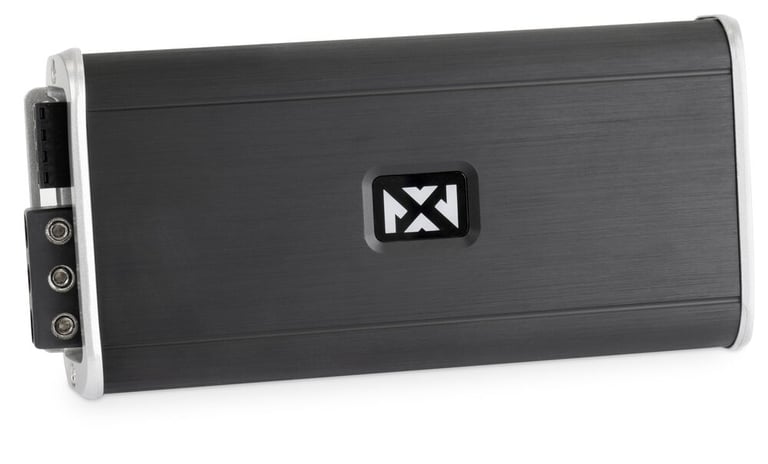

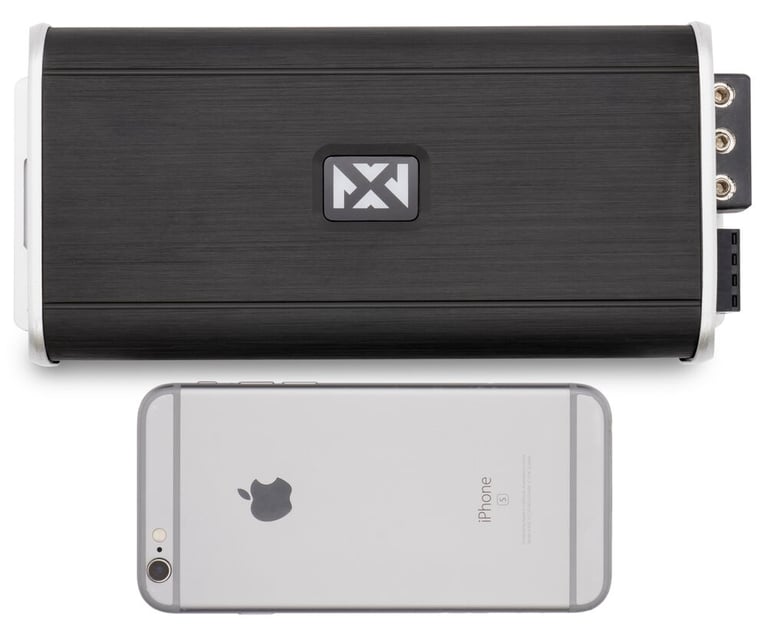

NVX VADM1 v2 (VADM1v2)

600W RMS Class D V-Series Micro Monoblock Car/Marine/Powersports Amplifier with Bass Remote
Quantity: 1

Product Details:

  • V Series Micro Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 240 watts x 1 channel
    • 2 ohm: 400 watts x 1 channel
    • 1 ohm: 600 watts x 1 channel
  • Total power output: 600 watts
  • LED Power/Protect Light

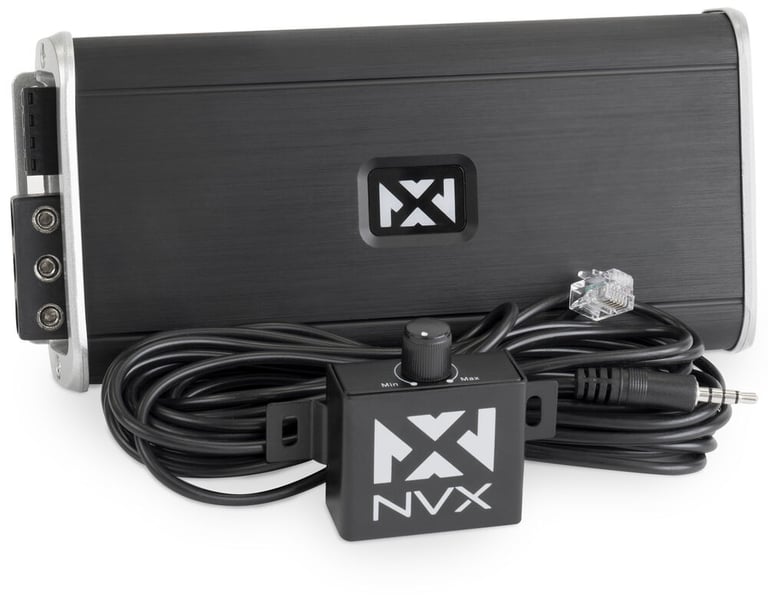

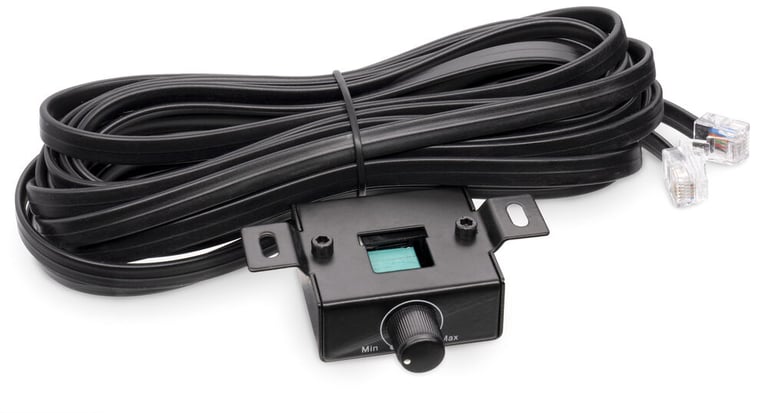

  • Includes a Wired Bass Level Remote Control

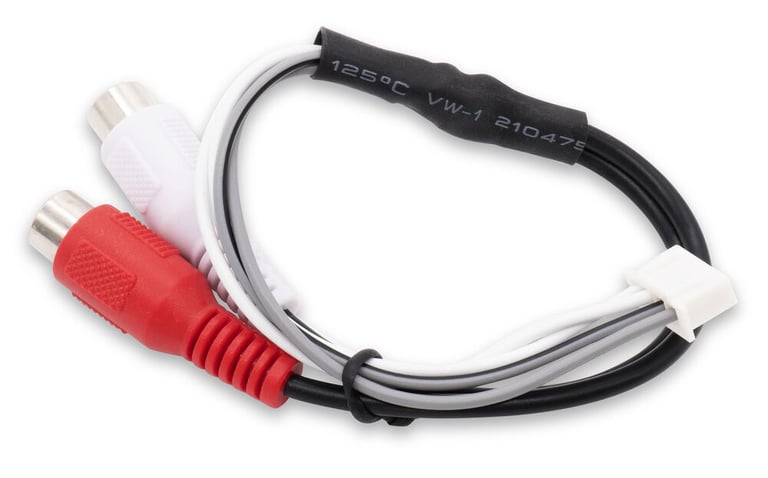

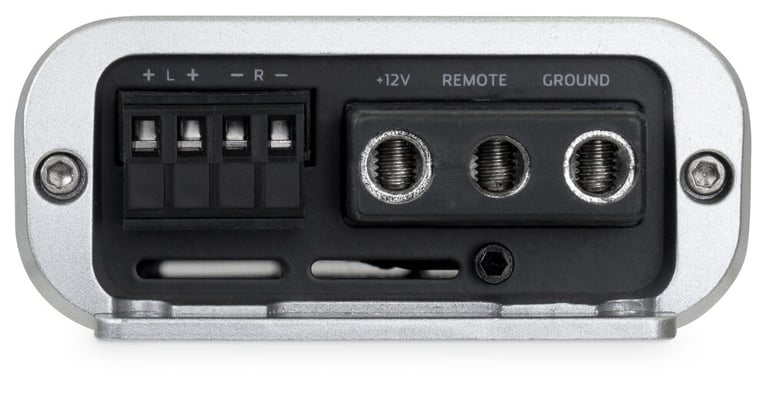

  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • 4-way protection circuitry (thermal, overload, speaker short protection and DC offset)
  • Balanced differential inputs eliminate noise picked up by signal cables
  • Input sensitivity:
    • Low level and High level: 0.2 - 10 volts
  • Frequency Response: 20 - 500 Hz
  • Total Harmonic Distortion (THD): 0.3%
  • Signal to Noise Ratio: >85 dB
  • Variable low-pass filter: 50 - 250 Hz
  • Subsonic filter: 10 - 50 Hz
  • Variable Bass Boost: 0 - 18 dB @ 45 Hz
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 6.49" L x 3.3" W x 1.48" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: VADM1v2

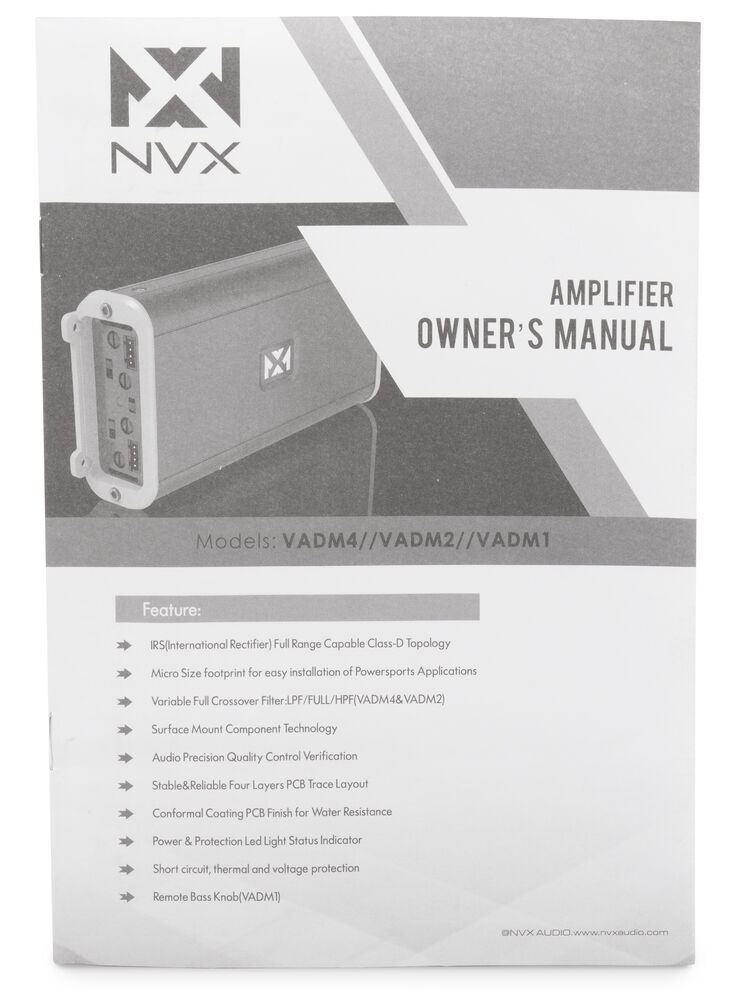

product manual icon NVX VADM1 v2 owner's manual

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.13%

$211.72

List price $232.98

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Series
Series
TW3 Shallow Mount Series
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
400 watts
Woofer Surround
Rubber
Woofer Composition
Mica Injected Polypropylene - MIPP
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
84.11 dB
Frequency Response
22 - 200 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
16.25"
Width
14.375"
Depth
10.50"

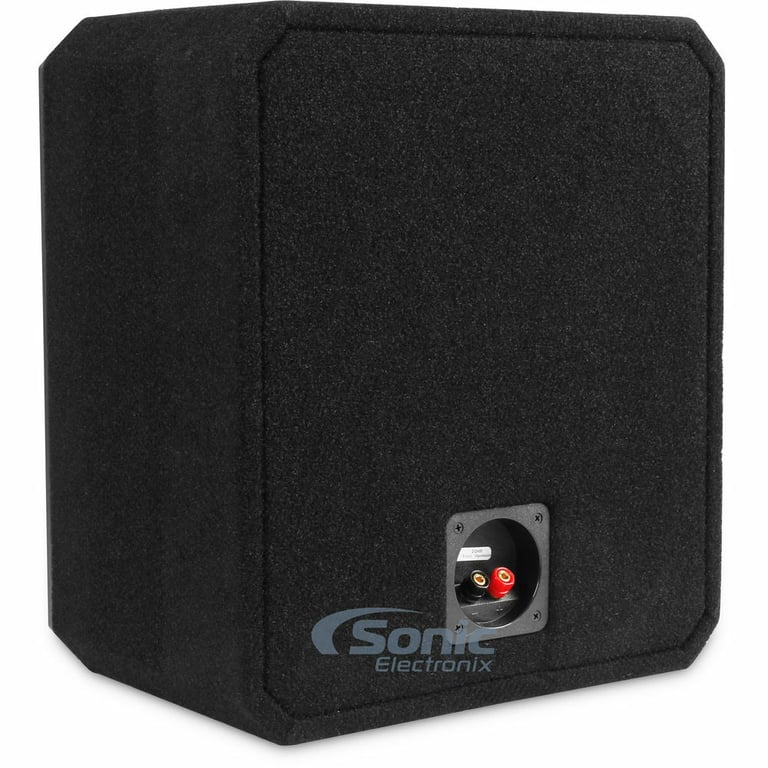

Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CS112G-TW3, VADM1

Weight:

34.72lbs

Internal SKU:

cs112gtw3_vadm1

Internal Product ID:

181661

Customer Ratings & Reviews


JL Audio CS112G-TW3 + Free NVX VADM1 Amplifier ($199 Value) thumbnail image

5 star
88%
4 star
13%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.6
Design
4.9
Usability
4.7

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Great Little Amp!

The following review is for VADM1, which is a part of the bundle you are viewing.

I bought this to replace my JL 250/1 because I couldn't run a 1-ohm load on it. This amp doesn't sound as clean so I ended up hooking both up, one on each sub for a 2-ohm load. The sound quality got better and it puts out a great amount of power. It slams a kicker Comp VR 12 at 2 ohms.

By Adam on September 11, 2020 Checkmark Icon Verified purchase

69 found this helpful


Great amps!

The following review is for VADM1, which is a part of the bundle you are viewing.

Great little amps that put out rated power and are only the size of my Iphone. Wonderful !!!

By Brian on February 17, 2020 Checkmark Icon Verified purchase

68 found this helpful


Small Amp Tons of power

The following review is for VADM1, which is a part of the bundle you are viewing.

Was really skeptical about how much power this little guy put out but it powers my one kicker perfectly and its so small you can place it anywhere if youre wanting a clean unseen install!

By Hector A on February 14, 2019 Checkmark Icon Verified purchase

63 found this helpful


Tiny but powerful

The following review is for VADM1, which is a part of the bundle you are viewing.

This amp is tiny, but packs a punch, similar to the other amps in the VAD line up. The only downside is the 8 gauge power terminals and the push-in style connector for the speaker wire. The speaker wires can pretty easily pop out of the connectors on the back of the amp, and I had to use a 4 gauge to 8 gauge reducer to run adequate power and get the 500 @ 1 ohm promised on the box. Overall it's impressive that such a tiny amp can produce such power and be 1 ohm stable. It's compact design means it can be mounted virtually anywhere or easily concealed depending on what your install calls for.

By Blake on January 16, 2023 Checkmark Icon Verified purchase

55 found this helpful


The following review is for VADM1, which is a part of the bundle you are viewing.
By Paul on July 22, 2023 Checkmark Icon Verified purchase

39 found this helpful


The following review is for VADM1, which is a part of the bundle you are viewing.
By Darnell on November 7, 2023 Checkmark Icon Verified purchase

27 found this helpful


The following review is for VADM1, which is a part of the bundle you are viewing.
By Jody on May 10, 2024 Checkmark Icon Verified purchase

15 found this helpful


The following review is for VADM1, which is a part of the bundle you are viewing.
By Wayson on May 1, 2024 Checkmark Icon Verified purchase

11 found this helpful


Great little amplifier

The following review is for VADM1, which is a part of the bundle you are viewing.

It's a great little amplifier it has about 480 rms and sounds great wish they had a 1000 watt rms in this size I would get that one two

By ronald on April 22, 2024 Checkmark Icon Verified purchase

11 found this helpful


Awesome Small Amp

The following review is for VADM1, which is a part of the bundle you are viewing.

This amp produces good clean power from its small package. It sounds a lot better than the one it replaced. I crank it for long drives and have zero issues. I have it installed under the backseat of a pickup truck and it fits perfect hidden away. I recommend this for many applications.

By Justin on July 20, 2024 Checkmark Icon Verified purchase

5 found this helpful




PD12LED, BXA15001, BAK82 small

Boss PD12LED Subwoofer + Belva 1500W Amplifier + 8 Gauge Amp kit

1600W Peak 12" Dual 4-Ohm Subwoofer with LED's Package (Includes Sub, Amp, and Amp Kit)

(110)

$174.98

List price $303.94

No picture

2) Boss CH10DVC 10" 3000W Car Subwoofers Subs+Sealed Box Enclosure+Amp+Amp Kit

1500W 10" Dual 4-Ohm Car Subwoofer Package (Includes: 2 Boss Subwoofers, Dual Sealed Enclosure, Amp, and Amp Kit)

(158)

$345.95

List price $529.95

BPKG112v2, XPLOC2-16 small

2008-2014 Subaru Impreza WRX Complete 12" Subwoofer Package | Belva

600W Complete Bass Package with 12" Sub in Ported Box, Monoblock Amplifier and Amp Kit (BPKG112 v2)

(71)

$189.99

List price $264.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Chevrolet Impala

2008 Hummer H3

2000 Ford Explorer

2000 Chevrolet Cavalier

1986 Buick Riviera

2007 Mitsubishi Outlander

2003 Volkswagen GTI

1997 Toyota Supra

2022 Honda Ridgeline

2007 Dodge Magnum

Vehicle
Store
Delete

1998 Harley Davidson FLHT Electra Glide Standard

2010 Harley Davidson FLHT Electra Glide Standard

Vehicle
Store
Delete

2018 Can-Am Defender XT CAB HD8

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
