Open Box, Great - VAD10001 | 1000W Class-D Marine Monoblock Amplifier

by NVX

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

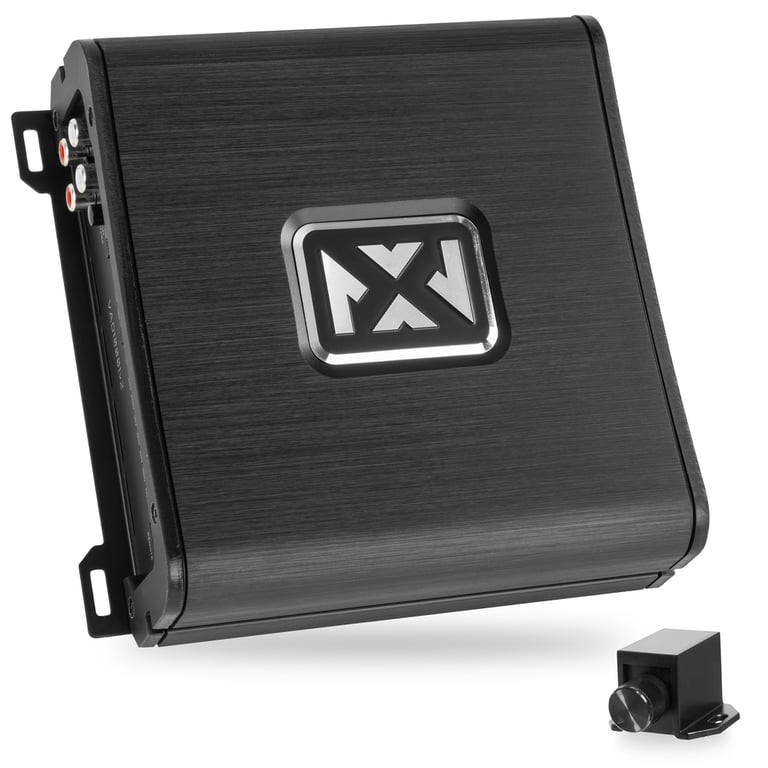

NVX VAD10001 (Like New) Image 1 — NVX VAD10001 (Like New)

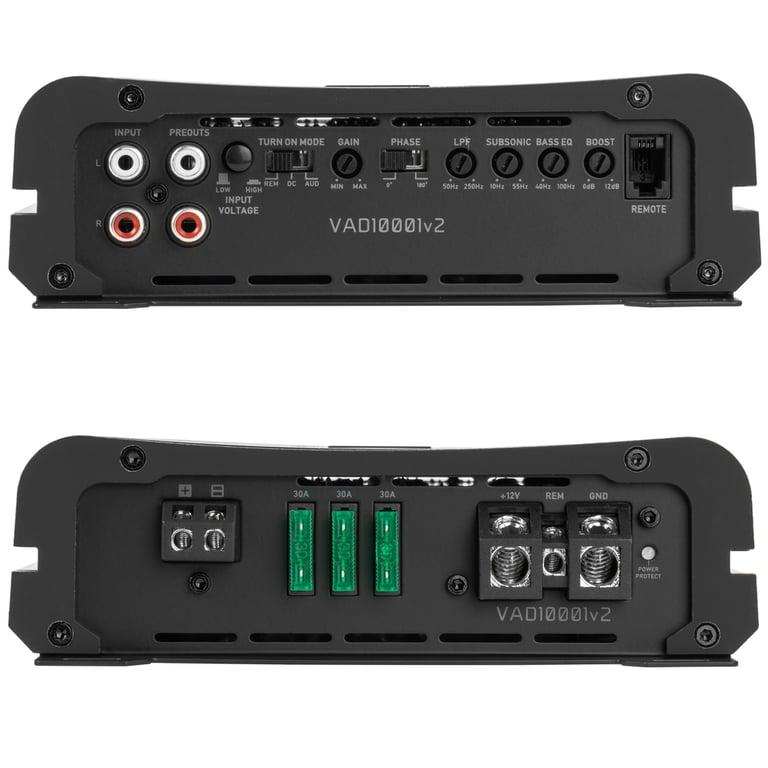

NVX VAD10001 (Like New) Image 2 — NVX VAD10001 (Like New)

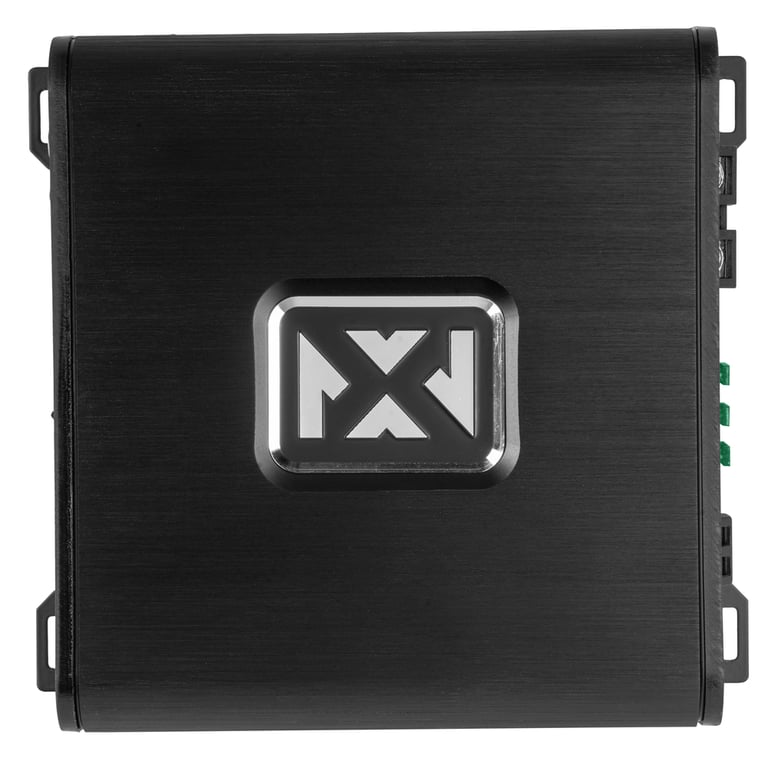

NVX VAD10001 (Like New) Image 3 — NVX VAD10001 (Like New)

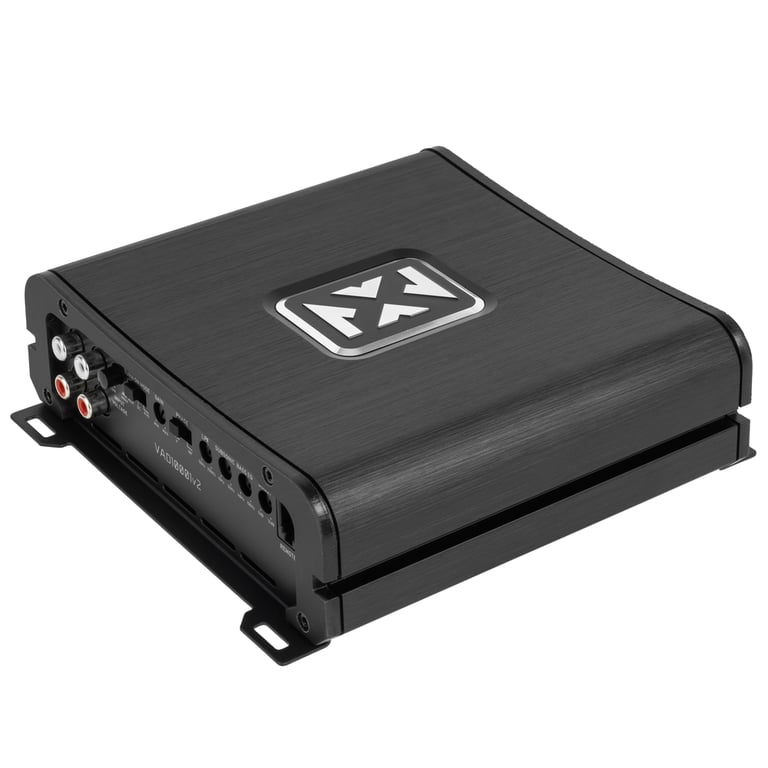

NVX VAD10001 (Like New) Image 4 — NVX VAD10001 (Like New)

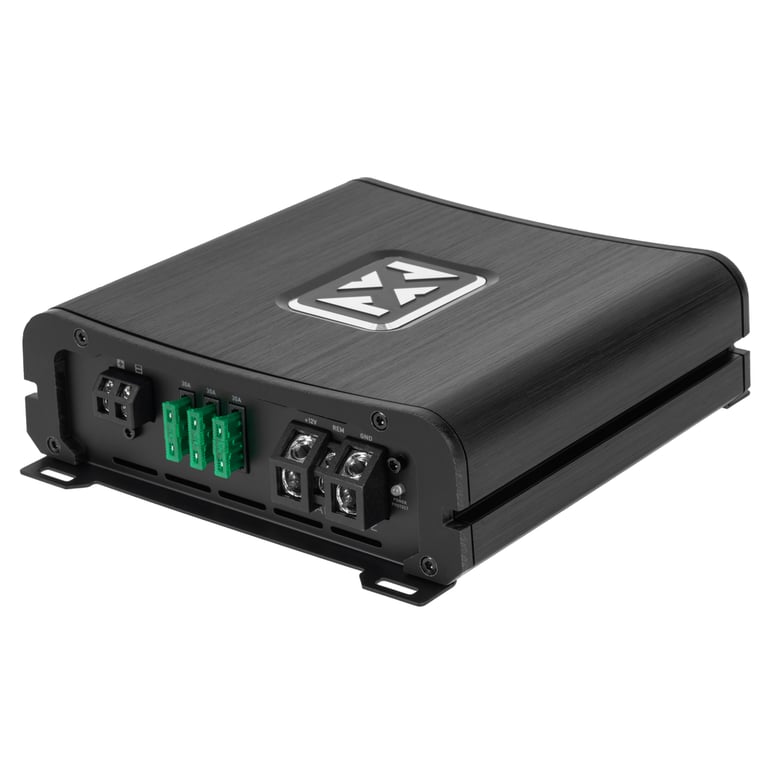

NVX VAD10001 (Like New) Image 5 — NVX VAD10001 (Like New)

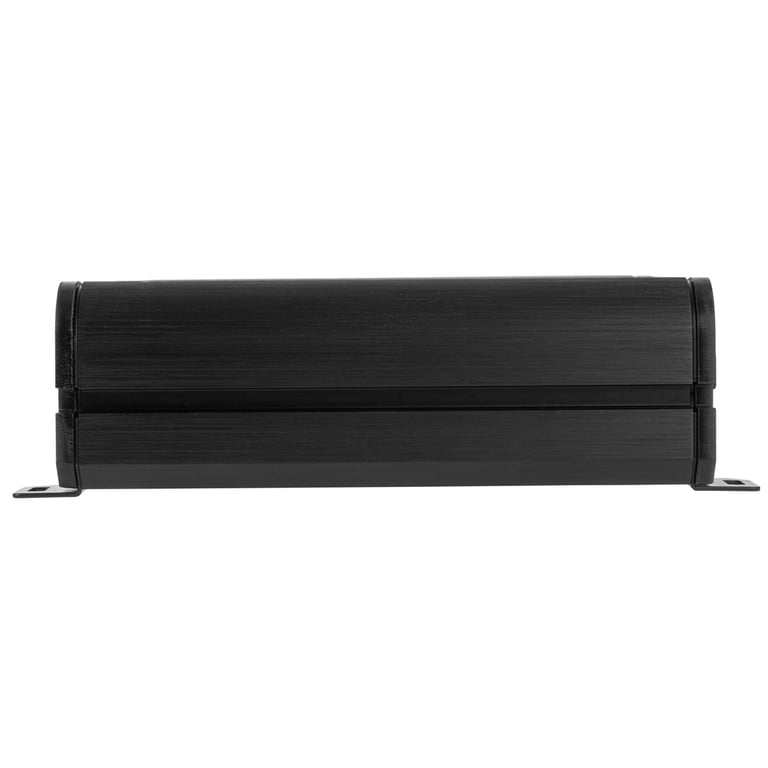

NVX VAD10001 (Like New) Image 6 — NVX VAD10001 (Like New)

NVX VAD10001 (Like New) Image 7 — NVX VAD10001 (Like New)

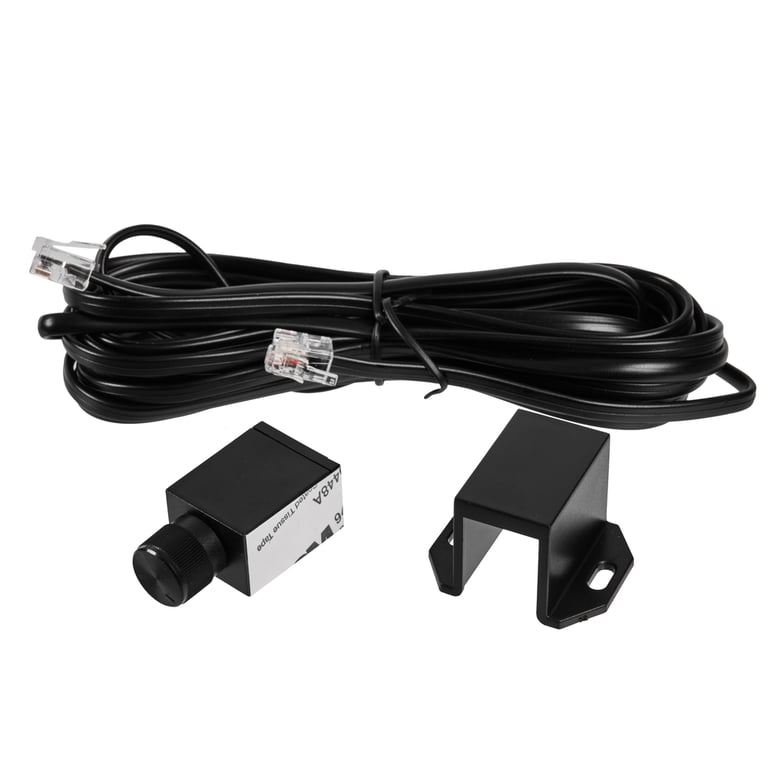

NVX VAD10001 (Like New) Image 8 — NVX VAD10001 (Like New)

Product highlights

• RMS: 420 x 1 @ 4 ohm, 760W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Total RMS Power: 1000W
• CEA-2006 Compliant
• Wired Bass Remote Included
• Efficient Class D Design
• Dimensions: 7.0"W x 5.4"D x 2.0H

Learn more about the ls-vad10001-obc8

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

.quote1 { color:#707070; font-family:'Ubuntu', sans-serif ; line-height: 1px; font-size: 18px; } .quote-background { width: 100%; padding: 10px; font-weight:normal; color: #7f7f7f; line-height:1.5; margin-bottom:10px; padding-left:45px; background: #fff1c6 url(https://www.sonicelectronix.com/landing/images/obinfo.png) no-repeat; -webkit-box-sizing:border-box; -moz-box-sizing:border-box; box-sizing:border-box; background-position:5px; } .ui-mobile-viewport .quote-background{background-position:5px 15px}

Item Condition - Damaged Packaging Only:
A Brand New with Damaged Packaging product is an untouched, unused product, but has damaged original packaging. While the product should be untouched and perfect condition, select packaging materials, such as original protective wrapping, if any, may be missing or damaged. The original manufacturer warranty, if any, still applies, with warranty details included in the listing description or comments. Instructions are included. Product is suitable for presenting as a gift so long as recipient appreciates a great item, not packaging.

	Best Value!
	NVX VAD10001 $229.99	Kicker CXA800.1 $269.95
# of Channels	Monoblock	Monoblock
Amplifier Class	Class-D	Class-D
Total Peak Power	2000W	1600W
Total RMS Power	1000W	800W
Marine Certified
CEA-2006 Compliant
Bass Remote Included
Dimensions	7.0"L x 7.2"W x 2.0"H	8.13"L x 6.75"W x 2.38"H

Incredibly Compact & Powerful

Don't let the compact size of this amplifier fool you. It offers a total RMS power of 1000 watts. Therefore, you can install it in any location in your vehicle and get a high enough output to power your professional sound quality equipment.

Water & Weather Resistant

The VAD Line of amplifiers include a conformally coated, marine-grade circuit board. This allows this amplifier to be installed in nearly any application.

CEA-2006 Compliant Class-D Amplifier

Class-D amplifiers like the NVX VAD Line of amplifiers are more efficient, produce less heat, and draw less current than traditional Class AB circuitry.

3-Way Protection Circuitry

All amplifiers in this line are designed with built-in 3-way protection circuitry. This will protect your amplifier and your speakers by offering a number of different protections including thermal, overload, and speaker short protection. These help ensure the longevity of the amplifier and your system as a whole.

Product Details:

Marine Certified Class D Monoblock Amplifier with Bass Remote
CEA-2006 Compliant
Peak Power Rating: 2000 Watts
RMS Power Rating:

4 ohm: 420 watts x 1 chan.
2 ohm: 760 watts x 1 chan.
1 ohm: 1000 watts x 1 chan.

LED power (blue) and protect (red) indicators
Conformal Coated Marine grade circuit board
Heavy duty aluminum alloy heat-sink
Platinum-plated RCA level inputs
Platinum-plated screw terminals
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Variable subsonic filter: 10 - 55 Hz, 12 dB/octave
Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
Bass Boost: 0 - +12dB boost @ 45Hz
Input Sensitivity: 200mV-6V
Total Harmonic Distortion: <0.3%
Fuse Rating: 30A x 3
Phase: 0-180 Degree Switch
Power Wire Gauge: 4 AWG
Speaker Wire Gauge: 8 AWG
Dimensions: 7.0"L x 7.2"W x 2.0"H
Authorized Internet Dealer
30 Day Sonic Electronix Warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

420 watts x 1 channel

RMS Power @ 2 ohms

760 watts x 1 channel

RMS Power @ 1 ohm

1000 watts x 1 channel

Power Specifications - Subwoofer Channel

Peak Power @ 4 ohm

840 watts x 1 channel

Peak Power @ 2 ohms

1520 watts x 1 channel

Peak Power @ 1 ohm

2000 watts x 1 channel

Amplifier Specifications

Series

V Series

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

2000 watts

Total RMS Power Output

1000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.3%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

50 - 250 Hz

Subsonic Filter

10 - 55 Hz

Signal-to-Noise Ratio

105 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Fuse Rating

30A x 3

Total Fuse Rating

Sonic Certified Amplifier

Yes

What is in the box?

Paperwork

User manual

WITB: Amplifiers

Amplifier
Wired gain knob (wire attached)

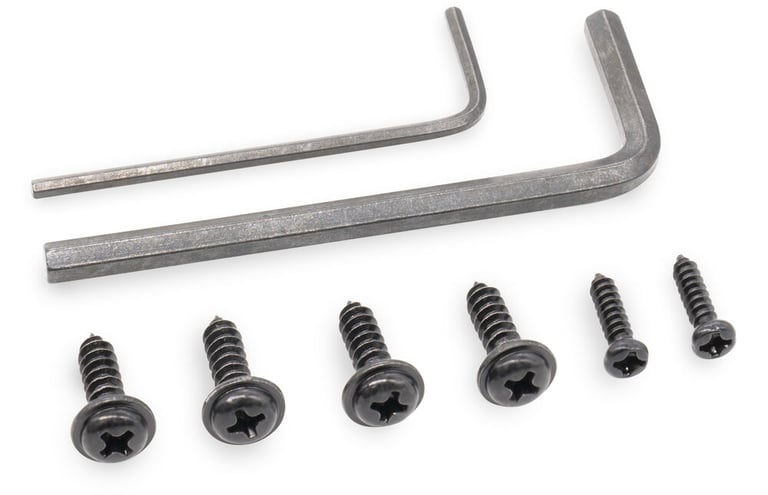

Mounting screws (4)
Adhesive brand badges (2)

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
