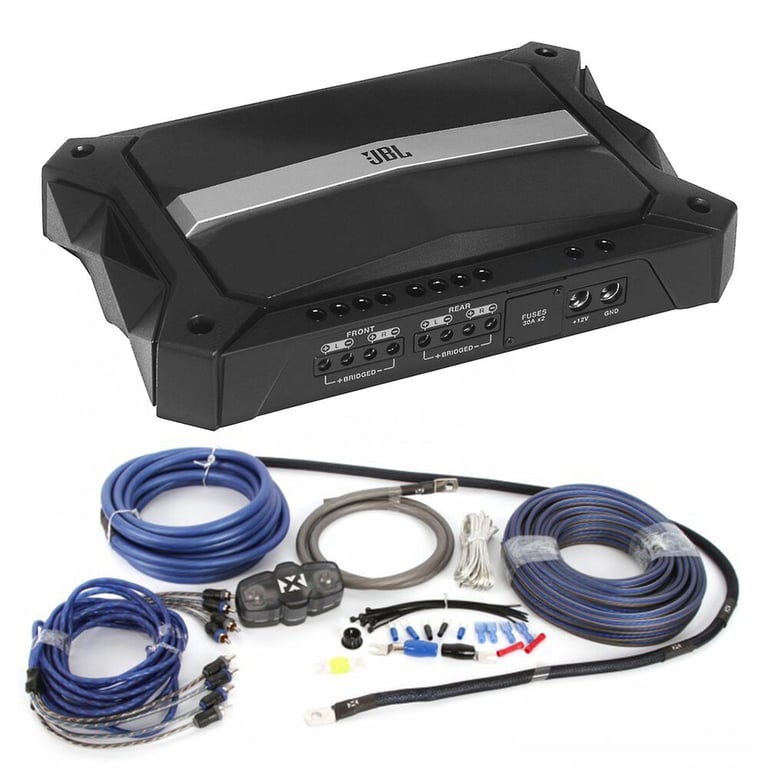

JBL Stadium 4 Amplifier with Amplifier Wiring Kit

800W Max (240 Watts RMS) 4-Channel Class-D Amplifier w/ Remote Bass Control

JBL
Shop all JBL
highlight-star-icon

• 100 Watts RMS x 4 @ 4 ohm
• 120 Watts RMS x 4 @ 2 ohm
• Total Peak Power: 600 Watts
• CEA-2006 Compliant/Preamp Outputs/LPF
• 0 to 9 dB Bass Boost
• Includes Amplifier Wiring Kit

Learn more about the stadium4_xkit44

We apologize

This item has been discontinued


Loading...

Rockford Fosgate Punch P1 P1572

240W Peak (120W RMS) 5x7" Punch Series 2 Way Coaxial 4-ohm Speakers

7

$109.99

Description


JBL brand icon

Authorized dealer

JBL Store

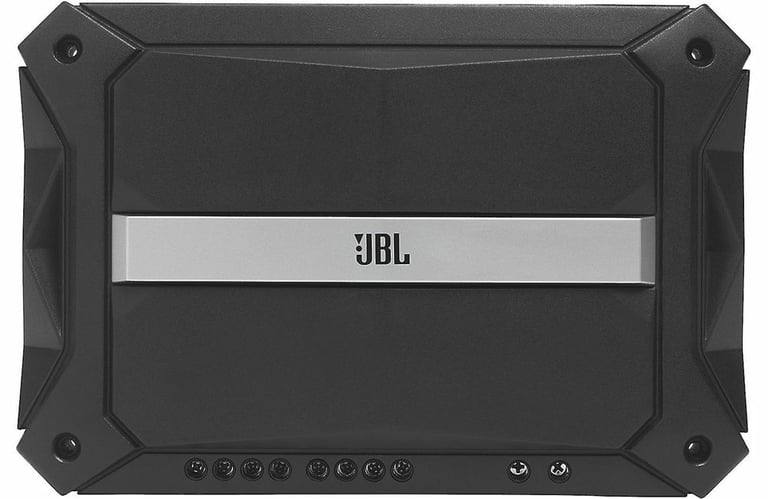

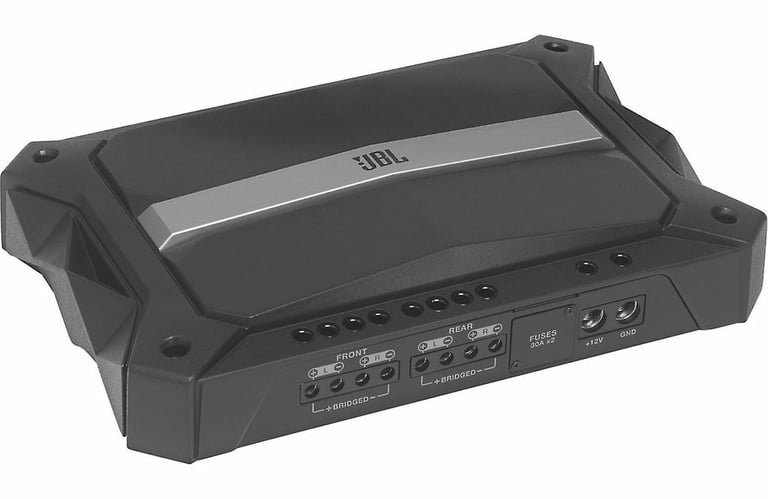

JBL Stadium 4

480W RMS Stadium Series Class-D 4-Channel Amplifier
Quantity: 1

Product Details:

  • Stadium Series Class D 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 channel
    • 2 ohm: 120 watts x 4 channel

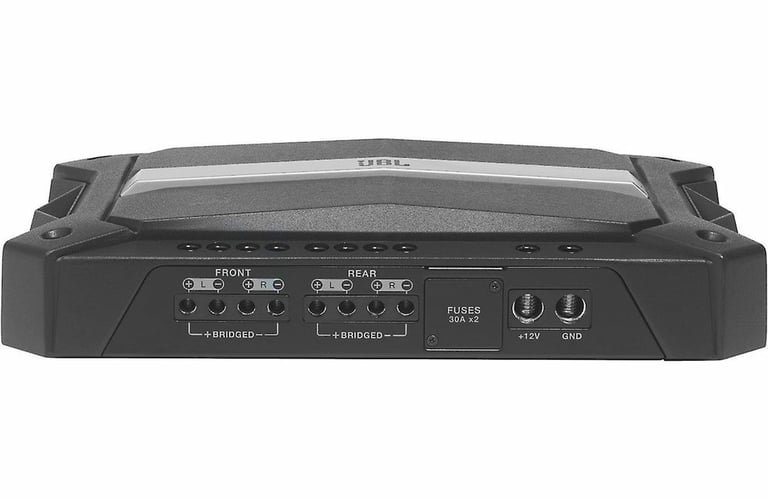

    • Bridged: 240 watts x 2 channel @ 4 ohm
  • Total power output: 480 watts
  • LED Power/Protect Light

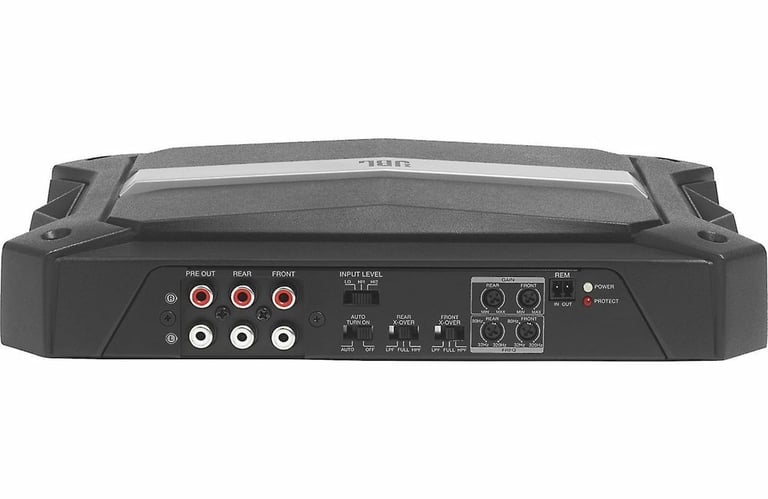

  • Speaker-level (high-level) inputs
  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • E.A.R.L. ground terminal
  • Input sensitivity:
    • Low level: 200mV - 2 volts
    • High level: 2V - 20 volts
  • Frequency Response: 15 - 35000 Hz
  • Total Harmonic Distortion (THD): .01%
  • Signal to Noise Ratio: 80 dB
  • Variable high-pass filter: 32 - 320 Hz
  • Variable low-pass filter: 32 - 320 Hz
  • Fuse Rating: 60A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 7-1/16" L x 10-7/16" W x 2-3/16" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: STADIUM4AM

Check out the JBL Stadium 4 Owner's Manual

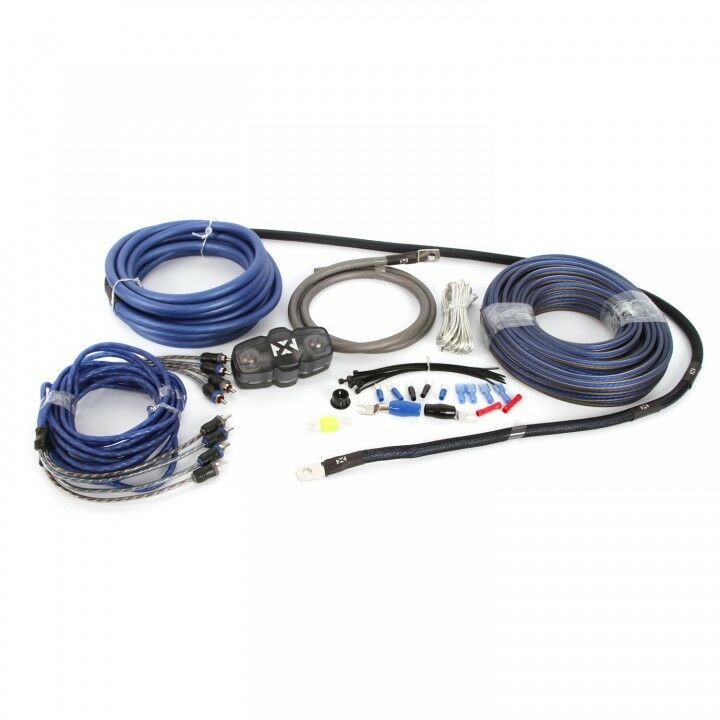

NVX XKIT44

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 4-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems

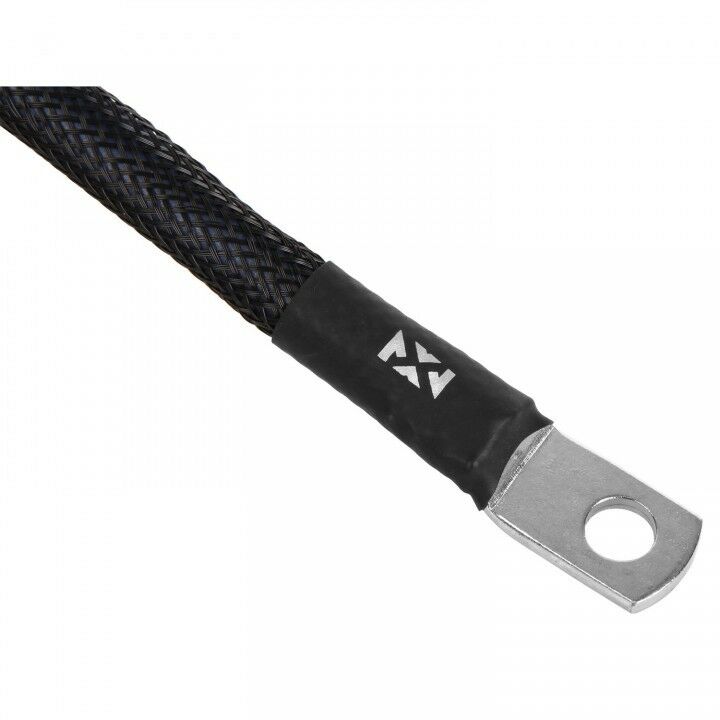

  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

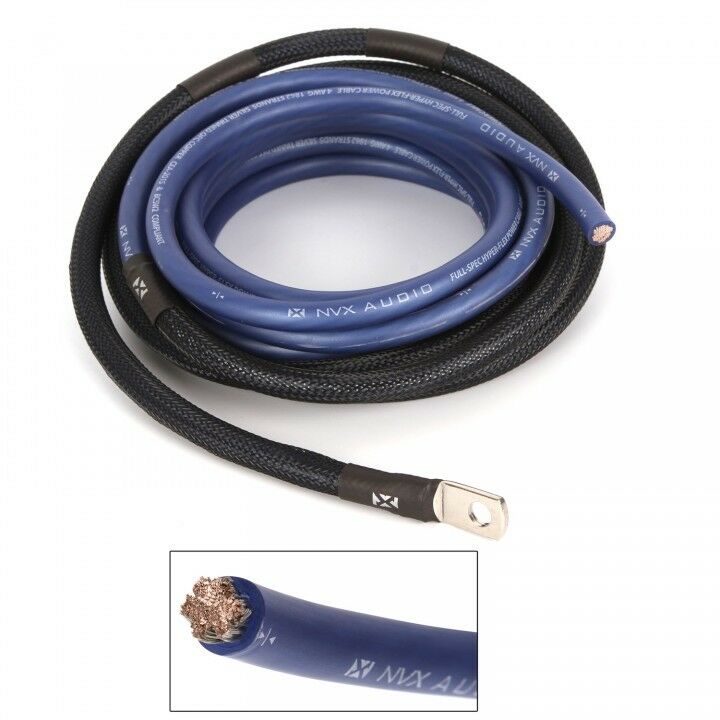

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal

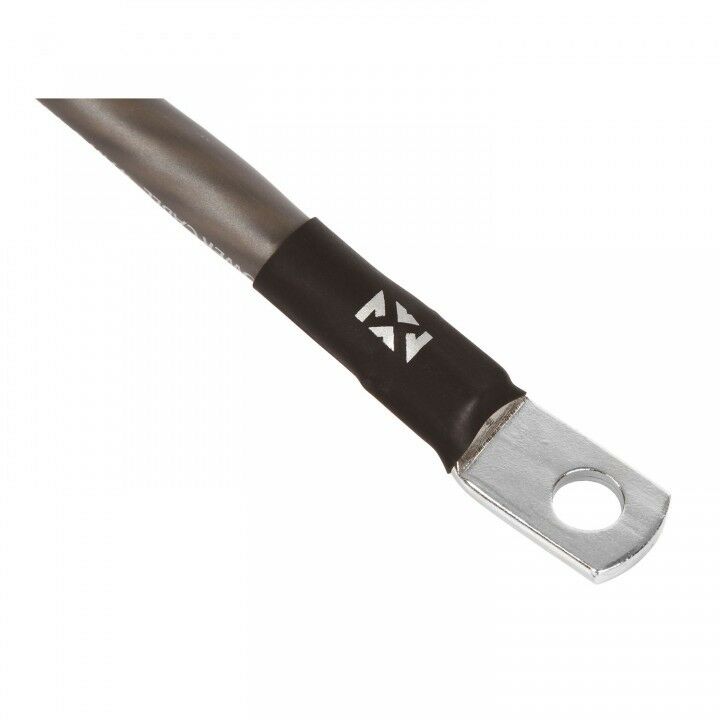

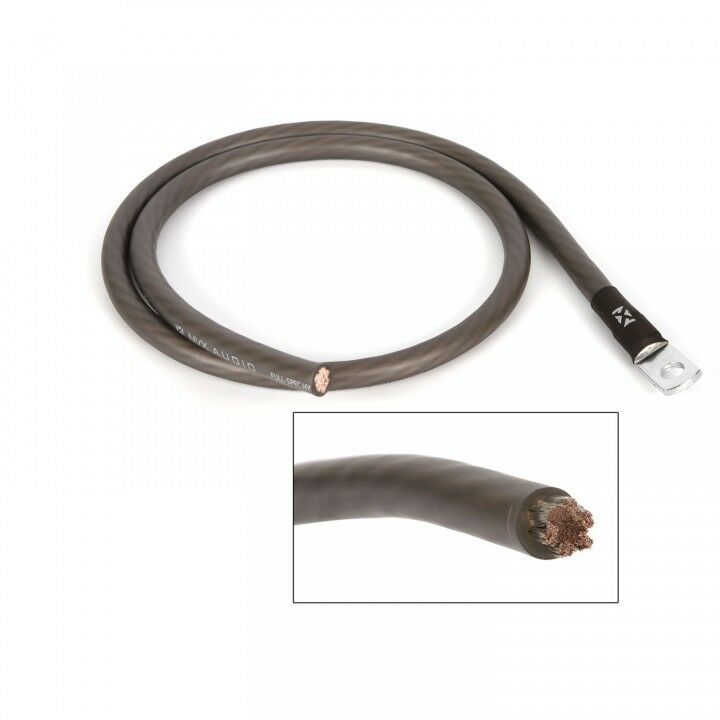

  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal

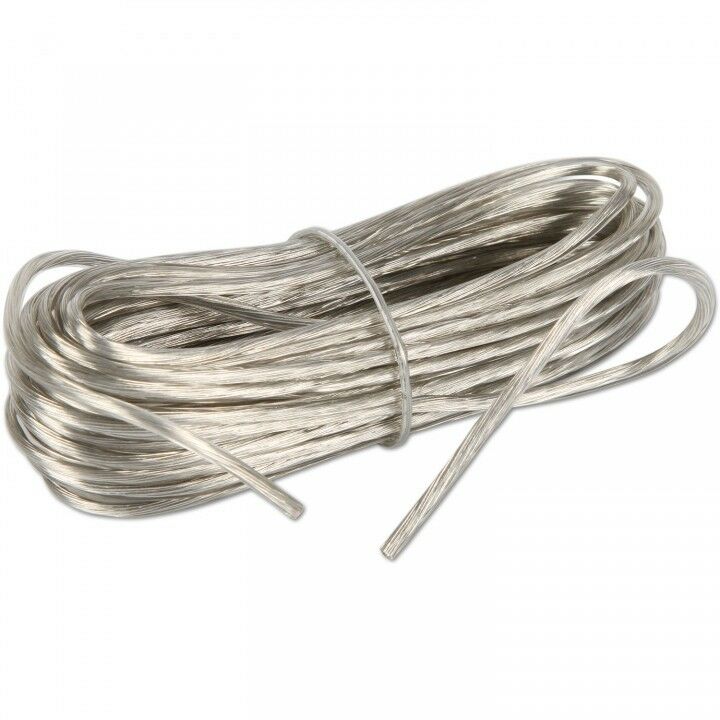

  3. 17 ft. Clear 18 gauge remote lead wire

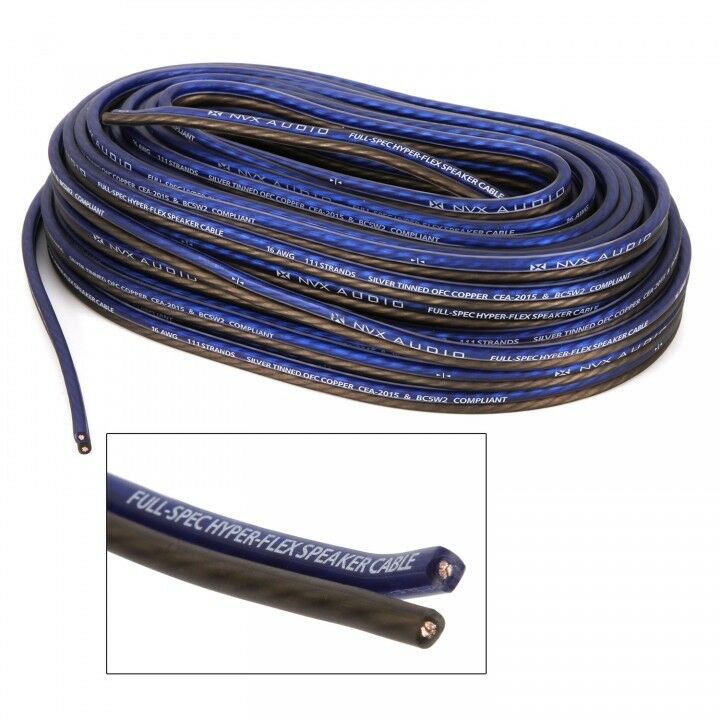

  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire

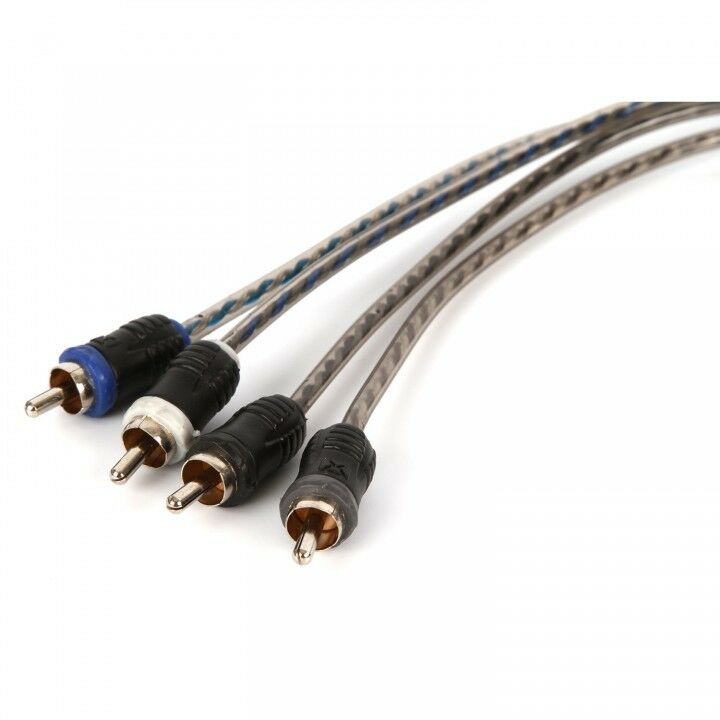

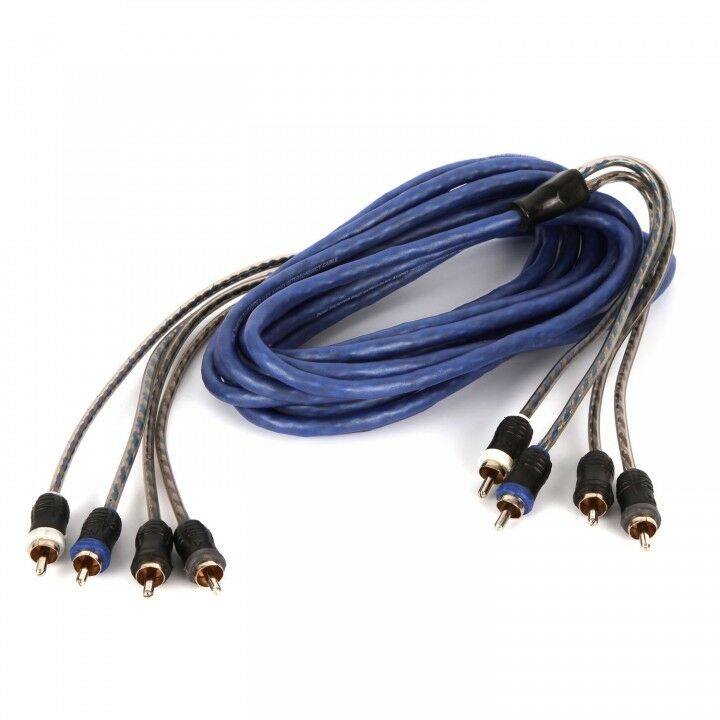

  5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)

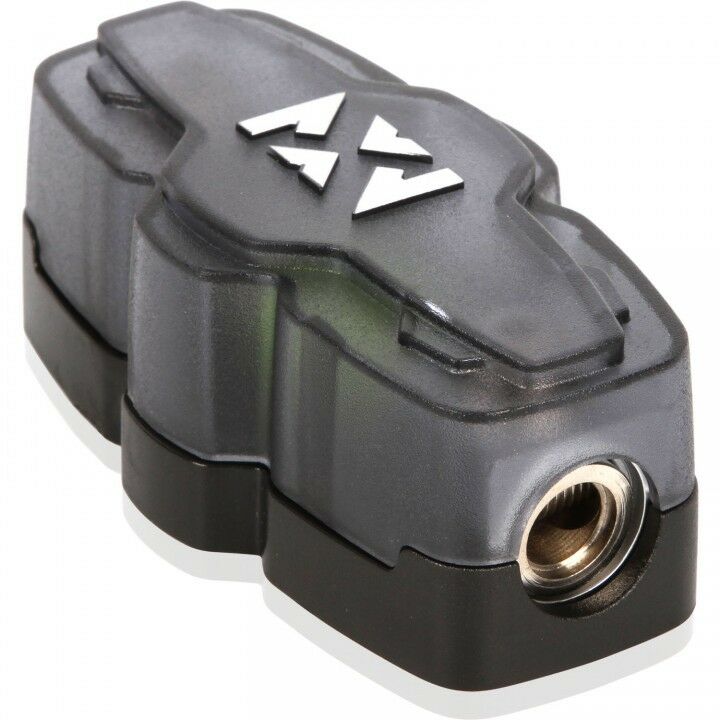

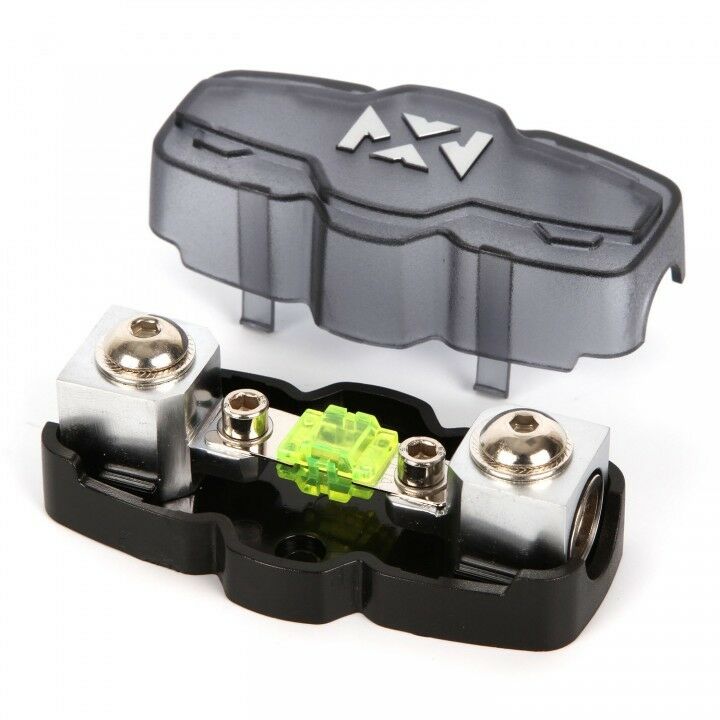

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse

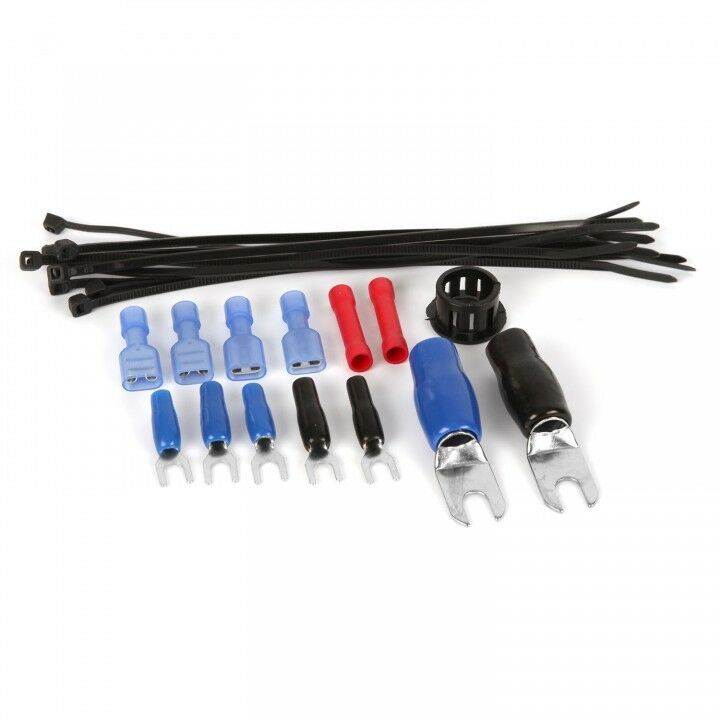

  7. One Black rubber firewall grommet
  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$456.68

List price $593.98

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$279.99

List price $369.98

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(79)

$279.99

List price $369.98

AMPCBA754AM, XFLOC4, BAK84 small

JBL ClubA754 (Club A 754) + Free NVX XFLOC4 Line-Output-Converter + Amp Kit

• Class H Amp Technology
• 4 Ohm Stable Bridged: 200 Watts RMS x 2
• Variable High and Low-Pass Filters
• Variable Crossover
• Full On Board Protection

(68)

$319.95

List price $463.68

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

VSW124V3_NDA15001_XKIT42 small

NVX VSW124v3 + NDA15001 + XKIT42

• Two 12" VSW124v3 VS-Series 600W RMS Subwoofers
• 3000W Peak (1500W RMS) Class D NDA15001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(175)

$569.96

List price $743.96

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
120 watts x 4 channel
Bridged RMS Power
240 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
480 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.01%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 2
Total Fuse Rating
60
CEA-2031 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

STADIUM4AM, XKIT44

Weight:

16.38lbs

Internal SKU:

stadium4_xkit44

Internal Product ID:

181849

Customer Ratings & Reviews


JBL Stadium 4 Amplifier with Amplifier Wiring Kit thumbnail image

5 star
90%
4 star
8%
3 star
1%
2 star
0%
1 star
1%



Durability
4.8
Value
4.8
Features
4.8
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Good value

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit is true 4 gauge copper wire. Worked great for what I needed it for. Not much else to say besides it is also very flexible!

By Adam on March 14, 2014

121 found this helpful


Honda civic 2010 lx big 3

The following review is for XKIT44, which is a part of the bundle you are viewing.

This big 3 is a very nice setup and I haven't installed it just yet. Great quality wire and you can never go wrong with this product. The price is ok just a little over my budget lol

By Brandon on June 5, 2014

115 found this helpful


Honda civic 2010 lx big 3

The following review is for XKIT44, which is a part of the bundle you are viewing.

This big 3 is a very nice setup and I haven't installed it just yet. Great quality wire and you can never go wrong with this product. The price is ok just a little over my budget lol

By Brandon on June 5, 2014

108 found this helpful


Best kit money can buy

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit includes everything I needed for my 4-channel JL Audio amp. I love it. The look of the fuse holder is awesome and the braided cable protector is great under the hood too. The RCAs worked like a charm and I had plenty of speaker wire included. No complaints.

By Hamid on August 16, 2012

109 found this helpful


great

The following review is for XKIT44, which is a part of the bundle you are viewing.

Have not installed yet but it seems to be everything it claims to be. Did recomend itnto a friend but he didn't listen and spent way to much for a kitat a local best buy. Did a lot of research before I bought this kit and it looked like the best value for my hard earned money. Having not yet installed is why I didn't go all five stars. Soon it will be going into my 89 olds custom cruiser with 4 12s....

By Tyler on August 24, 2014

110 found this helpful


Great Amp Kit

The following review is for XKIT44, which is a part of the bundle you are viewing.

This is a high quality 4g amp kit for a great price .... nice 100 amp fuse box

By Kyle on June 13, 2014

108 found this helpful


Awesome kit!!!

The following review is for XKIT44, which is a part of the bundle you are viewing.

This wiring kit is the best I've used so far. It bends very easy in tight places and this is the size wire that I actually paid for. Don't waste $ on cheaper brands...NVX is AWESOME!!!

By jeremy on September 1, 2014

104 found this helpful


Great Complete Package

The following review is for XKIT44, which is a part of the bundle you are viewing.

I replaced all speaker wiring in my car with this kit. The quality of all the wires is very good. NVX is nice quality!

By detekk on June 29, 2013

105 found this helpful


great product

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit is very good and great quality. I would recommend this product for basic and some advanced systems.

By Brandon on December 30, 2014

108 found this helpful


Top of the line kit at decent price

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit has everything and is as good as you can buy. Better than jl, Rockford, stinger, and kicker. At a price less than or equal to those mentioned. True spec, silver tinned ofc

By Donnie on March 30, 2013

102 found this helpful



SV-6829.IR small

Crimestopper SV-6829.IR

Rearview Backup Cameras

$28.99

List price $99.95

No picture

Phoenix Gold Package -- (1) T500.2 Amp + (1) TSX44 Kit

$249.99

List price $529.99

PR-D5CL small

Sangean PR-D5 (Clear)

Portable AM/FM Radio RFS Digital Tuning Stereo Receiver with Built-In Alarm Clock Function (Black)

$79.95

List price $99.95

No picture

NVX JAD900.5- OPEN BOX

True 900W RMS, Full Range Class D 5-Channel Amplifier with Bass Remote

$249.99

List price $499.99

PLCM9200 small

Pyle PLCM9200 OPEN BOX COMPLETE

9.2'' TFT/LCD Mirror Monitor with License Plate Mount Rearview Backup Color Camera

$84.99

List price $244.99

PR-D18RD small

Sangean PR-D18RD (Red/White)

Portable AM/FM Radio Speaker System (Red/White)

$39.99

List price $69.95

CK3100LCD_KIT_7552 small

Parrot CK3100 LCD KIT 7552

Voice Activated Hands-Free Car Kit for Select Nissan and Subaru Vehicles

(2)

$172.98

List price $269.98

Clipster (Black) small

ION ISP29 Clipster (Black)

Ultra-Portable Wireless Bluetooth Speaker with a Built-In Clip

(1)

$15.90

List price $49.99

S2FFFM-074 50/50 (White/Black) small

Skullcandy 50/50 S2FFFM-074 (White/Black)

White and Black 50/50 Series In-Ear Headphones Headset with In-Line Remote/Mic

$30.95

List price $49.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1998 Ford Windstar

1985 Buick Skylark

1982 Volkswagen Scirocco

2002 Mitsubishi Eclipse

1996 Geo Tracker

2004 Mazda B3000

2011 Audi A6

2017 Lexus GS350

2016 Dodge Ram ProMaster 3500

2017 Audi SQ5

Vehicle
Store
Delete

2000 Harley Davidson FXSTD/I Softail Deuce

Vehicle
Store
Delete

2013 Can-Am Commander E LSV

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
