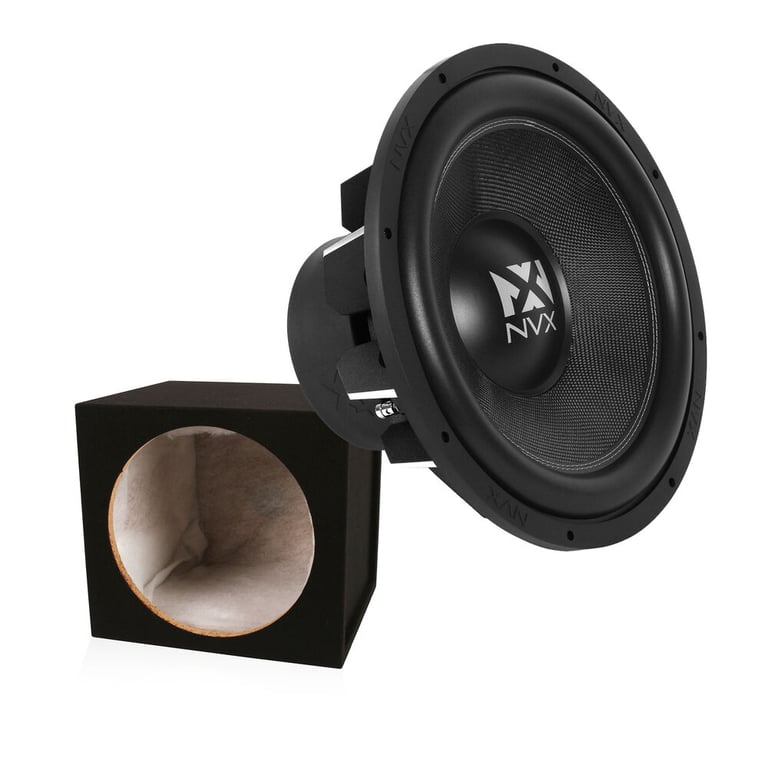

NVX VCW152 + 15" Sealed Subwoofer Enclosure

NVX VCW152 + 15" Sealed Subwoofer Enclosure-thumbnail

Product highlights

• 1000 Watts RMS / 2000 Watts Max
• Dual 2-ohm Voice Coil
• Pressed Paper Cone With Woven Fiber Top
• High Excursion Foam Surround

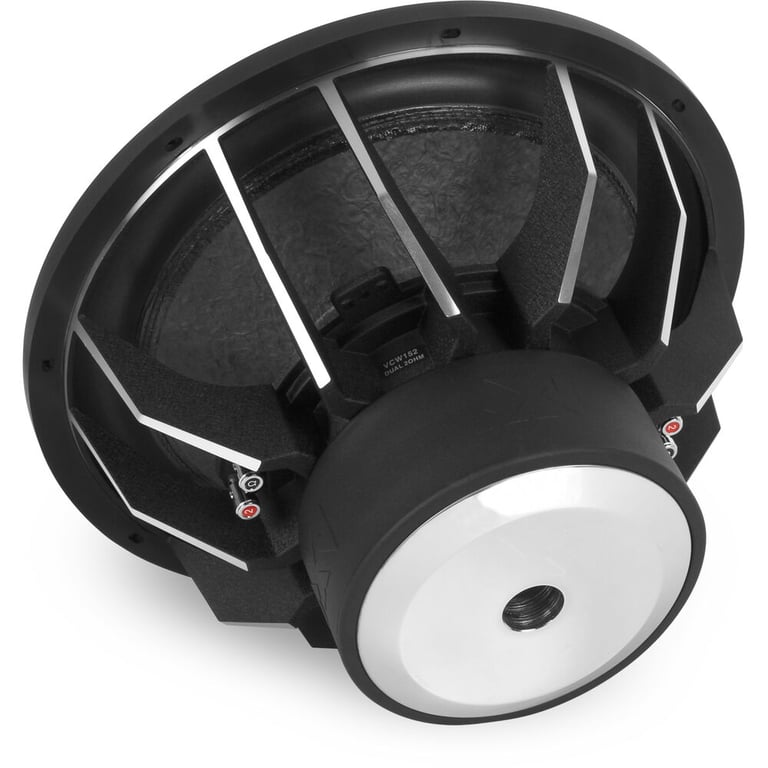

• Cast aluminum basket for maximum rigidity

Learn more about the vcw152_mdfs15

Description

Authorized dealer

Incredible Bass with Ability to Perform in a Tight Space!

NVX's VC-Series car subwoofers are about to blow you away. The VCW152 is a jack-of-all-trades and has been engineered to the highest standards. The woven fiber pressed paper cone and custom High Roll foam surround with Nylon stitching help reproduce tight and accurate bass, keeping cone distortion to a minimum even at the highest volume levels. The next key components in the design of the VCW152 are the large dual 3" High Temperature Aluminum voice coils and triple stacked motor structure. These features combined help this sub handle some serious power at 850-1000 Watts RMS. The dual voice coils also give you many options for different Ohm load wiring configurations. With all the above engineering elements combined, the VCW152 subwoofer gives you better sound and build quality than many subs costing almost twice as much. Plus, they will sound great in a small sealed enclosure for those who do not have a lot of space!

Surround: Most materials used in commercial subwoofer surrounds rip and tear at peak levels. Keeping this in mind, the NVX team developed a custom high-roll foam surround that gives their subs improved linearity and MORE output. Combining that with high-strength adhesive and nylon stitching means that this subwoofer will last through some serious audio output!

Basket: The 3-dimensional cast provides outstanding strength while keeping the subwoofer light due to the aluminum construction. Aluminum is a non-ferrous metal, which means the basket will not interfere with the magnetic energy of the voice coil and motor structure.

Spiders: The Dual Poly-Cotton Spiders are designed to be durable and long-lasting. They give the voice coil the suspension it needs and restore the subwoofer to its normal resting position with ease.

Voice Coil: The 3" (2.5" for the VCW102 and VCW 104) High Temperature Aluminum Voice Coil along with the triple-stacked magnet give massive power handling capability for the VC Series Subwoofers. The effective heat dissipation of the voice coil allows you to play the subwoofer louder without distortion.

CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.

NVX VCW152 Version 3 (VCW152v3)

3000 Watt Peak (1500W RMS) 15" VC-Series v3 Dual 2-Ohm Car Subwoofer
Quantity: 1

Product Features:

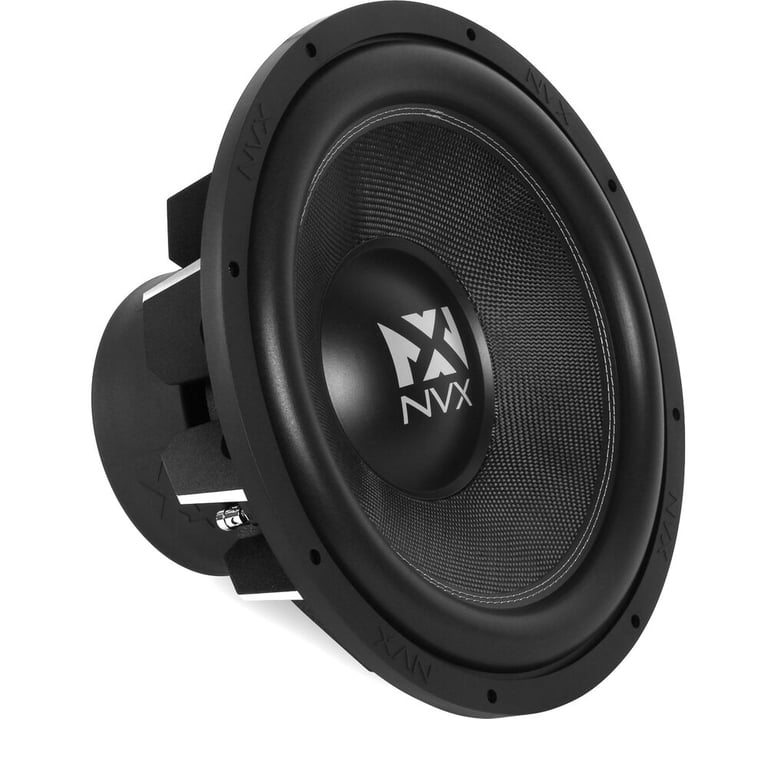

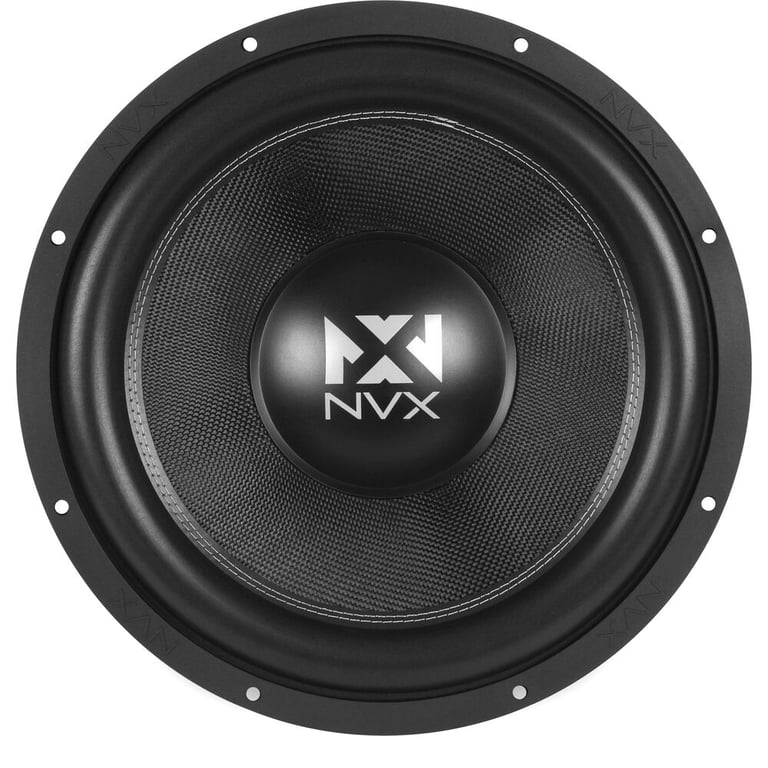

15" Dual 2-Ohm VC-Series v3 Car Subwoofer
Power Handling:

Peak Power: 3000 watts
RMS Power: 1500 watts

Impedance: Dual 2 ohms
Xmax: 23mm (One-way)

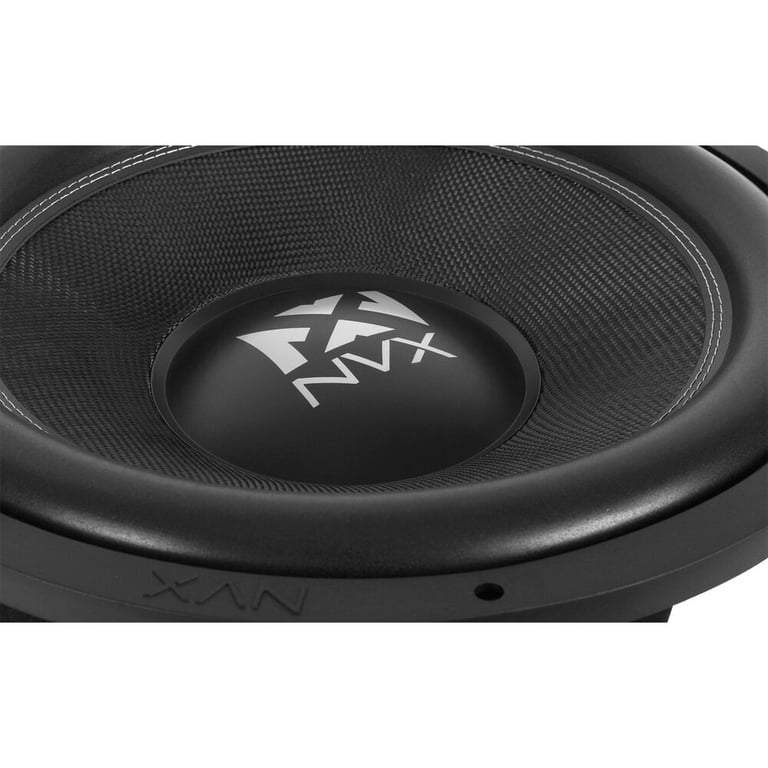

Carbon Fiber Enhanced Non-Pressed Paper Cone
Custom High Roll foam surround with black nylon stitching

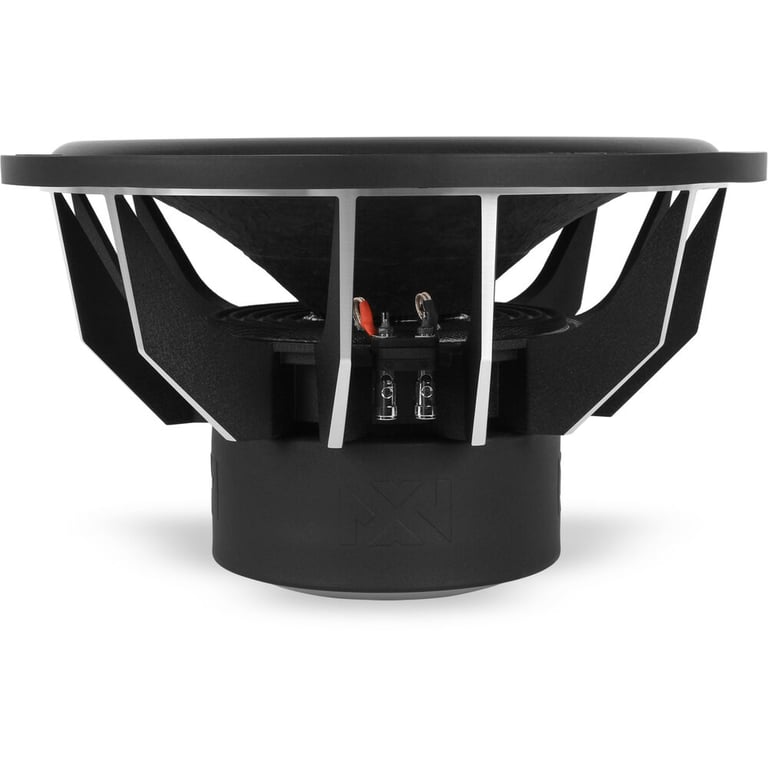

Die Cast aluminum vented basket

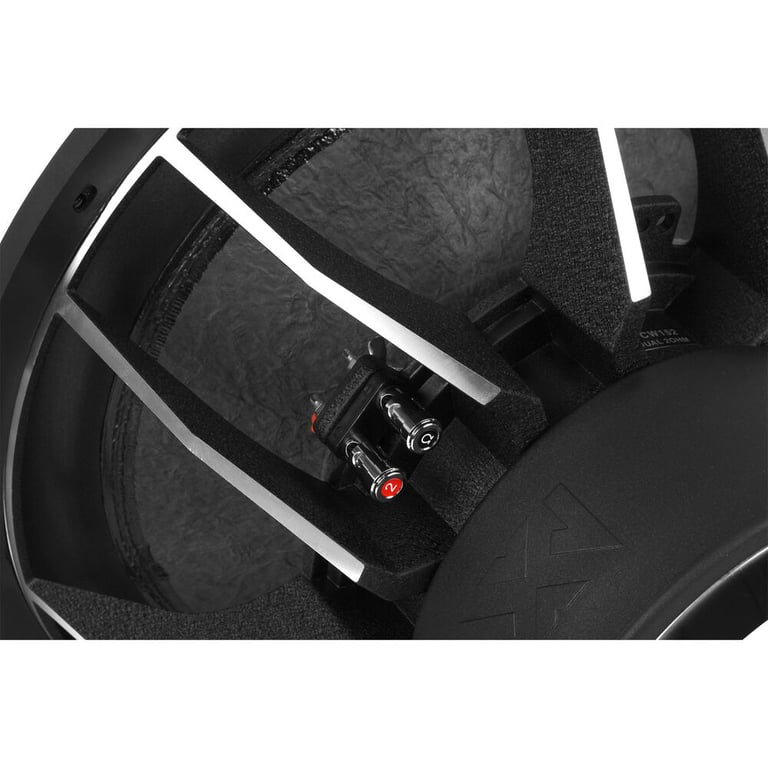

Dual Progressive Roll Bolt-on Spiders with Integrated Flat Braided Tinsel Leads
3” 4-Layer High Temperature Black Aluminum Voice coil
Optimized high-velocity pole vent
One piece T-Yoke with vented magnet gap
202 oz. Triple stacked High Energy Y35 grade ferrite magnet with protective rubber boot
Frequency response: 20-200 Hz
Resonance Frequency (Fs): 31 Hz
Optimal sealed box volume: 2.00 cubic feet
Optimal ported box volume: 3 cubic feet
Top-mount depth: 8.19"
Sensitivity: 88dB
Authorized Internet Dealer
1-year Manufacturer's Warranty

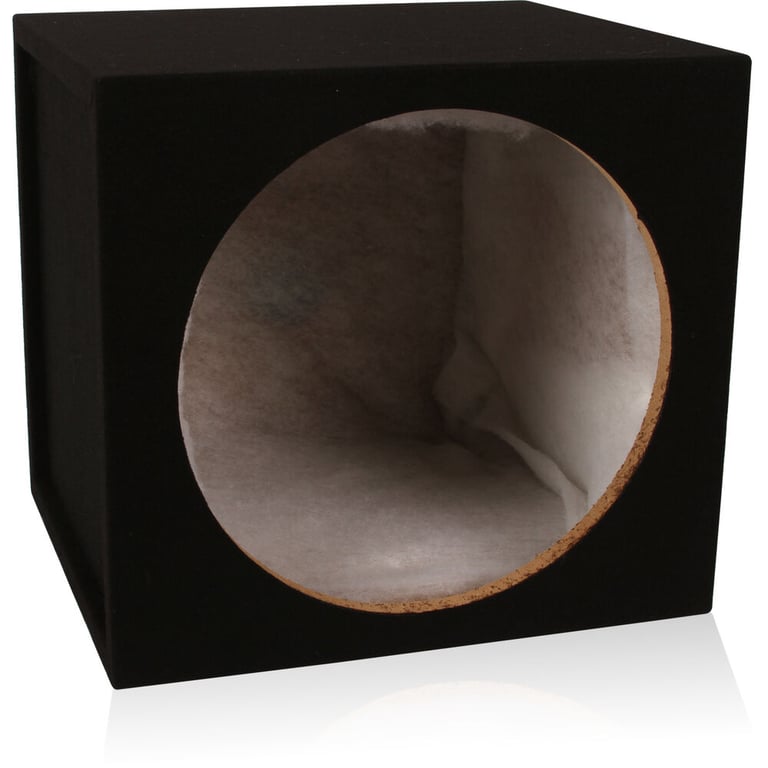

Single 15" Sealed MDF Subwoofer Enclosure (Belva MDFS15)

15-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (1.9 cu ft airspace 15SQTC)
Quantity: 1

Belva Subwoofer Boxes with Polyfill and 3/4-inch MDF

Built for Bass

You've got an awesome subwoofer there, pal. But where's it gonna go? You can't just throw that thing in the trunk and call it a day. Don't worry, Belva's got your back. With superior construction, great features and everything you need for bass, you'll be ready to pass up that entry-level box you've been eyeballing.

Belva Subwoofer Boxes are CARB Phase 2 Compliant

You get quality boxes with solid 3/4" MDF because nothing else will do the job right. You want to flex your windshield, not your box's innards. You get polyfill built into the box, making sure your subs perform perfectly. On top of that, you get a box that's CARB Phase 2 Compliant, meaning your box won't emit as much nasty formaldehyde as the competition. Better for your bass and better for you.

Look, nobody buys a subwoofer and says, 'Aw man, I just want a teeny bit of thump.' Naw man, you want something that kicks you in the chest, but you need a box that's gonna put up with it. That's where Belva comes in. While other brands use less-than-optimal 1/2-inch MDF, we've got 3/4-inch MDF to make sure you get all the bass you can handle. Why risk a busted box? Belva's the obvious choice when it comes to giving your sub a good home and giving you the low end you're looking for.

Product Features:

15" Single Sealed Subwoofer Enclosure
3/4" High Quality MDF Material machine-cut to perfection

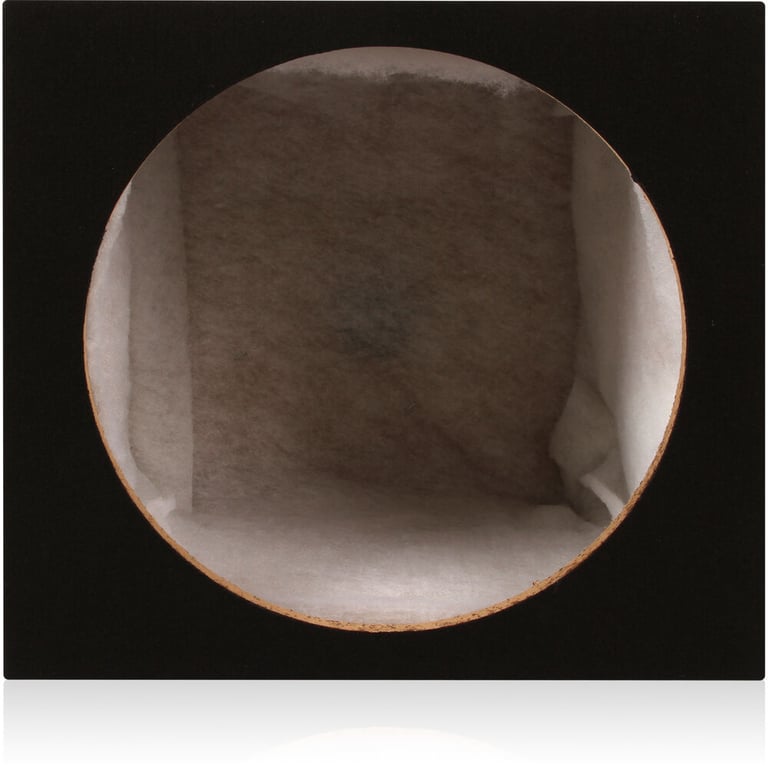

Now lined with Poly-fill
Professionally Sealed, caulked, and carpeted

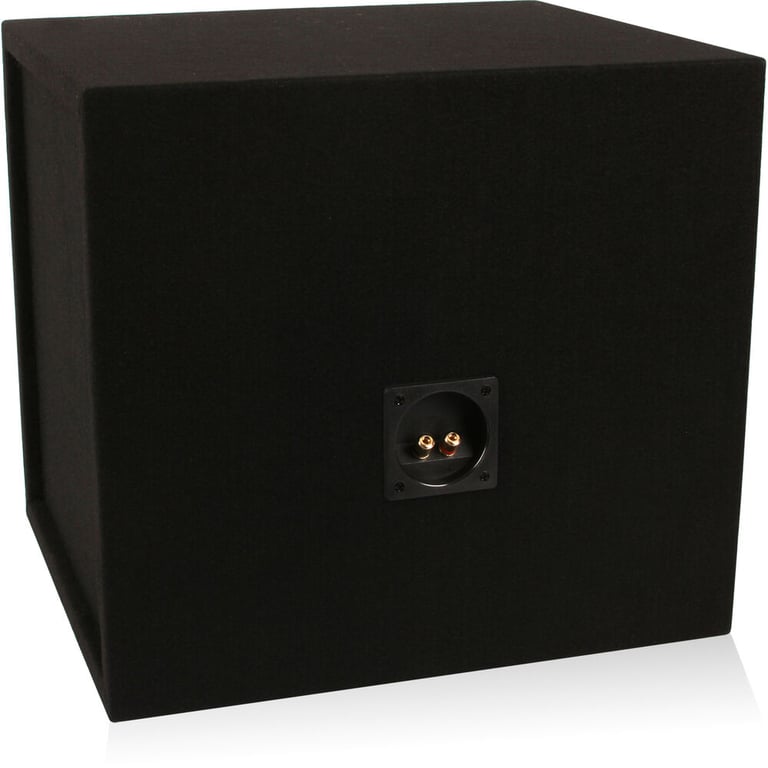

Terminal cup installed with gold screw posts
Durable black carpeting
Mounting Depth: 14-1/2"
Cutout Diameter: 14-3/4"
Internal Box Volume: 1.90 cubic ft.
Box Dimensions: 17-3/4"W x 16-1/4"H x 15-1/4"D
1 Year Manufacturer's Warranty

Specifications & Details

Subwoofer Specifications

Series

VC Series

Subwoofer Size

15"

RMS Power Handling

1000 watts

Peak Power Handling

2000 watts

Woofer Composition

Woven Fiber Pressed Paper

Woofer Surround

Foam

Sensitivity

87 dB

Frequency Response

20 - 200 Hz

Subwoofer Design

Round / Circle

Enclosure Specifications

Box Type

Sealed

Number of Subwoofers

Box Style/Shape

Square/Rectangle

Wood Thickness

3/4"

Number of Terminals

Terminal Type

Binding posts

Box Exterior Color

Black

Box Finish

Carpet

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
