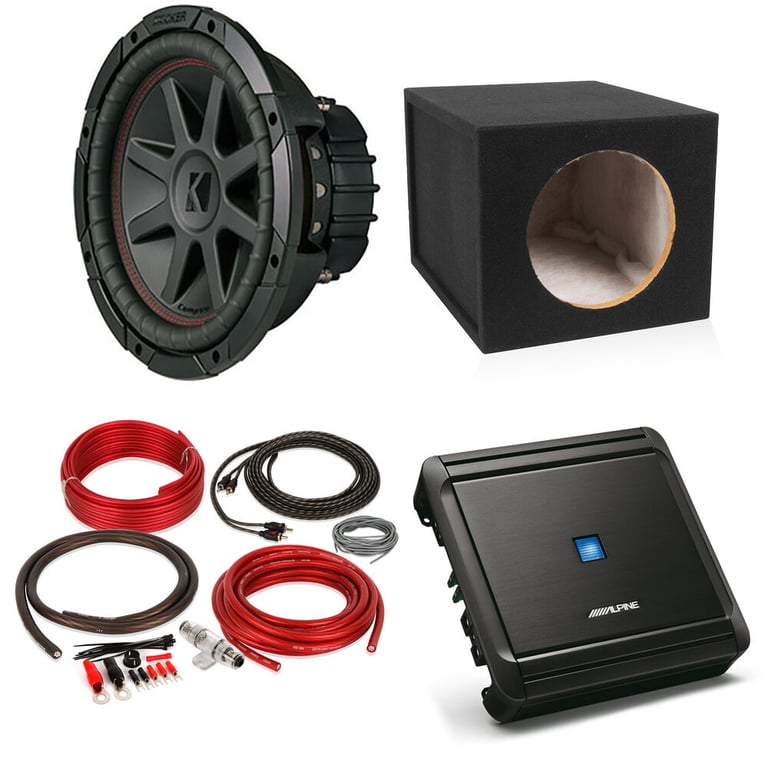

Alpine MRV-M500 + Kicker 10" Subwoofer + 10" Sealed Enclosure + Amp Kit

Product Details:

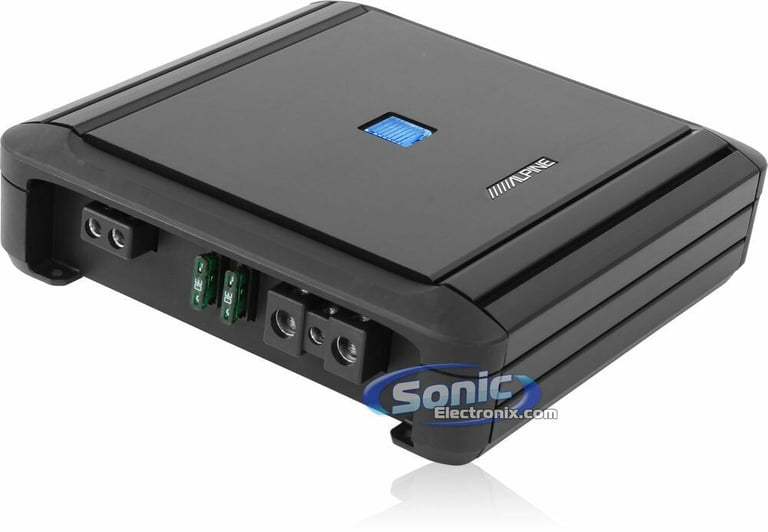

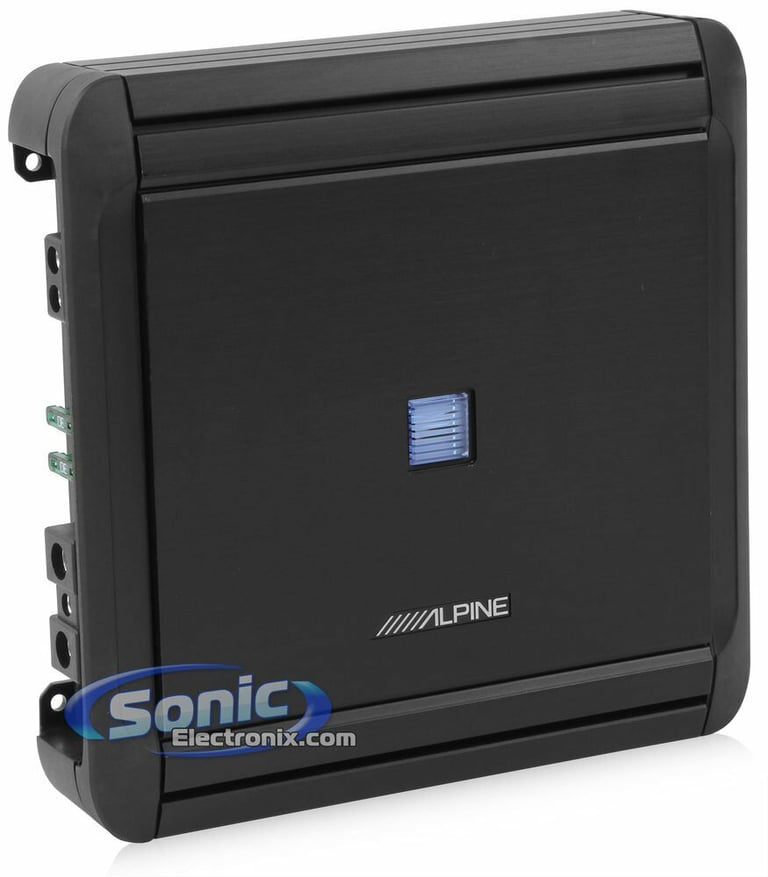

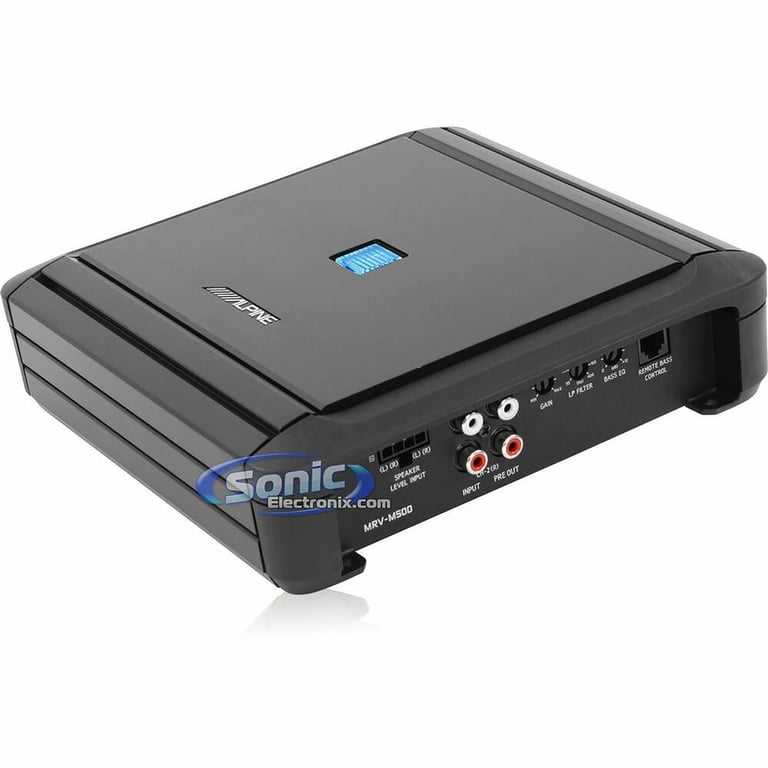

• V Power Series Class D 2 ohms Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 300 watts x 1 channel
• 2 ohms: 500 watts x 1 channel
• Total RMS power output: 500 watts
• LED Power/Protect Light
• Wired bass level remote control with optional Alpine RUX-KNOB.2

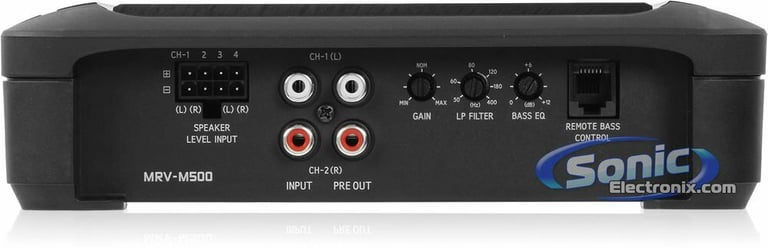

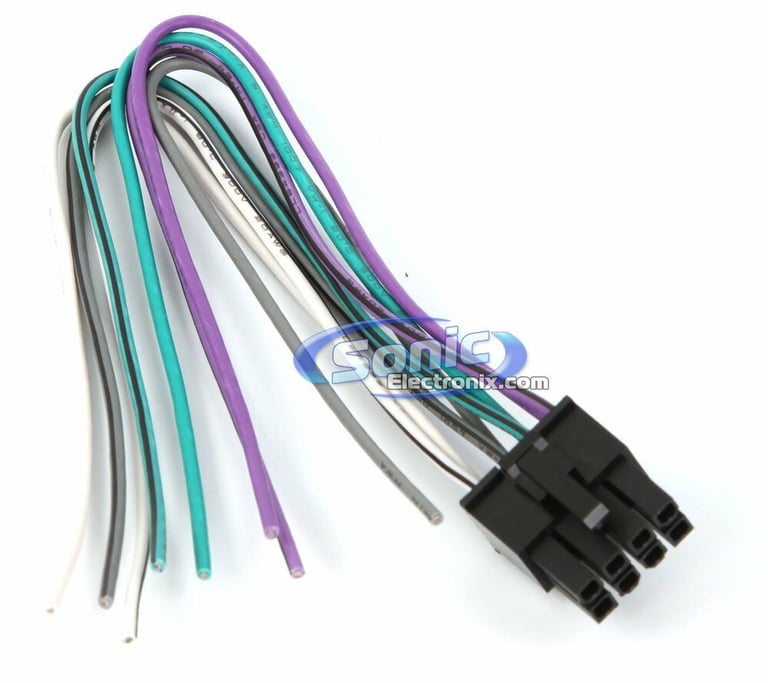

• Speaker-level (high-level) inputs
• 1 pair of pre-amp outputs
• Signal sensing remote turn-on
• 4-way protection circuitry (Over-Current, Over-Voltage, Under-Voltage, and Thermal Protection)
• Input sensitivity:
• Low level: .15 - 4 volts
• High level: .4 - 10 volts
• Frequency Response: 7 - 400 Hz
• Total Harmonic Distortion (THD): .3%
• Signal to Noise Ratio: 85 dB
• Variable low-pass filter: 50 - 400 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 60
• 4 AWG gauge amplifier wiring kit is recommended for installation.
• Dimensions: 7-7/8" L x 7-7/8" W x 2-3/16" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: MRV-M500

General Features:

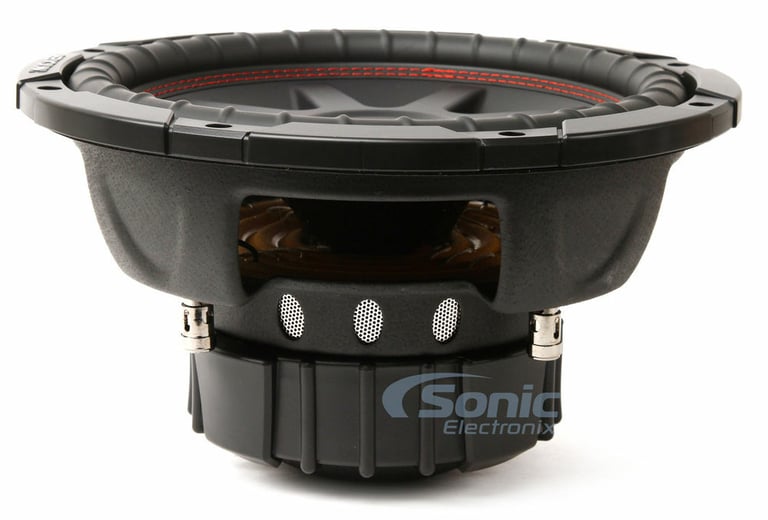

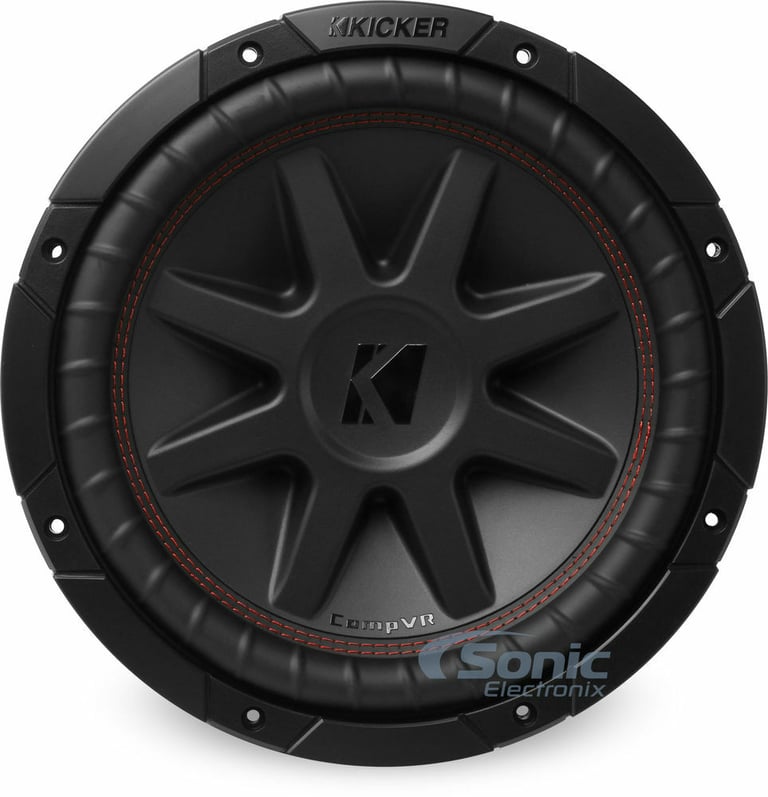

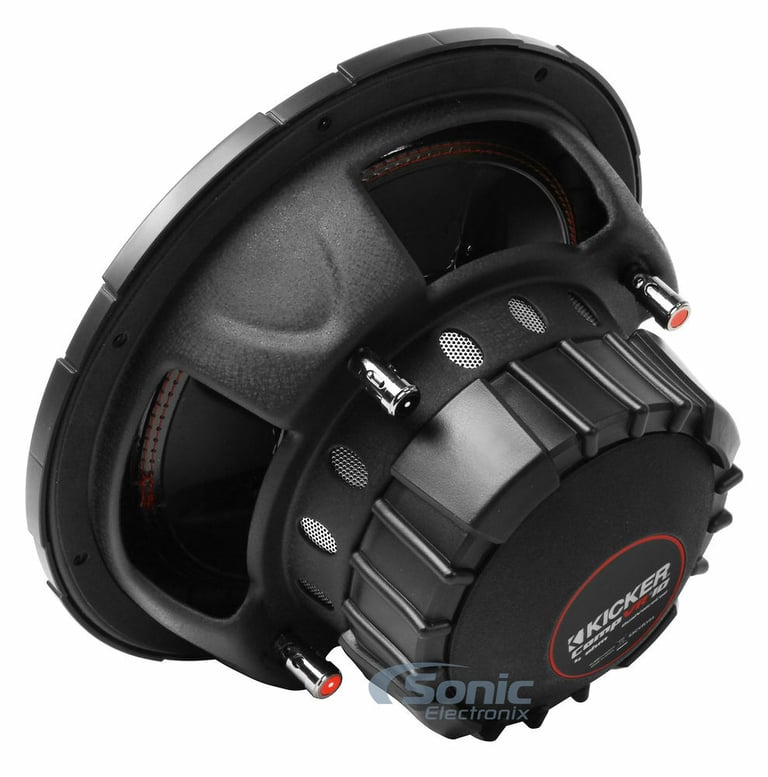

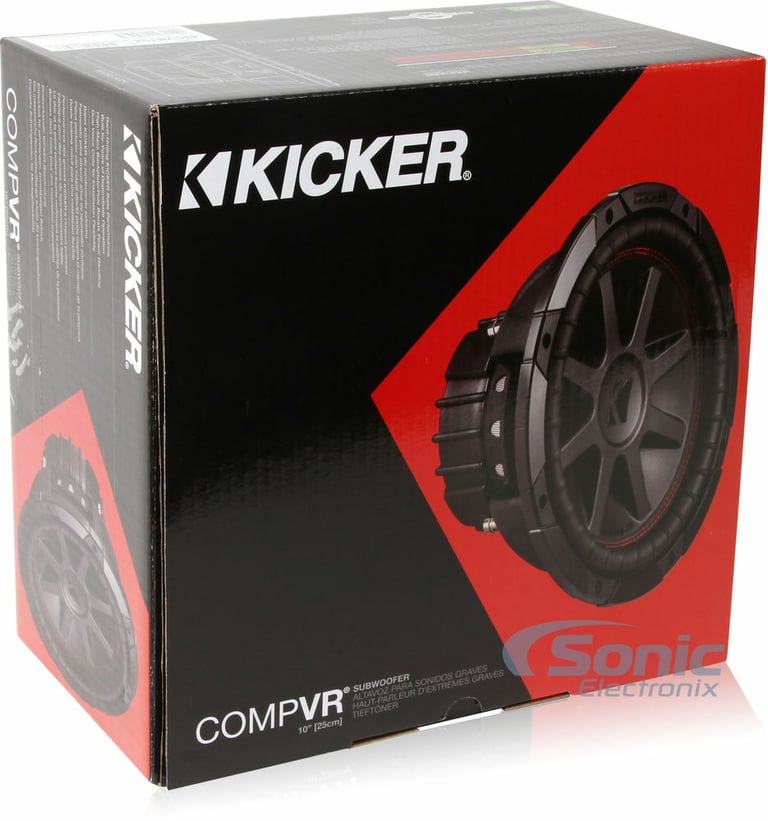

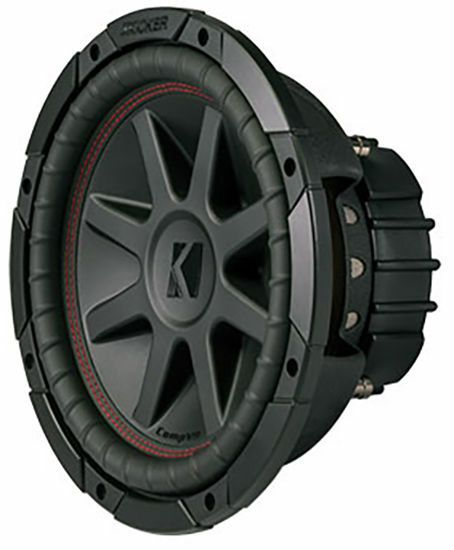

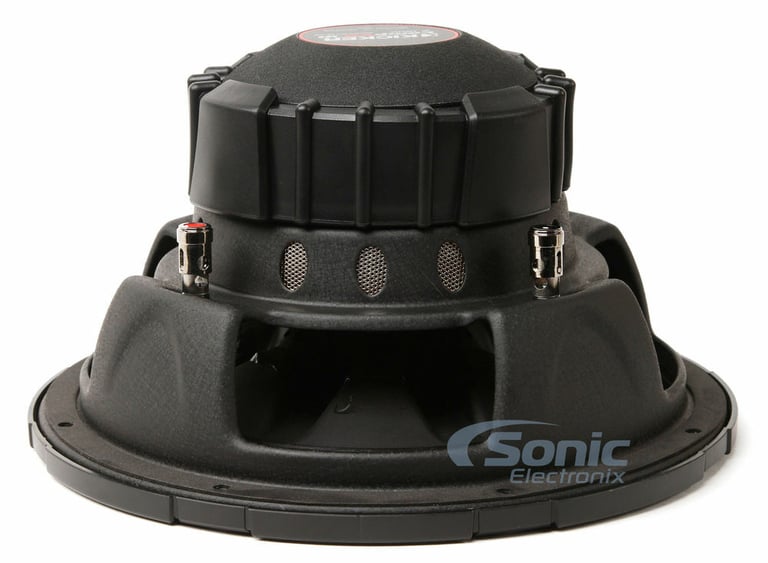

• 10" Dual 4-Ohm CompVR Series Subwoofer
• Power Handling:
• Peak: 700 watts
• RMS: 350 watts
• Recommended power range: 200 - 400 RMS
• Injection molded SoloKon cone
• Ribbed Santoprene Surround
• Perimeter Venting
• Spiralead tinsel-lead technology
• UniPlate system redirects heat away from motor structure
• Stamped Steel Basket
• Spring-loaded Push Terminals
• Dual 4-Ohm high-temperature voice coils
• Top-mount depth: 5-1/2"
• Mounting Diameter: 9-3/16"
• Sensitivity: 83.6dB
• Frequency Response: 25-500Hz
• Minimum Sealed Enclosure: 0.8ft³
• Maximum Sealed Enclosure: 3ft³
• Minimum Ported Enclosure: 1.25ft³
• Maximum Ported Enclosure: 1.75ft³
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty



Priced Individually

Built for Bass

You've got an awesome subwoofer there, pal. But where's it gonna go? You can't just throw that thing in the trunk and call it a day. Don't worry, Belva's got your back. With superior construction, great features and everything you need for bass, you'll be ready to pass up that entry-level box you've been eyeballing.

You get quality boxes with solid 3/4" MDF because nothing else will do the job right. You want to flex your windshield, not your box's innards. You get polyfill built into the box, making sure your subs perform perfectly. On top of that, you get a box that's CARB Phase 2 Compliant, meaning your box won't emit as much nasty formaldehyde as the competition. Better for your bass and better for you.

	Look, nobody buys a subwoofer and says, 'Aw man, I just want a teeny bit of thump.' Naw man, you want something that kicks you in the chest, but you need a box that's gonna put up with it. That's where Belva comes in. While other brands use less-than-optimal 1/2-inch MDF, we've got 3/4-inch MDF to make sure you get all the bass you can handle. Why risk a busted box? Belva's the obvious choice when it comes to giving your sub a good home and giving you the low end you're looking for.

General Features:

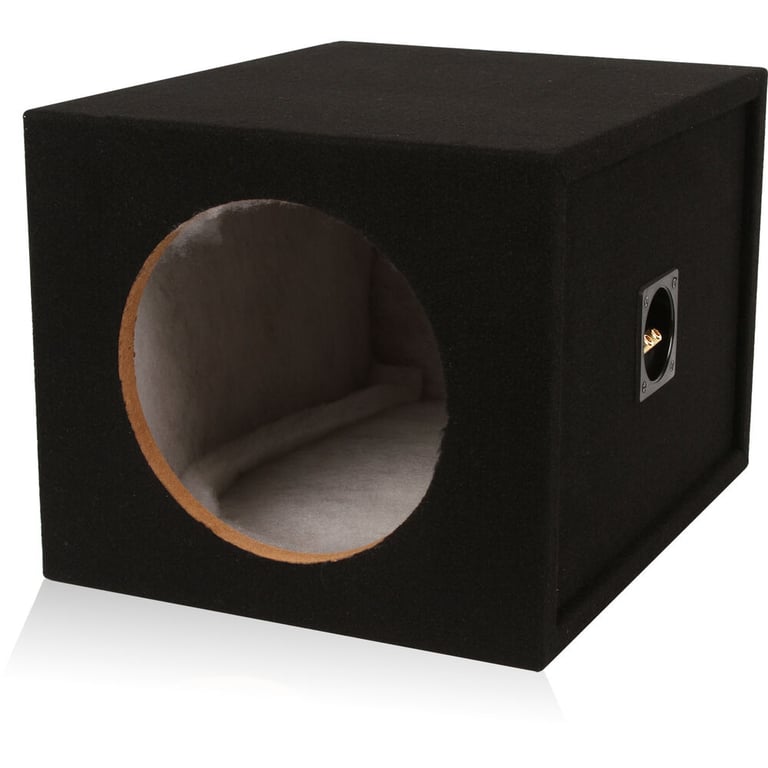

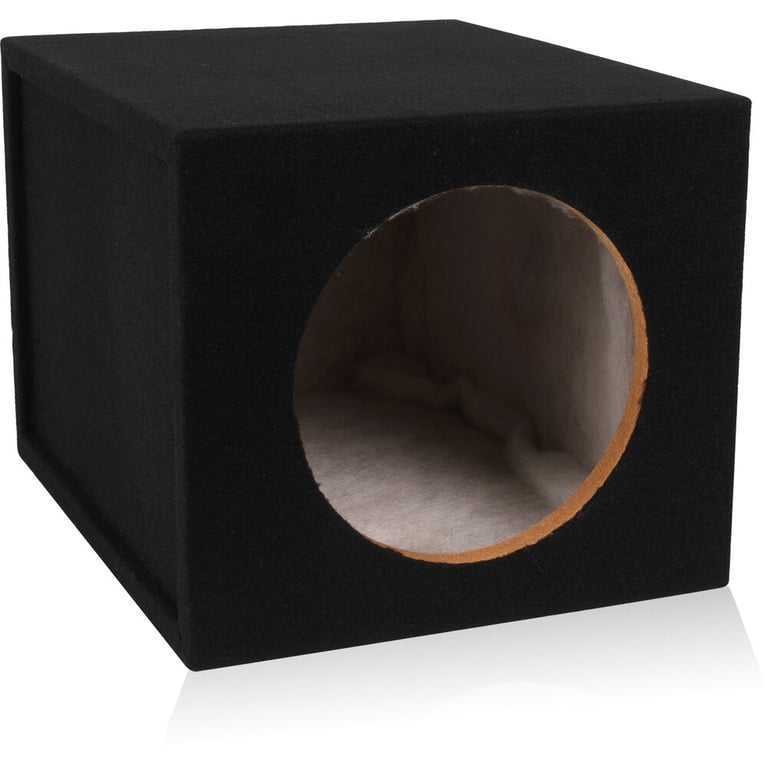

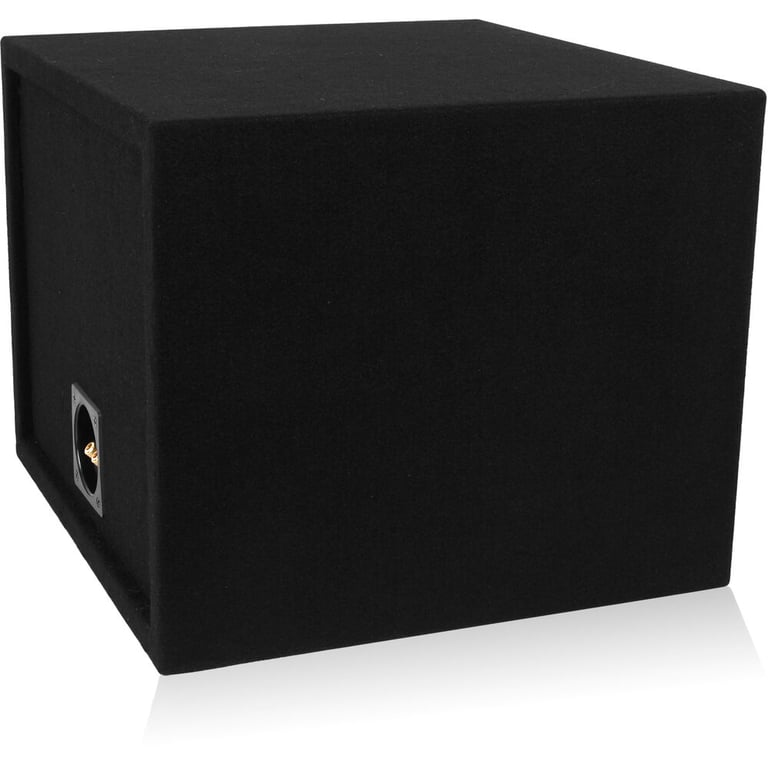

• Single Sealed 10" Enclosure
• Internal box volume: 1.2 cubic ft
• High Quality 3/4" MDF Construction
• Durable black carpeting

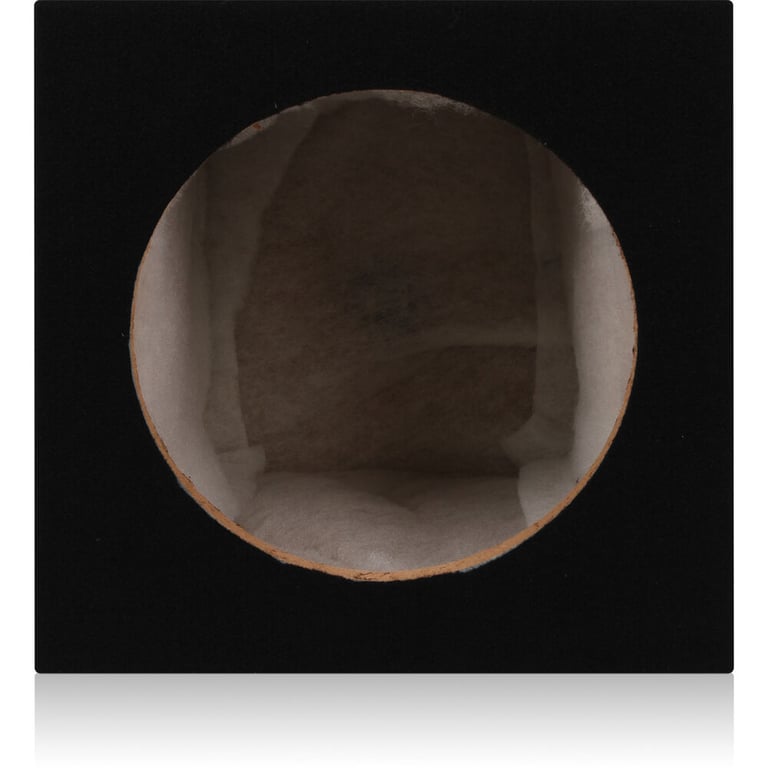

• Pre-lined with Poly-Fil
• Seams are fully caulked for better efficiency

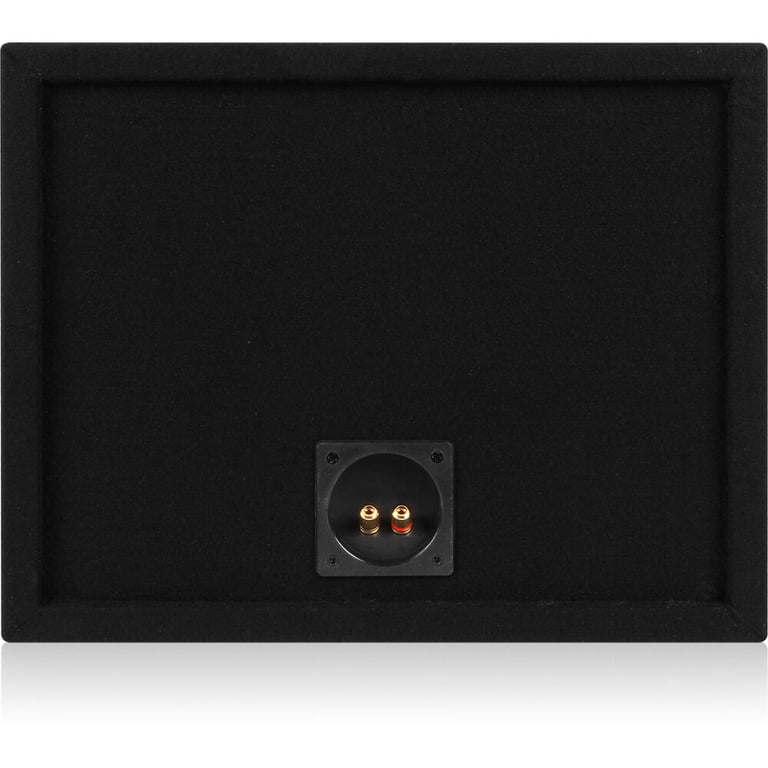

• Gold post terminals for clean and easy wiring access
• Box Dimensions: 14-1/4"L x 17-7/16"D x 12-7/16"H
• 30 Day return policy

Product Details:

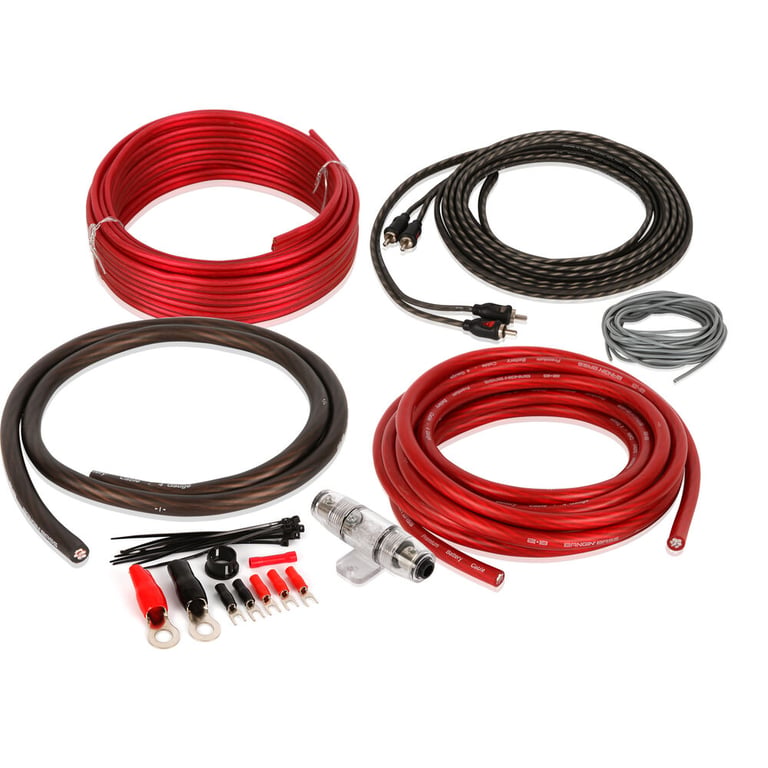

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Belva CCA wire is made from 30% copper while the competition uses only 10%
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
• Complies to American Wire Gauge standards
• Also available in Blue and Red
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

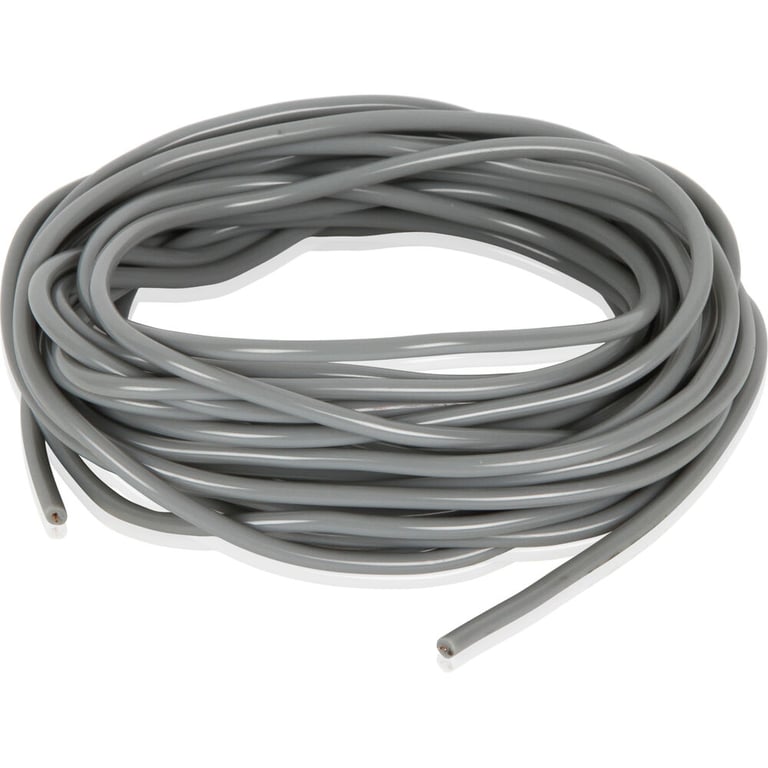

1. 17 ft. (5.2 meters) Gray 4 gauge power wire

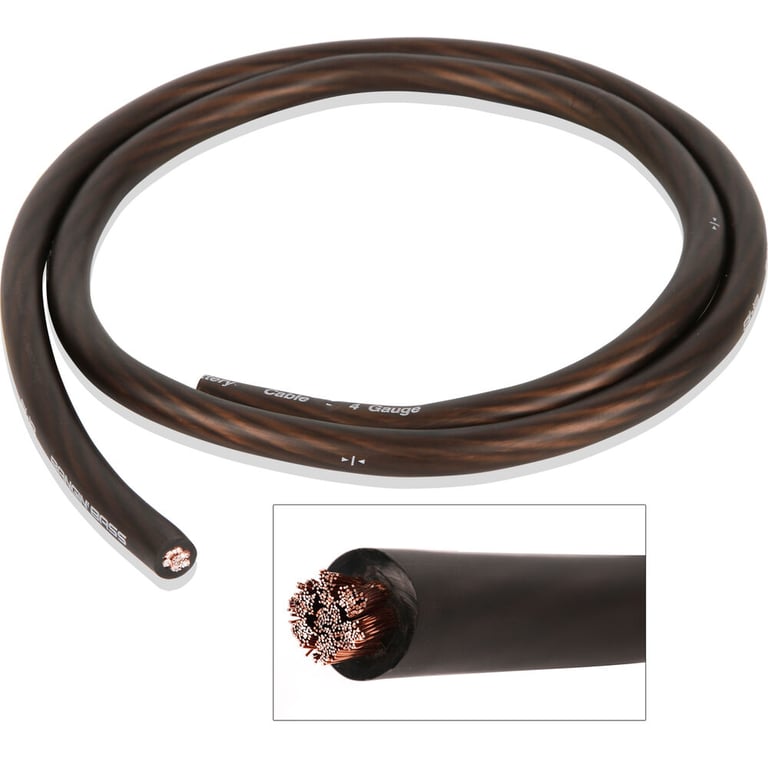

2. 3 ft. (.91 meters) Black 4 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

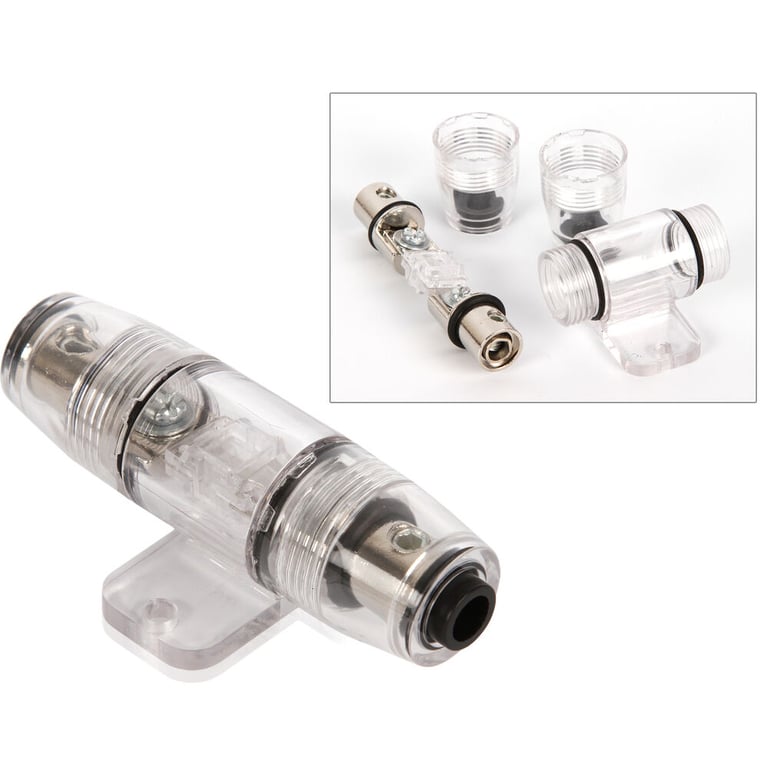

6. One MINI-ANL Fuse Holder with a 80 amp fuse
7. One Black rubber firewall grommet
8. One 4 Gauge Blue chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
