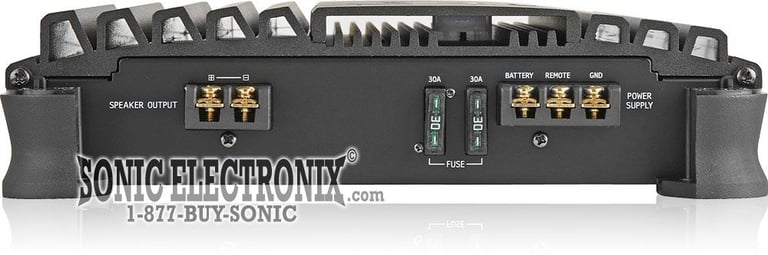

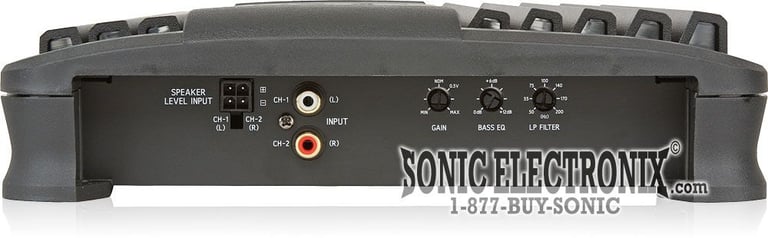

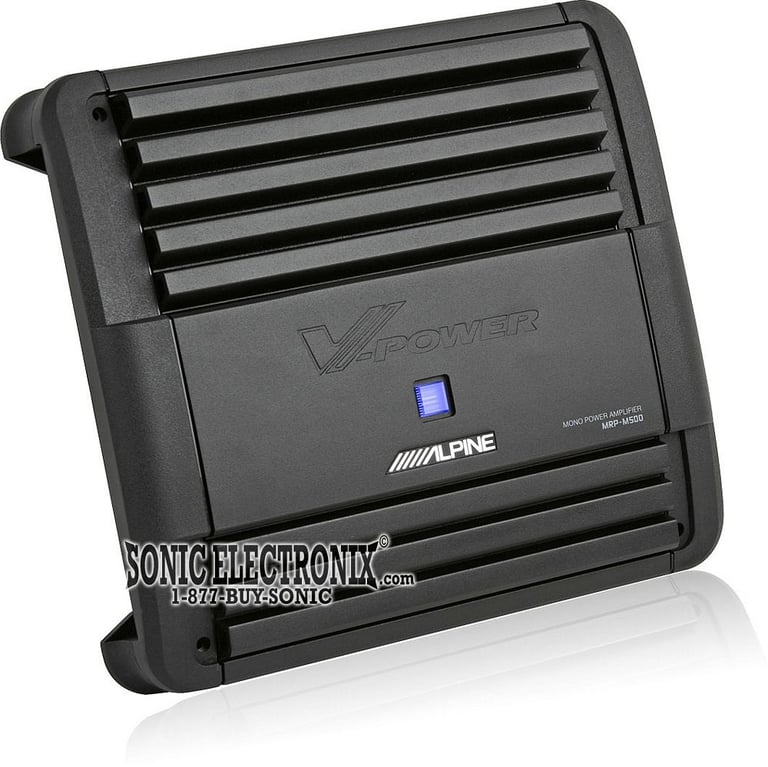

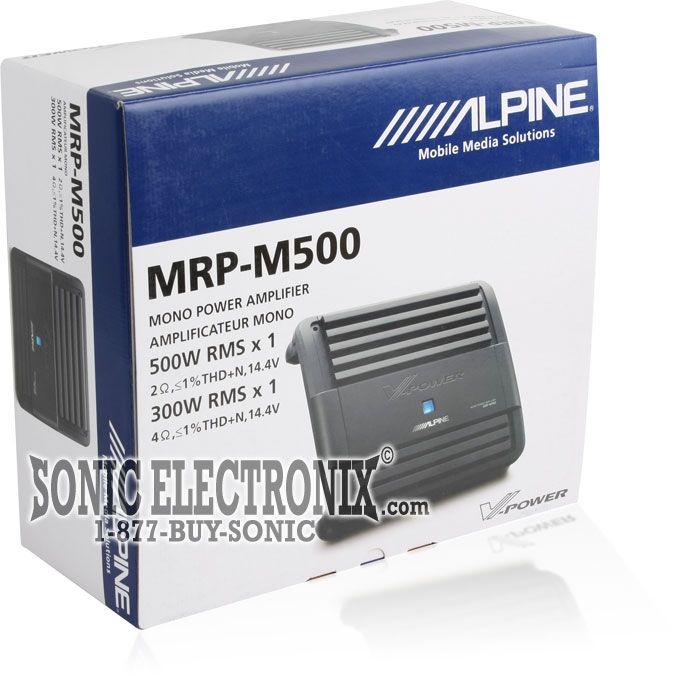

Alpine MRP-M500

500W RMS Class D Monoblock Amplifier

Alpine
Shop all Alpine
Product videos
highlight-star-icon

bull; 300W x 1 chan. @ 4 ohm
• 500W x 1 chan. @ 2 ohm
• 1000W x 1 chan. Max approx.
• MOSFET Power supply
• Bass EQ 0-12dB at 50Hz
• Continuously adjustable gain control
• Thermal management control

Learn more about the mrpm500

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

mrvm500 thumbnail

Alpine MRV-M500

OUR PRICE: $199.99

View item

Loading...
VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-31.25%

$54.99

List price $79.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

Limited time!

JVC CS-J6820

500W Peak (60W RMS) 6x8” J-Series 2-way 3-ohm Coaxial Car Speakers

3
-36.72%

$49.99

List price $79.00

Product Highlights


bull; 300W x 1 chan. @ 4 ohm
• 500W x 1 chan. @ 2 ohm
• 1000W x 1 chan. Max approx.
• MOSFET Power supply
• Bass EQ 0-12dB at 50Hz
• Continuously adjustable gain control
• Thermal management control

Description


Alpine brand icon

Authorized dealer

Product Features:

  • V-Power Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • Max power output: 1000 watts x 1 chan. approx.
  • Pulse width modulated (PWM) MOSFET Power supply
  • Blue LED power indicators
  • Tuned Bass EQ (0-12 dB bass boost at 50 Hz)
  • STAR Board circuitry (minimizes internal noise and prevents ground interference)
  • Continuously adjustable gain control
  • Speaker level inputs and flush mount controls make installation a breeze
  • Dual sided glass epoxy PC Board
  • Thermal management control
  • Heat sinks along with the thermal processor monitor the amplifiers temperature
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Adjustable low-pass filter (50-200Hz, 24 dB/octave)
  • Subsonic Filter (24 dB at 15 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-200 Hz
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Alpine products are warranted solely by Sonic Electronix, Inc. under the same period and terms as the original Alpine warranty. Sonic Electronix is not an Authorized Alpine Dealer and Alpine requires all merchandise purchased by Sonic Electronix customers to be returned solely to Sonic Electronix. Alpine products are also covered by our Standard Return Policy for returns on exchanges or refunds within 30 days from the date of purchase.

Product history:

Alpine MRV-M500 thumbnail
(newest, current model)
Alpine MRP-M500 thumbnail
(previous model, replaced by Alpine MRV-M500)
Alpine MRP-M650 thumbnail
(previous model, replaced by Alpine MRP-M500)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
500 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Subsonic Filter
15 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

MRP-M500

Weight:

11.00lbs

Internal SKU:

mrpm500

Internal Product ID:

12018

Product and How-to Videos


Customer Ratings & Reviews


Alpine MRP-M500 thumbnail image

5 star
83%
4 star
14%
3 star
3%
2 star
0%
1 star
0%



Durability
4.9
Value
4.7
Features
4.6
Design
4.7
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great amp

I got 1 of this back in dubai together with a single 12" type S & Yup! they can rattle my 98 grand cherokee :) it was loud! So I recomended this to a good friend of mine & paired it with his 10" type R in a '95 subaru impreza, he was glad indeed :) but if you wanted extra clean and loud bass, i recomend to take the Alpine PDX. :)

By clean car & a subwoofer on December 16, 2011

73 found this helpful


Great Amplifier!

I jut purchased this and it looks amazing i can't wait to go install this baby!!

By Jose on February 9, 2013

69 found this helpful


Awsome Amp!

I have currently own this amp for 4 years and it's awesome! I had a rockford P3 12 and It blew it. So I stepped up an alpine type R 15 and it hits great. I messed up though and bought the 2 ohm sub instead of the 4 ohm. So in stead of 500 watts I'm only getting 300. But with that said it out performs my buddies Rockford p3 15 and on half the power! Deffinantly recommend this amp!

By FLEETNUTS on September 21, 2012

67 found this helpful


Bang for the buck!

This amp powers two JL 12 w1's quite nicely. I bought this amp because I was looking for a clean power for JL. This amp does it - and on a budget! I can jam hard and it never gets hot.

The single blue light on the front also looks bossy. This amp is the way to go.

By KG on March 23, 2012

63 found this helpful


Very slick amp!

I own a couple of Alpine amps for my system (MRX-F30 for highs and MRP-500 for sub). The amps look almost identical and when installed adjacent to each other, it's a beautiful pair! These Alpine amps' size look deceiving, because once you hold them up, you'll realize that they're as solid as a brick...very good quality comstruction. I currently have my MRP-500 powering a single IDQ12 DVC @2 ohms in a sealed box. All the signal is controlled through my Clarion EQS746 EQ. Boy does it really rock the car! I only have the gain up 50% in order to match my highs. I tuned it with my sound test cd at high volume, so I know it can kick A LOT harder than how I'm currently setting it up, but then it's a totally SQ system. Still, I don't play it loud in my neighborhood because I don't want any attention and don't wanna bother anyone. I think the most important thing if you're planning to purchase this amp is that you need to pick your subwoofer carefully. Make sure the sub you're gonna use with it is 2 ohms and rated for around 500w RMS in order to harness the maximum performance out of your equipment. I believe this amp truly puts out at least 500w RMS of pure power, so it will likely blow most low-power subwoofers at prolonged high volume. This series of Alpine Class D amps seem to be extremely efficient, not affecting my car's electrical system one bit, even at my max listening levels.

The only negative thing I could say about this amp is the design of the power terminals. It's a set of standard screw-down plates, not unlike the ones you'll find on most speaker terminals. However, it could accommodate an 8 ga power and ground cable without much problems. To ensure maximum connectivity, make sure to crimp appropriately-sized spade terminals on your 8 ga cables, then screw it down tight. My main power cable is a fused 4 ga, ran down to the trunk where it is splitted by a fused distributor block into 8 ga cables for wiring to the amps. Works like a charm.

By DeeVee on March 5, 2013

62 found this helpful


Well worth the price.

I'm not a huge mobile audio expert, but this amp seems to do the job for me. Plenty of power for my taste, when I do crank it up it really does not get that warm. My friends who are big mobile audio fans think this is a great amp, and one I should hang onto for a long time.

By R on March 10, 2012

60 found this helpful


Compact and Clean

Ran this amp on a few different setups and never failed. Clean compact and simple. Running bigger amps now, but still keep one on the shelf.

By Rum Runner on May 18, 2013

58 found this helpful


Awesome power for a little guy

Awesome sub... Installed in kia optima 2011 in a 0.749 cubic ft angled single sealed box (Metra S110SE)with a very tight fit but worked. Powered by a alpine MRP-M500 500 watts at 2ohms. I cant believe the sound clarity and thump from jazz to trance to rap out of such a small sealed box. I had dual 12's in a ported 4 ft box back in the day with a 1200 watt amp. I have many friends with aftermarket stereos and all cant believe the quality and loudness it can handle for the size. This amp does not even get warm and pushes hard. I would say if you need a true 500 clean watts get this little guy. Fits under seats with no prob.

By Don on April 18, 2011

57 found this helpful


Awesome and very cool running.

This amp was very easy to install setup, tune. Everything. It sounds great, it looks great and runs super efficiently. I have it in a closed area and it never overheats, and I push it too! I really like this amp!

By Joshua on December 19, 2011

57 found this helpful


great amp

This amp runs very well and is very durable and puts out a ton of power for its size.

By Alexander on November 30, 2012

55 found this helpful




LEX9VT2 small

GROM Audio LEX9VT2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2018-2023 vehicles from Lexus

$549.95

List price $559.95

99-2008 small

Metra 99-2008 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2006-2011 DTS and SRX (Charcoal)

(2)

$64.99

List price $72.99

72-1002 small

Metra 72-1002

Install New Speakers in select 1990-2002 vehicles from Dodge, Jeep, Oldsmobile

(13)

$10.99

List price $14.99

CL10S small

Diamond Audio CL10S

4 Pack of Extruded Aluminum 1.0" Clamp Rings (Silver)

$69.99

List price $59.99

230-KX-F65V small

SSV Works KX-F65V

320W Peak Loaded Single 6.5" Front Kick Speaker Pods for select 2014-2023 RZR XP

$479.99

List price $479.99

LEX78VT2 small

GROM Audio LEX78VT2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2012-2020 vehicles from Lexus

$549.95

List price $559.95

MS65NEO small

Diamond Audio MS65NEO

1200W Peak (600W RMS) 6.5" MS Series Midrange 4-ohm Car Speakers

(1)

$769.99

List price $699.99

HXM65F4 small

Diamond Audio HXM65F4

500W Peak (250W RMS) 6.5” HXMF Series 2 Way Coaxial 4-ohm Marine and Powersport Speakers

$459.99

List price $439.99

GT1500D small

Boss GT1500D

1500W Max, RiOT GT Series Class D Monoblock Amplifier (GT-1500D)

(2)

$122.99

List price $249.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Ford Flex

2008 Audi A3

2016 Buick Envision

2021 Ford Mustang

2006 Audi A3

2012 Ram 2500

2003 Ford Ranger

2001 Subaru Forester

2017 Ford C-Max

2010 Dodge Nitro

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
